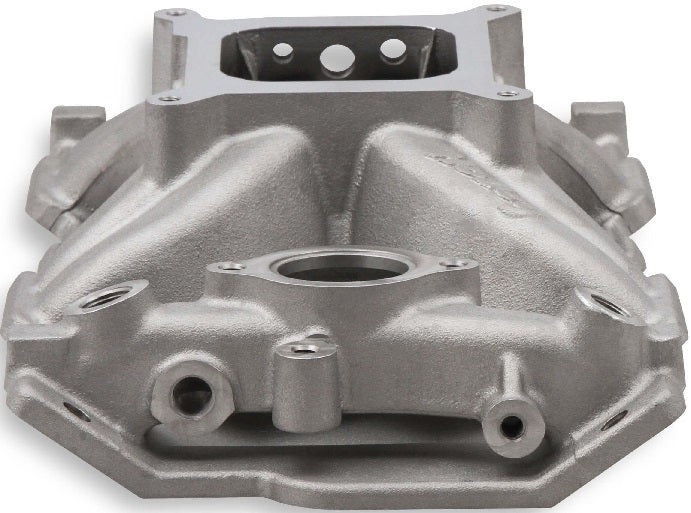

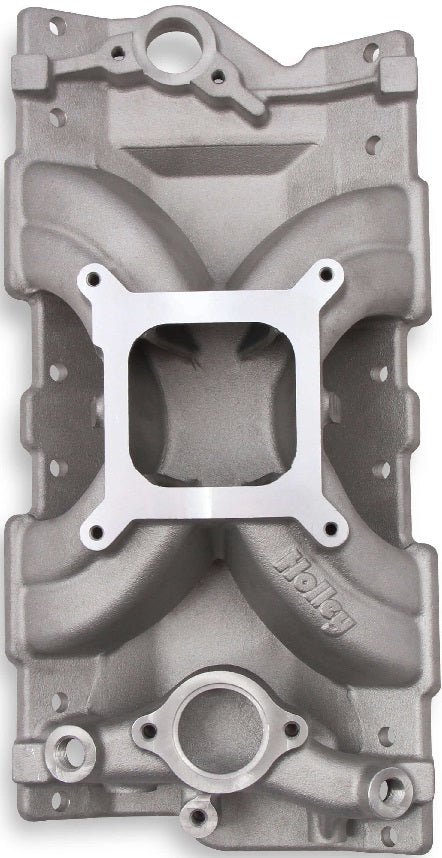

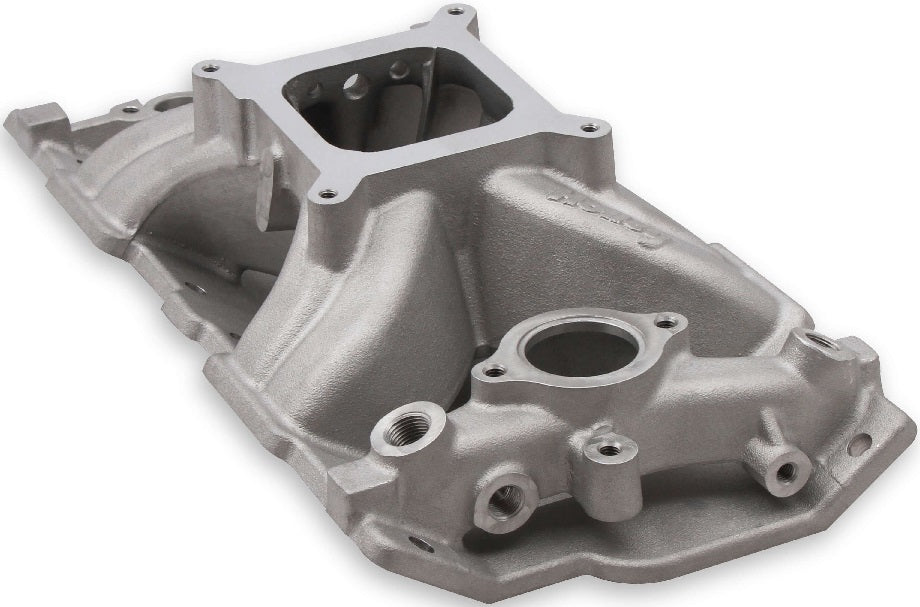

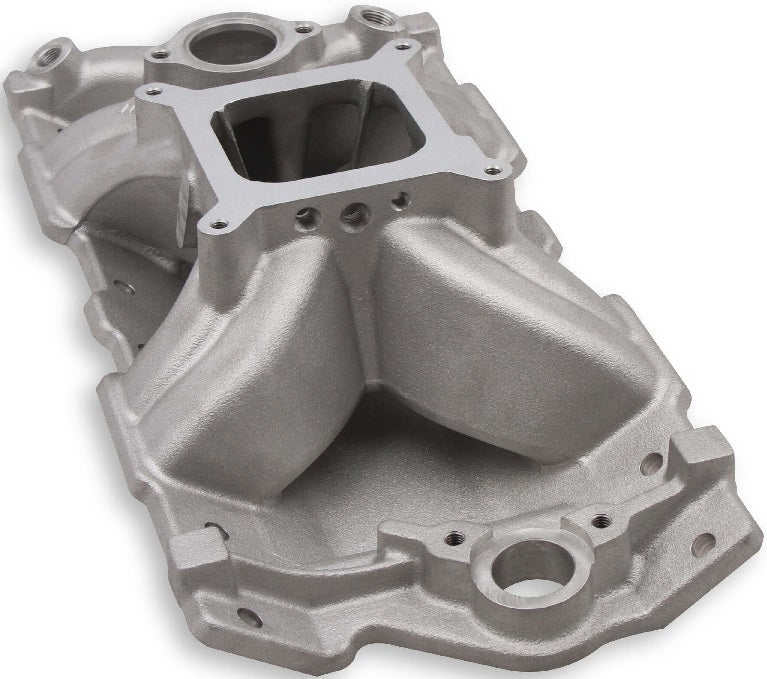

INTAKE MANIFOLD,SBC,SINGLE PLANE

BRAND NEW HOLLEY SINGLE PLANE INTAKE MANIFOLD, SILVER SATIN FINISH, 4.18" FRONT HEIGHT, 262CI-400CI, COMPATIBLE WITH CHEVROLET SMALL BLOCK GEN I

THE NEW SINGLE PLANE INTAKE MANIFOLD IS DESIGNED TO PROVIDE A BROAD RPM POWERBAND FOR HIGH-PERFORMANCE STREET/STRIP ENGINE APPLICATIONS TO A MAXIMUM ENGINE SPEED OF 7500 RPM. THE CARBURETOR-MOUNTING PAD IS DESIGNED TO ACCEPT ALL STOCK OR AFTERMARKET SQUARE-BORE CARBURETORS WITH MANUAL OR ELECTRIC CHOKES.

THESE INTAKE MANIFOLDS ARE DESIGNED TO ACCEPT MOST STOCK HARDWARE AND ACCESSORY BRACKETS, BUT OFFER PERFORMANCE FEATURES; LIKE AN UPDATED PLENUM DIVIDER AREA, A 1" SHORTER HEIGHT THAN THE 300-25 MANIFOLD, AND A CHOICE OF TWO DISTRIBUTOR CLAMP LOCATIONS. THE ISOLATED DESIGN OF THE AIR/FUEL PASSAGES HELPS TO INCREASE CHARGE AIR DENSITY AND PERFORMANCE.

DESIGNED FOR SQUARE-BORE CARBURETOR APPLICATIONS ON 1957-86 262-400CID SMALL BLOCK CHEVROLET ENGINES & ENGINES EQUIPPED WITH 87-91 L98 ALUMINUM CORVETTE CYLINDER HEADS (NON-EGR APPLICATIONS). ALSO, THESE MANIFOLDS WILL WORK WITH ANY SBC ENGINE EQUIPPED WITH AFTERMARKET CYLINDER HEADS, AS LONG AS THEY HAVE A STANDARD PORT FLANGE OPENING AND MOUNTING BOLT LOCATIONS.

NOTE: MODIFICATION TO THE VALVE COVERS MAY BE REQUIRED WHEN THIS MANIFOLD IS USED WITH SOME TYPES OF CYLINDER HEADS.

FEATURES:

• SINGLE PLANE WITH ISOLATED PLENUM
• SQUARE BORE CARBURETOR MOUNTING FLANGE
• ISOLATED WATER CROSS-OVER
• POWER BAND: 2500-7500 RPM
• HEIGHT: FRONT 4.18", REAR 5.28"
• PORT SIZE: 1.92" HEIGHT 1.20" WIDTH

SPECS:

• BARRELS: 4
• FINISH/CONSTRUCTION: SATIN CAST
• ENGINE: CHEVROLET SMALL BLOCK GEN I
• FRONT HEIGHT: 4.18"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: MANIFOLD
• REAR HEIGHT: 5.28"
• RPM POWER BAND: 2500-7500 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
