INTAKE MANIFOLD KIT,351W,HI-RAM,105MM,BLACK

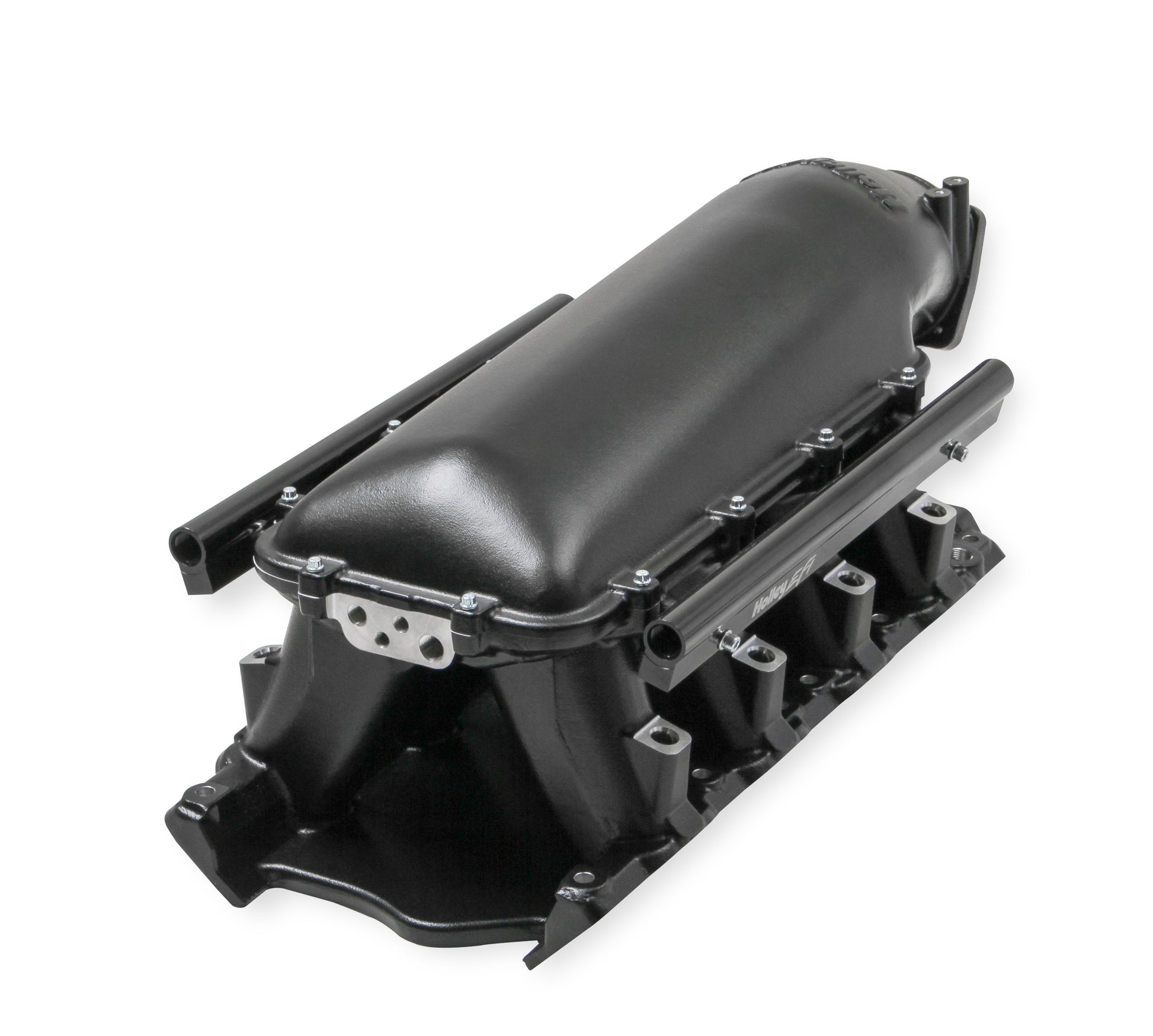

BRAND NEW HOLLEY 351W HI-RAM EFI INTAKE MANIFOLD, BLACK FINISH, 105MM LS THROTTLE BODY FLANGE TOP, COMPATIBLE WITH FORD 351W ENGINES

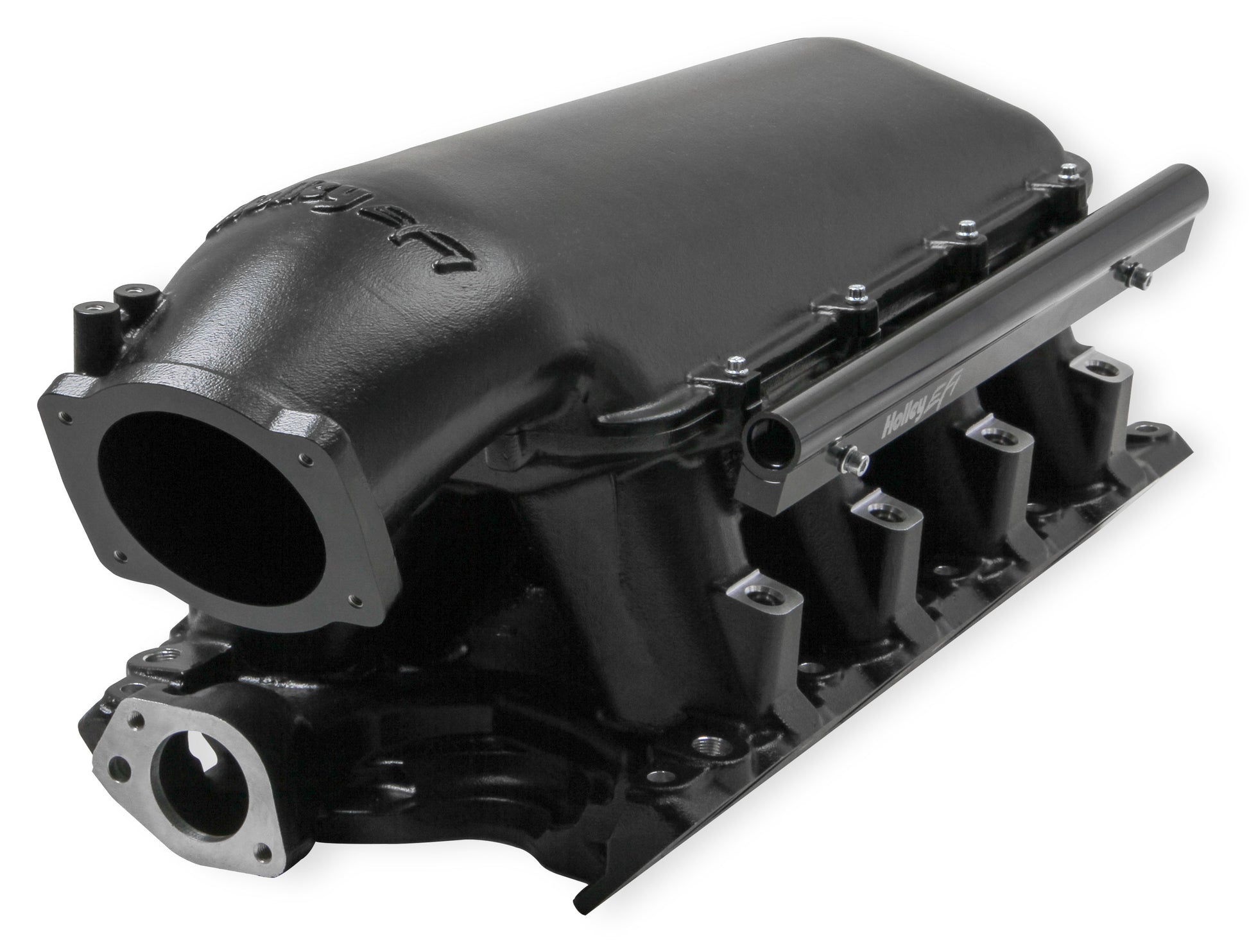

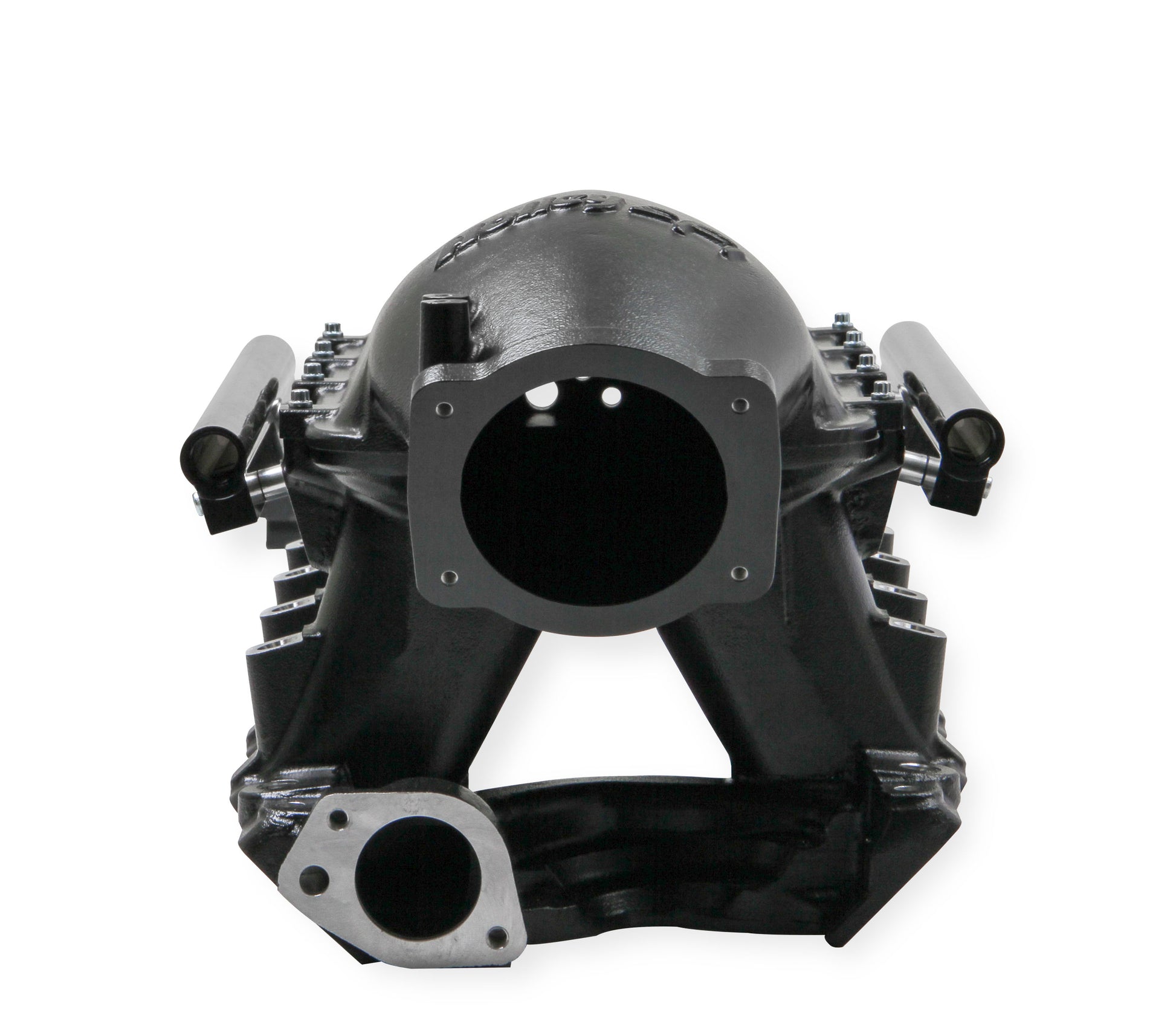

THE EFI HI-RAM MANIFOLD COMES WITH A 105MM LS THROTTLE BODY FLANGE TOP. THE RUNNER LENGTH & TAPERED CROSS SECTION DESIGN WILL PERFORM WELL FOR A WIDE RANGE OF ENGINE COMBINATIONS. THE REDESIGNED WATER CROSSOVER PASSAGE ALLOWS ROOM FOR DISTRIBUTOR PHASING.

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION ARE REFERENCING OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE THE PRODUCT IMAGES FOR OTHER DIMENSIONS.

NOTE: MANY FORD VEHICLE MODELS WERE ORIGINALLY EQUIPPED WITH A HEATER CORE FLOW RESTRICTOR LOCATED AT EITHER THE ORIGINAL HEATER HOSE FITTING IN THE FACTORY INTAKE OR INLINE IN THE INLET HEATER HOSE WHICH PROTECTS THE HEATER CORE FROM DAMAGE. IF YOU ARE REPLACING THE HOSES BETWEEN THE ENGINE & HEATER CORE OR CHANGING THE FACTORY FITTING CHECK TO SEE IF YOUR APPLICATION REQUIRES A FLOW RESTRICTOR. FAILURE TO USE THE PROPER FLOW RESTRICTOR WILL LIKELY RESULT IN A DAMAGED OR LEAKING HEATER CORE.

FEATURES:

• 351W MANIFOLD IS AVAILABLE FOR 95MM OR 105MM GM LS THROTTLE BODIES

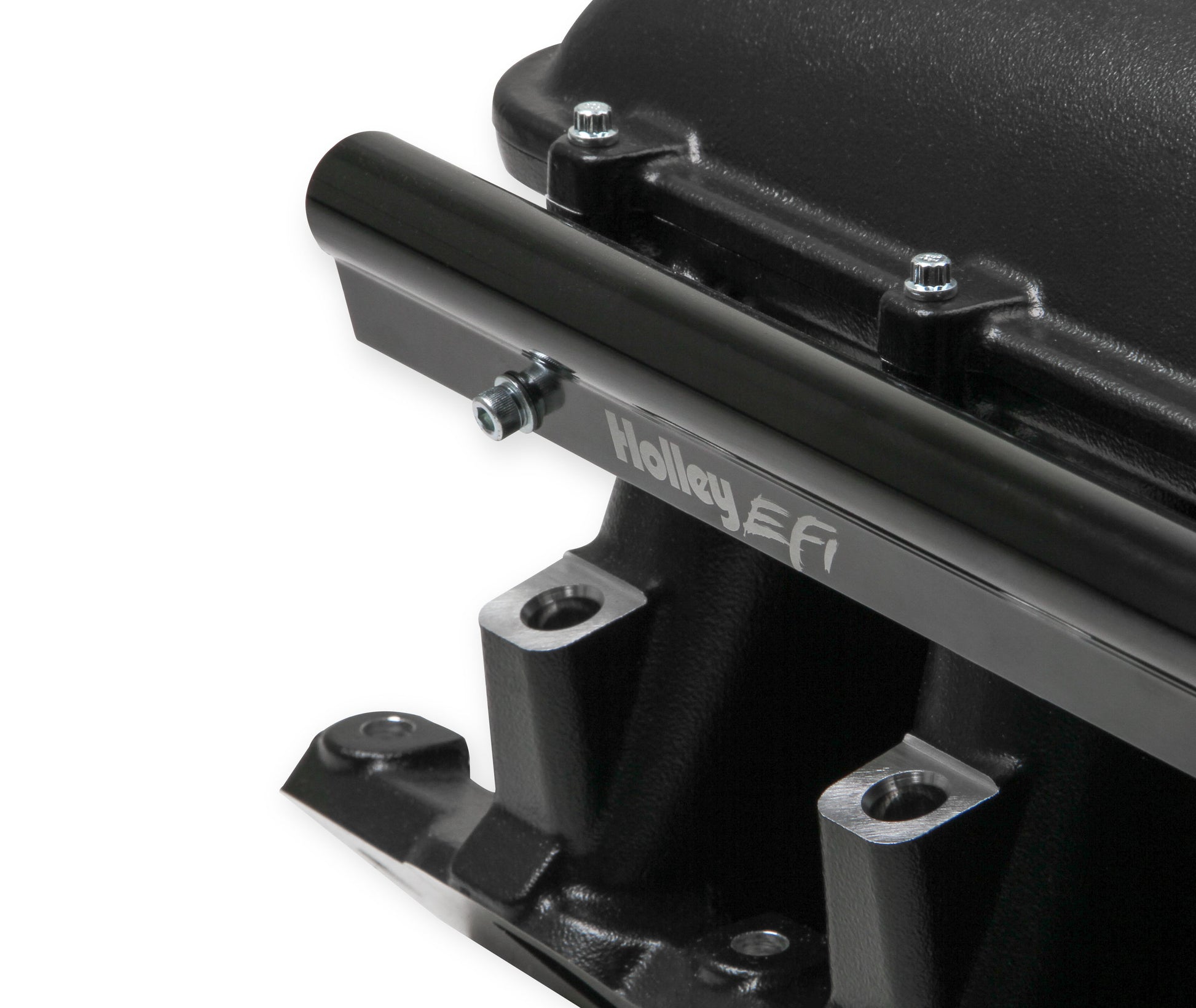

• EFI FUEL RAILS ARE MACHINED FOR -8AN O-RING FITTINGS WITH PASSAGES LARGE ENOUGH TO ACCOMMODATE HIGH FUEL FLOWS & DAMPEN PRESSURE PULSATIONS IN FUEL SYSTEM & COME STANDARD WITH EFI HI-RAM KITS
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• MANIFOLD DESIGNED FOR 9.5" DECK HEIGHT
• MANIFOLD WIDTH - 11.32"
• REQUIRES USE OF HOLLEY EFI DUAL SYNC DISTRIBUTOR PART #565-111

SPECS:

• BRAND: HOLLEY EFI
• CONSTRUCTION: CAST
• ENGINE: FORD 351W
• FINISH: BLACK
• FLANGE STYLE: EFI
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PORT SIZE: 2.00" X 1.190"
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: 1500-7000
• THROTTLE BORE: 105MM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
