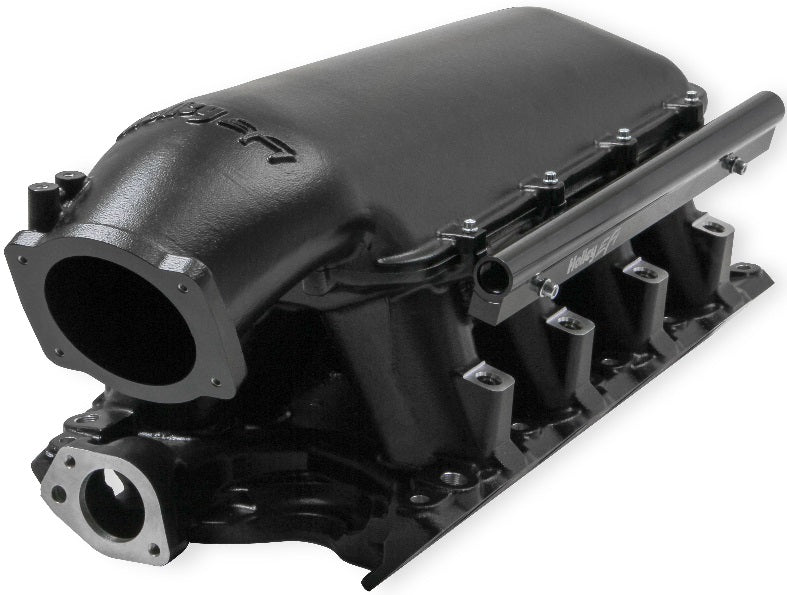

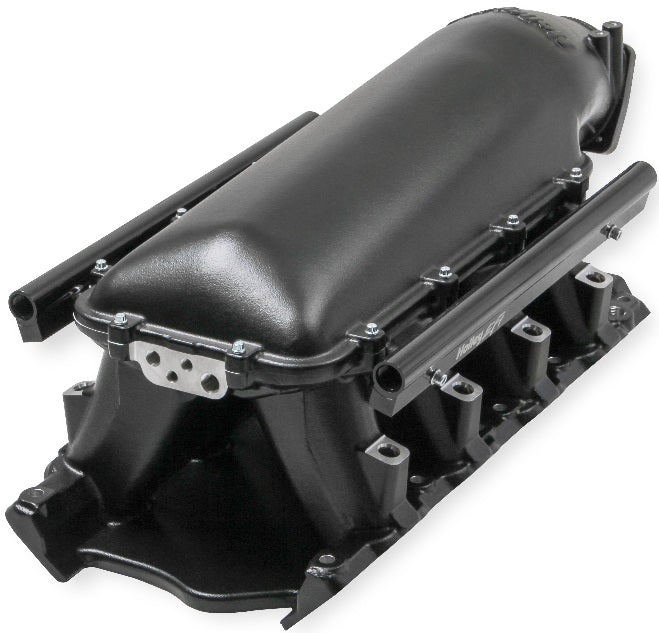

INTAKE MANIFOLD KIT,351W,HI-RAM,95MM,BLACK

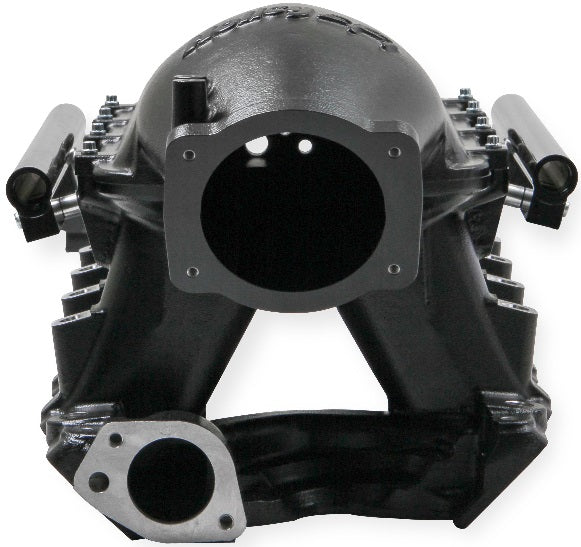

BRAND NEW HOLLEY EFI HI-RAM INTAKE MANIFOLD, BLACK FINISH, 9.5" DECK, 95MM LS THROTTLE BODY FLANGE TOP, COMPATIBLE WITH 351W FORD ENGINES

THIS MANIFOLD COMES WITH A 95MM LS THROTTLE BODY FLANGE TOP. THE RUNNER LENGTH AND TAPERED CROSS SECTION DESIGN WILL PERFORM WELL FOR A WIDE RANGE OF ENGINE COMBINATIONS. THE ENGINEERING TEAM ALSO REDESIGNED THE WATER CROSSOVER PASSAGE TO ALLOW ROOM FOR DISTRIBUTOR PHASING.

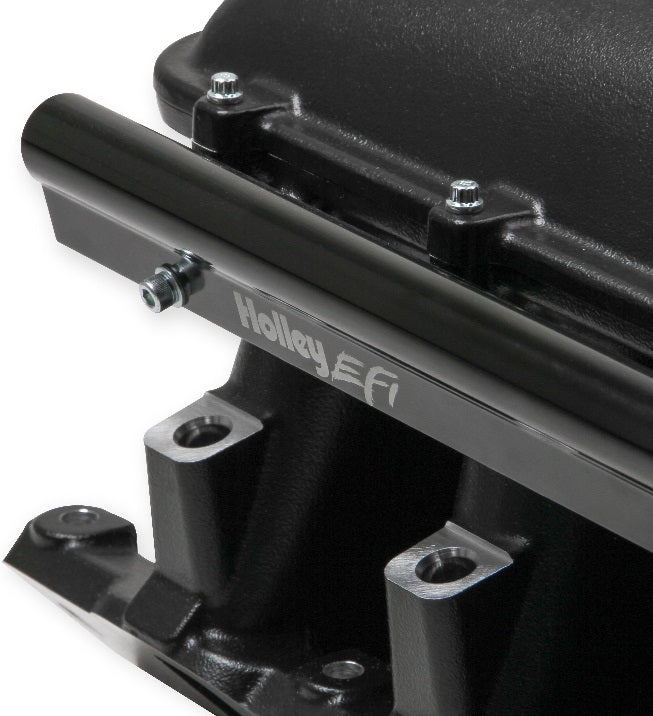

MANIFOLD IS DESIGNED FOR A 9.5" DECK HEIGHT, WIDTH IS 11.32". RUNNER LENGTH AND THE TAPERED CROSS-SECTION DESIGNED TO PERFORM WELL FOR A WIDE RANGE OF ENGINE CONFIGURATIONS. EFI FUEL RAILS ARE MACHINED FOR -8AN O-RING FITTINGS WITH PASSAGES LARGE ENOUGH TO ACCOMMODATE HIGH FUEL FLOWS AND DAMPEN PRESSURE PULSATIONS IN THE FUEL SYSTEM AND COME STANDARD WITH EFI HI-RAM KITS. CAST ALUMINUM CONSTRUCTION WITH BLACK FINISH.

NOTE: REQUIRES USE OF HOLLEY EFI DUAL SYNC DISTRIBUTOR PART #565-111.

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION REFERENCE THE OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE DIAGRAMS IN PRODUCT IMAGES FOR OTHER DIMENSIONS.

NOTE: MANY FORD VEHICLE MODELS WERE ORIGINALLY EQUIPPED WITH A HEATER CORE FLOW RESTRICTOR LOCATED AT EITHER THE ORIGINAL HEATER HOSE FITTING IN THE FACTORY INTAKE OR INLINE IN THE INLET HEATER HOSE WHICH PROTECTS THE HEATER CORE FROM DAMAGE. IF YOU ARE REPLACING THE HOSES BETWEEN THE ENGINE & HEATER CORE OR CHANGING THE FACTORY FITTING CHECK TO SEE IF YOUR APPLICATION REQUIRES A FLOW RESTRICTOR. FAILURE TO USE PROPER FLOW RESTRICTOR WILL LIKELY RESULT IN A DAMAGED OR LEAKING HEATER CORE.

FEATURES:

• COMES STANDARD WITH EFI HI-RAM KITS
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• MANIFOLD IS DESIGNED FOR A 9.5" DECK HEIGHT

SPECS:

• BRAND: HOLLEY EFI
• CONSTRUCTION: BLACK CAST
• ENGINE: FORD 351W
• FLANGE STYLE: EFI
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PORT SIZE: 2.00" X 1.190"
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: 1500-7000
• THROTTLE BORE: 95MM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE HERE.
