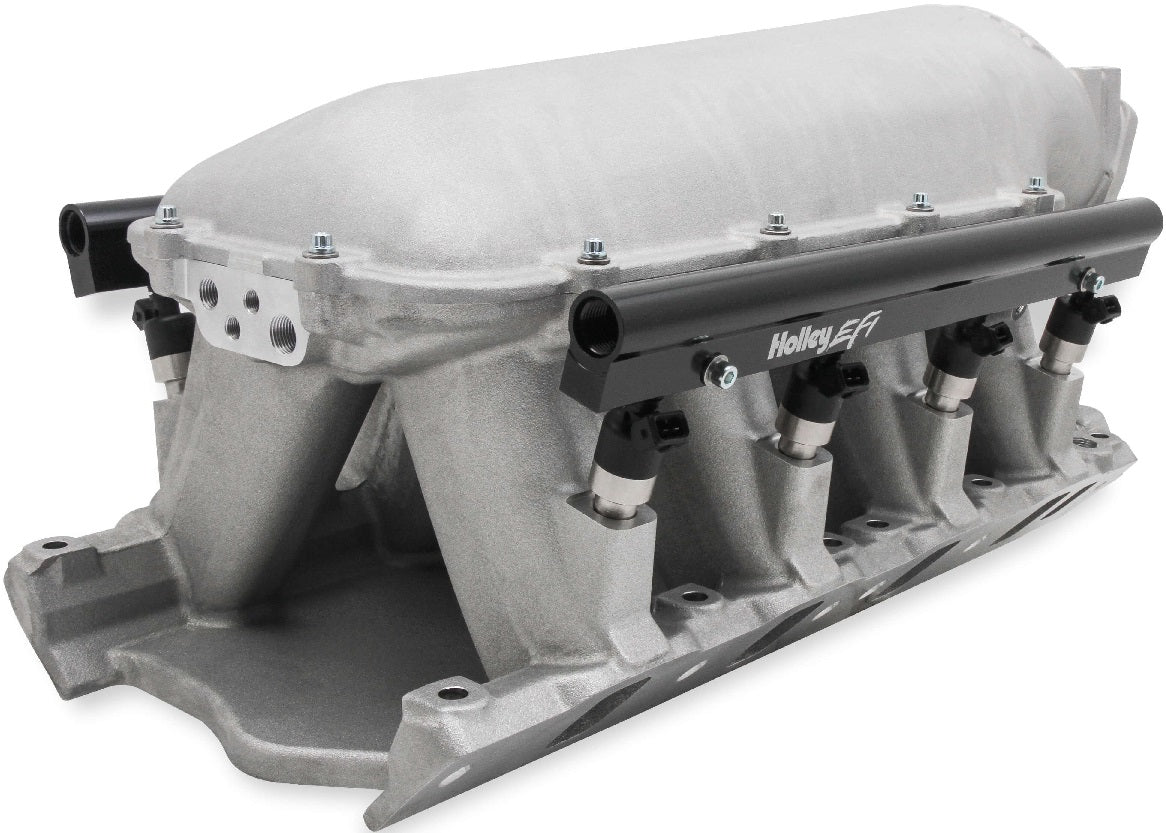

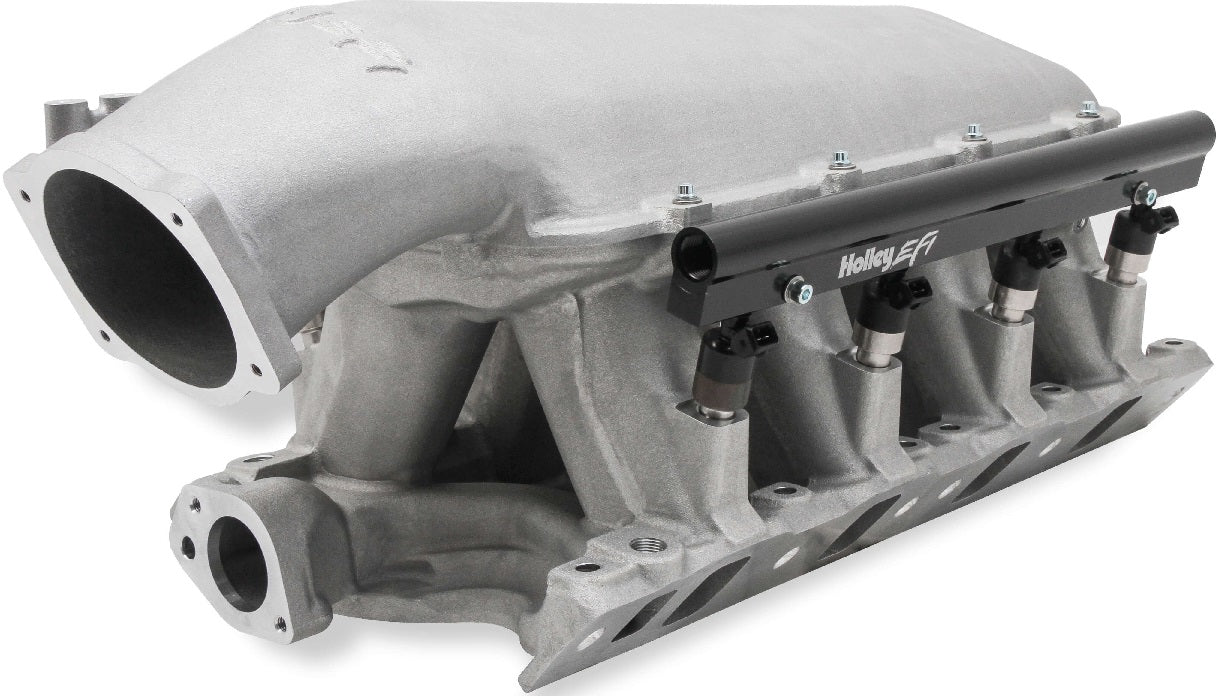

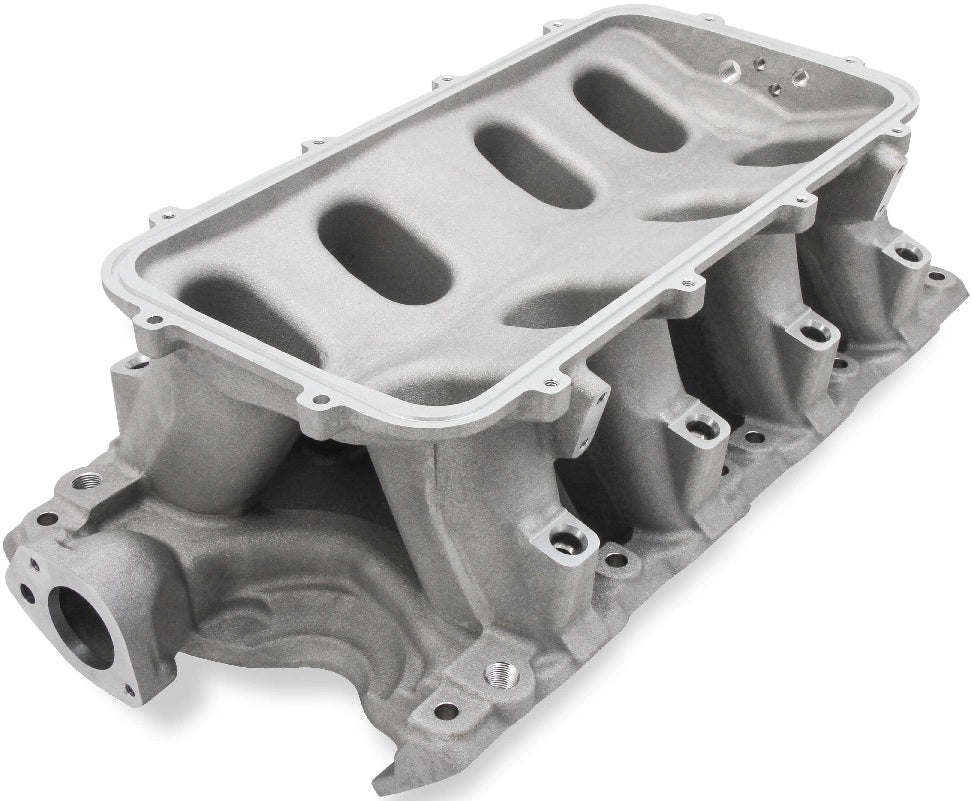

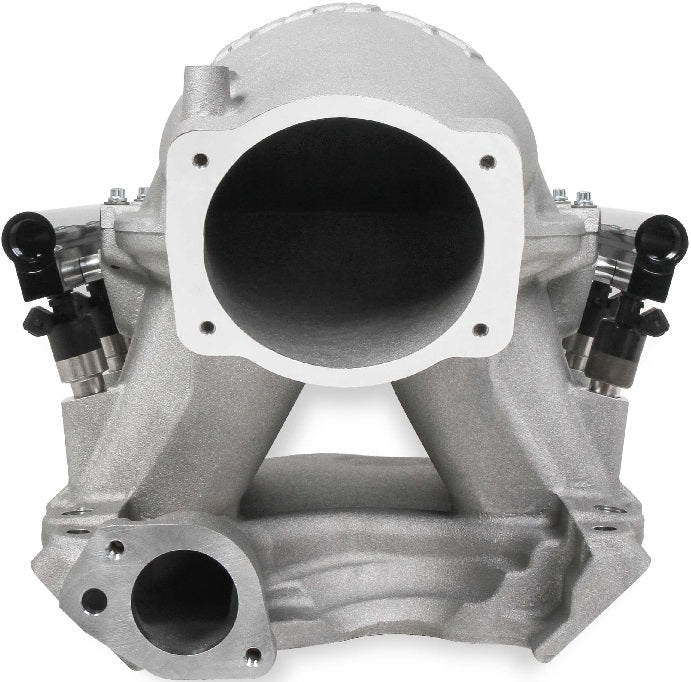

INTAKE MANIFOLD KIT,351W,HI-RAM,95MM,SATIN

BRAND NEW HOLLEY HI-RAM EFI INTAKE MANIFOLD, SILVER SATIN FINISH, 95MM GM LS THROTTLE BODY FLANGE TOP, COMPATIBLE WITH FORD 351W ENGINES

THE EFI HI-RAM MANIFOLD LINE HAS A NEW ADDITION FOR THE 351W FORD APPLICATION. COMES WITH A 95MM LS THROTTLE BODY FLANGE TOP. THE RUNNER LENGTH AND TAPERED CROSS SECTION DESIGN WILL PERFORM WELL FOR A WIDE RANGE OF ENGINE COMBINATIONS.

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION ARE REFERENCING OVERALL HEIGHT WITH TOP PLATE INSTALLED. PLEASE SEE THE DIAGRAMS IN THE PRODUCT IMAGES FOR OTHER DIMENSIONS.

NOTE: MANY FORD VEHICLE MODELS WERE ORIGINALLY EQUIPPED WITH A HEATER CORE FLOW RESTRICTOR LOCATED AT EITHER THE ORIGINAL HEATER HOSE FITTING IN THE FACTORY INTAKE OR INLINE IN THE INLET HEATER HOSE WHICH PROTECTS THE HEATER CORE FROM DAMAGE. IF YOU ARE REPLACING HOSES BETWEEN THE ENGINE & HEATER CORE OR CHANGING FACTORY FITTING CHECK TO SEE IF YOUR APPLICATION REQUIRES A FLOW RESTRICTOR. FAILURE TO USE THE PROPER FLOW RESTRICTOR WILL LIKELY RESULT IN A DAMAGED OR LEAKING HEATER CORE.

FEATURES:

• THE 351W MANIFOLD IS AVAILABLE TO WORK WITH 95MM GM LS THROTTLE BODIES
• EFI FUEL RAILS ARE MACHINED FOR -8AN O-RING FITTINGS WITH PASSAGES LARGE ENOUGH TO ACCOMMODATE HIGH FUEL FLOWS AND DAMPEN PRESSURE PULSATIONS IN THE FUEL SYSTEM AND COME STANDARD WITH EFI HI-RAM KITS
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• MANIFOLD IS DESIGNED FOR A 9.5" DECK HEIGHT

SPECS:

• BRAND: HOLLEY EFI
• CONSTRUCTION: CAST
• ENGINE: FORD 351W
• FINISH: SATIN
• FLANGE STYLE: EFI
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PORT SIZE: 2.00" X 1.190"
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: 1500-7000
• THROTTLE BORE: 95MM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
