HI-RAM INTAKE MANIFOLD,GM GEN V LT1,105MM

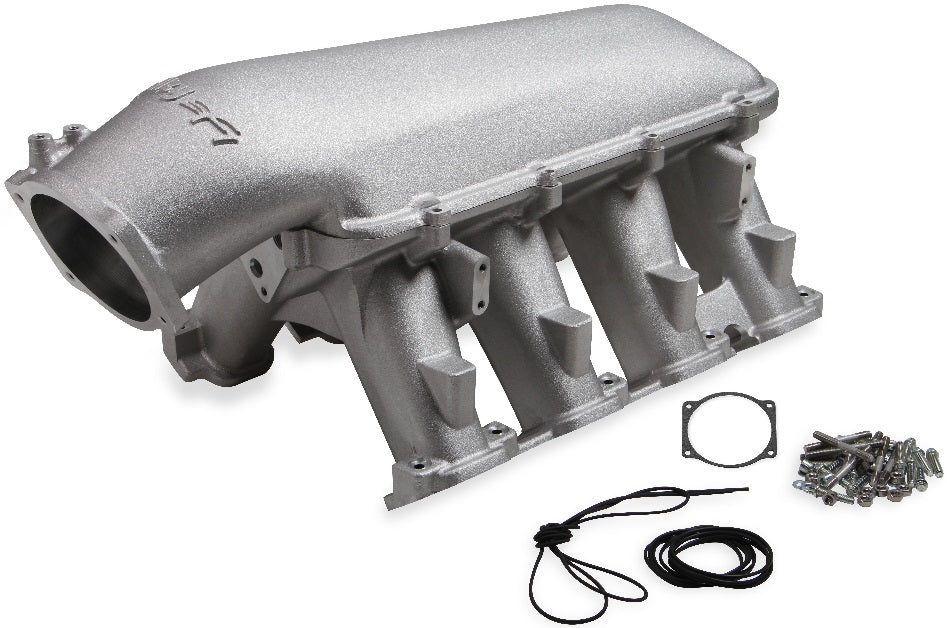

BRAND NEW HOLLEY HI-RAM INTAKE MANIFOLD, SILVER SATIN FINISH, 1X105MM LS THROTTLE BODY, LONGITUDINAL MOUNT WITHOUT PORT EFI PROVISIONS, COMPATIBLE WITH GM V LT1 ENGINES

THE NEW HOLLEY EFI HI-RAM INTAKE PROVIDES THE ULTIMATE PERFORMANCE WITH THE NEW GM DIRECT INJECTED GEN V 6.2L LT1 ENGINE. THE MODULAR DESIGN OF THIS MANIFOLD ALLOWS EASY DISASSEMBLY FOR CUSTOM PORTING, MULTIPLE TOPS, OR CUSTOM INDUCTION SYSTEMS. EACH RUNNER HAS A LARGE RADIUS WHERE IT MEETS THE PLENUM, AND OPTIMIZED TAPER & CROSS-SECTIONAL AREA TO PERFORM IN A WIDE VARIETY OF ENGINE CONFIGURATIONS.

THE OPTIONAL INJECTOR BOSSES ON THE INTAKE RUNNERS ALLOW INCREASED PERFORMANCE POTENTIAL BY USING ADDITIONAL INJECTORS ALONG WITH THE FACTORY DIRECT INJECTION. WHEN YOU LOOK FOR THE PINNACLE OF PERFORMANCE, PRICE, AND QUALITY, LOOK TO HOLLEY EFI.

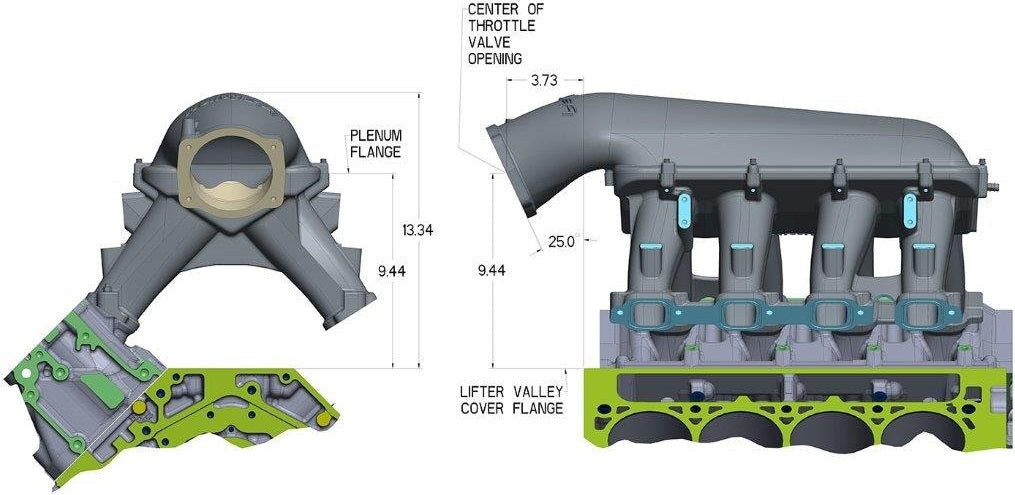

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION REFERENCE OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE IMAGES FOR OTHER DIMENSIONS.

FEATURES:

• MODULAR DESIGN WITH REMOVABLE TOP
• OVERALL HEIGHT: 13.34" (WITH EFI TOP - 95MM OR 105MM) - SEE IMAGES
• A-B HEIGHT: 12.10" (WITH CARB STYLE TOP - 2X4150 OR 2X4500) - SEE IMAGES
• HEIGHT AT PLENUM FLANGE: 9.44"
• PORT SIZE: 2.06" HIGH X 1.53" WIDE
• RUNNER LENGTH: APPROX. 6.5"
• LARGE PLENUM VOLUME OF 549 CUBIC INCHES (WITH 1X95MM OR 1X105MM THROTTLE BODY TOP)
• INTAKES WITH INJECTOR PORTS INCLUDE FUEL RAILS WITH DUAL MOUNTING (1.48" OR 2.56" O-RING TO O-RING INJECTOR LENGTH)
• FUEL RAILS ARE ANODIZED, LASER ETCHED & MACHINED FOR 8AN O-RING FITTINGS AT EACH END
• REAR OF PLENUM MACHINED FOR MAP & 3 VACUUM PORTS
• HEAD FLANGE HAS CLEARANCE FOR FUEL SUPPLY TO HIGH PRESSURE PUMP
• INCREASED RUNNER WALL THICKNESS FOR CUSTOM PORTING AT THE PLENUM TO RUNNER ENTRY ON EACH RUNNER
• O-RING SEALS AT CYLINDER HEADS & PLENUM TOP
• EASY ASSEMBLY WITH TOP MOUNTED SCREWS ON PLENUM TOP (ALL EXCEPT FRONT 2 SCREWS)
• 3500-8000+ RPM POWER BAND

SPECS:

• BRAND: HOLLEY EFI
• CONSTRUCTION: CAST
• ENGINE: GM GEN V LT1
• FINISH: SATIN
• FLANGE STYLE: EFI
• MANIFOLD TYPE: HI-RAM
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: 3500-8000+

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
