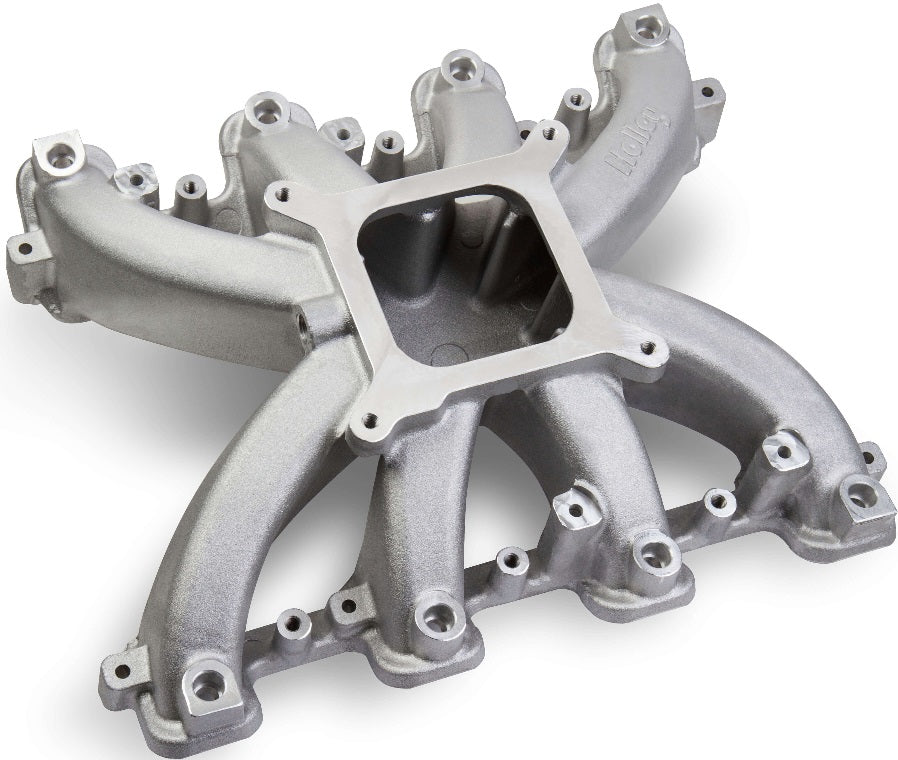

INTAKE MANIFOLD,LS3/L92,SINGLE-PLANE,4150,SATIN

BRAND NEW HOLLEY SINGLE PLANE EFI INTAKE MANIFOLD, SILVER FINISH, 4150 SQUARE BORE FLANGE, GM LS GEN III ENGINES WITH LS3-L92 STYLE RECTANGULAR PORT CYLINDER HEADS

SINGLE PLANE EFI LS INTAKE MANIFOLD. COMPATIBLE WITH ALL GM LS GEN III ENGINES EQUIPPED WITH LS3/L92 STYLE RECTANGULAR PORT CYLINDER HEADS.

FEATURES:

• 2500-7000 RPM POWER BAND
• 4150 SQUARE BORE FLANGE
• OPTIMIZED RUNNER LAYOUT AND CONSTANT CROSS SECTIONAL AREA - BROAD TORQUE CURVE, BEST VEHICLE PERFORMANCE FROM 2500-7000 RPM
• MINIMUM CARB FLANGE HEIGHT - VEHICLES WITH MINIMUM HOOD MODIFICATIONS
• CAST ALUMINUM CONSTRUCTION - GREAT MANIFOLD FOR CENTRIFUGAL BLOWER, TURBOCHARGED OR NOS MILD POWER ADDER APPLICATIONS
• EFFICIENT CASTING DESIGN - LIGHTWEIGHT, CONSISTENT WALL THICKNESSES, IMPROVED CASTING QUALITY

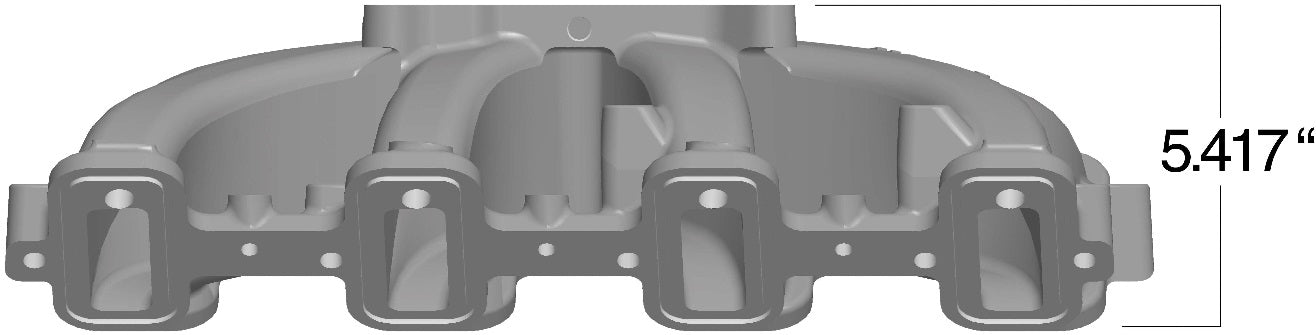

• HEIGHT (FRONT) - 5.417" TO THE LIFTER VALLEY COVER FLANGE AT THE ENGINE BLOCK FRONT FLANGE & BELLHOUSING FLANGE
• PORT SIZE - 2.50" HEIGHT X 1.15" WIDE
• INCLUDES VITON O-RING INTAKE TO CYLINDER HEAD GASKETS
• THIS MANIFOLD WILL NOT WORK WITH FACTORY FUEL RAILS AND REQUIRES THE USE OF HOLLEY FUEL RAIL KIT 534-218

SPECS:

• BRAND: HOLLEY EFI
• CONSTRUCTION: CAST
• ENGINE: GM LS3/L92
• FINISH: SILVER
• FLANGE STYLE: 4150 SQUARE BORE
• FRONT HEIGHT: 5.417 INCH
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: SINGLE PLANE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 5.417 INCH
• WEIGHT: 11.5 LBS.
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE HERE.
