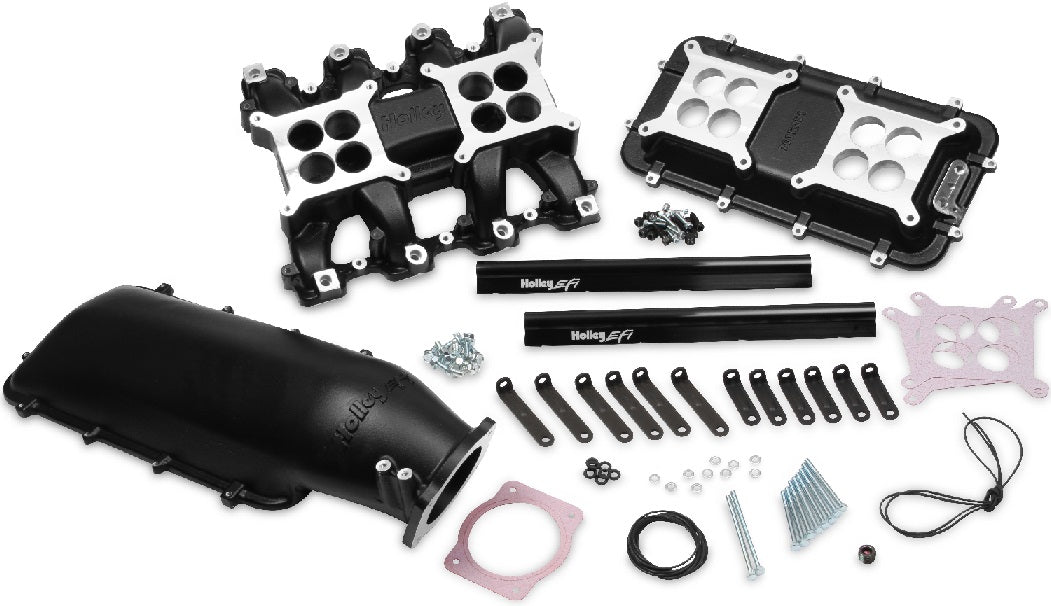

INTAKE MANIFOLD KIT,LS3/L92,MID-RISE,92MM,BLACK

BRAND NEW HOLLEY MID-RISE INTAKE MANIFOLD, BLACK FINISH, COMPATIBLE WITH ALL GM LS GEN III OR IV ENGINES WITH LS3 & L92 STYLE RECTANGULAR PORTS

THE MODULAR MID-RISE INTAKE UTILIZES THE POPULAR HOLLEY LS3/L92 RECTANGLE PORT MID-RISE INTAKE MANIFOLD ALONG WITH A PURPOSE BUILT PLENUM BASE ADAPTER & HOLLEY 92MM EFI PLENUM TOP WHICH CONVERTS IT INTO A MID-RISE EFI INTAKE MANIFOLD. MAX OVERALL HEIGHT OF ONLY 10.44" & AN EXCELLENT CHOICE FOR STREET & PERFORMANCE STREET/STRIP APPLICATIONS WITH A POWER BAND FROM 1,500-6,500 RPM & LIMITED HOOD CLEARANCE. PERFECT FOR TURBOCHARGED, OR NATURALLY ASPIRATED APPLICATIONS.

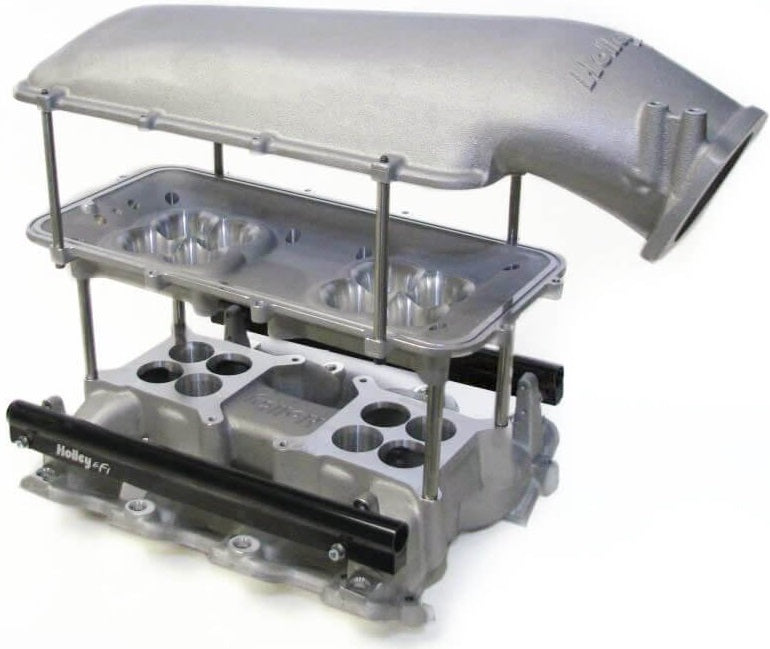

THIS MANIFOLD IS MODULAR & THE PLENUM ADAPTER (PART #300-231) WILL ACCEPT ALL POPULAR HOLLEY LS HI-RAM PLENUM TOPS AS A FOUNDATION FOR CUSTOM INDUCTION SYSTEMS.

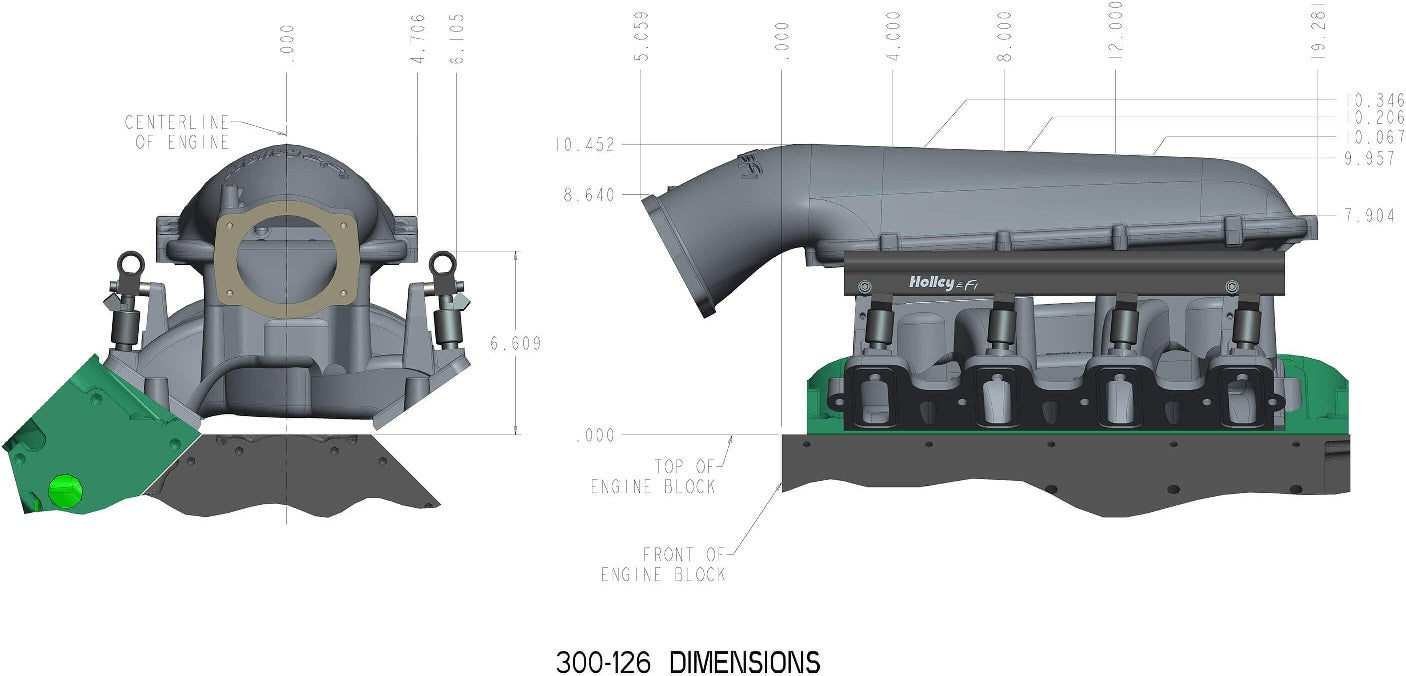

NOTE: FRONT & REAR HEIGHT MEASUREMENTS IN THE SPECS SECTION REFERENCE OVERALL HEIGHT WITH TOP PLATE INSTALLED. PLEASE SEE DIAGRAMS IN THE PRODUCT IMAGES FOR OTHER DIMENSIONS.

NOTE: RECALIBRATION OF ECU MAY BE REQUIRED WHEN USING THIS INTAKE MANIFOLD DESIGN WITH OE ECU. HOLLEY EFI LS MAIN HARNESSES HAVE A MAP SENSOR CONNECTER DESIGNED FOR USE WITH AN LS1/2 STYLE MAP SENSOR. THE 558-416 IS AN ADAPTER HARNESS THAT CAN BE USED TO ADAPT ANY LS HARNESS THAT USES A LS1/2 MAP SENSOR CONNECTION TO A LS3 MAP, WHICH IS RECOMMENDED FOR THIS MANIFOLD.

NOTE: DESIGNED TO ACCEPT BOSCH STYLE EV-1 OR MAGNETI MARELLI PICO FUEL INJECTORS (OE LS FUEL INJECTORS MAY NOT FIT PROPERLY IN THE INTAKE MANIFOLD & FUEL RAIL ASSEMBLY).

FEATURES:

• 1500-6500RPM POWER BAND
• 92MM EFI PLENUM
• OVERALL HEIGHT OF 10.44 INCHES
• MID-RISE MANIFOLD FOR EXCELLENT STREET/STRIP PERFORMANCE
• COMPATIBLE WITH GM LS3/L92 ENGINES
• BLACK CERAMIC COATING

SPECS:

• BRAND: HOLLEY EFI
• COLOR: BLACK
• CONSTRUCTION: CAST
• ENGINE: GM LS3/L92
• FINISH: BLACK
• FRONT HEIGHT: 10.44 INCH
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: MID RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 9.99 INCH
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
