INTAKE MANIFOLD,LS1/2/6,SINGLE-PLANE,4150,BLACK

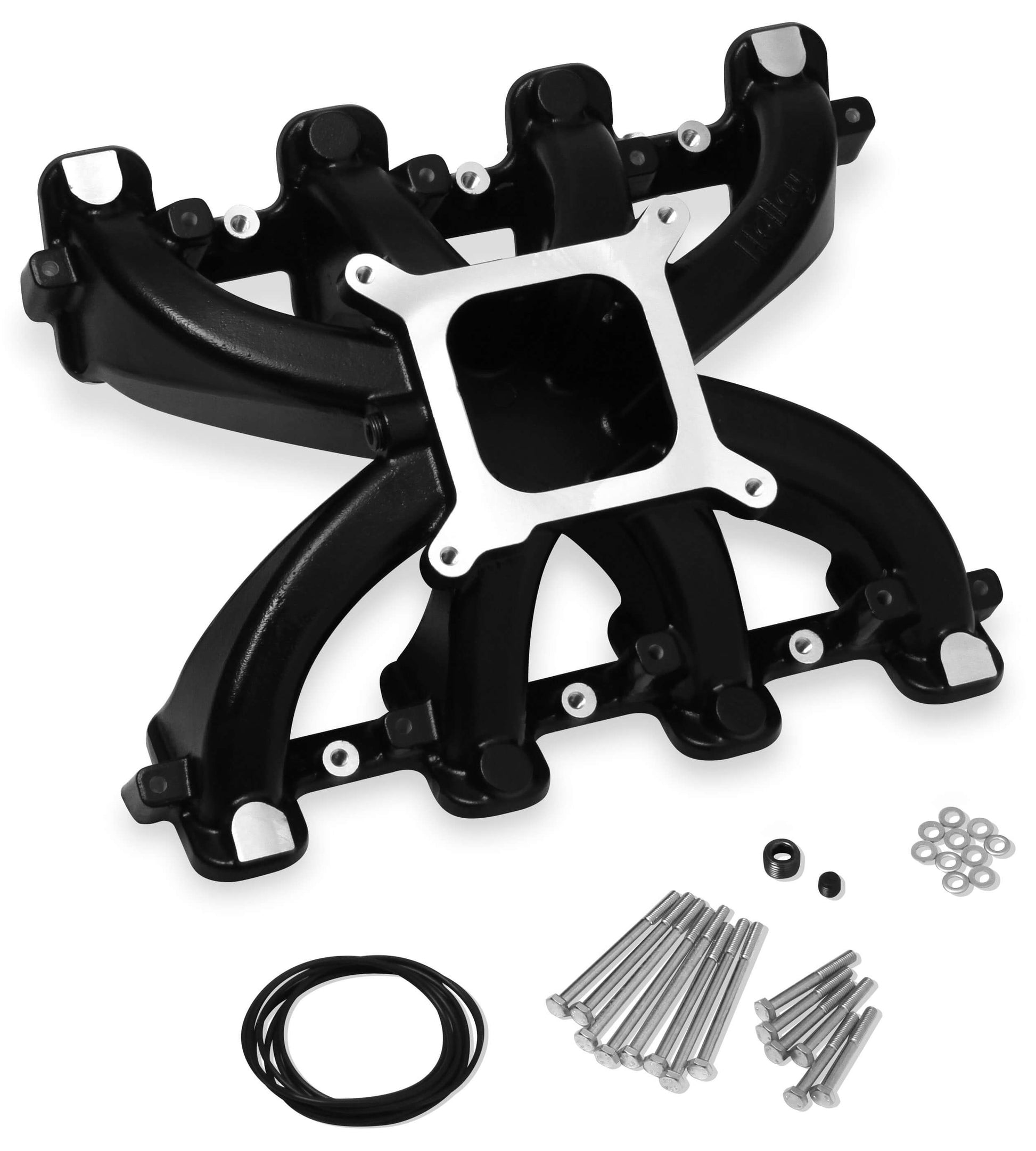

BRAND NEW HOLLEY SINGLE PLANE INTAKE MANIFOLD, BLACK CERAMIC COATED, 4150 SQUARE BORE (HOLLEY PART #300-132BK).

NOTE: INCLUDES MOUNTING BOLTS & WASHERS. ALSO INCLUDES O-RING CYLINDER HEAD MOUNTING FLANGE GASKETS FOR AN OEM STYLE SEAL.

APPLICATIONS:

• GM LS GEN III OR IV ENGINES EQUIPPED WITH LS1/LS2/LS6 STYLE CATHEDRAL PORT CYLINDER HEADS

FEATURES:

• 2500-7000 RPM POWER BAND
• 4150 SQUARE BORE CARB MOUNTING FLANGE (ACCEPTS UP TO 1.75" DIAMETER THROTTLE BORES)
• OPTIMIZED RUNNER LAYOUT AND CONSTANT CROSS SECTIONAL AREA - BROAD TORQUE CURVE, BEST VEHICLE PERFORMANCE FROM 2500-7000 RPM
• MINIMUM CARB FLANGE HEIGHT - FITS IN VEHICLES WITH MINIMUM HOOD MODIFICATIONS
• CAST ALUMINUM CONSTRUCTION - GREAT MANIFOLD FOR CENTRIFUGAL BLOWER, TURBOCHARGED OR NOS POWER ADDER APPLICATIONS
• EFFICIENT CASTING DESIGN - LIGHTWEIGHT, CONSISTENT WALL THICKNESSES, IMPROVED CASTING QUALITY
• WEIGHT - 11.5 LBS.
• HEIGHT (FRONT) - 4.95" TO THE LIFTER VALLEY COVER FLANGE AT THE ENGINE BLOCK FRONT FLANGE
• PORT SIZE - 2.659" HEIGHT X .918" WIDE
• INCLUDES INTAKE TO CYLINDER HEAD O-RING GASKETS

SPECS:

• BARRELS: 4
• BRAND: HOLLEY
• COLOR: BLACK
• CONSTRUCTION: CAST
• ENGINE: GM LS1/LS2/LS6
• FINISH: BLACK
• FRONT HEIGHT: 4.95 INCH
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: SINGLE PLANE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 4.95 INCH
• RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
