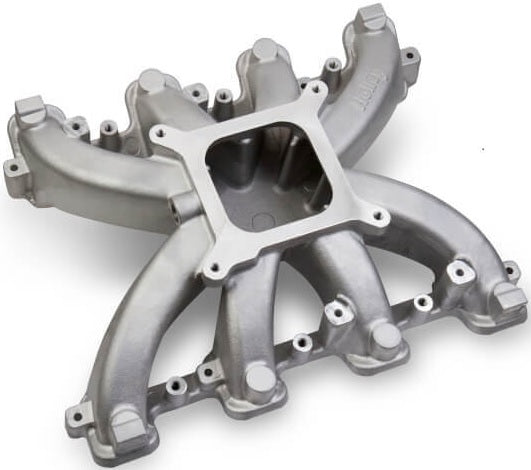

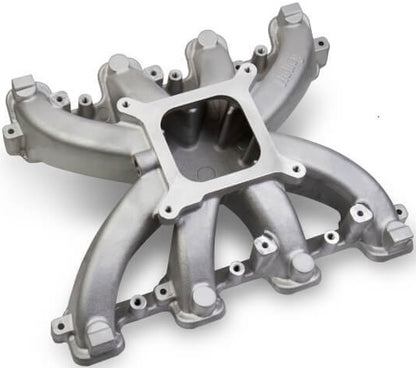

INTAKE MANIFOLD,LS1/2/6,SINGLE-PLANE,4150,SATIN

BRAND NEW HOLLEY SINGLE PLANE INTAKE MANIFOLD, SILVER CAST FINISH, COMPATIBLE WITH GM LS GEN III OR IV ENGINES WITH LS1,LS2 & LS6 CATHEDRAL PORT CYLINDER HEADS

NOTE: INCLUDES MOUNTING BOLTS & WASHERS AS WELL. ALSO INCLUDES O-RING CYLINDER HEAD MOUNTING FLANGE GASKETS FOR AN OEM STYLE SEAL.

FEATURES:

• 2500-7000 RPM POWER BAND
• 4150 SQUARE BORE CARB MOUNTING FLANGE (ACCEPTS UP TO 1.75" DIAMETER THROTTLE BORES)
• OPTIMIZED RUNNER LAYOUT & CONSTANT CROSS SECTIONAL AREA - BROAD TORQUE CURVE, BEST VEHICLE PERFORMANCE FROM 2500-7000 RPM
• MINIMUM CARB FLANGE HEIGHT - FITS IN VEHICLES WITH MINIMUM HOOD MODIFICATIONS
• CAST ALUMINUM CONSTRUCTION - GREAT MANIFOLD FOR CENTRIFUGAL BLOWER, TURBOCHARGED OR NOS POWER ADDER APPLICATIONS
• EFFICIENT CASTING DESIGN - LIGHTWEIGHT, CONSISTENT WALL THICKNESSES, IMPROVED CASTING QUALITY
• WEIGHT - 11.5 LBS.
• HEIGHT (FRONT) - 4.95" TO THE LIFTER VALLEY COVER FLANGE AT THE ENGINE BLOCK FRONT FLANGE

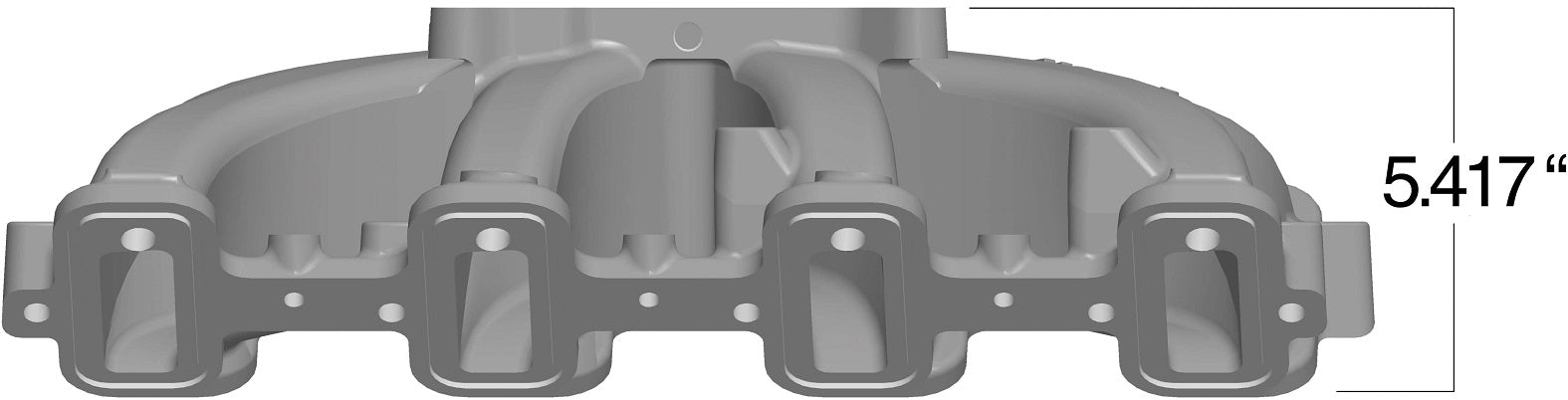

• PORT SIZE - 2.659" HEIGHT X .918" WIDE
• INCLUDES VITON INTAKE TO CYLINDER HEAD O-RING GASKETS

SPECS:

• BARRELS: 4
• COLOR/CONSTRUCTION: SILVER CAST
• ENGINE: GM LS1/LS2/LS6
• FLANGE STYLE: 4150 SQUARE BORE
• FRONT HEIGHT: 4.95"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: SINGLE PLANE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 4.95"
• RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
