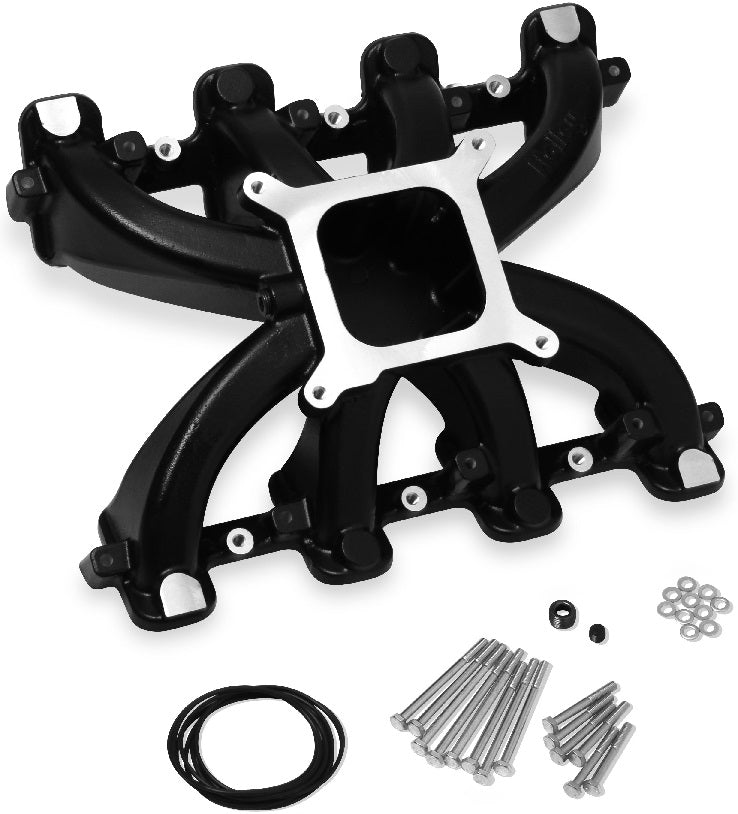

INTAKE MANIFOLD,LS3/L92,SINGLE-PLANE,4150,BLACK

BRAND NEW HOLLEY SINGLE PLANE CARBURETED INTAKE MANIFOLD, BLACK CERAMIC FINISH, COMPATIBLE WITH GM LS GEN III OR IV WITH LS3/L92 RECTANGULAR PORT CYLINDER HEADS

NOTE: INCLUDES MOUNTING BOLTS & WASHERS. ALSO INCLUDES O-RING CYLINDER HEAD MOUNTING FLANGE GASKETS FOR AN OEM STYLE SEAL.

FEATURES:

• 2500-7000 RPM POWER BAND
• 4150 SQUARE BORE FLANGE (ACCEPTS UP TO 1.75" DIAMETER THROTTLE BORES)
• OPTIMIZED RUNNER LAYOUT AND CONSTANT CROSS SECTIONAL AREA - BROAD TORQUE CURVE, BEST VEHICLE PERFORMANCE FROM 2500-7000 RPM
• MINIMUM CARB FLANGE HEIGHT - COMPATIBLE WITH VEHICLES WITH MINIMUM HOOD MODIFICATIONS
• CAST ALUMINUM CONSTRUCTION - GREAT MANIFOLD FOR CENTRIFUGAL BLOWER, TURBOCHARGED OR NOS POWER ADDER APPLICATIONS
• EFFICIENT CASTING DESIGN - LIGHTWEIGHT, CONSISTENT WALL THICKNESSES, IMPROVED CASTING QUALITY
• WEIGHT - 11.5 LBS
• HEIGHT (FRONT) - 5.417" TO THE LIFTER VALLEY COVER FLANGE AT THE ENGINE BLOCK FRONT FLANGE
• PORT SIZE - 2.50" HEIGHT X 1.15" WIDE
• INCLUDES VITON O-RING INTAKE TO CYLINDER HEAD GASKETS

SPECS:

• BRAND: HOLLEY
• COLOR: BLACK
• CONSTRUCTION: CAST
• ENGINE: GM LS3/L92
• FINISH: BLACK
• FRONT HEIGHT: 5.417 INCH
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: SINGLE PLANE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 5.417 INCH
• RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MANIFOLD HERE.
