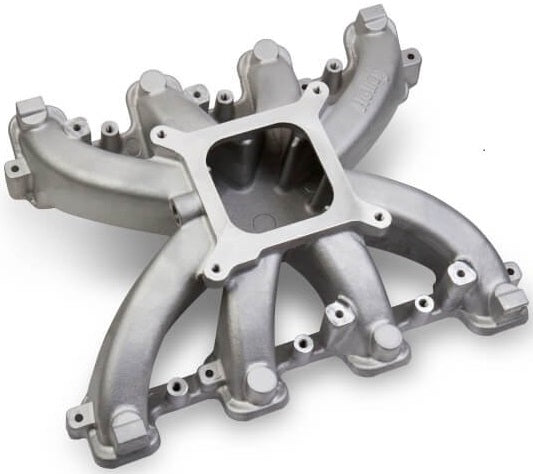

INTAKE MANIFOLD,LS3/L92,SINGLE-PLANE,4150,SATIN

BRAND NEW HOLLEY SINGLE PLANE INTAKE MANIFOLD, SILVER FINISH, 5.417" FRONT, COMPATIBLE WITH GM LS3/L92 RECTANGULAR PORT CYLINDER HEADS

NOTE: INCLUDES MOUNTING BOLTS & WASHERS & O-RING CYLINDER HEAD MOUNTING FLANGE GASKETS FOR AN OEM STYLE SEAL.

FEATURES:

• 2500-7000 RPM POWER BAND
• 4150 SQUARE BORE FLANGE (ACCEPTS UP TO 1.75" DIAMETER THROTTLE BORES)
• OPTIMIZED RUNNER LAYOUT AND CONSTANT CROSS SECTIONAL AREA - BROAD TORQUE CURVE, BEST VEHICLE PERFORMANCE FROM 2500-7000 RPM
• MINIMUM CARB FLANGE HEIGHT - MINIMUM HOOD VEHICLE MODIFICATIONS
• CAST ALUMINUM CONSTRUCTION
• LIGHTWEIGHT, CONSISTENT WALL THICKNESSES, IMPROVED CASTING QUALITY
• WEIGHT - 11.5 LBS.

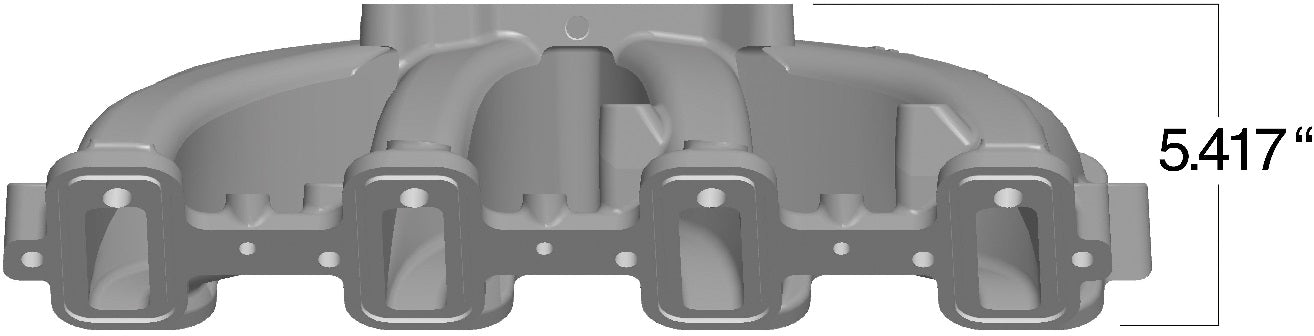

• HEIGHT (FRONT) - 5.417" TO THE LIFTER VALLEY COVER FLANGE AT ENGINE BLOCK FRONT FLANGE
• PORT SIZE - 2.50" HEIGHT X 1.15" WIDE
• INCLUDES VITON O-RINGS

SPECS:

• BRAND: HOLLEY
• CONSTRUCTION: SILVER CAST
• ENGINE: GM LS3/L92
• FLANGE STYLE: 4150 SQUARE BORE
• FRONT HEIGHT: 5.417 INCH
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: SINGLE PLANE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 5.417 INCH
• RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE HERE.
