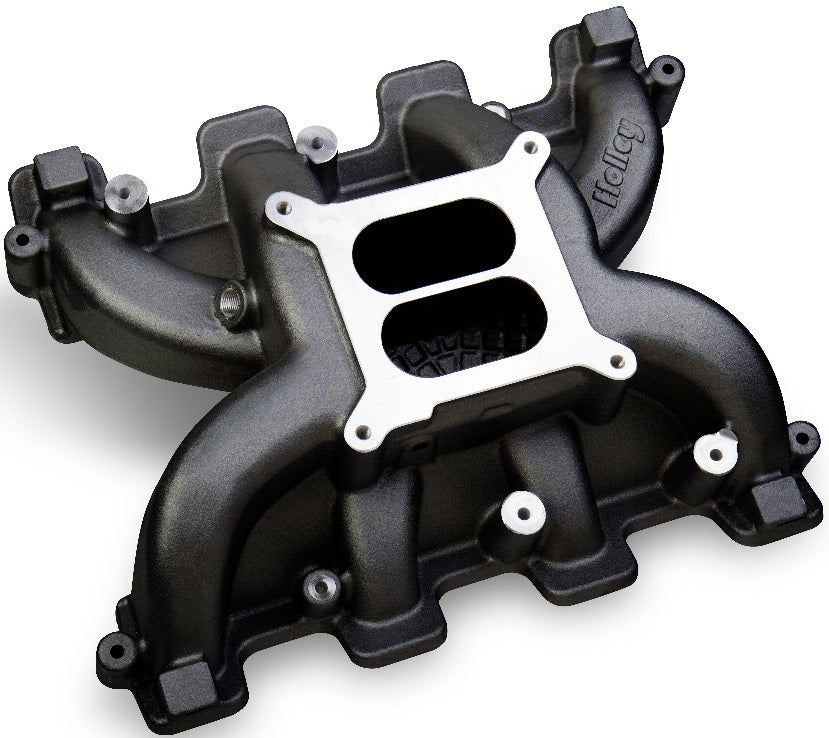

INTAKE MANIFOLD,LS1/2/6,DUAL-PLANE,4150,BLACK

BRAND NEW HOLLEY DUAL PLANE INTAKE MANIFOLD, BLACK FINISH, 5.07" FRONT, COMPATIBLE WITH GM III/IV LS1, LS2, LS6 CATHEDRAL PORT CYLINDER HEADS

GOT AN LS ENGINE TO GET RUNNING? NOTHING IS EASIER THAN BOLTING ON A CARBURETOR. HOLLEY DUAL PLANE CARBURETED INTAKE FOR GM LS ENGINES WILL HELP YOU GET ON THE STREETS QUICK! ITS DUAL PLANE DESIGN MAKES IT PERFECT FOR LOW END TORQUE, YET IT STILL PULLS ALL THE WAY TO 6,500 RPM! OUR O-RING CYLINDER HEAD MOUNTING FLANGE GASKETS PROVIDE AN OEM STYLE SEAL AND MAKE INSTALLATION A SNAP. BOLT ONE ON TODAY!

NOTE: ALL GM LS GEN III OR IV ENGINES EQUIPPED WITH LS1/LS2/LS6 STYLE CATHEDRAL PORT CYLINDER HEADS. INCLUDES MOUNTING BOLTS & WASHERS.

FEATURES:

• 1500-6500 RPM POWER BAND
• 4150 SQUARE BORE FLANGE
• OPTIMIZED RUNNER LAYOUT AND CONSTANT CROSS SECTIONAL AREA - BROAD TORQUE CURVE, BEST VEHICLE PERFORMANCE FROM 1500-6500 RPM
• MINIMUM CARB FLANGE HEIGHT - MINIMAL OR NO HOOD VEHICLE MODIFICATIONS
• GREAT FOR CARBURETED OR THROTTLE BODY EFI STREET APPLICATIONS
• CAST ALUMINUM CONSTRUCTION AND EFFICIENT CASTING DESIGN FOR LIGHT WEIGHT, CONSISTENT WALL THICKNESSES AND IMPROVED CASTING QUALITY
• WEIGHS 15.14 LBS.

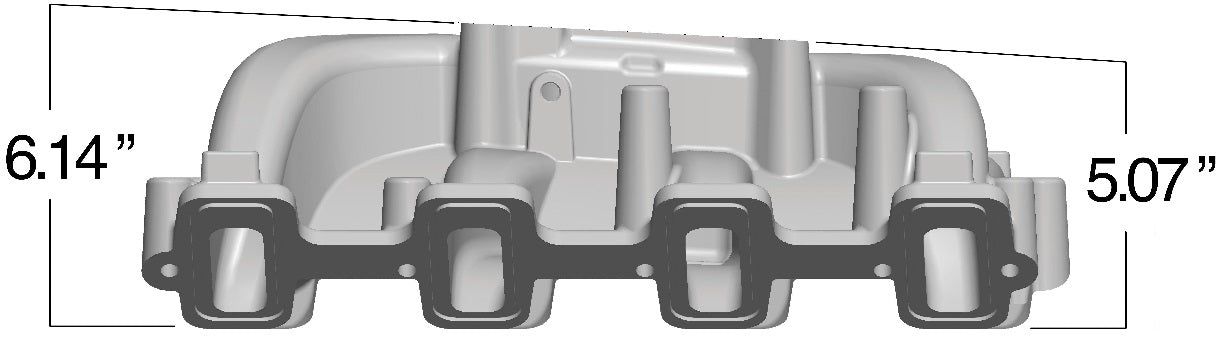

• HEIGHT (FRONT) - 5.07" FROM FRONT LIFTER VALLEY COVER TO CARB MOUNTING FLANGE
• HEIGHT (REAR) - 6.14" FROM REAR LIFTER VALLEY COVER TO CARB MOUNTING FLANGE
• PORT SIZE - 2.72" HEIGHT X 1" WIDE
• INCLUDES VITON O-RINGS

SPECS:

• BRAND: HOLLEY
• COLOR/CONSTRUCTION: BLACK CAST
• ENGINE: GM LS1/LS2/LS6
• FRONT HEIGHT: 5.07 INCH
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: DUAL PLANE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 6.14 INCH
• RPM POWER BAND: 1500-6500 RPM
• MOUNTING FLANGE GASKET TYPE: O-RING

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE HERE.
