INTAKE MANIFOLD KIT,LS3/L92,MID-RISE,105MM,SATIN

INTAKE MANIFOLD KIT,LS3/L92,MID-RISE,105MM,SATIN

HOL 300-128

$1,177.95
$1,177.95

Yes, we have this item in stock and ready to ship immediately!
View full details

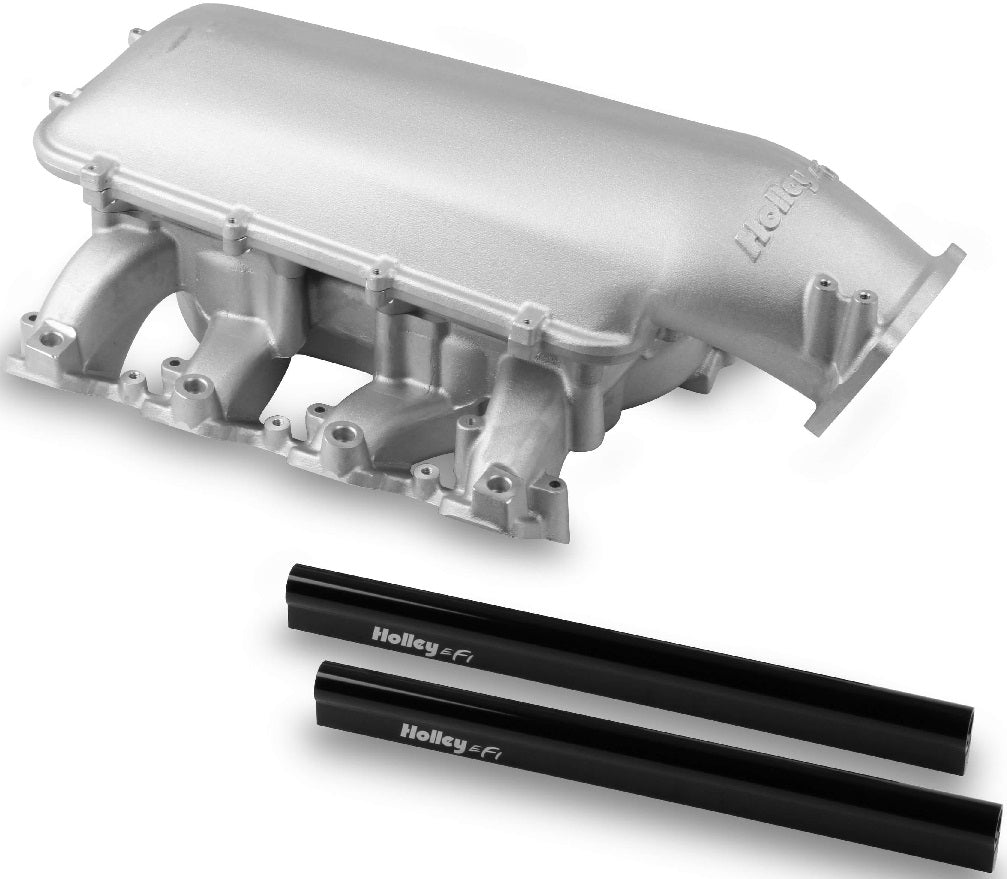

BRAND NEW HOLLEY MID-RISE INTAKE MANIFOLD, SILVER FINISH, COMPATIBLE WITH GM LS3/L92 ENGINES

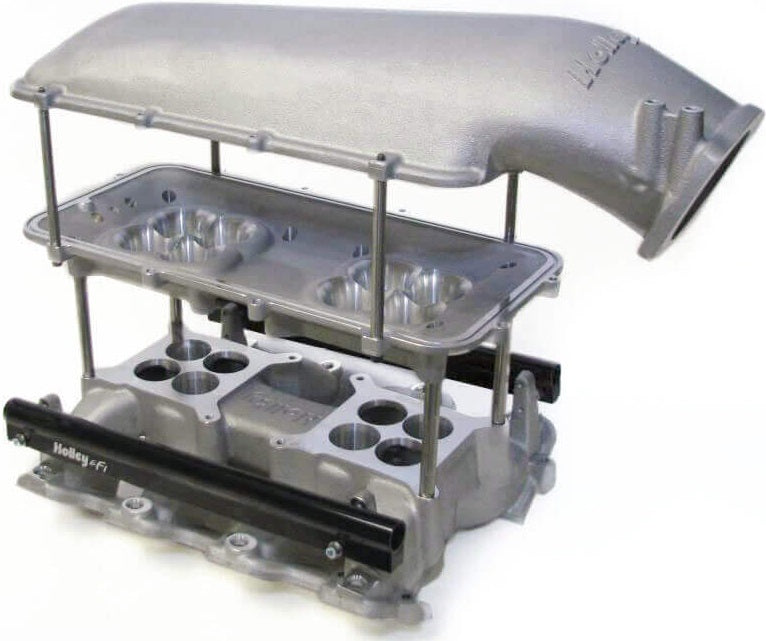

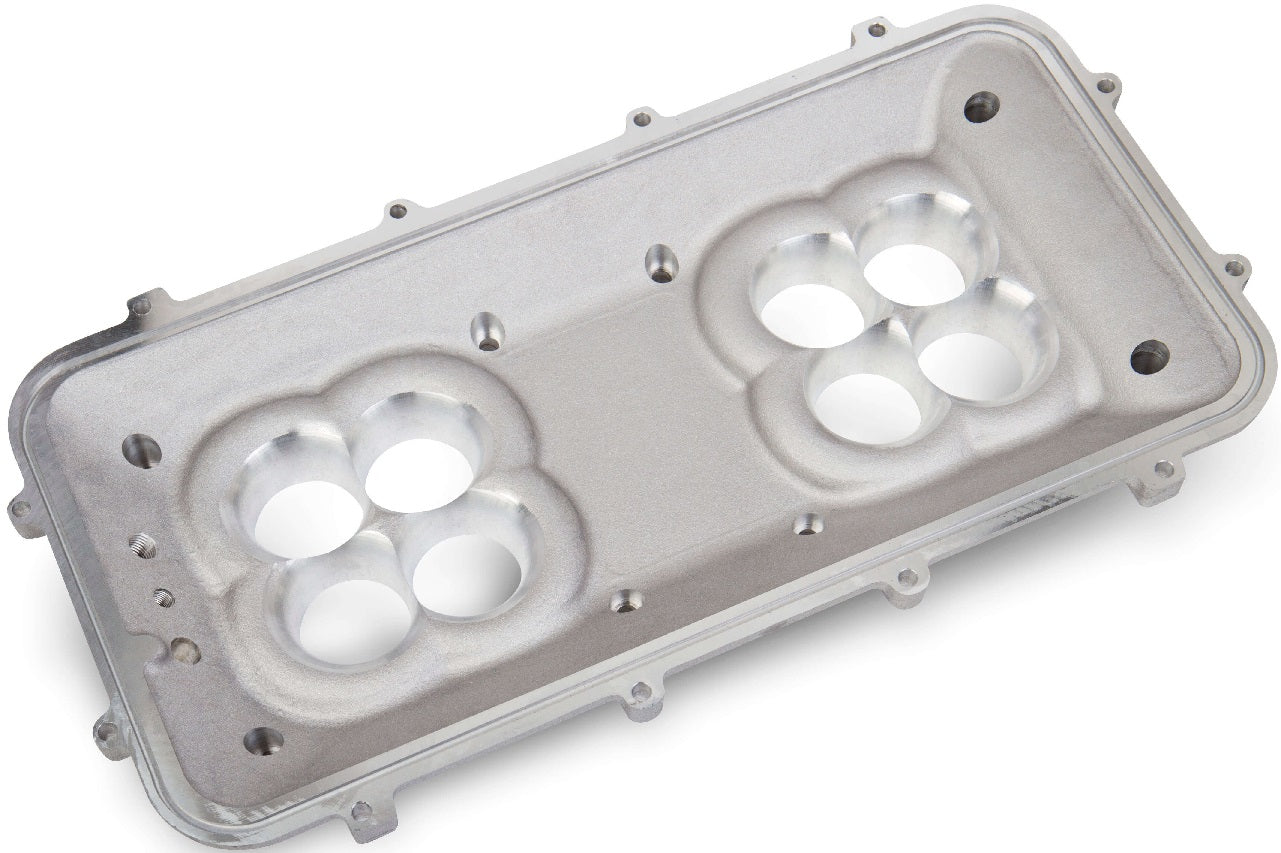

THE MODULAR MID-RISE INTAKE UTILIZES THE POPULAR HOLLEY LS3/L92 RECTANGLE PORT MID-RISE INTAKE MANIFOLD ALONG WITH A PURPOSE BUILT PLENUM BASE ADAPTER AND A HOLLEY 105MM EFI PLENUM TOP WHICH CONVERTS IT INTO A MID-RISE EFI INTAKE MANIFOLD.

WITH A MAX OVERALL HEIGHT OF ONLY 10.44", THE MID-RISE MANIFOLD IS AN EXCELLENT CHOICE FOR STREET AND PERFORMANCE STREET/STRIP APPLICATIONS WITH A POWERBAND FROM 1,500-6,500 RPM AND LIMITED HOOD CLEARANCE. IT IS PERFECT FOR TURBOCHARGED, OR NATURALLY ASPIRATED APPLICATIONS.

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION REFERENCE OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE DIAGRAMS IN PRODUCT IMAGES FOR OTHER DIMENSIONS.

NOTE: COMPATIBLE WITH ALL GM LS GEN III OR IV ENGINES EQUIPPED WITH LS3/L92 STYLE RECTANGULAR PORTS. MID-RISE EFI INTAKE MANIFOLD KIT.

NOTE: RECALIBRATION OF THE ECU MAY BE REQUIRED WHEN USING THIS INTAKE MANIFOLD DESIGN WITH OE ECU.

NOTE: HOLLEY EFI LS MAIN HARNESSES HAVE A MAP SENSOR CONNECTER DESIGNED FOR USE WITH AN LS1/2 STYLE MAP SENSOR. THE 558-416 IS AN ADAPTER HARNESS THAT CAN BE USED TO ADAPT ANY LS HARNESS THAT USES A LS1/2 MAP SENSOR CONNECTION TO A LS3 MAP, WHICH IS RECOMMENDED FOR THIS MANIFOLD

NOTE: THESE MANIFOLDS & FUEL RAILS ARE DESIGNED TO ACCEPT BOSCH STYLE EV-1 OR MAGNETI MARELLI PICO FUEL INJECTORS (OE LS FUEL INJECTORS MAY NOT FIT PROPERLY IN THE INTAKE MANIFOLD & FUEL RAIL ASSEMBLY).

FEATURES:

  • 1500-6500 RPM POWER BAND
  • 105MM EFI PLENUM
  • OVERALL HEIGHT OF 10.44"
  • MID-RISE MANIFOLD FOR EXCELLENT STREET/STRIP PERFORMANCE

SPECS:

  • COLOR/CONSTRUCTION: SILVER CAST
  • ENGINE: GM LS3/L92
  • FLANGE STYLE: EFI
  • FRONT HEIGHT: 10.44"
  • FUEL SYSTEM TYPE: EFI
  • MANIFOLD TYPE: MID RISE
  • PRODUCT TYPE: INTAKE MANIFOLD
  • REAR HEIGHT: 9.99"
  • RECOMMENDED USE: FORCED INDUCTION
  • RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD KIT HERE.
