INTAKE MANIFOLD KIT,LS1/2/6,MID-RISE,105MM,SATIN

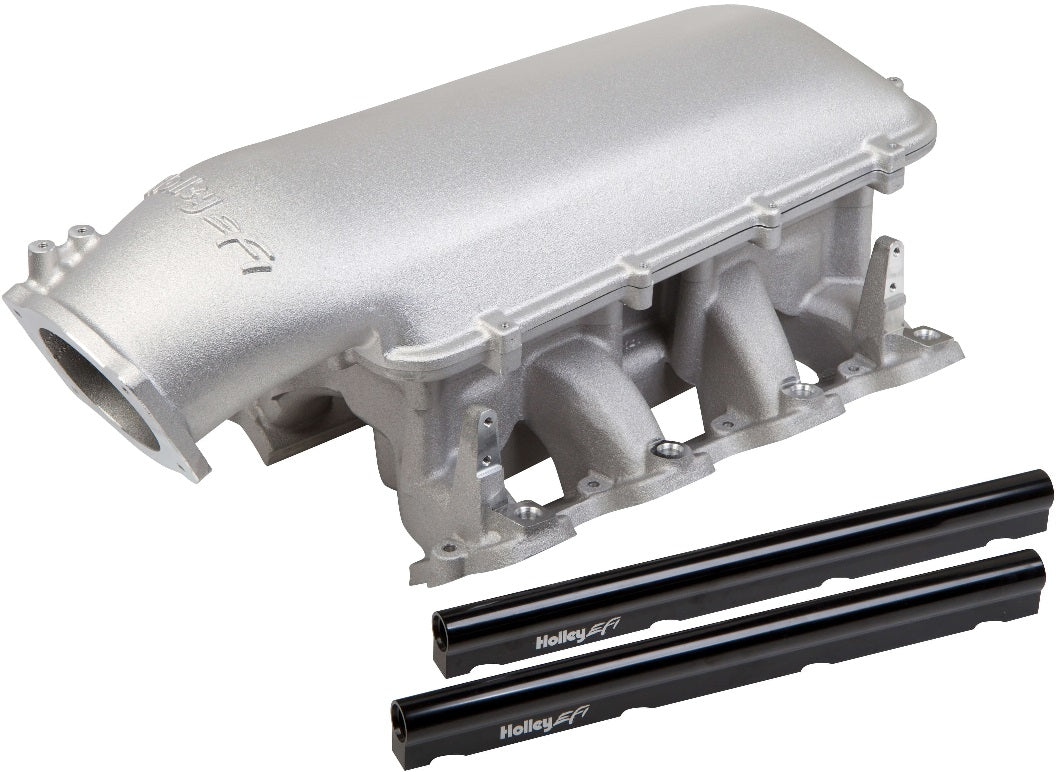

BRAND NEW HOLLEY MID-RISE INTAKE MANIFOLD, SILVER FINISH, 105MM TOP, 10.44 INCH FRONT HEIGHT, COMPATIBLE WITH GM LS1, LS2, LS6 ENGINES

THE MODULAR MID-RISE INTAKE UTILIZES THE POPULAR HOLLEY LS1/LS2/LS6 CATHEDRAL PORT MID-RISE 2 X 4 INTAKE MANIFOLD ALONG WITH A PURPOSE BUILT PLENUM BASE ADAPTER & HOLLEY 105MM EFI PLENUM TOP WHICH CONVERTS IT INTO A MID-RISE EFI INTAKE MANIFOLD.

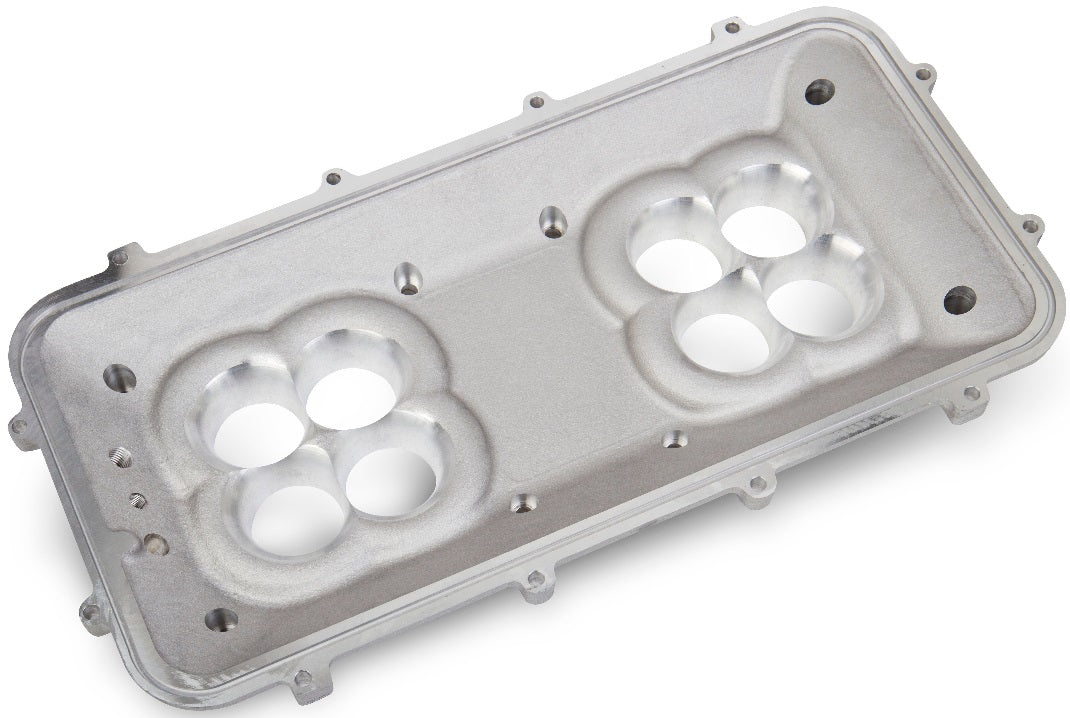

MAX OVERALL HEIGHT OF ONLY 10.44", THE MID-RISE MANIFOLD IS AN EXCELLENT CHOICE FOR STREET & PERFORMANCE STREET/STRIP APPLICATIONS WITH A POWERBAND FROM 1,500-6,500 RPM & LIMITED HOOD CLEARANCE. THIS MANIFOLD IS MODULAR & PLENUM ADAPTER (PART #300-267) WILL ACCEPT ALL OF THE POPULAR HOLLEY LS HI-RAM PLENUM TOPS AS A FOUNDATION FOR CUSTOM INDUCTION SYSTEMS.

NOTE: RECALIBRATION OF THE ECU MAY BE REQUIRED WHEN USING THIS INTAKE MANIFOLD DESIGN WITH OE ECU

NOTE: HOLLEY EFI LS MAIN HARNESSES HAVE A MAP SENSOR CONNECTER DESIGNED FOR USE WITH AN LS1/2 STYLE MAP SENSOR. THE 558-416 IS AN ADAPTER HARNESS THAT CAN BE USED TO ADAPT ANY LS HARNESS THAT USES A LS1/2 MAP SENSOR CONNECTION TO A LS3 MAP & IS RECOMMENDED FOR THIS MANIFOLD

NOTE: MANIFOLDS & FUEL RAILS ARE DESIGNED TO ACCEPT BOSCH STYLE EV-1 OR MAGNETI MARELLI PICO FUEL INJECTORS (OE LS FUEL INJECTORS MAY NOT FIT PROPERLY IN THE INTAKE MANIFOLD & FUEL RAIL ASSEMBLY)

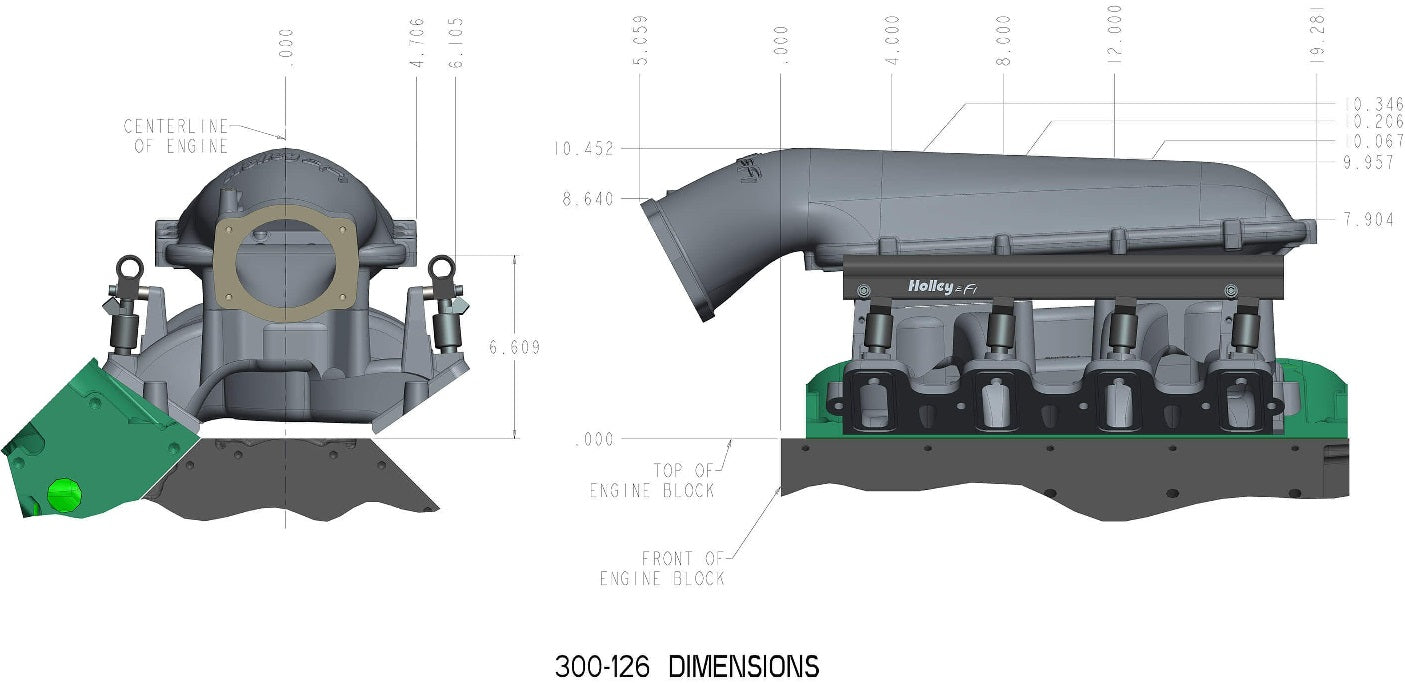

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION REFERENCE OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE DIAGRAMS IN PRODUCT IMAGES FOR OTHER DIMENSIONS

FEATURES:

• PROVIDES GREAT PERFORMANCE TO 6500 RPM FOR STREET/STRIP PERFORMANCE APPLICATIONS WHILE PROVIDING THE LOOK OF A RACING EFI INTAKE MANIFOLD
• UNIQUE MODULAR DESIGN ALLOWS THE COMBINATION OF A TRADITIONAL DUAL-PLANE LAYOUT WITH AN EFI MANIFOLD PLENUM TO PRODUCE GREAT MID-RANGE TORQUE WITHOUT COMPROMISING TOP END POWER
• GREAT FOR SUPERCHARGED OR TURBOCHARGED ENGINES
• POWER BAND FROM 1500-6500 RPM
• MAY REQUIRE AN AFTERMARKET HOOD FOR SOME VEHICLE APPLICATIONS
• CAST ALUMINUM CONSTRUCTION
• 105MM EFI PLENUM TOP

SPECS:

• BRAND: HOLLEY EFI
• CONSTRUCTION: SILVER CAST
• ENGINE: GM LS1/LS2/LS6
• FLANGE STYLE: EFI
• FRONT HEIGHT: 10.44 INCH
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: MID RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 9.99 INCH
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
