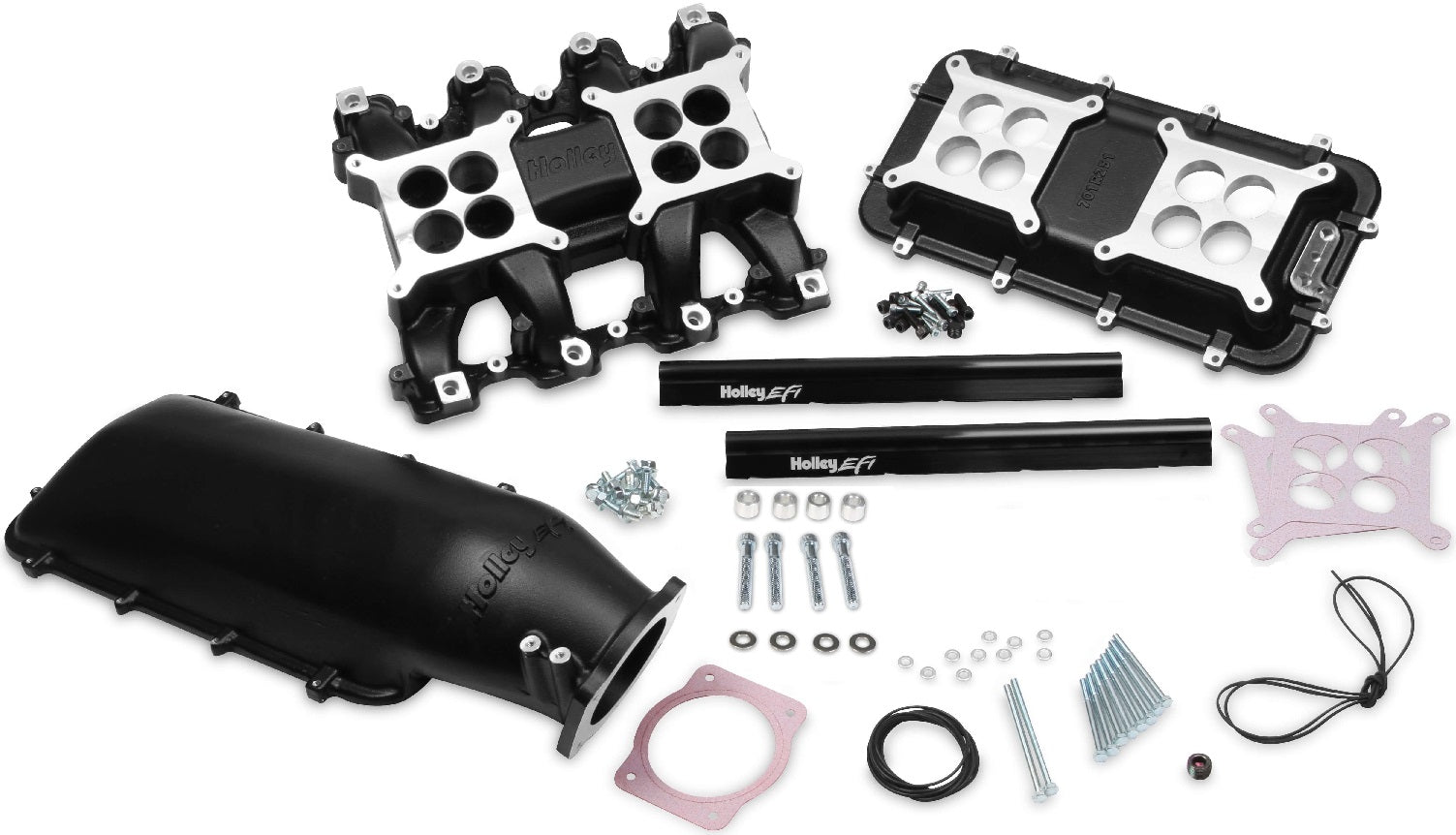

INTAKE MANIFOLD KIT,LS1/2/6,MID-RISE,92MM,BLACK

BRAND NEW HOLLEY MID-RISE INTAKE MANIFOLD, BLACK CERAMIC FINISH, 2500-7000 RPM, 10.44" FRONT HEIGHT, COMPATIBLE WITH GM LS1/LS2/LS6 ENGINES

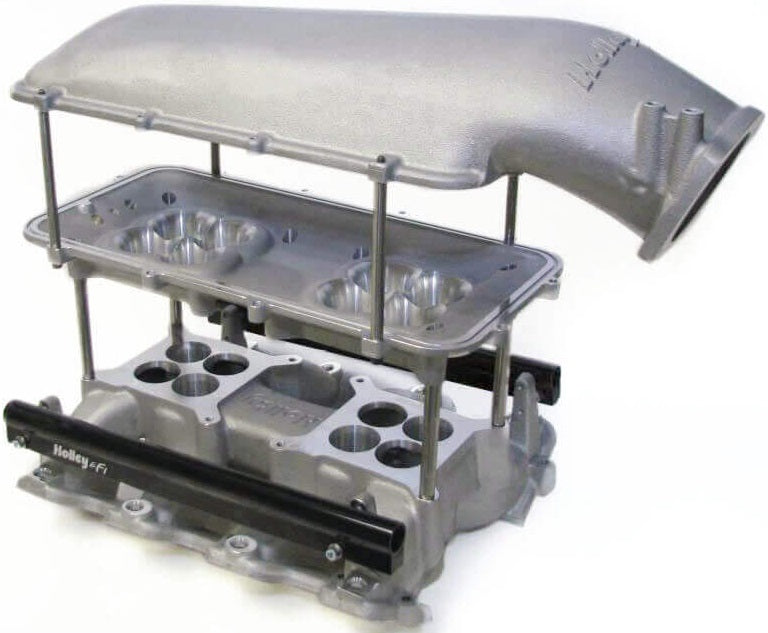

THE MODULAR MID-RISE INTAKE UTILIZES THE POPULAR HOLLEY LS1/LS2/LS6 CATHEDRAL PORT MID-RISE 2 X 4 INTAKE MANIFOLD ALONG WITH A PURPOSE BUILT PLENUM BASE ADAPTER AND A HOLLEY 92MM EFI PLENUM TOP WHICH CONVERTS IT INTO A MID-RISE EFI INTAKE MANIFOLD. EXCELLENT CHOICE FOR STREET AND PERFORMANCE STREET/STRIP APPLICATIONS WITH A POWER BAND FROM 1,500-6,500 RPM AND LIMITED HOOD CLEARANCE. PERFECT FOR TURBOCHARGED, OR NORMALLY ASPIRATED APPLICATIONS.

THIS MANIFOLD IS MODULAR, AND THE PLENUM ADAPTER (PART #300-231) WILL ACCEPT ALL OF THE POPULAR HOLLEY LS HI-RAM PLENUM TOPS AS A FOUNDATION FOR CUSTOM INDUCTION SYSTEMS.

NOTE: RECALIBRATION OF ECU MAY BE REQUIRED WHEN USING THIS INTAKE MANIFOLD DESIGN WITH OE ECU

NOTE: HOLLEY EFI LS MAIN HARNESSES HAVE A MAP SENSOR CONNECTER DESIGNED FOR USE WITH AN LS1/2 STYLE MAP SENSOR. THE 558-416 IS AN ADAPTER HARNESS THAT CAN BE USED TO ADAPT ANY LS HARNESS THAT USES A LS1/2 MAP SENSOR CONNECTION TO A LS3 MAP, WHICH IS RECOMMENDED FOR THIS MANIFOLD.

NOTE: DESIGNED TO ACCEPT BOSCH STYLE EV-1 OR MAGNETI MARELLI PICO FUEL INJECTORS (OE LS FUEL INJECTORS MAY NOT FIT PROPERLY IN THE INTAKE MANIFOLD & FUEL RAIL ASSEMBLY)

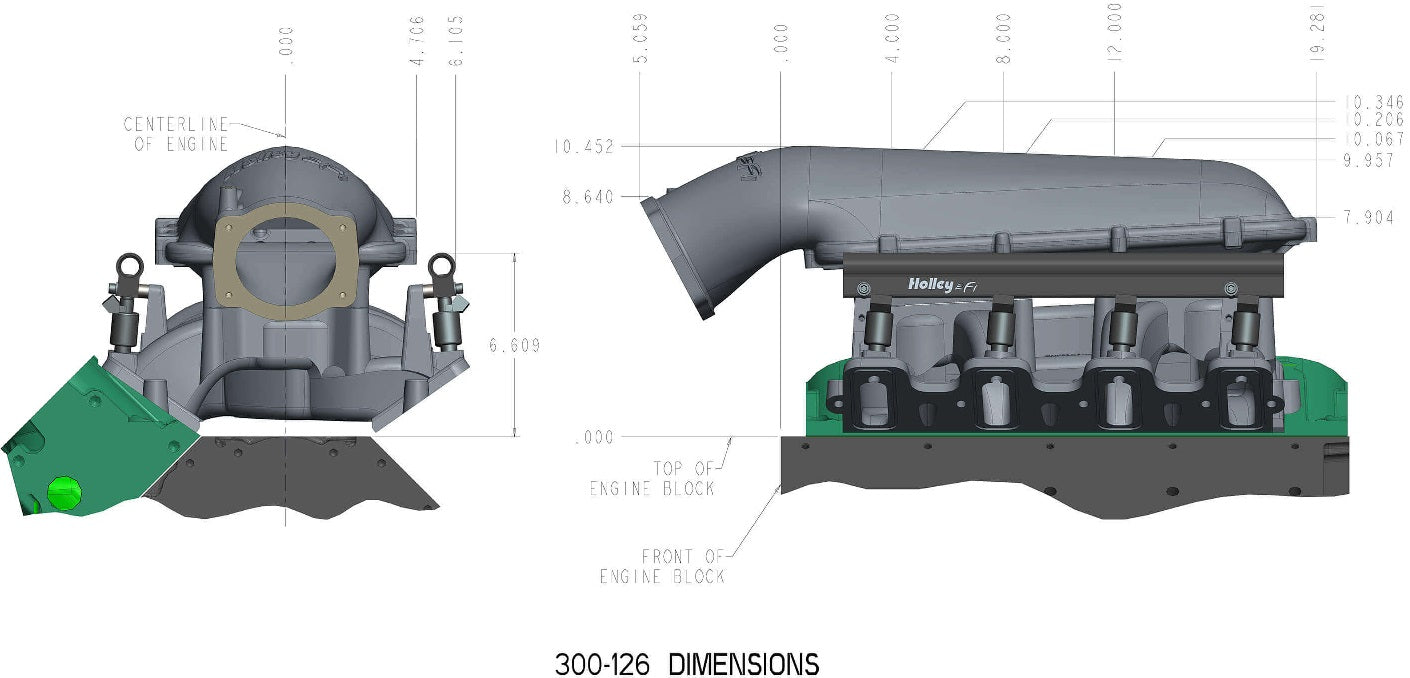

NOTE: FRONT AND REAR HEIGHT MEASUREMENTS LISTED IN THE SPECS SECTION ARE REFERENCING THE OVERALL HEIGHT WITH THE TOP PLATE INSTALLED.

FEATURES:

• PROVIDES GREAT PERFORMANCE TO 6500 RPM FOR STREET/STRIP PERFORMANCE APPLICATIONS WHILE PROVIDING THE LOOK OF A RACING EFI INTAKE MANIFOLD
• UNIQUE MODULAR DESIGN ALLOWS THE COMBINATION OF A TRADITIONAL DUAL-PLANE LAYOUT WITH AN EFI MANIFOLD PLENUM TO PRODUCE GREAT MID-RANGE TORQUE WITHOUT COMPROMISING TOP END POWER
• GREAT FOR SUPERCHARGED OR TURBOCHARGED ENGINES
• POWER BAND FROM 1500-6500 RPM
• MAY REQUIRE AN AFTERMARKET HOOD FOR SOME VEHICLE APPLICATIONS
• CAST ALUMINUM CONSTRUCTION
• FOR GM LS GEN III OR IV ENGINES EQUIPPED WITH LS1/LS2/LS6 STYLE CATHEDRAL PORT CYLINDER HEADS (RECALIBRATION OF THE ECU MAY BE REQUIRED WHEN USING THIS INTAKE MANIFOLD DESIGN WITH OE ECU)
• 92MM EFI PLENUM TOP WHICH CONVERTS IT INTO A MID-RISE EFI INTAKE MANIFOLD

SPECS:

• ENGINE: GM LS1/LS2/LS6
• FINISH: BLACK
• FRONT HEIGHT: 10.44"
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: MID RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 9.99"
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.

YOU CAN VIEW AND DOWNLOAD THE ADDITIONAL INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
