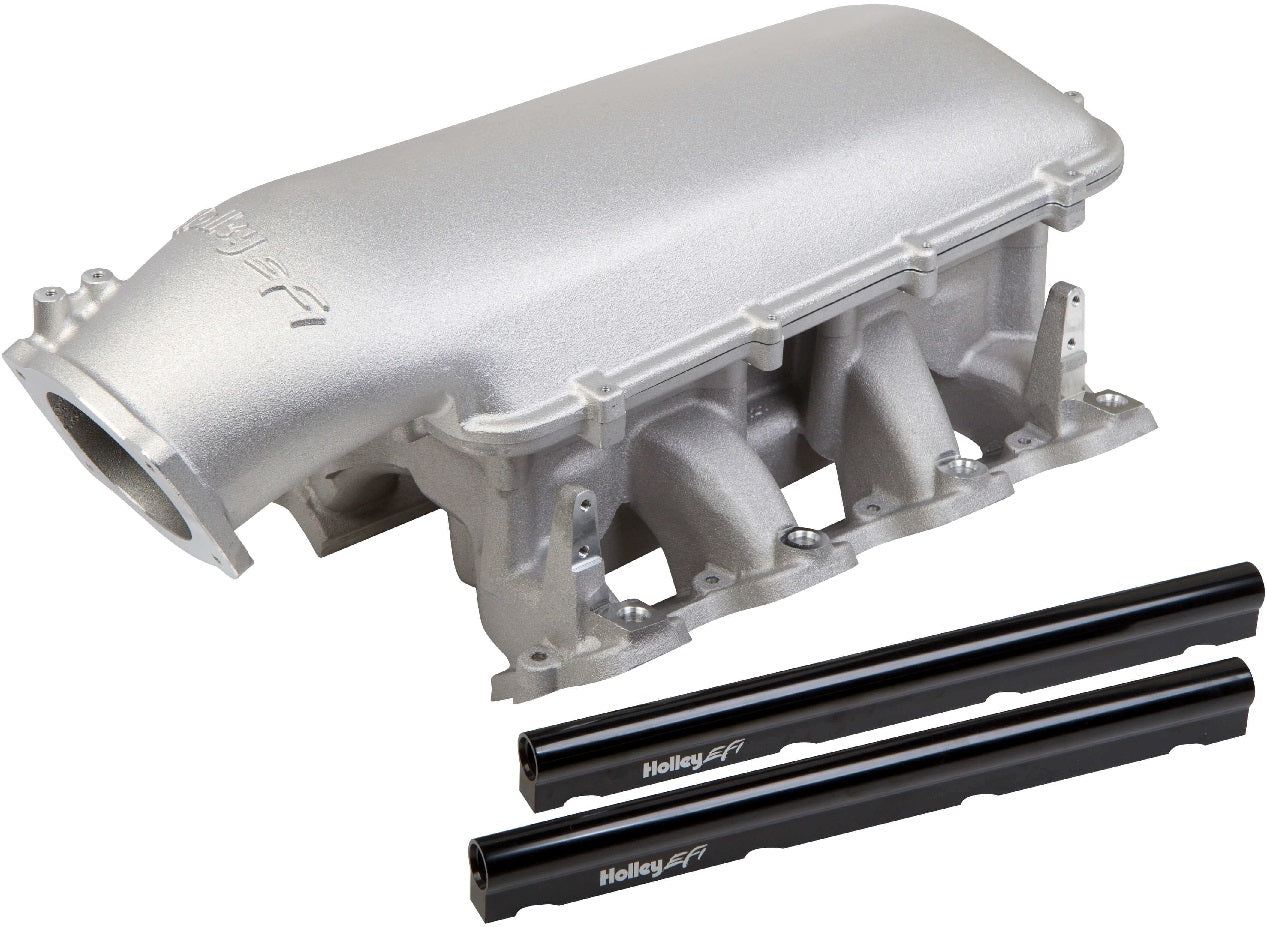

INTAKE MANIFOLD KIT,LS1/2/6,MID-RISE,92MM,SATIN

BRAND NEW HOLLEY EFI MID-RISE INTAKE MANIFOLD WITH 92MM PLENUM TOP, SILVER FINISH, COMPATIBLE WITH GM LS1, LS2 & LS6 ENGINES

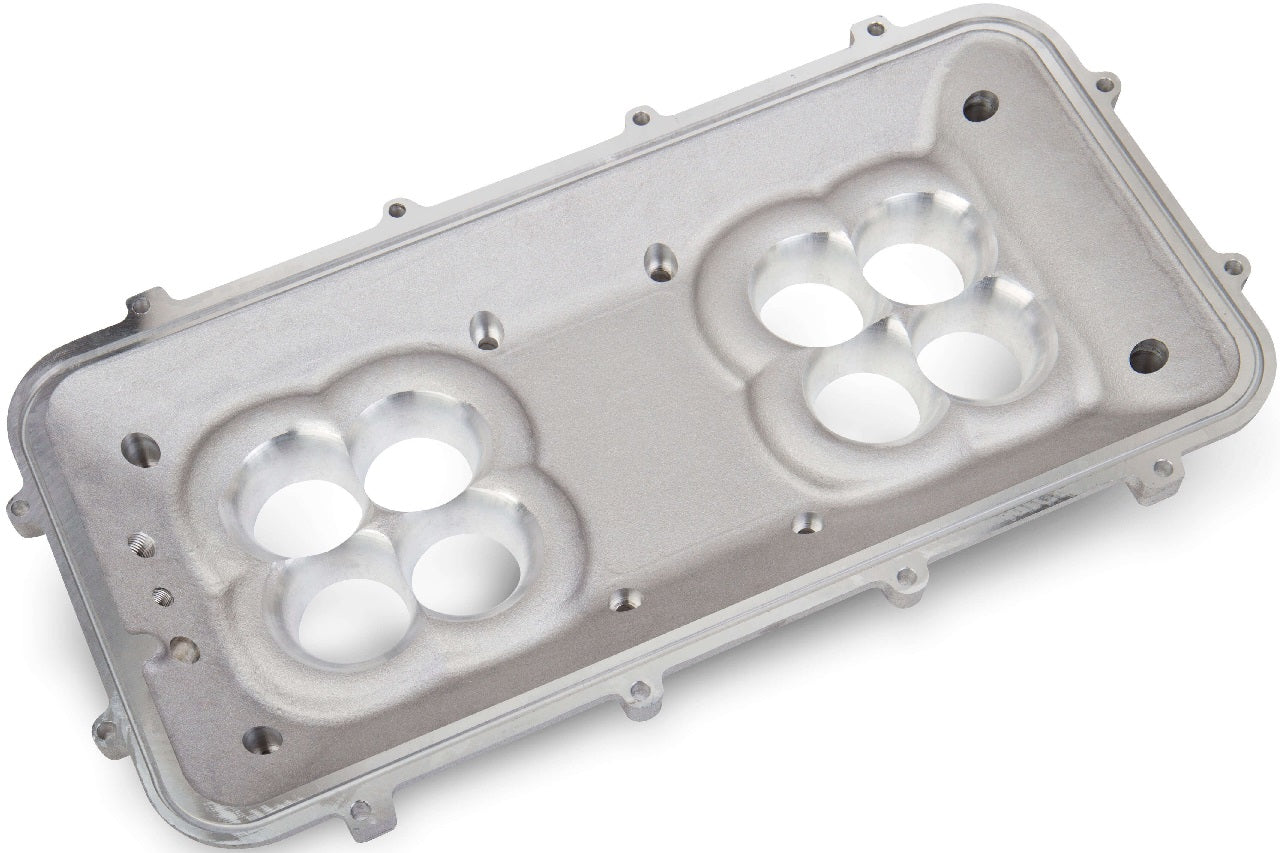

MODULAR MID-RISE INTAKE UTILIZES HOLLEY LS1/LS2/LS6 CATHEDRAL PORT MID-RISE 2X4 INTAKE MANIFOLD ALONG WITH A PURPOSE BUILT PLENUM BASE ADAPTER & HOLLEY 92MM EFI PLENUM TOP WHICH CONVERTS TO A MID-RISE EFI INTAKE MANIFOLD. MAX OVERALL HEIGHT OF 10.44" & PERFECT FOR TURBOCHARGED, OR NORMALLY ASPIRATED APPLICATIONS. THIS MANIFOLD IS MODULAR & PLENUM ADAPTER (PART #300-231) WILL ACCEPT ALL POPULAR HOLLEY LS HI-RAM PLENUM TOPS AS A FOUNDATION FOR CUSTOM INDUCTION SYSTEMS.

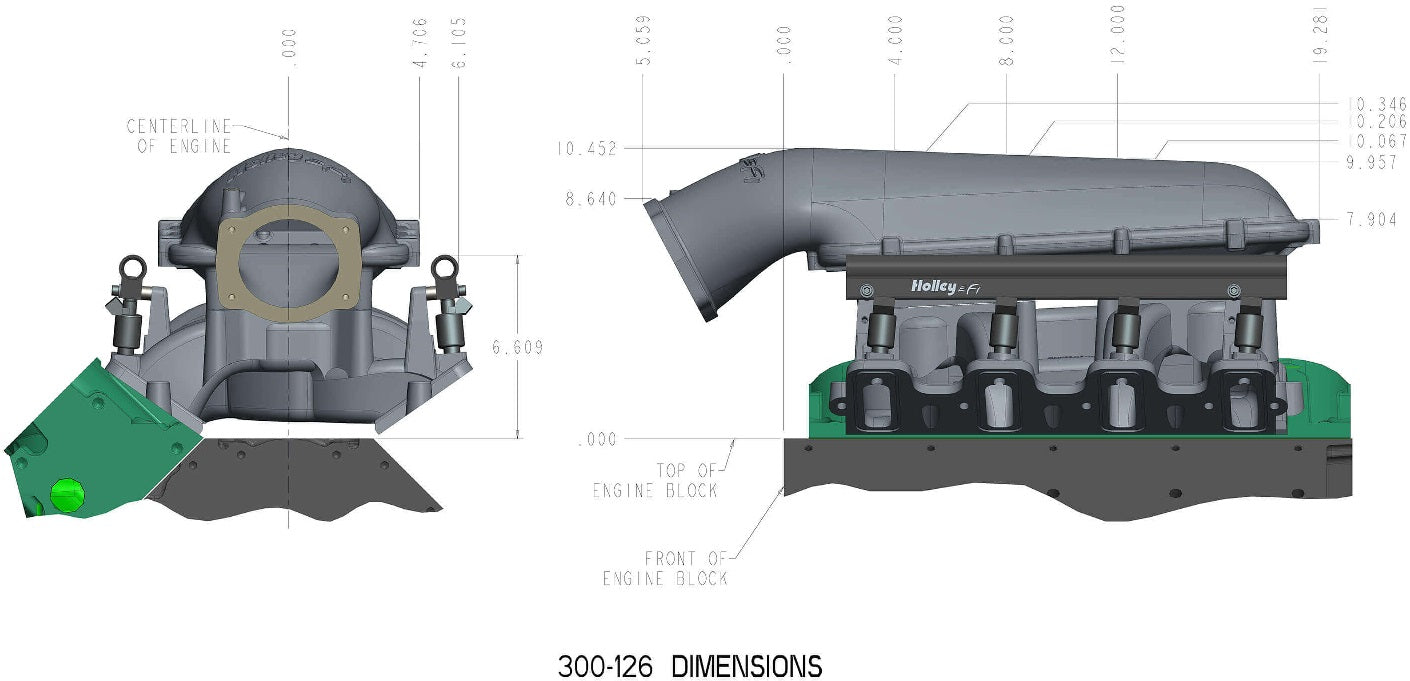

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION REFERENCE OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE DIAGRAMS IN PRODUCT IMAGES FOR OTHER DIMENSIONS.

NOTE: RECALIBRATION OF THE ECU MAY BE REQUIRED WHEN USING THIS INTAKE MANIFOLD DESIGN WITH OE ECU.

NOTE: HOLLEY EFI LS MAIN HARNESSES HAVE A MAP SENSOR CONNECTER DESIGNED FOR USE WITH AN LS1/2 STYLE MAP SENSOR. THE 558-416 IS AN ADAPTER HARNESS THAT CAN BE USED TO ADAPT ANY LS HARNESS THAT USES A LS1/2 MAP SENSOR CONNECTION TO A LS3 MAP & RECOMMENDED FOR THIS MANIFOLD.

NOTE: DESIGNED TO ACCEPT BOSCH STYLE EV-1 OR MAGNETI MARELLI PICO FUEL INJECTORS (OE LS FUEL INJECTORS MAY NOT FIT PROPERLY IN THE INTAKE MANIFOLD & FUEL RAIL ASSEMBLY)

FEATURES:

• PROVIDES GREAT PERFORMANCE TO 6500 RPM FOR STREET/STRIP PERFORMANCE APPLICATIONS WHILE PROVIDING THE LOOK OF A RACING EFI INTAKE MANIFOLD
• UNIQUE MODULAR DESIGN ALLOWS THE COMBINATION OF A TRADITIONAL DUAL-PLANE LAYOUT WITH AN EFI MANIFOLD PLENUM TO PRODUCE GREAT MID-RANGE TORQUE WITHOUT COMPROMISING TOP END POWER
• GREAT FOR SUPERCHARGED OR TURBOCHARGED ENGINES
• POWER BAND FROM 1500-6500 RPM
• MAY REQUIRE AFTERMARKET HOOD FOR SOME VEHICLE APPLICATIONS
• CAST ALUMINUM CONSTRUCTION
• INTENDED FOR USE ON ALL GM LS GEN III OR IV ENGINES EQUIPPED WITH LS1/LS2/LS6 STYLE CATHEDRAL PORT CYLINDER HEADS (RECALIBRATION OF THE ECU MAY BE REQUIRED WHEN USING THIS INTAKE MANIFOLD DESIGN WITH OE ECU)
• 92MM EFI PLENUM TOP

SPECS:

• BRAND: HOLLEY EFI
• COLOR/CONSTRUCTION: SILVER CAST
• ENGINE: GM LS1/LS2/LS6
• FLANGE STYLE: EFI
• FRONT HEIGHT: 10.44"
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: MID RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 9.99"
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 2500-7000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD KIT HERE.
