INTAKE MANIFOLD KIT,LS7,HI-RAM,92MM,SATIN

BRAND NEW HOLLEY LS HI-RAM EFI INTAKE MANIFOLD, SILVER FINISH, 12.32" FRONT HEIGHT & 11" REAR HEIGHT, COMPATIBLE WITH GM LS7 ENGINES

HOLLEY GM LS7 MODULAR HI-RAM INTAKE MANIFOLD IS INTRODUCED AS A COST EFFECTIVE ALTERNATIVE TO FABRICATED SHEET-METAL FOR HIGH-PERFORMANCE APPLICATIONS WHERE INDUCTION SYSTEM HEIGHT IS NOT LIMITED. COUPLING THIS HI-RAM INTAKE WITH THE HIGH FLOWING LS7 STYLE CYLINDER HEADS HAS OUTSTANDING POTENTIAL FOR N/A & FORCED INDUCTION APPLICATIONS AT A BUDGET-MINDED COST.

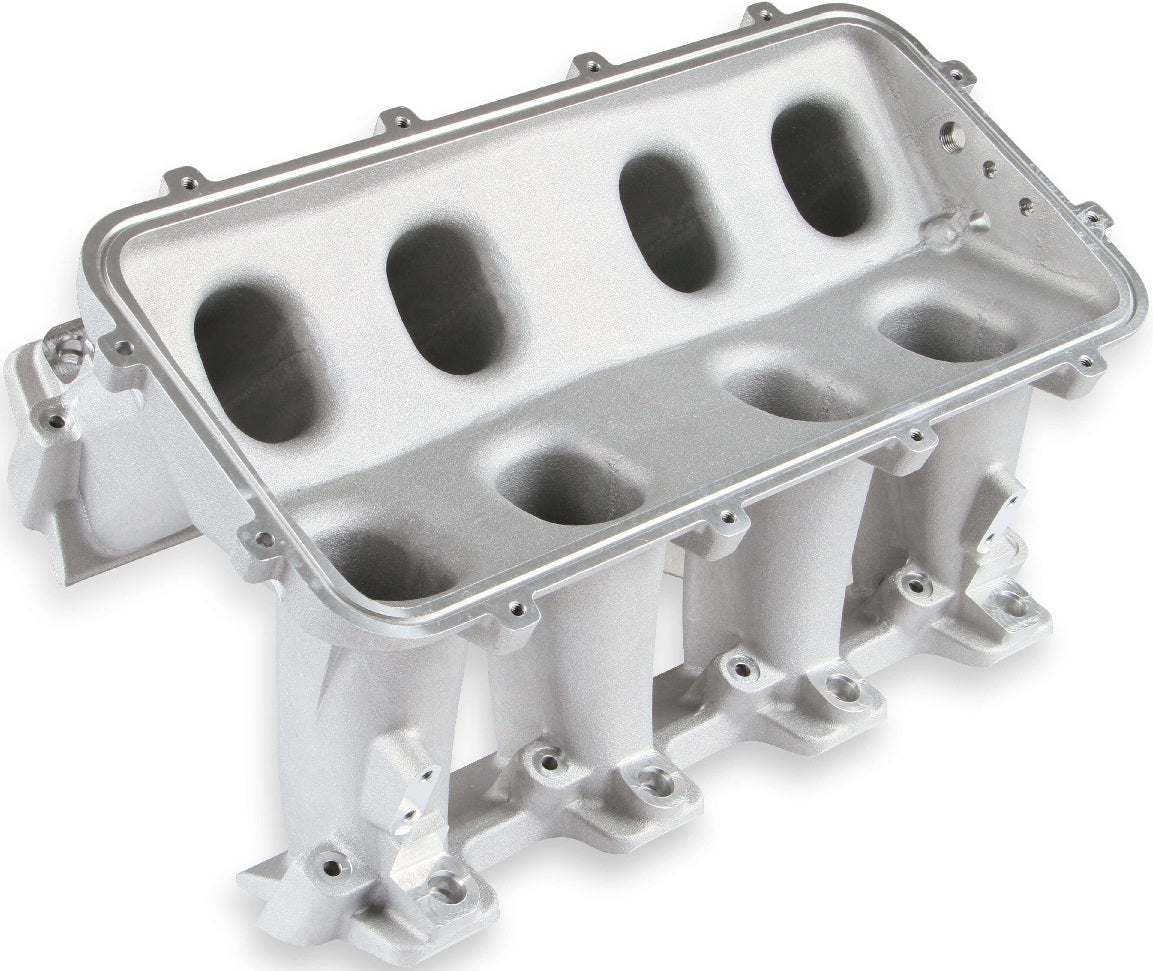

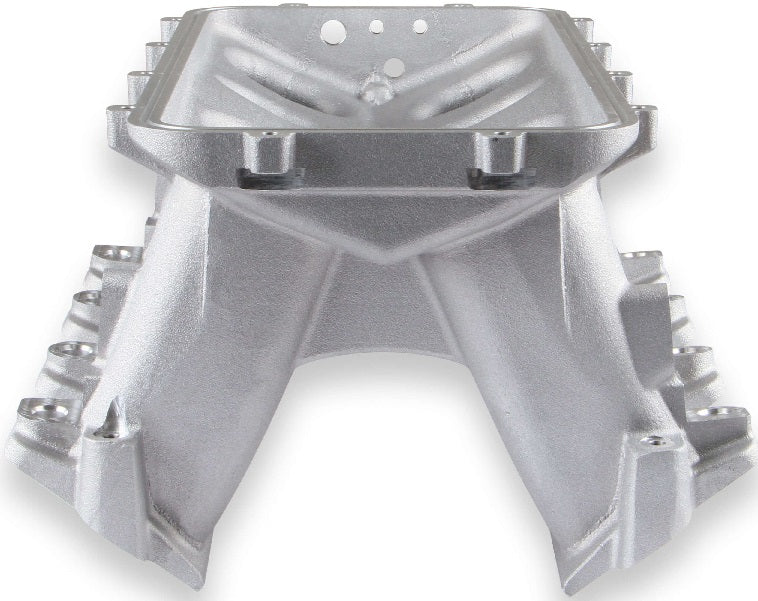

THE BASE IS DESIGNED TO BE MODULAR IN CONFIGURATION TO ACCEPT A WIDE RANGE OF CARBURETED & EFI TOPS & TO BE ATTRACTIVE TO BUILDERS & FABRICATORS AS THE FOUNDATION FOR CUSTOM INDUCTION SYSTEMS. RUNNER LENGTH & THE TAPERED CROSS-SECTION DESIGNED TO PERFORM WELL FOR A WIDE RANGE OF ENGINE CONFIGURATIONS.

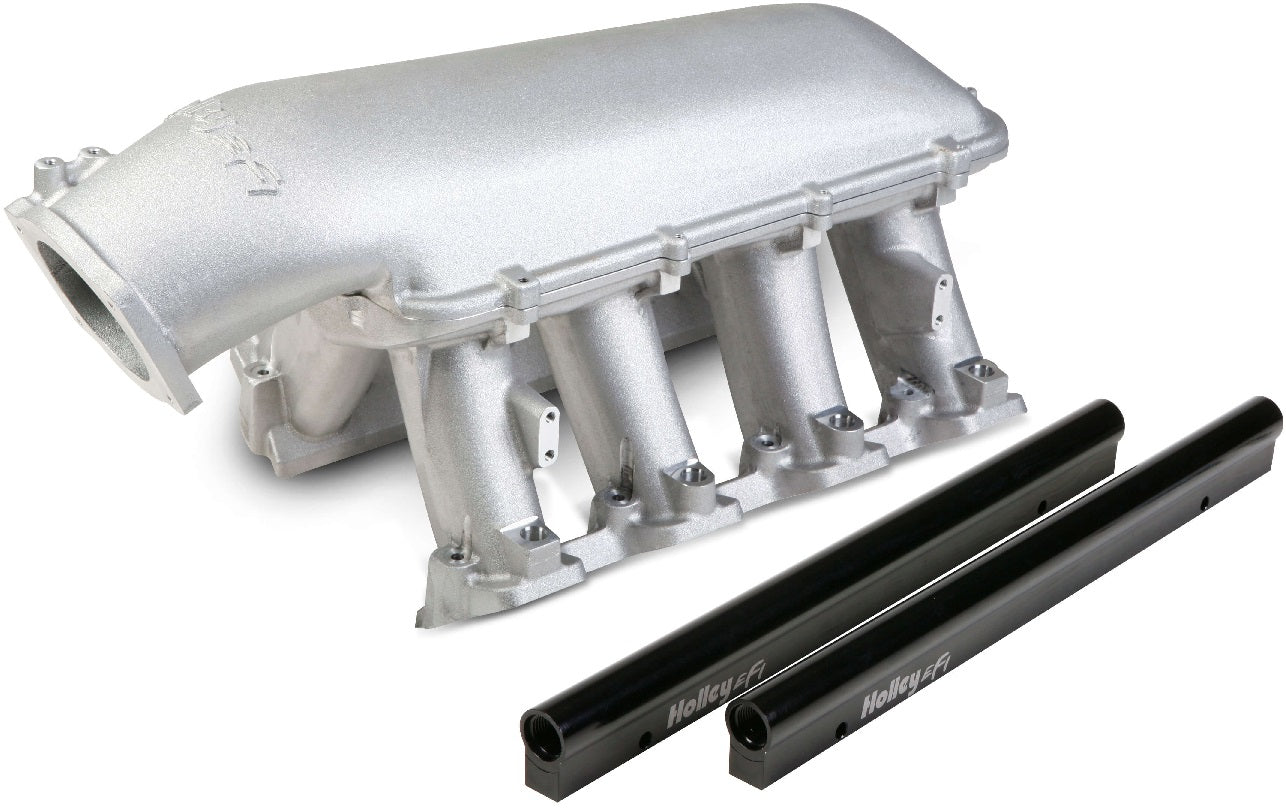

EFI FUEL RAILS ARE MACHINED FOR -8AN O-RING FITTINGS WITH PASSAGES LARGE ENOUGH TO ACCOMMODATE HIGH FUEL FLOWS & DAMPEN PRESSURE PULSATIONS IN THE FUEL SYSTEM & COME STANDARD WITH EFI HI-RAM KITS. INTENDED FOR USE ON N/A OR FORCED INDUCTION ENGINES IN THE 6.0 TO 7.0 PLUS LITER RANGE, MAX POWER AT 7000-8000 PLUS RPM.

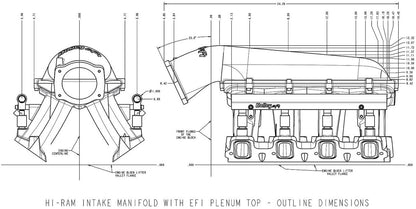

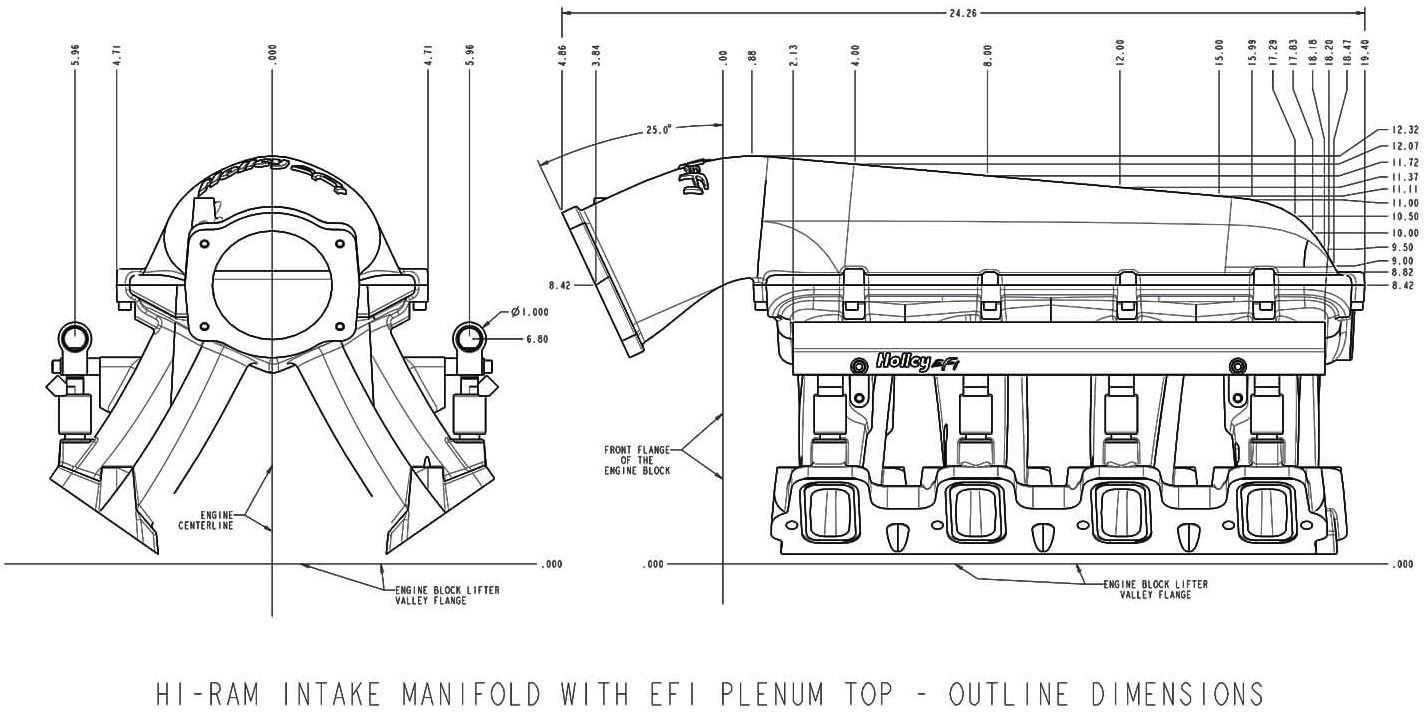

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION ARE REFERENCING OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE THE PRODUCT IMAGES FOR OTHER DIMENSIONS.

FEATURES:

• RUNNER LENGTH - 6.29", AS-CAST RUNNER CROSS-SECTIONAL AREA - TAPERED 4.67 IN SQUARED TO 2.84 IN SQUARED
• THROTTLE BODY FLANGE LOCATION, WITH 92/102MM EFI PLENUM TOP : HEIGHT - 8.42" (FROM ENGINE BLOCK LIFTER VALLEY COVER FLANGE), LONGITUDINAL LOCATION - 3.84" (FORWARD FROM ENGINE BLOCK FRONT FLANGE), ANGLE - 25 DEGREES (DOWN FROM VERTICAL)
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• MOUNTING FLANGE GASKET TYPE - STANDARD LS3 MOLDED O-RING
• PORT SIZE - 2.49" HEIGHT X 1.21" WIDE
• TOTAL HEIGHT WITH 92/102MM EFI PLENUM TOP - 12.32" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• BASE PLENUM TOP MOUNTING FLANGE HEIGHT - 8.42" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK

SPECS:

• COLOR/CONSTRUCTION: SILVER CAST
• ENGINE: GM LS7
• FLANGE STYLE: EFI
• FRONT HEIGHT: 12.32"
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 11.00"
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 3500-8000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
