INTAKE MANIFOLD KIT,LS1/2/6,HI-RAM,92MM,BLACK

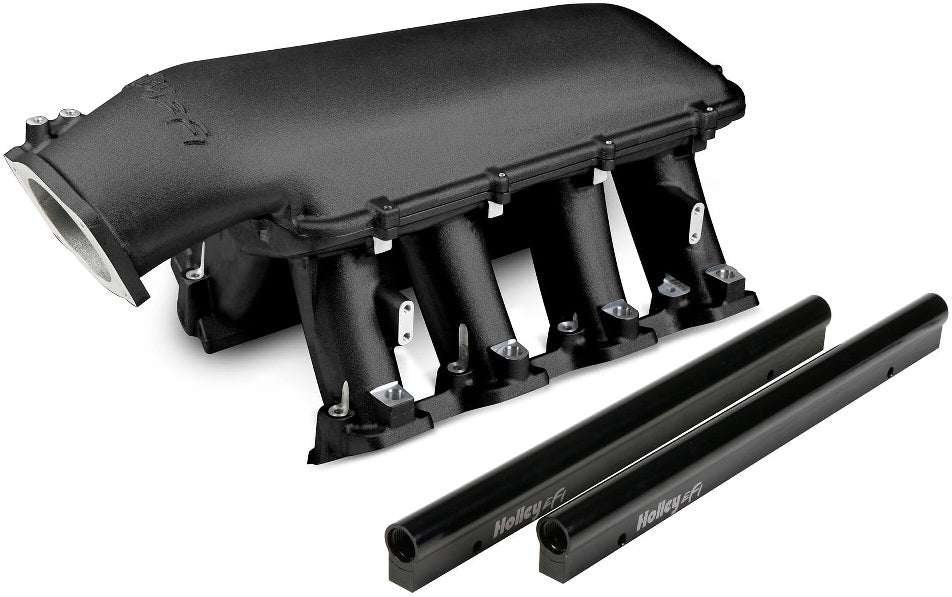

BRAND NEW HOLLEY LS HI-RAM EFI MANIFOLD, BLACK CERAMIC FINISH, CATHEDRAL PORT EFI FOR 1 X 92MM THROTTLE BODY, COMPATIBLE WITH LS1, LS2, LS6

HOLLEY GM LS1/LS2/LS6 MODULAR HI-RAM INTAKE MANIFOLD IS INTRODUCED AS A COST EFFECTIVE ALTERNATIVE TO FABRICATED SHEET-METAL FOR HIGH-PERFORMANCE APPLICATIONS WHERE INDUCTION SYSTEM HEIGHT IS NOT LIMITED. COUPLING THIS HI-RAM INTAKE WITH THE HIGH FLOWING LS1/LS2/LS6 STYLE CYLINDER HEADS HAS OUTSTANDING POTENTIAL FOR N/A & FORCED INDUCTION APPLICATIONS.

THE BASE IS DESIGNED TO BE MODULAR IN CONFIGURATION TO ACCEPT A WIDE RANGE OF CARBURETED AND EFI TOPS AND TO BE ATTRACTIVE TO BUILDERS AND FABRICATORS AS THE FOUNDATION FOR CUSTOM INDUCTION SYSTEMS. RUNNER LENGTH AND THE TAPERED CROSS-SECTION DESIGNED TO PERFORM WELL FOR A WIDE RANGE OF ENGINE CONFIGURATIONS.

EFI FUEL RAILS ARE MACHINED FOR -8AN O-RING FITTINGS WITH PASSAGES LARGE ENOUGH TO ACCOMMODATE HIGH FUEL FLOWS AND DAMPEN PRESSURE PULSATIONS IN THE FUEL SYSTEM AND COME STANDARD WITH EFI HI-RAM KITS CAST ALUMINUM CONSTRUCTION. INTENDED FOR USE ON N/A OR FORCED INDUCTION ENGINES IN THE 6.0 TO 7.0+ LITER RANGE, MAX POWER AT 7000-8000+RPM.

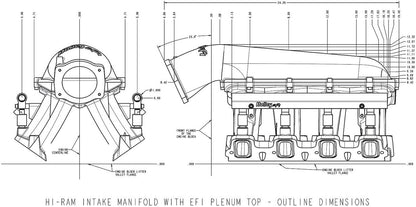

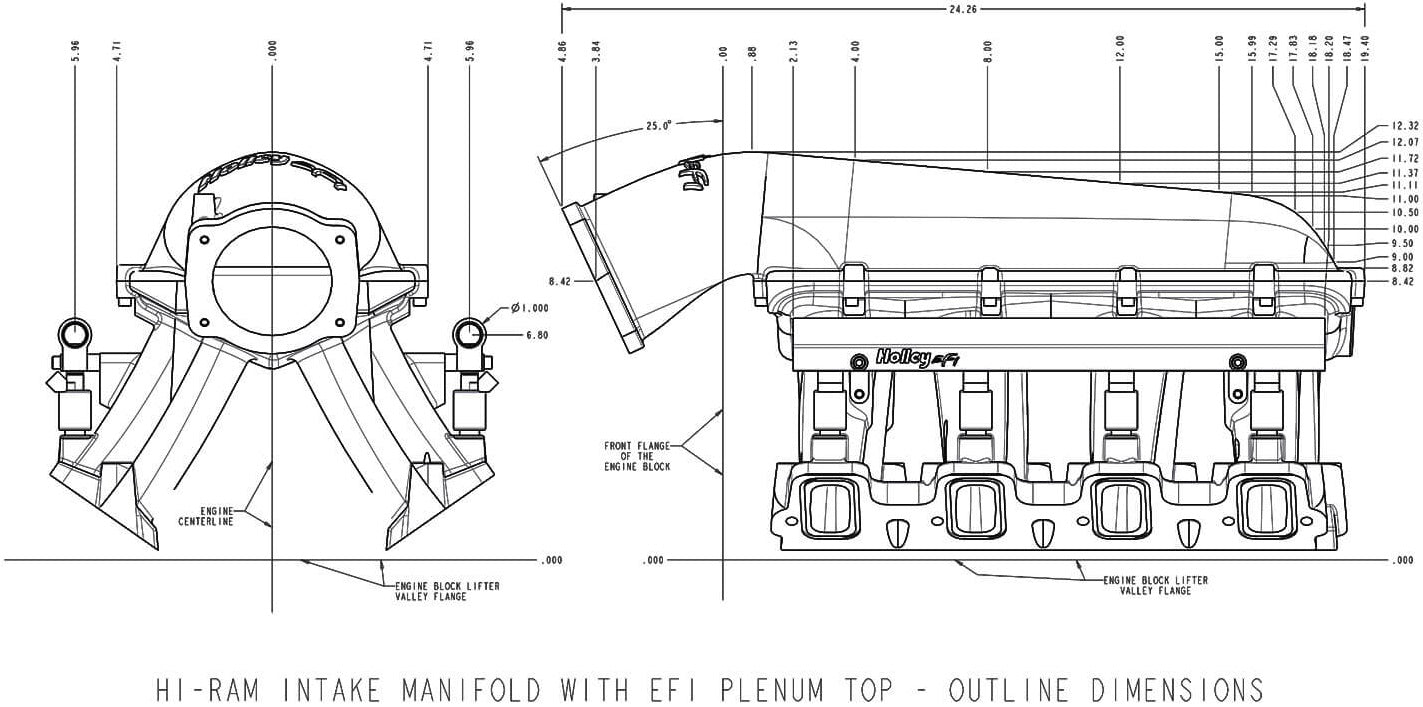

NOTE: FRONT AND REAR HEIGHT MEASUREMENTS LISTED IN THE SPECS SECTION ARE REFERENCING THE OVERALL HEIGHT WITH THE TOP PLATE INSTALLED.

FEATURES:

• BASE PLENUM TOP MOUNTING FLANGE HEIGHT - 8.42" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• TOTAL HEIGHT WITH 92/102MM EFI PLENUM TOP - 12.32" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• PORT SIZE - 2.49" HEIGHT X 1.21" WIDE
• MOUNTING FLANGE GASKET TYPE - STANDARD LS3 MOLDED O-RING
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• THROTTLE BODY FLANGE LOCATION, WITH 92MM EFI PLENUM TOP : HEIGHT - 8.42" (FROM ENGINE BLOCK LIFTER VALLEY COVER FLANGE), LONGITUDINAL LOCATION - 3.84" (FORWARD FROM ENGINE BLOCK FRONT FLANGE), ANGLE - 25 DEG. (DOWN FROM VERTICAL)
• RUNNER LENGTH - 6.58", AS-CAST RUNNER CROSS-SECTIONAL AREA - TAPERED 4.25 INCHES SQUARED TO 2.53 INCHES SQUARED

SPECS:

• COLOR/CONSTRUCTION: BLACK CAST
• ENGINE: GM LS1/LS2/LS6
• FRONT HEIGHT: 12.32"
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 11.00"
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 3500-8000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
