INTAKE MANIFOLD KIT,LS1/2/6,HI-RAM,92MM,SATIN

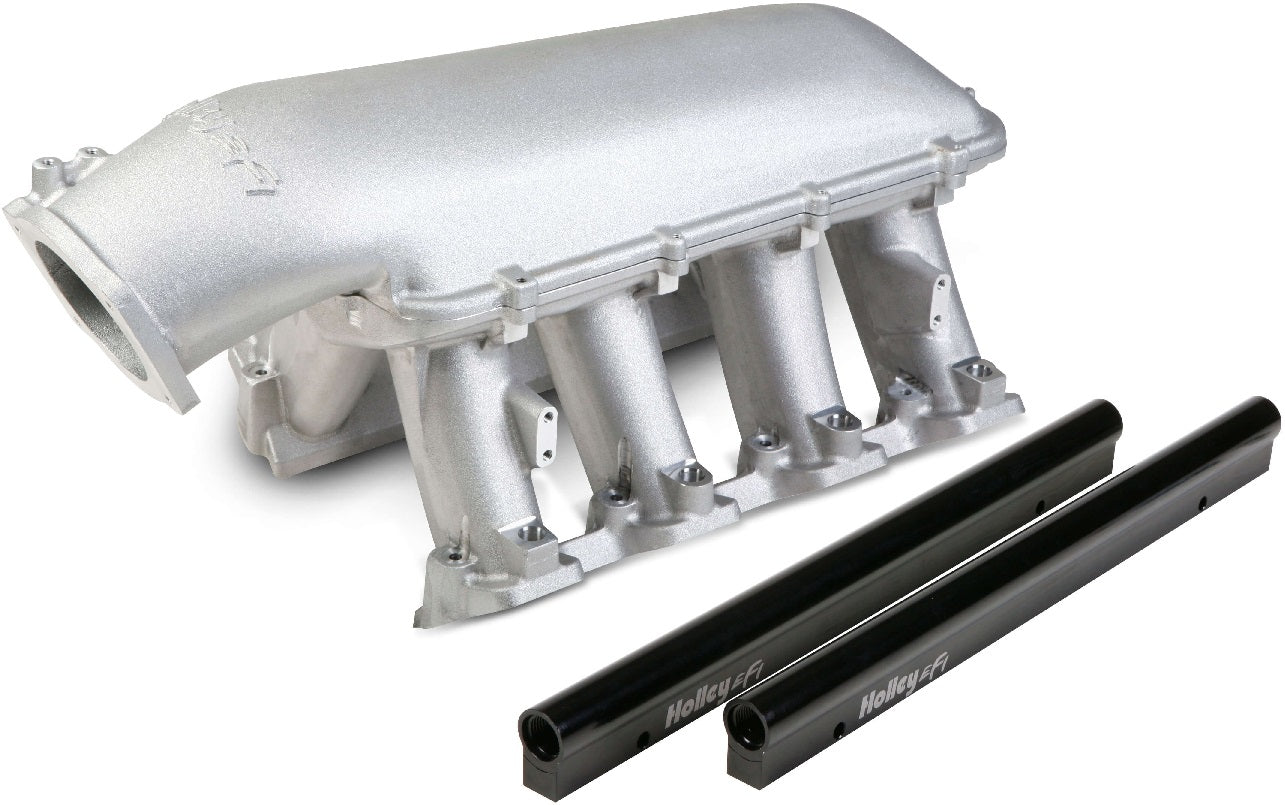

BRAND NEW HOLLEY EFI HI-RAM INTAKE MANIFOLD WITH 1X92MM PLENUM TOP, SILVER FINISH, CATHEDRAL PORTS, COMPATIBLE WITH GM LS1, LS2 & LS6 ENGINES

INTRODUCED AS A COST EFFECTIVE ALTERNATIVE TO FABRICATED SHEET-METAL FOR HIGH-PERFORMANCE APPLICATIONS WHERE INDUCTION SYSTEM HEIGHT IS NOT LIMITED. COUPLING THIS WITH THE HIGH FLOWING LS1/LS2/LS6 STYLE CYLINDER HEADS HAS OUTSTANDING POTENTIAL FOR N/A AND FORCED INDUCTION APPLICATIONS AT BUDGET-MINDED COST.

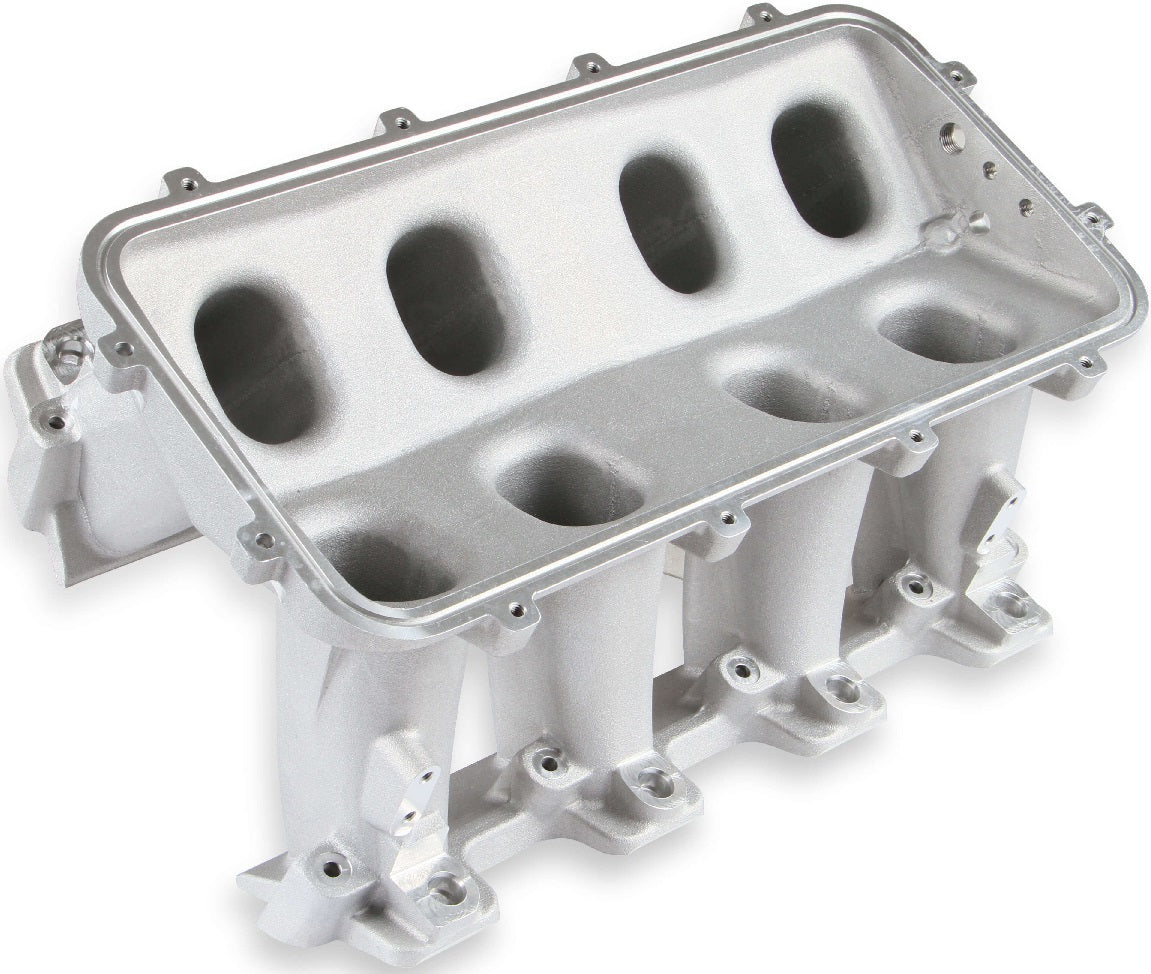

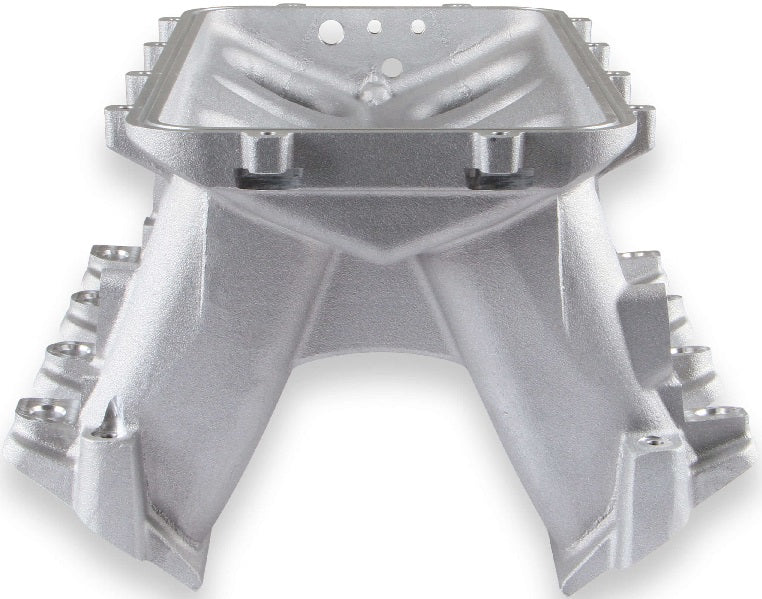

THE BASE IS DESIGNED TO BE MODULAR IN CONFIGURATION TO ACCEPT A WIDE RANGE OF CARBURETED AND EFI TOPS AND TO BE ATTRACTIVE TO BUILDERS AND FABRICATORS AS THE FOUNDATION FOR CUSTOM INDUCTION SYSTEMS. RUNNER LENGTH AND THE TAPERED CROSS-SECTION DESIGNED TO PERFORM WELL FOR A WIDE RANGE OF ENGINE CONFIGURATIONS.

EFI FUEL RAILS ARE MACHINED FOR -8AN O-RING FITTINGS WITH PASSAGES LARGE ENOUGH TO ACCOMMODATE HIGH FUEL FLOWS AND DAMPEN PRESSURE PULSATIONS IN THE FUEL SYSTEM AND COME STANDARD WITH EFI HI-RAM KITS. INTENDED FOR USE ON N/A OR FORCED INDUCTION ENGINES IN THE 6.0 TO 7.0+ LITER RANGE, MAX POWER AT 7000-8000+RPM.

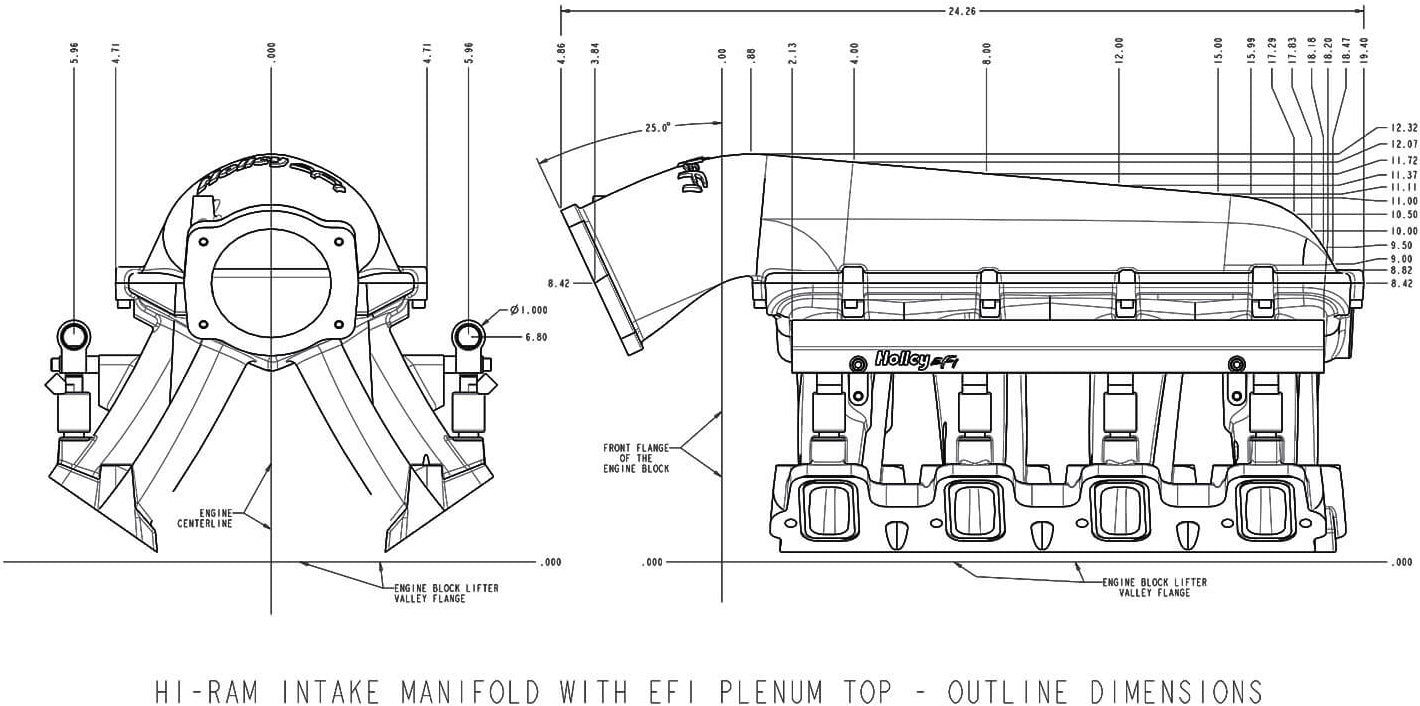

NOTE: FRONT/REAR HEIGHT MEASUREMENTS LISTED IN FEATURES SECTION ARE REFERENCING OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE PRODUCT IMAGES FOR OTHER DIMENSIONS.

FEATURES:

• BASE PLENUM TOP MOUNTING FLANGE HEIGHT - 8.42" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• TOTAL HEIGHT WITH 92/102MM EFI PLENUM TOP - 12.32" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• PORT SIZE - 2.49" H X 1.21" W
• MOUNTING FLANGE GASKET TYPE - STANDARD LS3 MOLDED O-RING
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• THROTTLE BODY FLANGE LOCATION, WITH 92MM EFI PLENUM TOP: HEIGHT - 8.42" (FROM ENGINE BLOCK LIFTER VALLEY COVER FLANGE), LONGITUDINAL LOCATION - 3.84" (FORWARD FROM ENGINE BLOCK FRONT FLANGE), ANGLE - 25 DEG. (DOWN FROM VERTICAL)
• RUNNER LENGTH - 6.58", AS-CAST RUNNER CROSS-SECTIONAL AREA - TAPERED 4.25" SQUARED TO 2.53" SQUARED

SPECS:

• BRAND: HOLLEY EFI
• COLOR/CONSTRUCTION: SILVER CAST
• ENGINE: GM LS1/LS2/LS6
• FINISH: SILVER
• FLANGE STYLE: EFI
• FRONT HEIGHT: 12.32"
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 11.00"
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 3500-8000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
