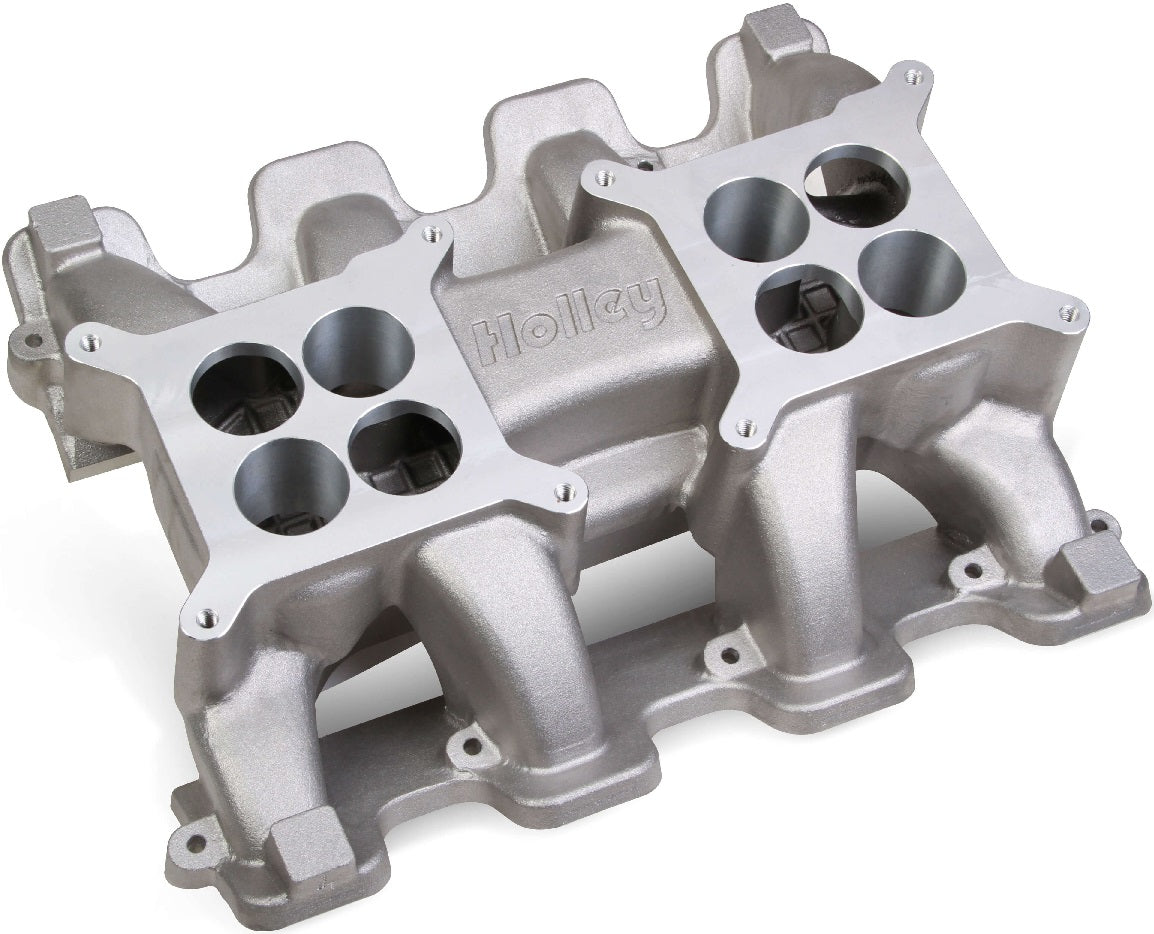

INTAKE MANIFOLD,LS1/2/6,DUAL-PLANE,4150X2,SATIN

BRAND NEW HOLLEY LS CARBURETED MANIFOLD, SILVER FINISH, 2X4 DUAL PLANE, 4150 SQUARE BORE, COMPATIBLE WITH LS GEN 3 LS1, LS2 & LS6 ENGINES

NOTE: ALL GM LS GEN 3 ENGINES EQUIPPED WITH LS1/LS2 STYLE CATHEDRAL PORT CYLINDER HEADS.

FEATURES:

• DESIGNED IN THE TRADITION OF THE GREAT DUAL HOLLEY 4160 INDUCTION SYSTEMS
• DUAL-PLANE EQUAL-DISTRIBUTION LAYOUT PRODUCES GREAT MID-RANGE TORQUE WITHOUT COMPROMISING TOP END POWER
• POWER BAND FROM 1500-7000 RPM
• APPROPRIATE FOR ANY STREET/PERFORMANCE, MUSCLE CAR, OR STREET ROD ENTHUSIAST
• CAST ALUMINUM CONSTRUCTION
• COMPATIBLE WITH ALL GM LS GEN III ENGINES EQUIPPED WITH LS1/LS2 STYLE CATHEDRAL PORT CYLINDER HEADS
• CARB FLANGE CENTER-TO-CENTER: 8-5/8"

SPECS:

• BRAND: HOLLEY
• COLOR: SILVER
• CONSTRUCTION: CAST
• ENGINE: GM LS1/LS2/LS6
• FINISH: SILVER
• FLANGE STYLE: 4150 SQUARE BORE

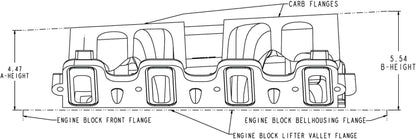

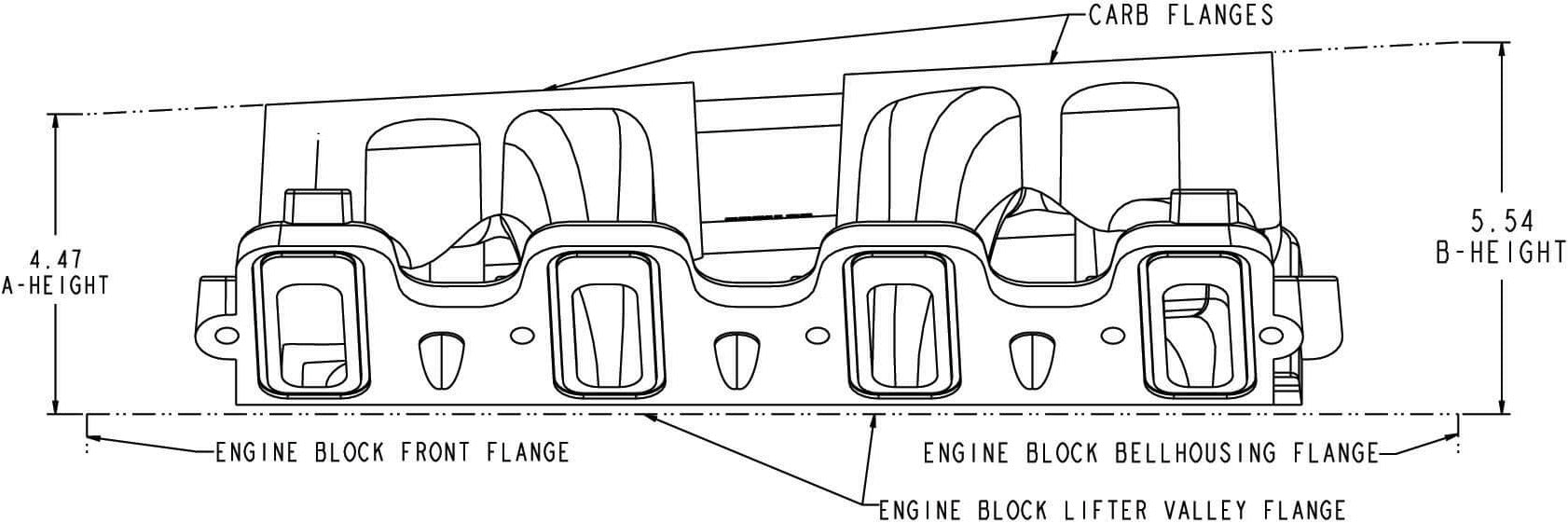

• FRONT HEIGHT: 4.47"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: DUAL PLANE
• PRODUCT TYPE: INTAKE MANIFOLD BASE
• REAR HEIGHT: 5.54"
• RPM POWER BAND: 1500-6500 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
