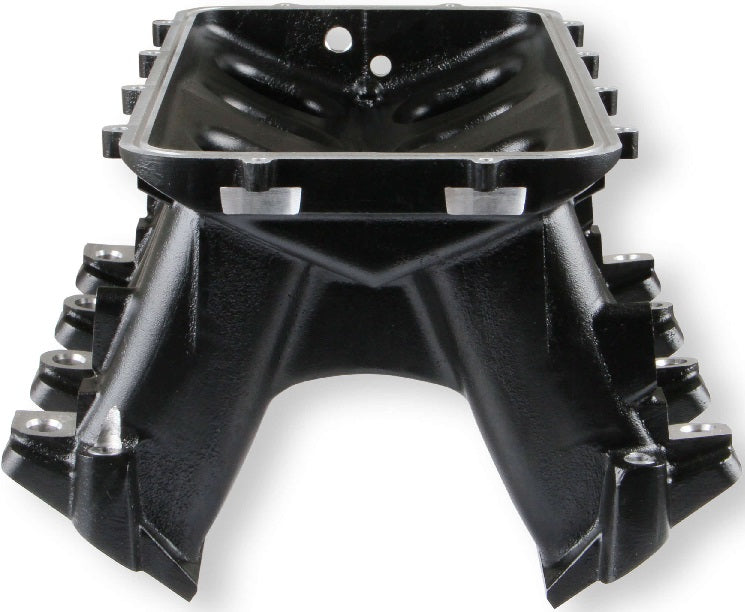

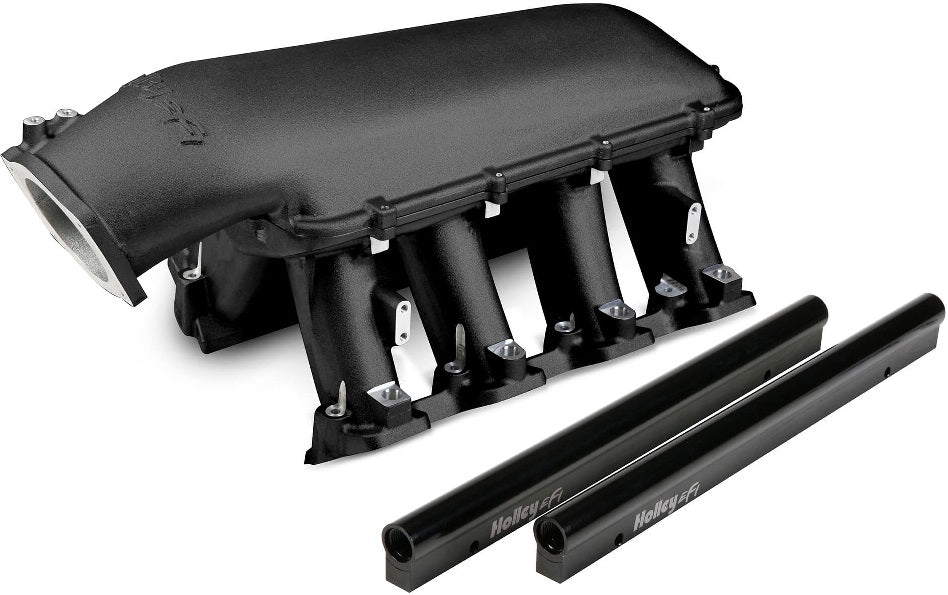

INTAKE MANIFOLD KIT,LS3/L92,HI-RAM,105MM,BLACK

BRAND NEW HOLLEY EFI HI-RAM INTAKE MANIFOLD, BLACK FINISH, COMPATIBLE WITH GM LS3/L92 ENGINES

THE HOLLEY GM LS3/L92 MODULAR HI-RAM INTAKE MANIFOLD IS INTRODUCED AS A COST EFFECTIVE ALTERNATIVE TO FABRICATED SHEET-METAL FOR HIGH-PERFORMANCE APPLICATIONS WHERE INDUCTION SYSTEM HEIGHT IS NOT LIMITED. COUPLING THIS HI-RAM INTAKE WITH THE HIGH FLOWING LS3/L92 STYLE CYLINDER HEADS HAS OUTSTANDING POTENTIAL FOR N/A & FORCED INDUCTION APPLICATIONS AT A BUDGET-MINDED COST.

THE BASE IS DESIGNED TO BE MODULAR IN CONFIGURATION TO ACCEPT A WIDE RANGE OF CARBURETED & EFI TOPS & TO BE ATTRACTIVE TO BUILDERS & FABRICATORS AS THE FOUNDATION FOR CUSTOM INDUCTION SYSTEMS. RUNNER LENGTH & TAPERED CROSS-SECTION DESIGNED TO PERFORM WELL FOR A WIDE RANGE OF ENGINE CONFIGURATIONS.

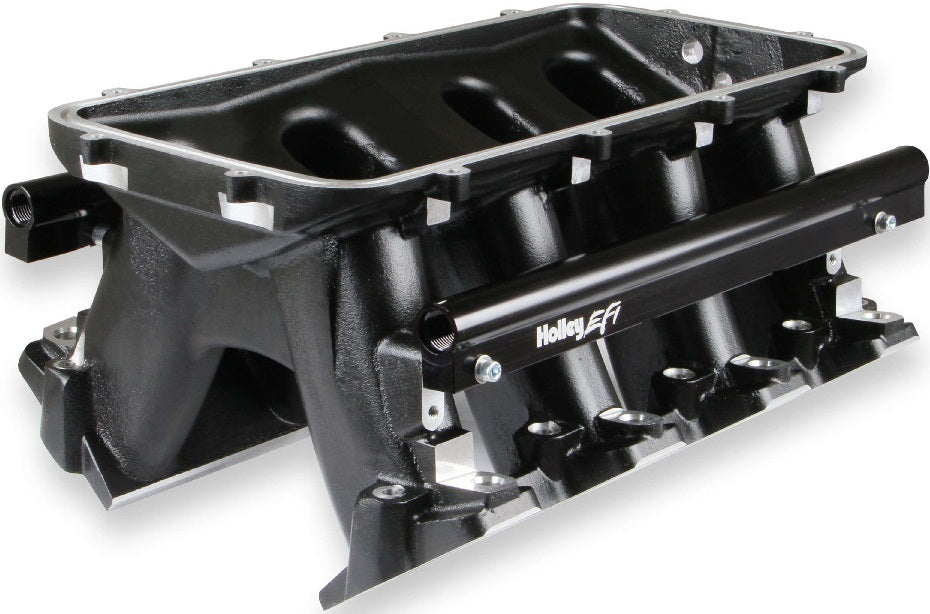

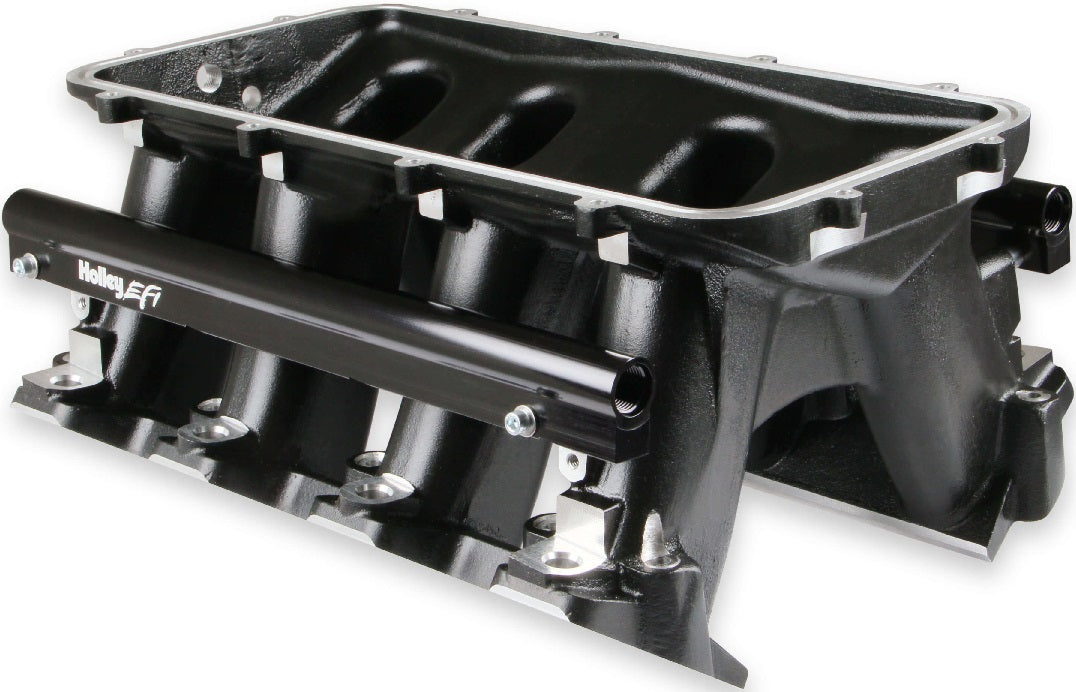

EFI FUEL RAILS ARE MACHINED FOR -8AN O-RING FITTINGS WITH PASSAGES LARGE ENOUGH TO ACCOMMODATE HIGH FUEL FLOWS & DAMPEN PRESSURE PULSATIONS IN THE FUEL SYSTEM & COME STANDARD WITH EFI HI-RAM KITS. CAST ALUMINUM CONSTRUCTION. INTENDED FOR USE ON N/A OR FORCED INDUCTION ENGINES IN THE 6.0 TO 7.0+ LITER RANGE, MAX POWER AT 7000-8000+RPM.

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION REFERENCE OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE DIAGRAMS IN PRODUCT IMAGES FOR OTHER DIMENSIONS.

FEATURES:

• BASE PLENUM TOP MOUNTING FLANGE HEIGHT - 8.42" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• TOTAL HEIGHT WITH 92/102MM EFI PLENUM TOP - 12.32" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• PORT SIZE - 2.49" HEIGHT X 1.21" WIDE
• MOUNTING FLANGE GASKET TYPE - STANDARD LS3 MOLDED O-RING
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• THROTTLE BODY FLANGE LOCATION, WITH 92/102MM EFI PLENUM TOP: HEIGHT - 8.42" (FROM ENGINE BLOCK LIFTER VALLEY COVER FLANGE), LONGITUDINAL LOCATION - 3.84" (FORWARD FROM ENGINE BLOCK FRONT FLANGE), ANGLE - 25 DEGREES (DOWN FROM VERTICAL)
• RUNNER LENGTH - 6.50", AS-CAST RUNNER CROSS-SECTIONAL AREA - TAPERED 4.25 IN SQUARED TO 2.77 IN SQUARED

SPECS:

• BRAND: HOLLEY EFI
• COLOR/CONSTRUCTION: BLACK CAST
• ENGINE: GM LS3/L92
• FINISH: BLACK
• FRONT HEIGHT: 12.32
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PRODUCT TYPE: INTAKE MANIFOLD
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 3500-8000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
