INTAKE MANIFOLD KIT,LS3/L92,HI-RAM,92MM,SATIN

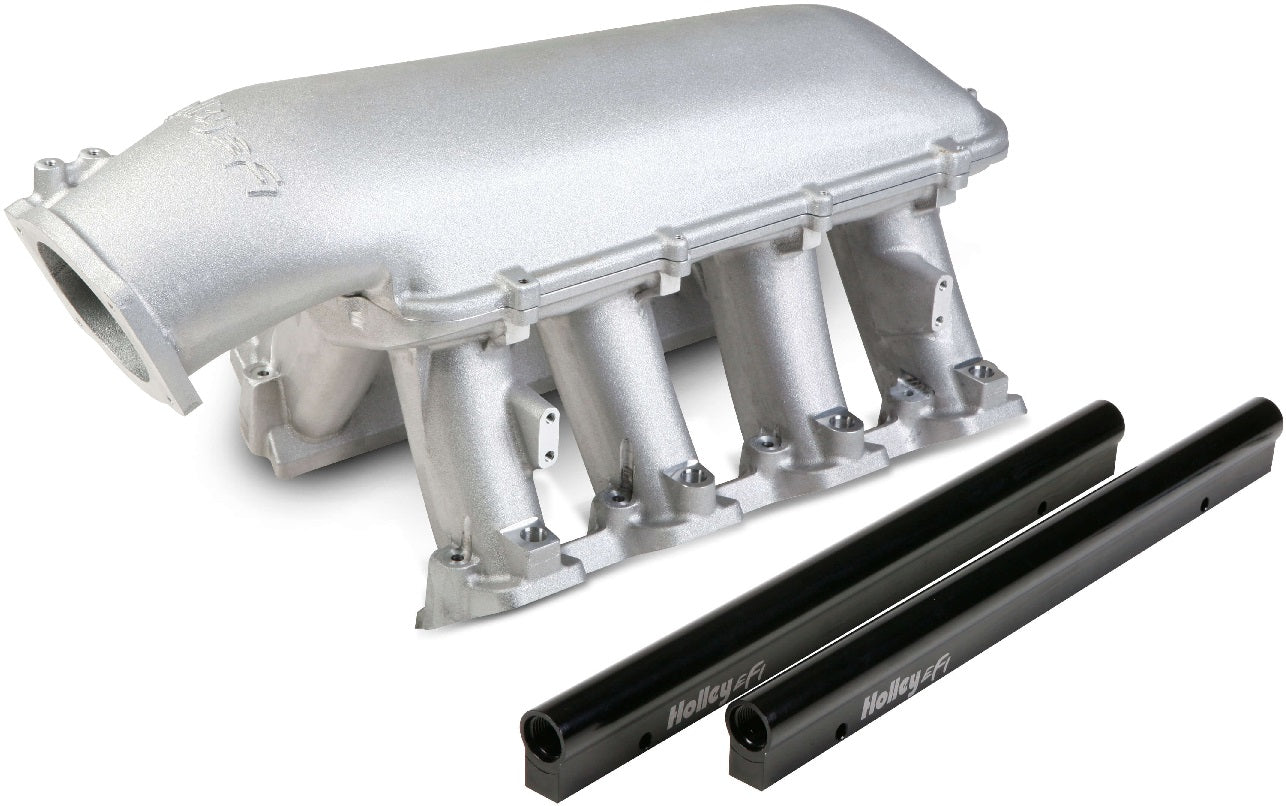

BRAND NEW HOLLEY EFI HI-RAM INTAKE MANIFOLD WITH 1X92MM LONGITUDINAL MOUNT PLENUM TOP, SILVER FINISH, COMPATIBLE WITH GM LS3, L92 ENGINES

HOLLEY GM LS3/L92 MODULAR HI-RAM INTAKE MANIFOLD IS A COST EFFECTIVE ALTERNATIVE TO FABRICATED SHEET-METAL FOR HIGH-PERFORMANCE APPLICATIONS WHERE INDUCTION SYSTEM HEIGHT IS NOT LIMITED. COUPLING THIS HI-RAM INTAKE WITH THE HIGH FLOWING LS3/L92 STYLE CYLINDER HEADS HAS OUTSTANDING POTENTIAL FOR N/A & FORCED INDUCTION APPLICATIONS.

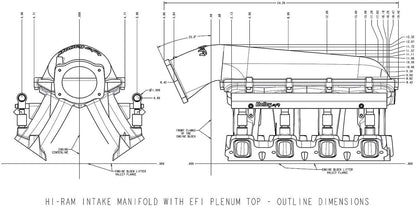

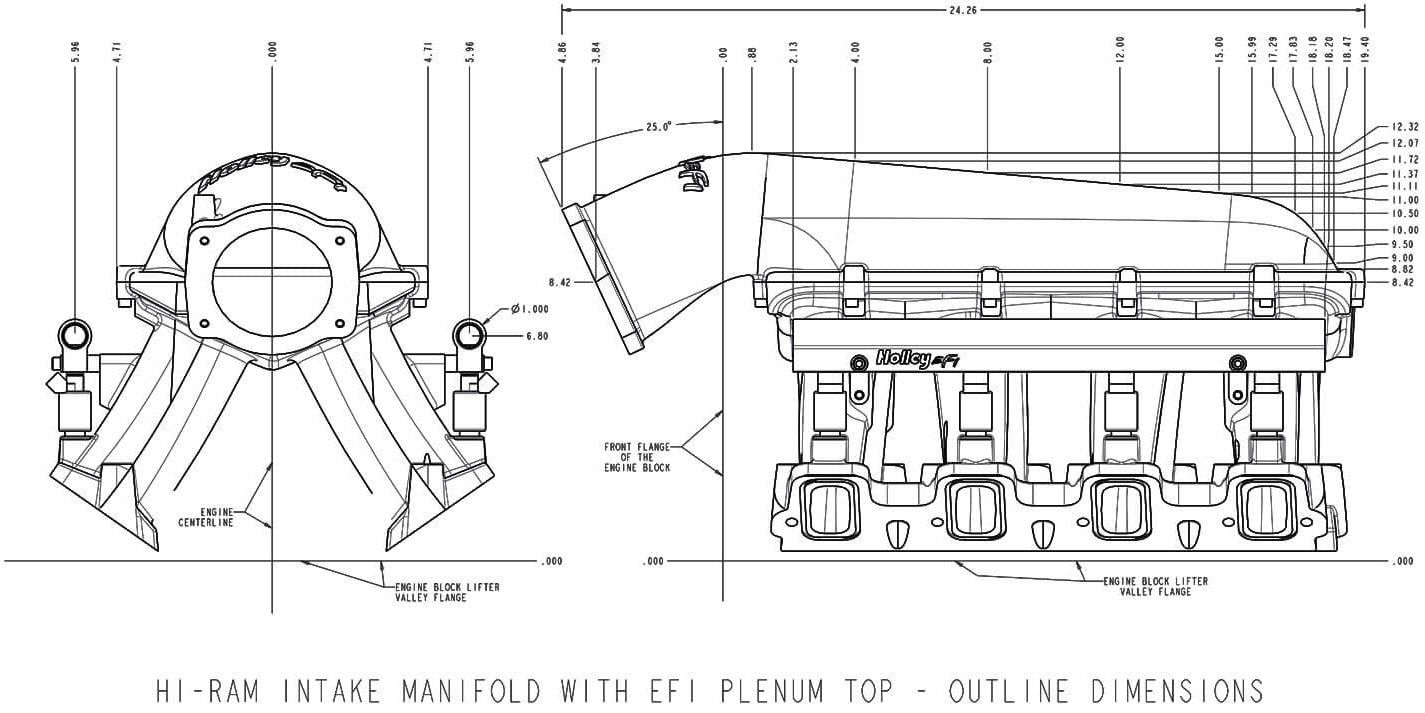

NOTE: FRONT & REAR HEIGHT MEASUREMENTS LISTED IN SPECS SECTION REFERENCE OVERALL HEIGHT WITH TOP PLATE INSTALLED. SEE DIAGRAMS IN PRODUCT IMAGES FOR OTHER DIMENSIONS.

FEATURES:

• BASE PLENUM TOP MOUNTING FLANGE HEIGHT - 8.42" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• TOTAL HEIGHT WITH 92/102MM EFI PLENUM TOP - 12.32" TO THE LIFTER VALLEY COVER FLANGE ON ENGINE BLOCK
• PORT SIZE - 2.49" HEIGHT X 1.21" WIDE
• MOUNTING FLANGE GASKET TYPE - STANDARD LS3 MOLDED O-RING
• PLENUM TOP GASKET TYPE - 3/32" ROUND O-RING CORD
• THROTTLE BODY FLANGE LOCATION, WITH 92/102MM EFI PLENUM TOP : HEIGHT - 8.42" (FROM ENGINE BLOCK LIFTER VALLEY COVER FLANGE), LONGITUDINAL LOCATION - 3.84" (FORWARD FROM ENGINE BLOCK FRONT FLANGE), ANGLE - 25 DEG. (DOWN FROM VERTICAL)
• RUNNER LENGTH - 6.50", AS-CAST RUNNER CROSS-SECTIONAL AREA - TAPERED 4.25" SQUARED TO 2.77" SQUARED
• INTENDED FOR USE ON NATURALLY ASPIRATED OR FORCED INDUCTION ENGINES IN THE 6.0 TO 7.0+ LITER RANGE, MAX POWER AT 7000-8000+RPM

SPECS:

• BRAND: HOLLEY EFI
• COLOR/CONSTRUCTION: SILVER CAST
• ENGINE: GM LS3/L92
• FLANGE STYLE: EFI
• FRONT HEIGHT: 12.32"
• FUEL SYSTEM TYPE: EFI
• MANIFOLD TYPE: HI-RAM
• PRODUCT TYPE: INTAKE MANIFOLD
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 3500-8000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD KIT HERE.
