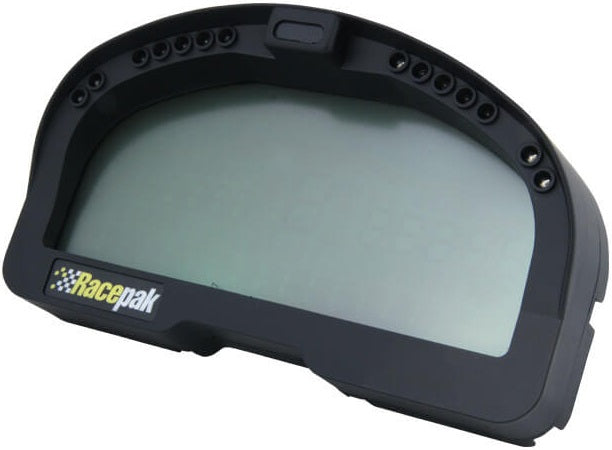

DIGITAL DASH,RACEPAK,IQ3,DATA LOGGER

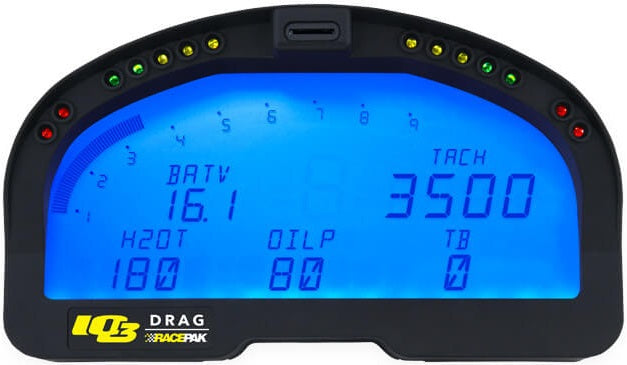

BRAND NEW HOLLEY RACEPAK IQ3D DRAG LOGGER DIGITAL DASH, 12 CHANNELS, 12-18 VOLTS, 28 INPUT DISPLAY

THE IQ3D IS DESIGNED FOR THE SPORTSMAN DRAG RACER LOOKING FOR A COMPACT, ALL-IN-ONE SOLUTION. IT COMBINES THE LOOK & FEEL OF OUR POPULAR IQ3 DASH WITH A ROBUST, BUILT-IN DATA LOGGER. IT MERGES RACEPAK V-NET SINGLE CABLE SENSOR TECHNOLOGY & WITH A FULLY PROGRAMMABLE DISPLAY, CREATING A COMPLETE DATA CENTER.

THE FULL FEATURE DASH BUNDLE KIT INCLUDES THE ABILITY TO MONITOR ENGINE RPM, DRIVESHAFT RPM, TRANS BRAKE RELEASE, WATER TEMP, OIL PRESS, BATTERY VOLTS. DATALINK II SOFTWARE INCLUDED WITH IQ3 DRAG DASH PROVIDES PROFESSIONAL-LEVEL DATA ANALYSIS CAPABILITIES IN AN EASY TO LEARN FORMAT.

NOTE: START RECORDING: UTILIZED TO START A RECORDING WHEN EITHER BUTTON IS HELD FOR +5 SECONDS. REC WILL BE DISPLAYED IN DASH DISPLAY AREA DURING RECORDING. THE GREY/WHITE WIRE CAN BE UTILIZED FOR THIS FUNCTION BY DEFAULT.

COMPATIBLE ECU SYSTEMS INCLUDE:

• AEM V2/EMS-4
• BIG STUFF 3
• ELECTROMOTIVE TECGT
• EMS EM-TECH ECU
• EMTRON ECU
• FAST XFI
• FUEL TECH (200,250,300,350,500V1,500V2, 600)
• HOLLEY DOMINATOR
• INJPRO
• LIFE RACING F88
• LINK G4+ SERIES
• MAXXECU
• MEFI-4B
• MEGASQUIRT-III (DIY AUTOTUNE)
• MICROTECH
• MPTEC CAN (DATA SET 3)
• MSD ATOMIC LS
• MSD ATOMIC TBI
• OBD-II (2008 & UP - FOR VEHICLES IN USA)
• PRO EFI
• USER CONFIGURED (CAN BUS KNOWLEDGE REQUIRED)

CONNECTS TO THESE ECU SYSTEMS USING EFI ADAPTER CABLES.

INCLUDES:

• WIRING HARNESS (WITH 2 PROGRAMMING BUTTONS)
• DRIVESHAFT SENSOR (DRIVE SHAFT COLLAR SOLD SEPARATELY)
• OIL PRESSURE SENSOR
• WATER TEMPERATURE SENSOR
• USB PROGRAMMING CABLE
• RACEPAK DATALINK II SOFTWARE

FEATURES:

• CHANNELS: 12 TOTAL - 6 INTERNAL & OPTION TO EXPAND 6 V-NET DIGITAL/ANALOG
• SAMPLE RATE: V-NET RECORDS DATA UP TO 100 FRAMES PER SECOND
• MEMORY: UP TO 16GB MICROSD CARD
• 6 EXTERNAL V-NET SENSOR INPUTS WITH OPTIONAL HIGH SPEED LOGGING MODULES
• DISPLAYS UP TO 28 INPUTS VIA 4 PAGES OF MICROSD MEMORY
• BLUE BACKLIGHT
• GEAR INDICATOR
• 8 USER DEFINABLE ALARMS W/ ON SCREEN WARNING TEXT & LIGHTS
• USER DEFINED 5 CHARACTER SENSOR INPUT NAMES
• USER DEFINED SHIFT POINTS
• SHIELDED, LOW GLARE DISPLAY FOR SUNLIGHT VIEWING
• METRIC & ENGLISH UNITS FOR MULTIPLE DISPLAY OPTIONS

SPECS:

• APPLICATION: DRAG RACING
• BRAND: RACEPAK
• OPERATING VOLTAGE: 12-18 VOLTS
• PRODUCT TYPE: DIGITAL DASH
• START RECORD METHOD: MOMENTARY BUTTON

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DIGITAL DISPLAY HERE.
