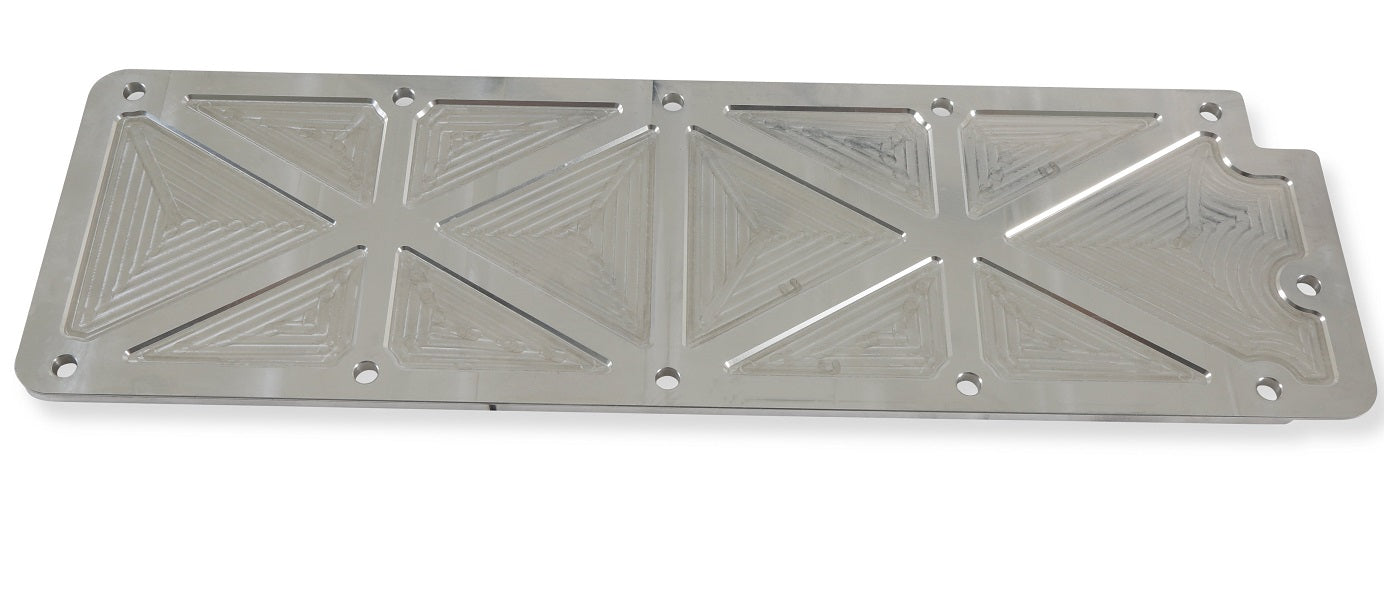

VALLEY COVER,LS2/3/7 & LSX,11 BOLT,TRUSSED,NATURAL

BRAND NEW HOLLEY LS VALLEY COVER, TRUSSED, NATURAL FINISH, COMPATIBLE WITH GM LS2/LS3/LS7/LSX ENGINES

HOLLEY TRUSSED LS VALLEY COVERS ARE THE LATEST ADDITION TO OUR EXPANSIVE LINEUP OF LS ENGINE DRESS UP PRODUCTS. MACHINED FROM BILLET ALUMINUM AND FEATURING A MODERN TRUSSED DESIGN, THESE LS VALLEY COVERS ARE THE PERFECT UPGRADE FOR YOUR LS ENGINE IF YOU ARE LOOKING FOR A SUBTLY CUSTOM TOUCH. THESE VALLEY COVERS ARE MACHINED SMOOTH ON THE UNDERSIDE, ALLOWING FOR THE ELIMINATION OF DISPLACEMENT-ON-DEMAND (DOD), AND INSTEAD FEATURE AN AMPLE GASKET SEALING SURFACE AND PROVISIONS FOR RE-INSTALLING THE OIL PRESSURE SENSOR IF NECESSARY.

EACH VALLEY COVER IS CUSTOM MACHINED FOR EITHER LS1/LS6 (10 BOLT) OR LS2/LS3/LS7/LSX (11 BOLT) PATTERNS AND HOLLEY / MR. GASKET OFFERS ALL THE NECESSARY GASKETS AND UPGRADED HARDWARE OPTIONS TO COMPLETE YOUR INSTALLATION.

NOTE: IF IT IS YOUR INTENT TO USE THE TOP MOUNTED FACTORY OIL PRESSURE SENSOR ON LS2/LS3/LS7/LSX ENGINES, YOU WILL NEED TO CAREFULLY DRILL AND TAP THE OIL PRESSURE SENSOR PROVISION USING THE PRE-LOCATED PILOT HOLE ON THE BOTTOM OF THE VALLEY COVER. THE HOLE SHOULD BE DRILLED AND TAPPED TO ACCEPT AN M16 X 1.5 MALE NPT FITTING. *IF USING FOR DOD DELETE YOU MUST DRILL AND TAP ALL 8 OIL PORT HOLES 1/8-NPT AND INSTALL PLUGS IN THE OIL PORTS OR LOSS OF OIL PRESSURE WILL OCCUR.

FEATURES:

• PRECISION MANUFACTURED FROM BILLET ALUMINUM WITH A MODERN, RACE INSPIRED, TRUSSED DESIGN
• LS2/LS3/LS7/LSX (11 BOLT) ENGINE APPLICATIONS
• SMOOTH UNDERSIDE ALLOWS FOR ELIMINATION OF DISPLACEMENT-ON-DEMAND (DOD)* AND OFFERS AMPLE GASKET SEALING SURFACE
• ALL NECESSARY GASKETS AND UPGRADED MOUNTING HARDWARE SOLD SEPARATELY

SPECS:

• APPLICATION: LS2/LS3/LS7/LSX
• BOLT PATTERN: 11
• FINISH: NATURAL
• GASKETS INCLUDED: NO
• HARDWARE INCLUDED: NO
• LOGO: TRUSSED, NO LOGO
• MATERIAL: BILLET ALUMINUM
• OIL FILL CAP INCLUDED: NO
• PRODUCT TYPE: VALLEY COVERS
• STYLE: TRUSSED

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE VALVE COVERS HERE.
