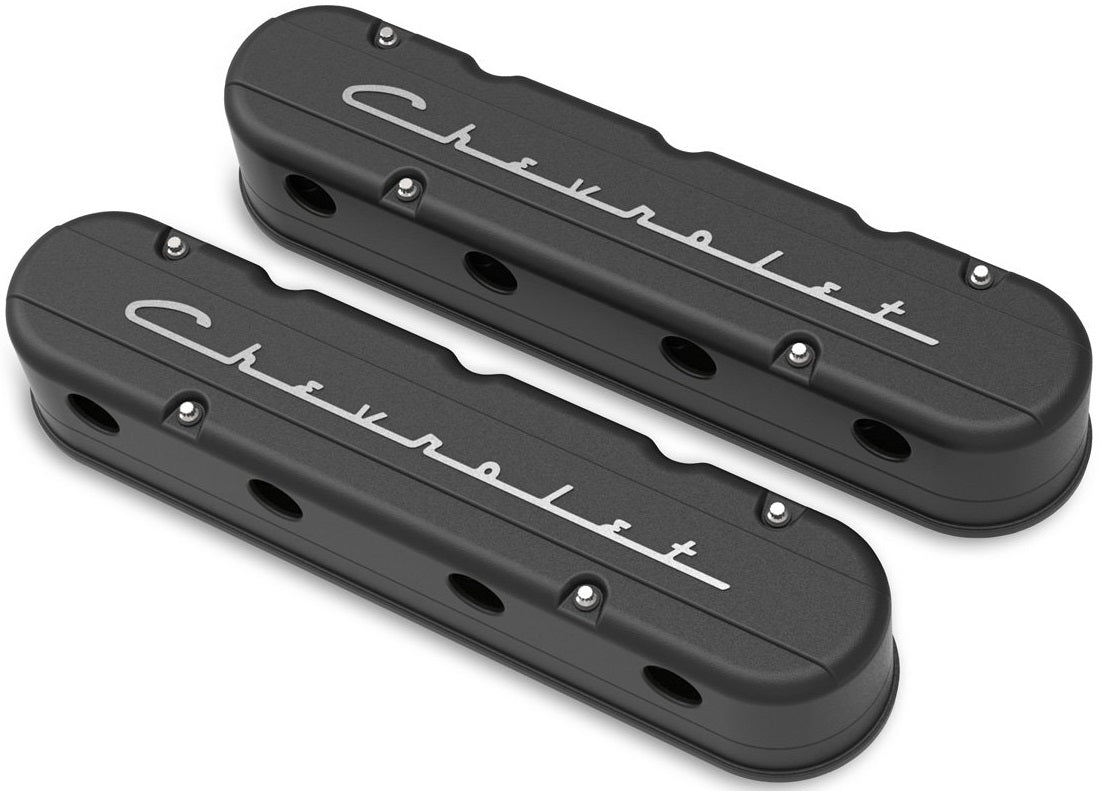

CHEVROLET SCRIPT VALVE COVER,2PC,GEN III/IV LS,BLACK

BRAND NEW HOLLEY 2 PIECE CHEVROLET SCRIPT VALVE COVERS, SATIN BLACK MACHINED FINISH, COMPATIBLE WITH CHEVROLET GEN III/IV LS ENGINES

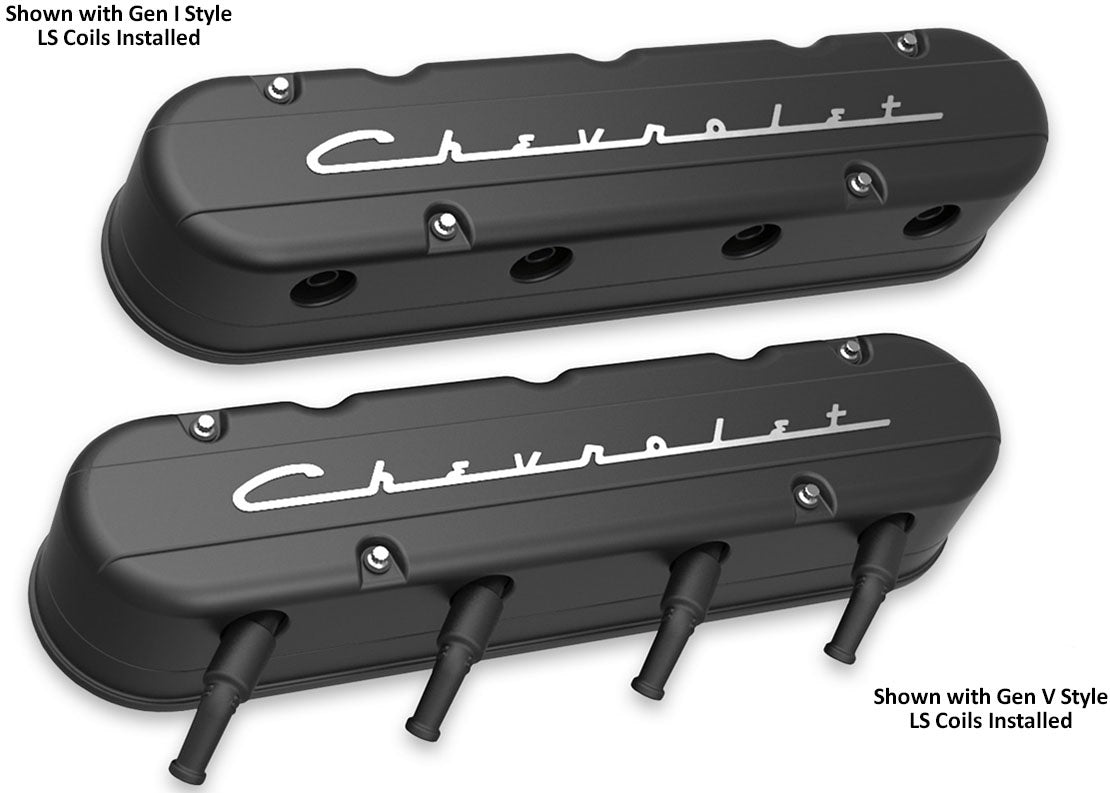

HOLLEY NEW 2-PIECE LS VALVE COVERS ARE A GREAT WAY TO UPDATE THE LOOK OF YOUR LS ENGINE WITHOUT THE USE OF COMPLICATED ADAPTER SYSTEMS OR THE HASSLE OF REMOTE COIL RELOCATION. THESE MODULAR LS VALVE COVERS FEATURE AN OE HEIGHT, INTERNALLY BAFFLED LS VALVE COVER BASE WITH INTEGRATED COIL MOUNTS FOR POPULAR GEN I & GEN V STYLE LS COIL BODIES & CHEVROLET BRANDED OVERCOVER THAT HIDES THE UNSIGHTLY LS COILS AND MESSY WIRING HARNESS. THIS ALLOWS FULL PERFORMANCE BENEFITS OF COIL-ON-COVER IGNITION SETUPS WITHOUT THE ROBOTIC STYLING.

EACH MODULAR COIL COVER FEATURES A PROMINENT VINTAGE CHEVROLET LOGO THAT MATCHES VARIOUS OTHER GM HOLLEY PRODUCTS. THE COIL COVER ALSO FEATURES CAST-IN PROVISIONS FOR THE SPARK PLUG BOOTS AND COIL WIRING HARNESS SO NO EXTENSIONS OR CUSTOM WIRING IS REQUIRED. EACH 2-PIECE LS VALVE COVER SET INCLUDES A LOW-PROFILE BILLET OIL FILL CAP, HARDWARE AND SPACERS FOR MOUNTING BOTH VERSIONS OF LS COIL BODIES & 12-POINT DRESS UP HARDWARE AND RUBBER GROMMETS FOR THE COIL COVERS.

NOTE: THE OE CAMARO & CORVETTE ACCESSORY BRACKETS MAY NEED TO BE CLEARANCED WHEN INSTALLING HOLLEY 2-PIECE LS & TALL LS VALVE COVERS AND COIL.

FEATURES:

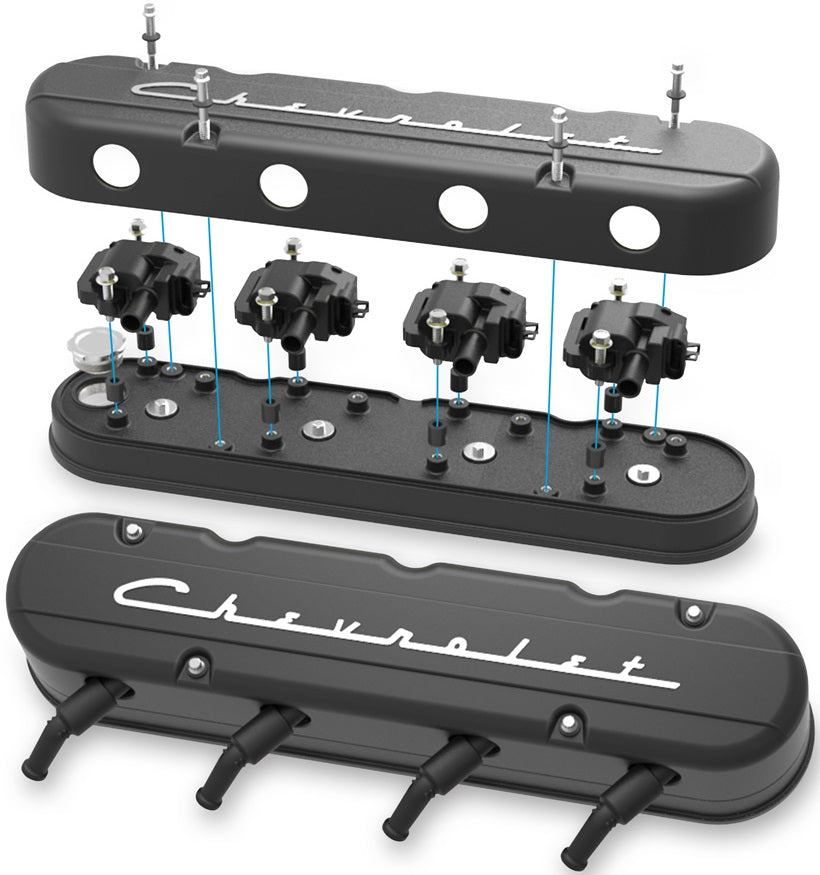

• CAST ALUMINUM 2-PIECE LS VALVE COVERS DESIGNED TO MOUNT & HIDE BOTH GEN I/V STYLE LS COIL BODIES
• RETAIN THE PERFORMANCE OF FACTORY COIL-ON-COVER IGNITION WITHOUT THE UNSIGHTLY STYLING
• COIL COVER FEATURES VINTAGE VALVE COVER STYLING WITH A PROMINENT GM CHEVROLET SCRIPT LOGO & CAST-IN WIRING PROVISIONS
• BASE COMPATIBLE WITH LS1, LS2, LS3, LS6 & LS7 ENGINES WITH CLEARANCE FOR .750" LIFT CAM WITH STOCK STYLE ROCKER ARMS
• BASE FEATURES INTERNALLY BAFFLED VENTILATION SYSTEM
• NO COIL RELOCATION, WIRE HARNESS EXTENSIONS, OR CUSTOM SPARK PLUG WIRES REQUIRED
• INCLUDES LOW-PROFILE BILLET OIL FILL CAP
• INCLUDES ALL NECESSARY COIL MOUNTING & DRESS-UP HARDWARE

SPECS:

• APPLICATION: GM LS ENGINES
• BAFFLE INCLUDED: YES
• BOLT PATTERN: CENTER BOLT
• BRAND: HOLLEY
• BREATHER(S) INCLUDED: NO
• COIL MOUNTING STUDS: YES, ON BASEPLATE
• COIL OPTIONS: WITH COIL STANDS
• CONSTRUCTION: DIE CAST ALUMINUM
• DESIGN TYPE: 2-PIECE LS
• FINISH: SATIN BLACK MACHINED
• GASKETS INCLUDED: NO
• GROMMET(S) INCLUDED: NO
• HEIGHT: 3.75"
• LOGO: CHEVROLET SCRIPT
• MATERIAL: CAST ALUMINUM
• MOUNTING HARDWARE INCLUDED: YES
• OIL FILL: YES
• OIL FILL CAP INCLUDED: YES
• OVERALL HEIGHT (IN): 3.610"
• PRODUCT TYPE: VALVE COVER
• QUANTITY: PAIR
• TYPE OF COMPONENT: VALVE COVER
• VALVETRAIN CLEARANCE: .750" LIFT CAM WITH STOCK STYLE ROCKER ARMS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS ADAPTER HERE.
