HEMI FRONT ENGINE KIT,MID-MOUNT,WP,AC,ALTERNATOR,PS,BLACK

BRAND NEW HOLLEY BLACK CAST MID-MOUNT COMPLETE ACCESSORY SYSTEM, 1.75 INLET & OUTLET, COMPATIBLE WITH GEN III HEMI VVT ENGINES

HOLLEY COMPLETE MID-MOUNT ACCESSORY SYSTEM FEATURES A "BRACKETLESS" DESIGN, WHERE THE ACCESSORIES BOLT DIRECTLY TO THE TIMING COVER FOR A CLEAN, INTEGRATED SYSTEM. THE DESIGN OFFERS SUPERB ENGINE VISIBILITY TO SHOW OFF YOUR HORSEPOWER, NOT YOUR ACCESSORIES.

AMONG THE MANY SWAP FRIENDLY FEATURES ARE 2 OPTIONAL HEATER CONNECTION CONFIGURATIONS. THE HOLLEY PREMIUM ALTERNATOR INCORPORATES 6-PHASE & SQUARE WIRE TECHNOLOGY. THE COMPACT SD7 A/C COMPRESSOR & TYPE II P/S PUMP WITH BAFFLED RESERVOIR ARE ALSO INTEGRATED. KIT UTILIZES HOLLEY CARTRIDGE STYLE WATER PUMP.

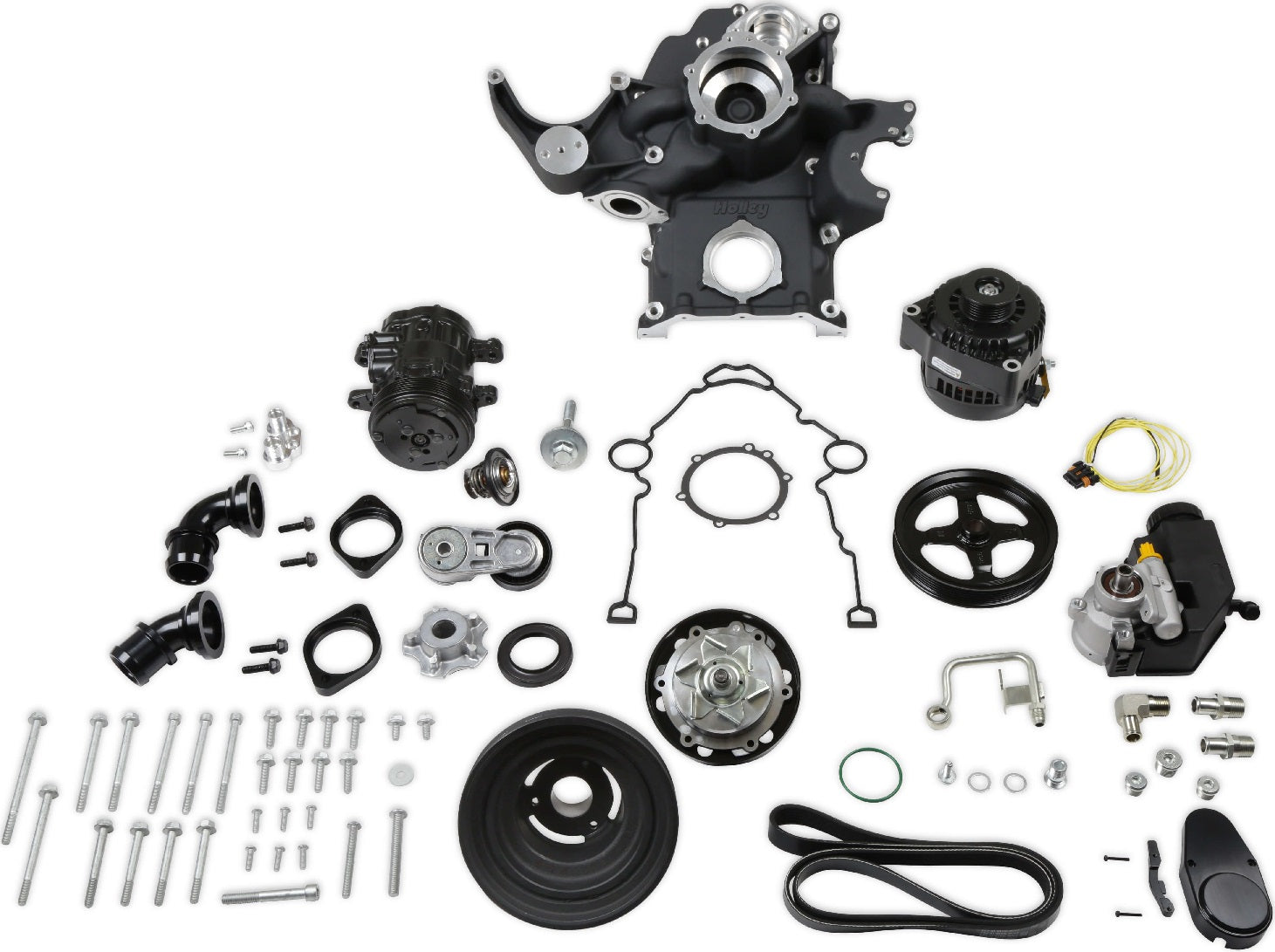

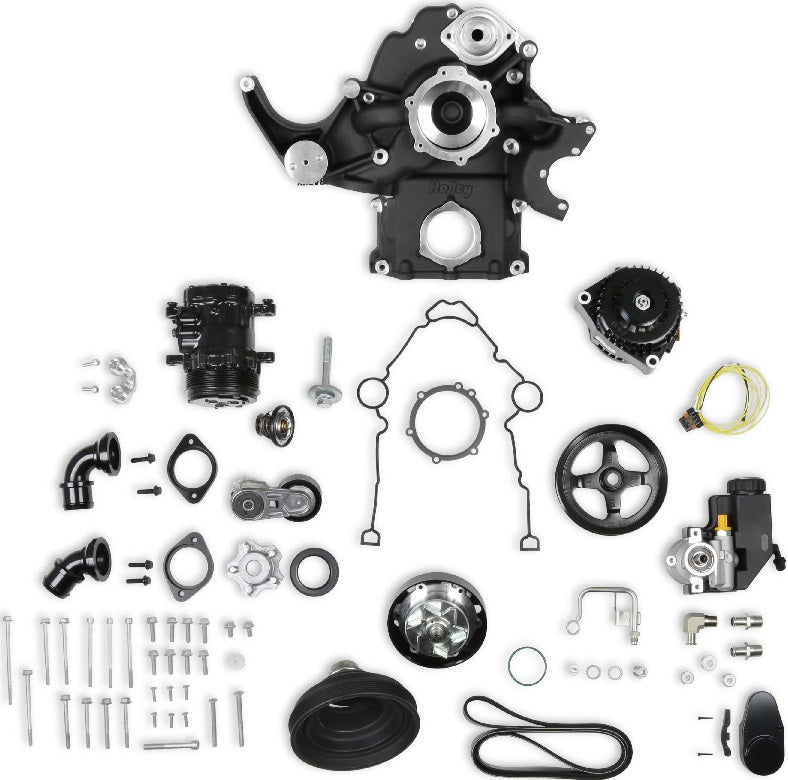

THE MID-MOUNT SYSTEM INCLUDES: WATER PUMP, A/C COMPRESSOR, ALTERNATOR, P/S PUMP WITH RESERVOIR & CRANK DAMPER. ALL PULLEYS & BELT, HEATER HOSE ADAPTERS, POWER STEERING TO -6 AN HARDLINE & ALTERNATOR PLUG/HARNESS ALSO INCLUDED. EASY ASSEMBLY & COLOR GRAPHICAL INSTRUCTIONS WALK YOU THROUGH THE ULTRA-EASY INSTALL.

THIS ACCESSORY DRIVE SYSTEM FITS FOLLOWING VVT ENGINES:

• 2009-UP 5.7L
• 2011-UP 6.4L

FEATURES:

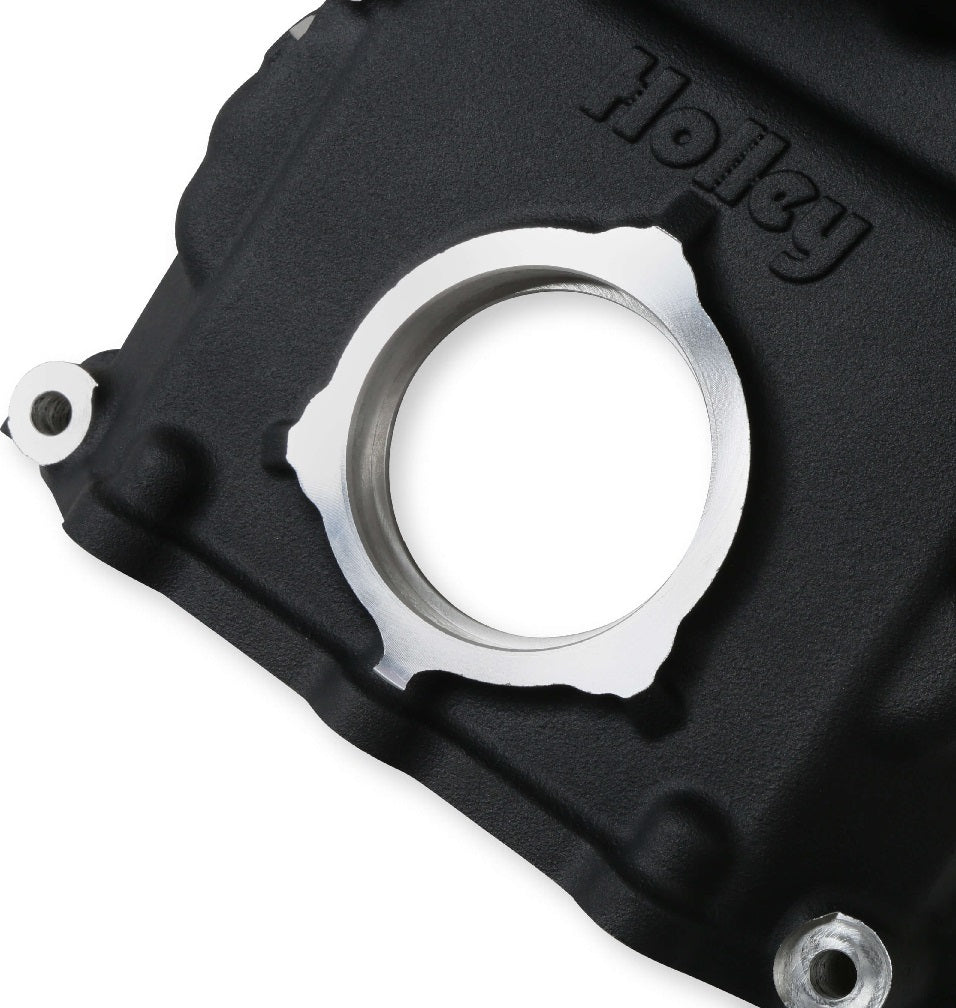

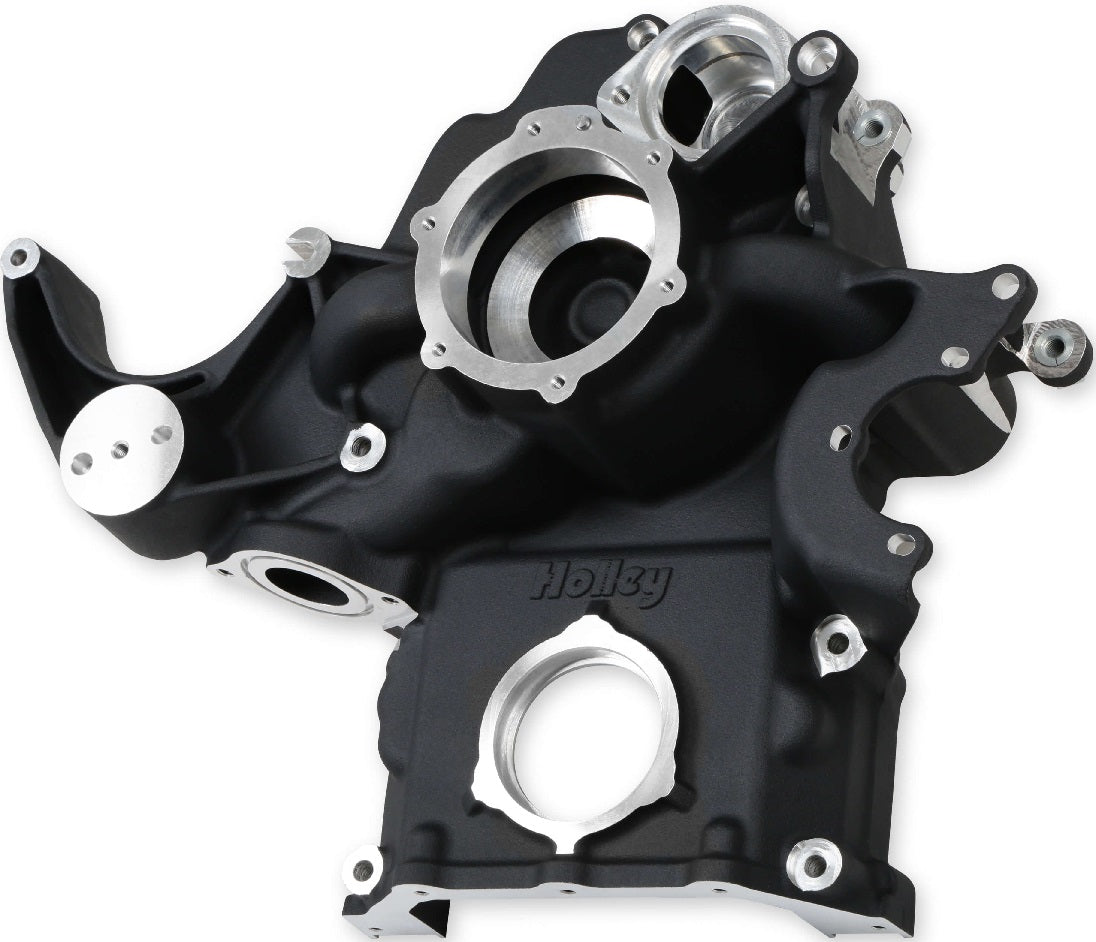

• BRACKETLESS ACCESSORY MOUNTING SYSTEM FOR EASY ASSEMBLY - TIMING COVER IS INTEGRATED INTO THIS BRACKET/CASTING
• CONFIGURABLE HEATER HOSE CONNECTION OPTIONS
• HOLLEY PREMIUM 150 AMP ALTERNATOR
• EASY WIRING OF ALTERNATOR DOES NOT REQUIRE FACTORY ECU TO EXCITE ALTERNATOR
• ALTERNATOR IS TUCKED IN TIGHT TO ENGINE, ELIMINATES FRAME RAIL OR HOOD CLEARANCE ISSUES
• HOLLEY WATER PUMP W/ CARTRIDGE DESIGN - COMPACT & EASY TO SERVICE WITHOUT REMOVING WATER PUMP HOUSING/TIMING COVER
• SD7 A/C COMPRESSOR
• TYPE II POWER STEERING PUMP WITH BAFFLED RESERVOIR
• POWER STEERING PUMP HAS PROPER PRESSURE FOR USE WITH STEERING BOX ON OLDER VEHICLES (ELIMINATES STEERING BOX DAMAGE DUE TO EXCESSIVE PRESSURE)
• SWIVEL WATER INLET & OUTLET ALLOWS CUSTOM RADIATOR HOSE ROUTING
• OE (ORIGINAL EQUIPMENT) PULLEY RATIOS
• NO ADAPTERS OR SPACERS NEEDED
• WORKS WITH COMMON AFTER-MARKET & FACTORY THROTTLE BODIES & INTAKES
• COMPATIBLE WITH NATURALLY ASPIRATED GEN III HEMI ENGINES (5.7L, 6.1L & 6.4L)
• INCLUDES OE STYLE DAMPER WITH CAST IN SERPENTINE PULLEY
• ALL ACCESSORIES ARE INCLUDED: WATER PUMP, A/C COMPRESSOR, ALTERNATOR, POWER STEERING
• PUMP W/ RESERVOIR, PULLEYS & CRANK DAMPER
• ALL PLUMBING ADAPTERS, WIRING ADAPTERS, GASKETS & SEALS INCLUDED
• COMPATIBLE WITH VVT ENGINES: 2009-UP 5.7L & 2011-UP 6.4L

SPECS:

• A/C COMPRESSOR INCLUDED: YES
• A/C COMPRESSOR TYPE: SD7
• ACCESSORY DRIVE STYLE: MID MOUNT
• ALTERNATOR AMPERAGE: 150
• ALTERNATOR INCLUDED: YES
• APPLICATION: GEN III HEMI
• BELT INCLUDED: YES
• DAMPER INCLUDED: YES
• DAMPER STYLE: CAST DAMPER
• ENGINE: GEN III HEMI - VVT
• FINISH: BLACK
• INLET SIZE: 1.75
• MATERIAL: CAST ALUMINUM
• OUTLET SIZE: 1.75
• OUTPUT: 150 AMPS
• POWER STEERING HARDLINE INCLUDED: YES
• POWER STEERING PULLEY INCLUDED: YES
• POWER STEERING PUMP INCLUDED: YES
• POWER STEERING RESERVOIR INCLUDED: YES
• PRODUCT TYPE: ACCESSORY DRIVE KITS
• PULLEY STYLE: SERPENTINE
• TENSIONER INCLUDED: YES
• THERMOSTAT INCLUDED: YES
• WATER NECK INCLUDED: YES
• WATER PUMP INCLUDED: YES
• WATER PUMP PULLEY INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS ACCESSORY DRIVE KIT HERE.
