GEN-V LT,FRONT ENGINE KIT,MID-MOUNT,A/C,ALTERNATOR,POWER STEERING,BLACK

BRAND NEW HOLLEY MID-MOUNT COMPLETE ACCESSORY DRIVE SYSTEM, BLACK, SERPENTINE STYLE PULLEY, COMPATIBLE WITH GM GEN V LT ENGINES

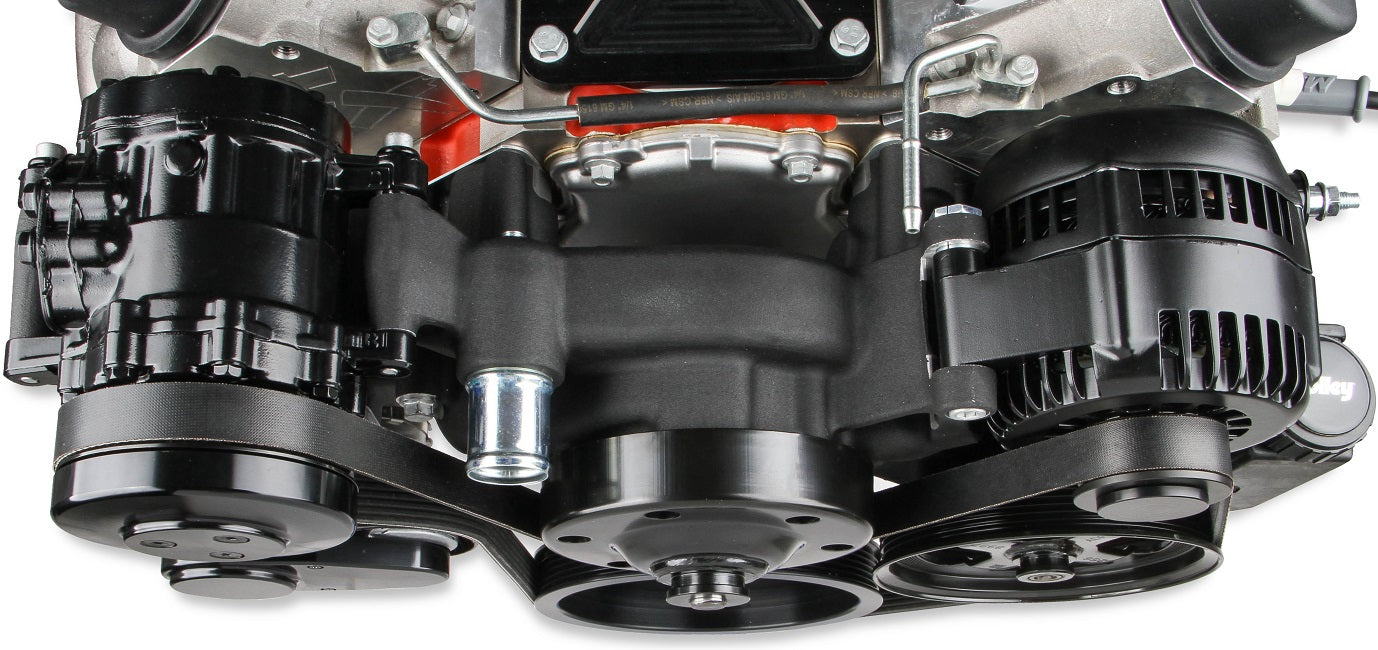

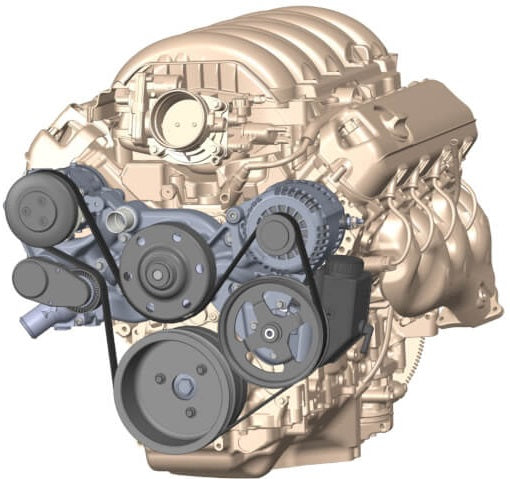

HOLLEY MID-MOUNT COMPLETE ACCESSORY SYSTEM HAS ALL ACCESSORIES PULLED IN TIGHTER THAN OTHER ACCESSORY DRIVES. AT THE HEART OF THE SYSTEM IS A BRACKETLESS DESIGN, WHERE THE ACCESSORIES BOLT DIRECTLY TO THE WATER PUMP FOR A CLEAN, INTEGRATED FORM. THE DESIGN OFFERS SUPERB ENGINE VISIBILITY TO SHOW OFF YOUR HORSEPOWER, NOT YOUR ACCESSORIES. AMONG THE MANY SWAP-FRIENDLY FEATURES ARE BOTTOM HEATER OUTLETS FOR CLEARANCE IN TIGHT APPLICATIONS.

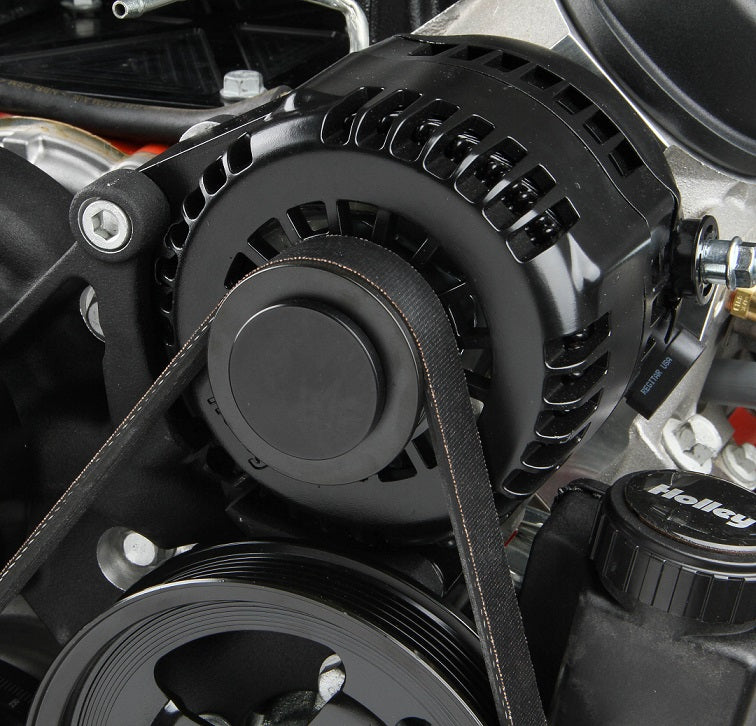

THE HOLLEY-DESIGNED ALTERNATOR IS JUST AS INNOVATIVE. THIS PREMIUM ALTERNATOR UTILIZES 6-PHASE TECHNOLOGY AS FOUND ON THE C7 CORVETTE. THE WATER PUMP ALSO SHARES ITS DESIGN EFFICIENCIES WITH THE C7 CORVETTE. THE COMPACT AND RELIABLE SD7 A/C COMPRESSOR AND TYPE II P/S PUMP WITH A BAFFLED RESERVOIR.

LT MID-MOUNT DRIVES ARE COMPATIBLE WITH ALL WET-SUMP LT V6 & V8 ENGINES (EXCEPT LT2 & ANY SUPERCHARGED). ALSO COMPATIBLE WITH DRY SUMP LT ENGINES CONVERTED TO WET-SUMP (EXCEPT LT2 AND ANY SUPERCHARGED).

FEATURES:

• BRACKETLESS ACCESSORY MOUNTING WITH ULTRA-EASY ASSEMBLY
• BOTTOM OUTLET HEATER HOSE OPTIONS FOR SWAP APPLICATION CLEARANCE
• LT1 STYLE PREMIUM ALTERNATOR
• LT1 STYLE WATER PUMP DESIGN
• COMPACT SD7 A/C COMPRESSOR
• TYPE II POWER STEERING PUMP WITH BAFFLED RESERVOIR
• P/S, A/C ADAPTER HARDLINE TO AN -6 ADAPTER INCLUDED
• SHORTENED TOP OUTLET NIPPLE FOR MORE RADIATOR HOSE TURNS AND ROUTING ROOM
• OE PULLEY RATIOS FOR OPTIMAL ACCESSORY PERFORMANCE
• NO ADAPTERS/SPACERS ARE REQUIRED
• COMPATIBLE WITH ALL COMMON AFTERMARKET AND FACTORY THROTTLE BODIES AND INTAKES
• COMPATIBLE WITH HOOKER TURBO MANIFOLDS

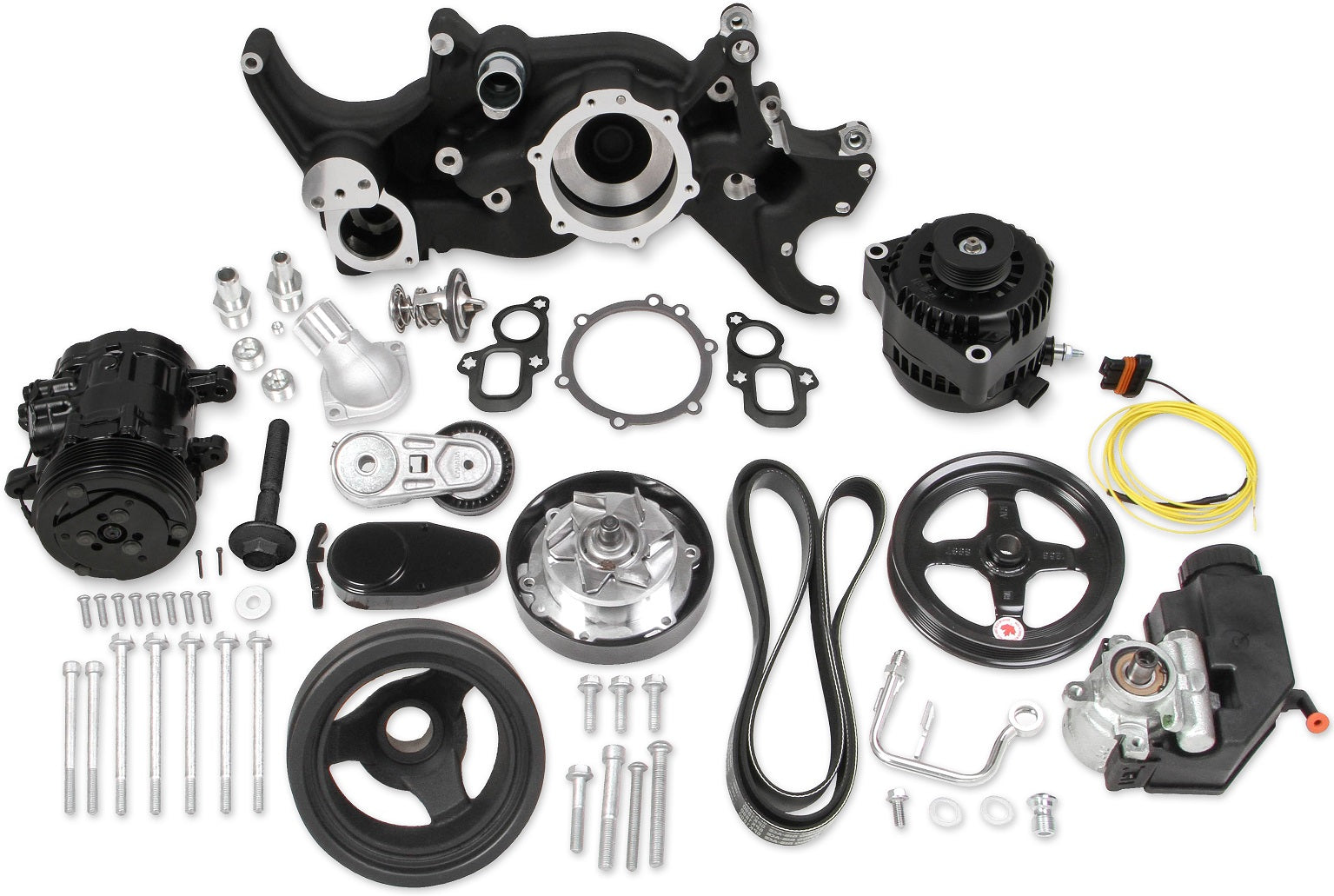

• INCLUDES WATER PUMP, A/C COMPRESSOR, ALTERNATOR, P/S PUMP WITH RESERVOIR & CRANK DAMPER

SPECS:

• A/C COMPRESSOR INCLUDED: YES
• A/C COMPRESSOR TYPE: SD7
• ACCESSORY DRIVE STYLE: MID MOUNT
• ALTERNATOR AMPERAGE: 150
• ALTERNATOR INCLUDED: YES
• APPLICATION: GM GEN V LT
• BELT INCLUDED: YES
• DAMPER INCLUDED: YES
• DAMPER STYLE: CAST DAMPER
• ENGINE: GM GEN V LT1
• FINISH: BLACK
• INLET SIZE: 35.4MM/1.4"
• MATERIAL: CAST ALUMINUM
• OIL SYSTEM TYPE: WET SUMP
• OUTPUT: 150 AMPS
• POWER STEERING HARDLINE INCLUDED: YES
• POWER STEERING PULLEY INCLUDED: YES
• POWER STEERING PUMP INCLUDED: YES
• POWER STEERING RESERVOIR INCLUDED: YES
• PRODUCT TYPE: ACCESSORY DRIVE KITS
• PULLEY STYLE: SERPENTINE
• TENSIONER INCLUDED: YES
• THERMOSTAT INCLUDED: YES
• WATER NECK INCLUDED: YES
• WATER PUMP INCLUDED: YES
• WATER PUMP PULLEY INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS SYSTEM HERE.
