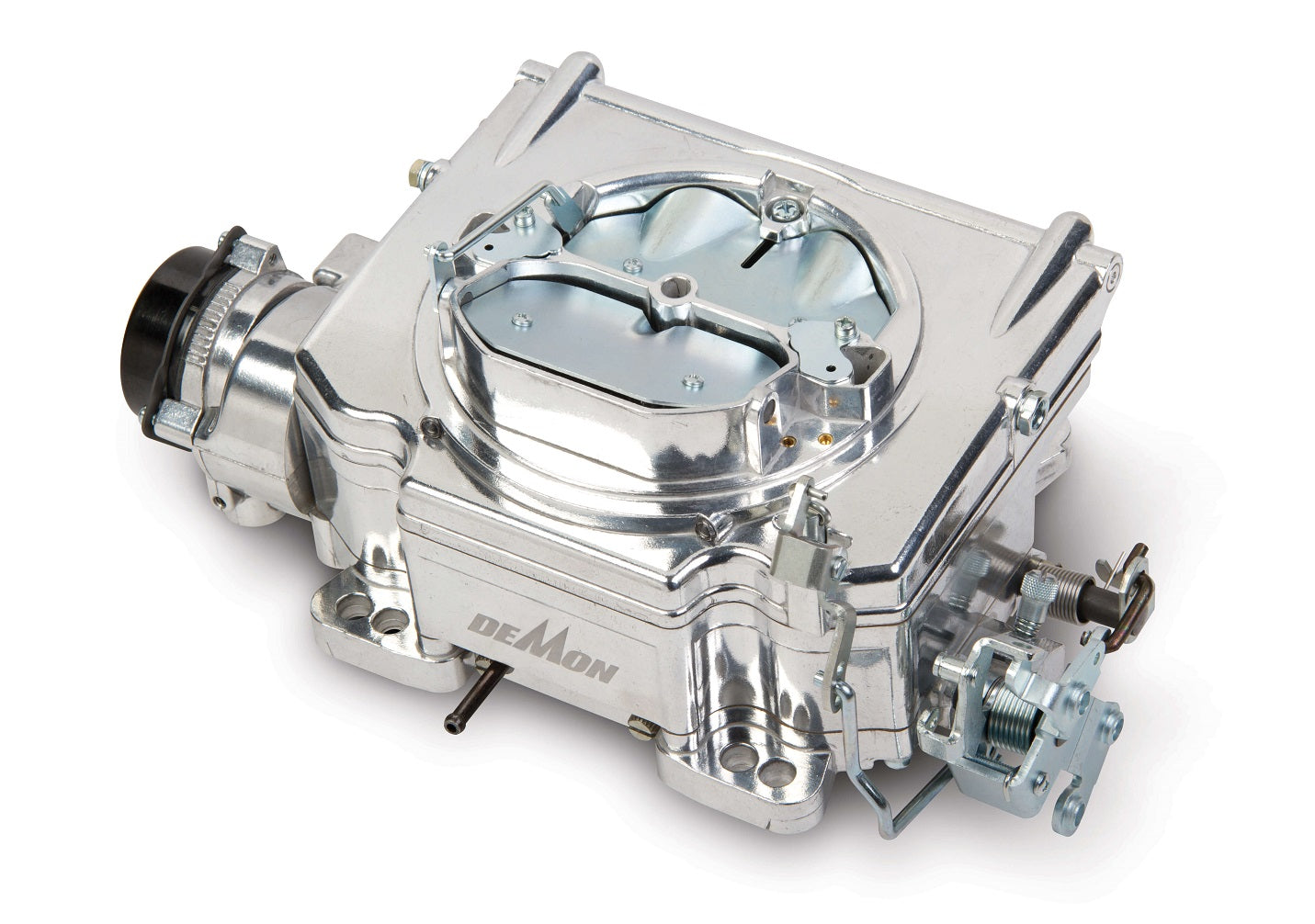

CARBURETOR,STREET DEMON,625CFM,VACUUM,ELECTRIC,SHINY

BRAND NEW HOLLEY 625 CFM STREET DEMON CARBURETOR, WITH ELECTRIC CHOKE & VACUUM SECONDARIES

WICKED POWER! THE ALL NEW STREET DEMON REDEFINES THE STREET CARBURETOR WITH CLEAN LOOKS AND EASE OF USE! THE STREET DEMON OFFERS ENTHUSIASTS A STRAIGHT FORWARD CARBURETOR DESIGNED TO DELIVER A STABLE IDLE, AMAZINGLY CRISP THROTTLE RESPONSE AND SMOOTH PERFORMANCE. ITS OPTIMIZED CALIBRATION AND DUAL MOUNTING PATTERN MAKE IT RUN-READY FOR A LARGE VARIETY OF ENGINES AND VEHICLES!

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• BALL BURNISHED SHINY ALUMINUM FINISH
• DESIGNED FOR USE ON MOST STOCK TO MILDLY MODIFIED V8 ENGINES
• PATENTED TIMELESS DESIGN FITS MODERN AS WELL AS TRADITIONAL THEMED VEHICLES (PATENT NO.: US D648,746 S)
• ONE PIECE AIRHORN EASY TO CLEAN & MAINTAIN
• DUAL MOUNTING BOLT PATTERN - FITS MOST AFTERMARKET SPREAD/SQUARE BORE INTAKE MANIFOLDS W/OUT ADAPTER

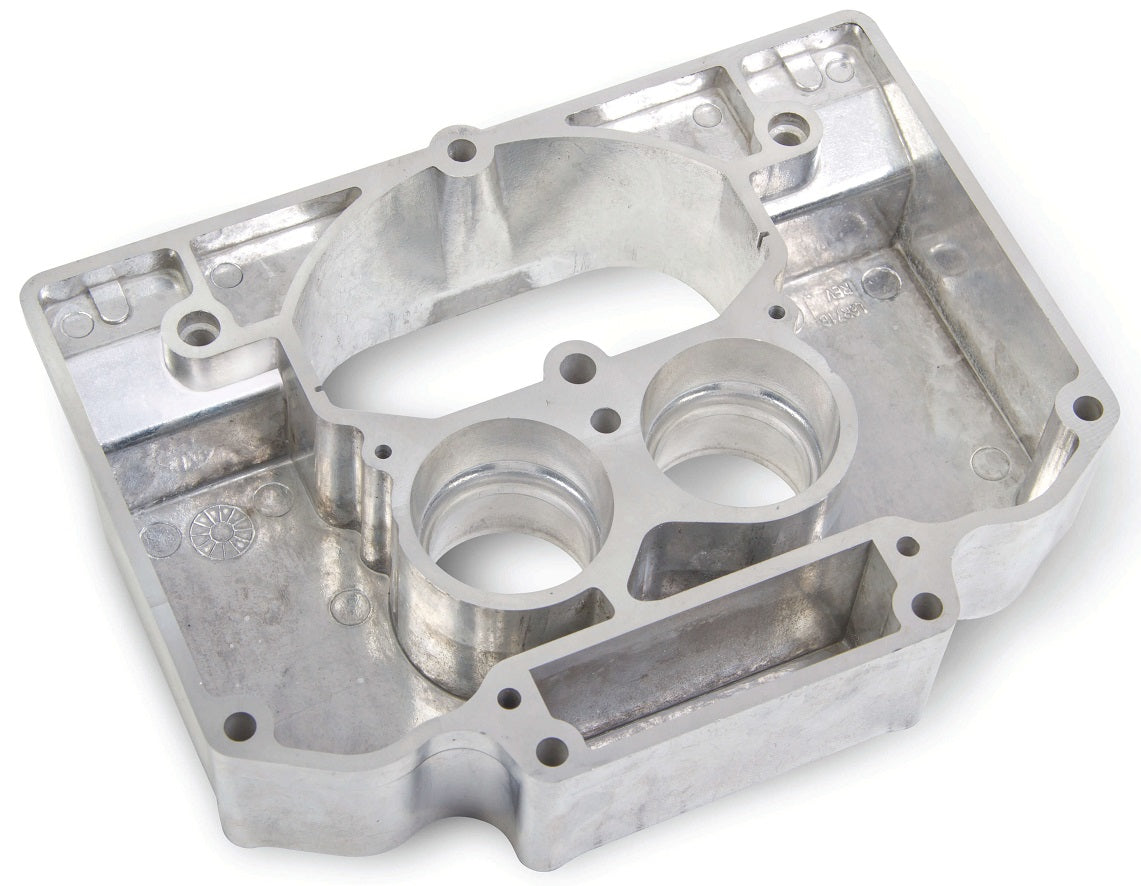

• INTEGRATED FUEL BOWL/MAIN BODY DESIGN W/ GASKET ABOVE FUEL LEVEL, NO PLUGGED PASSAGES TO ELIMINATE ALL POTENTIAL LEAK PATHS

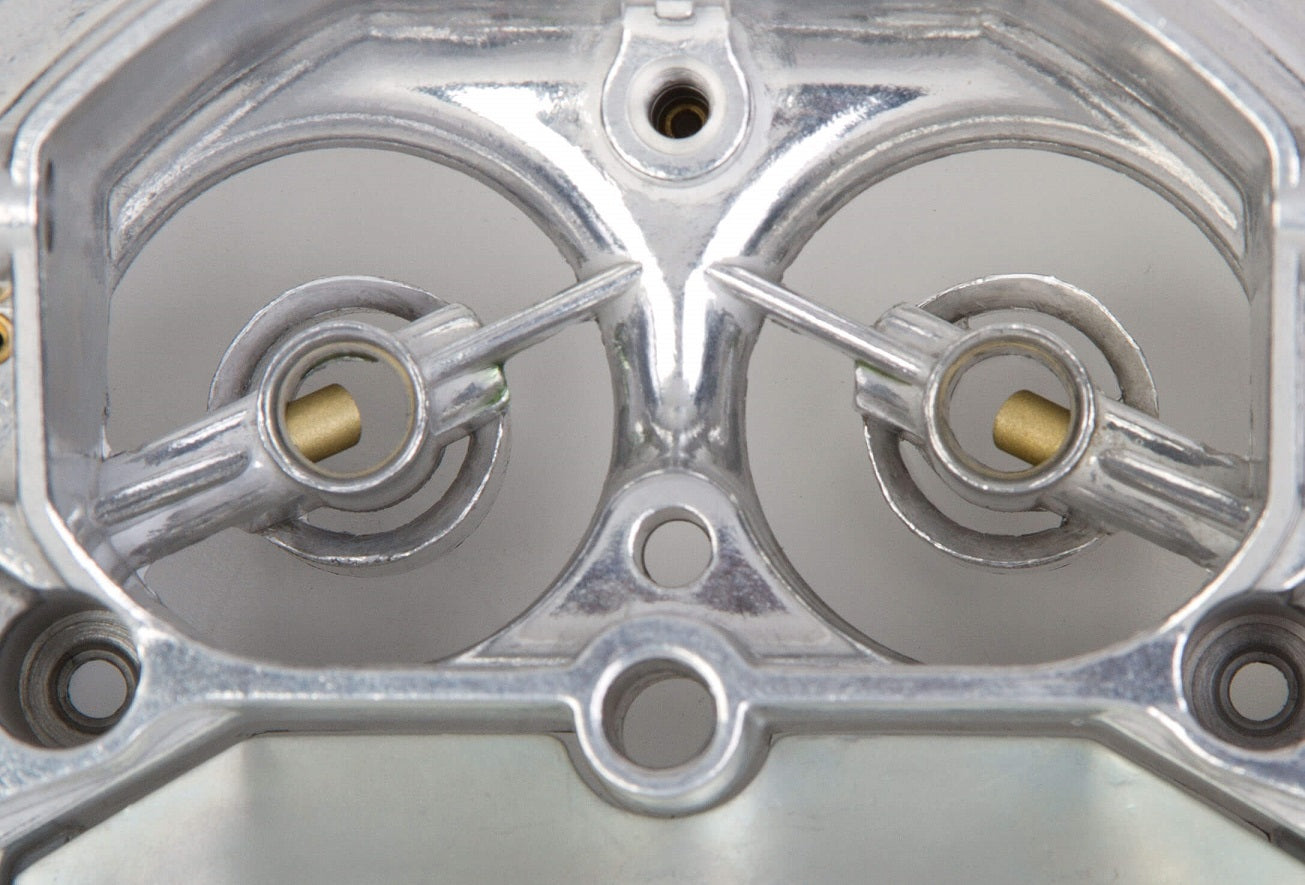

• SMALL 1-3/8" PRIMARY THROTTLE BORES COMBINED W/ PROVEN TRIPLE-STACK BOOSTERS DELIVER AMAZINGLY CRISP THROTTLE RESPONSE & DRIVABILITY, SUPERIOR FUEL ATOMIZATION & IMPROVED FUEL ECONOMY
• GVS MAKES TOTAL AIR FLOW 625 CFM WHILE MAINTAINING CRISP THROTTLE RESPONSE DELIVERED BY SMALL PRIMARY BORES
• SECONDARY AIR VALVE CONTROL - TORSION SPRING VALVE CONTROL/ADJUSTMENT PERMITS SEAMLESS PRIMARY TO SECONDARY THROTTLE RESPONSE REGARDLESS OF THROTTLE OPENING RATE (UNIQUE CONTOURED PROFILE DEVELOPED FOR BETTER CYLINDER TO CYLINDER FUEL DISTRIBUTION)
• 2 STAGE METERING RODS CONTROL EASILY ACCESSIBLE W/OUT CARBURETOR DISASSEMBLY OR REMOVAL
• SINGLE FUEL INLET FOR SIMPLE INSTALLATION
• INTEGRATED 700R4/200R4 TRANSMISSION KICKDOWN CABLE MOUNTING LOCATION AS WELL AS FORD A/T KICKDOWN FOR PROPER SHIFTS
• 625 CFM SPECIFIC CALIBRATION KIT AVAILABLE FOR TUNING & ALTITUDE ADJUSTMENTS
• AVAILABLE TPS KIT ALLOWS USE W/ 4L60 & 4L80 TRANSMISSIONS

SPECS:

• BARRELS: 4
• BOOSTER: TRIPLE STACK
• BRAND: DEMON
• CFM: 625
• CHOKE: ELECTRIC
• EMISSION CODE: 3
• FINISH: SHINY
• FUEL: GASOLINE
• FUEL INLET: SINGLE
• MATERIAL: ALUMINUM
• METERING ROD SIZE: 60/52
• MODEL: STREET DEMON
• PRIMARY MAIN JET 80
• PRIMARY PUMP NOZZLE SIZE: 31
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: VACUUM
• SECONDARY MAIN JET: 80
• STEP UP SPRING: GREEN
• SUPERCHARGED APPLICATION: NO
• VACUUM PORTS: 1 TIMED (SPARK) PORT, 2 FULL, AND 1 PCV PORT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THE DEMON 625 CFM CARBURETOR HERE, THE IMPORTANT NOTICE HERE, AND THE CARBURETOR NUMERICAL LISTING HERE.
