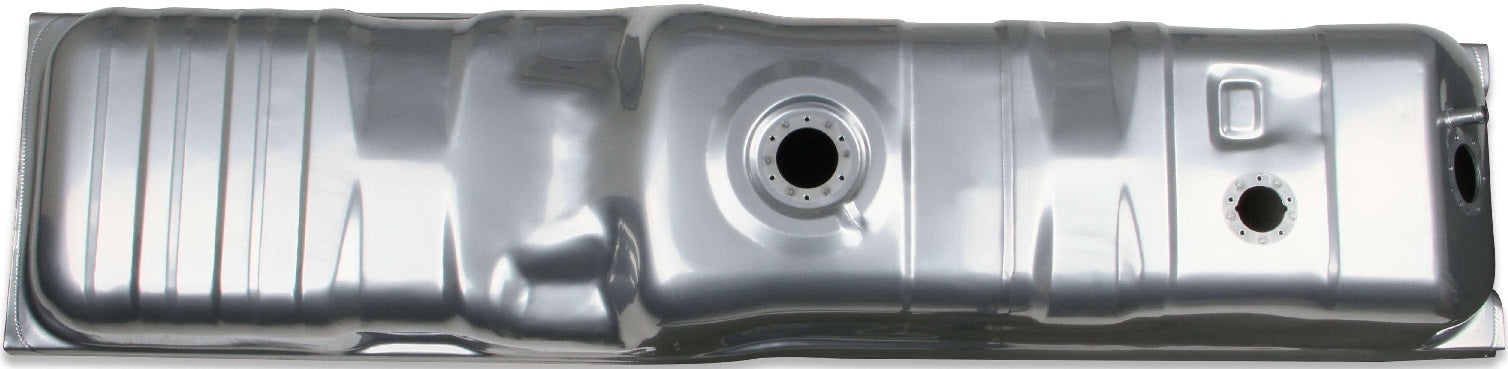

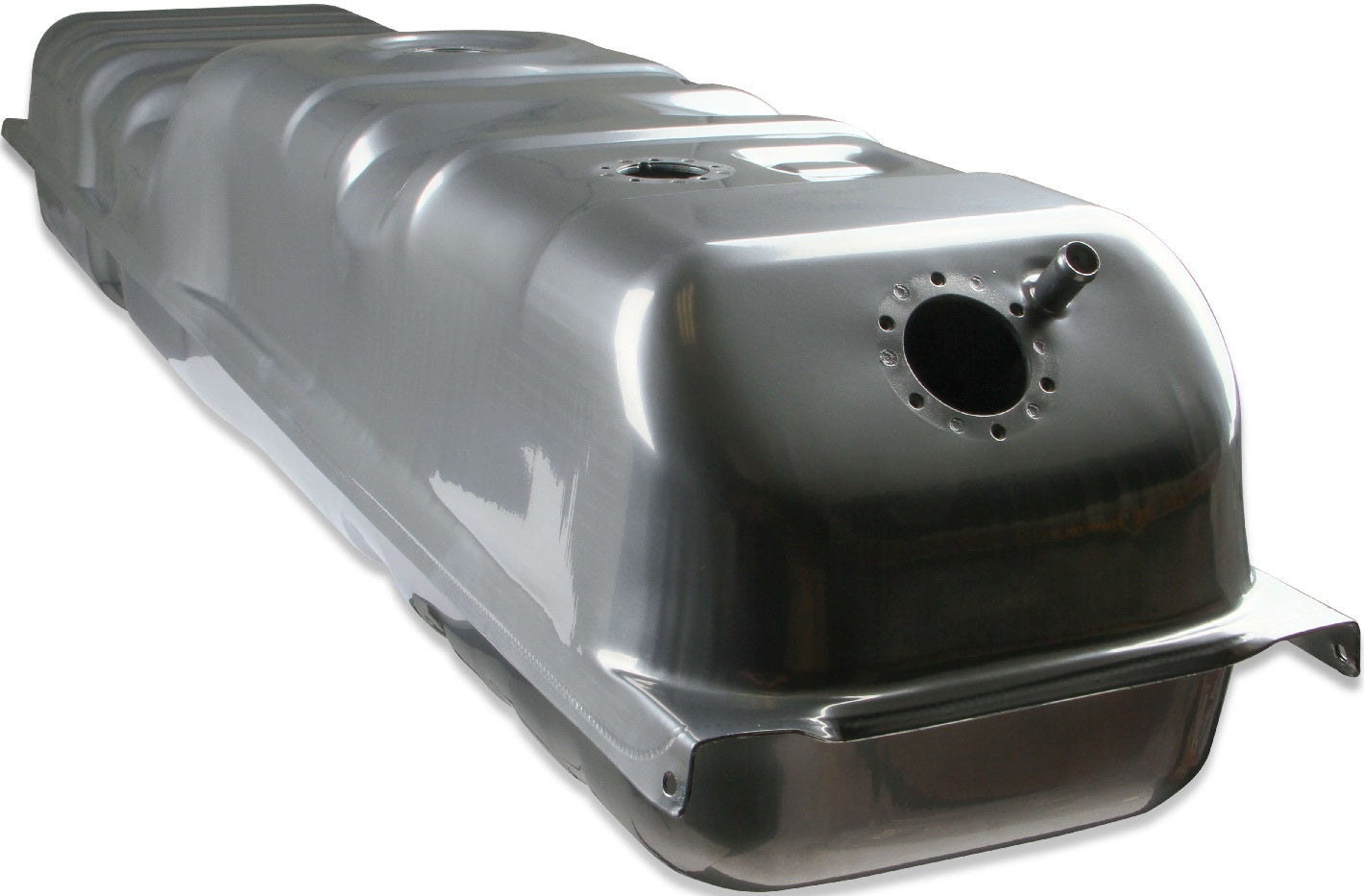

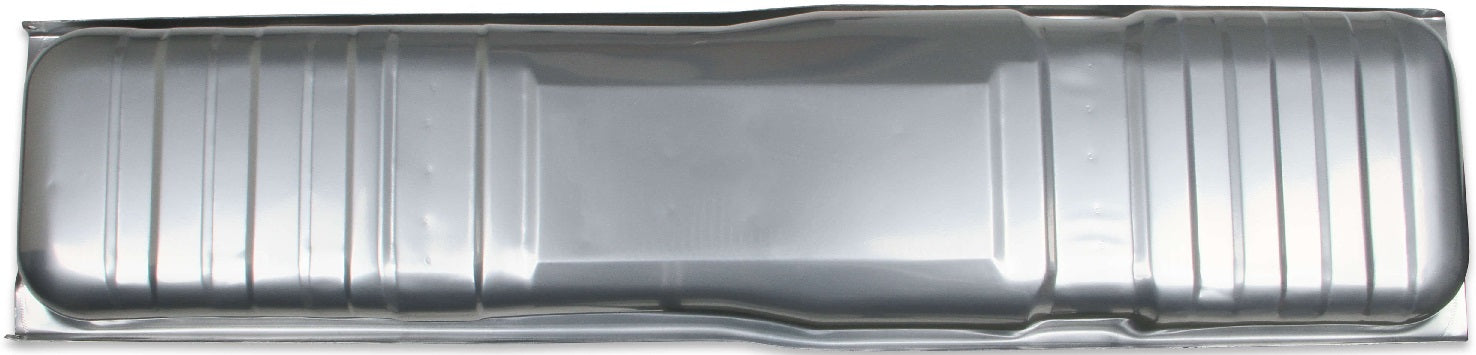

EFI TANK,400 LPH,82-87 GM TRK,8FT BED

BRAND NEW SNIPER EFI FUEL TANK SYSTEM, SILVER FINISH, 400 LPH, 20 GALLONS, COMPATIBLE WITH 1982-1986 CHEVROLET C10

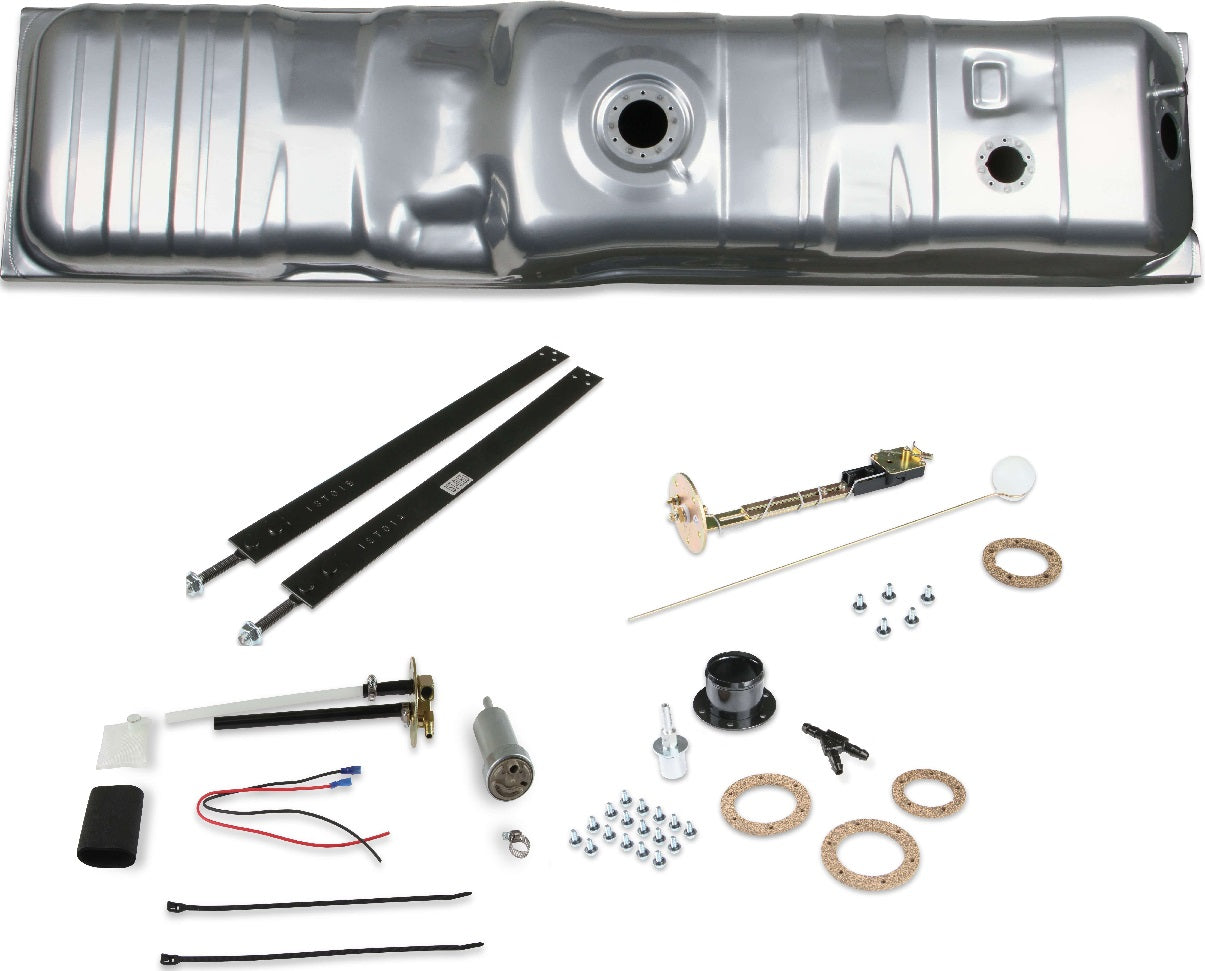

HOLLEY & SNIPER WILL HELP YOU TO COMPLETE YOUR EFI SWAP WITH OUR NEW EFI CONVERSION FUEL TANKS. EACH TANK IS A DIRECT FIT FOR YOUR APPLICATION-NO MODIFICATIONS NECESSARY. KIT INCLUDES THE TANK, A 400 LPH FUEL PUMP, INTERNAL BAFFLING, & FUEL LEVEL SENDER. THE TANK IS POWDER COATED FOR CORROSION RESISTANCE & GREAT LOOKS. SIZE IS: 56" X 14-1/8" X 11".

NOTE: USING THE GM DESIGN, THESE TANKS WILL FIT ON EITHER SIDE OF THE TRUCK.

NOTE: FOR A BETTER SEAL USE PERMATEX INDIAN HEAD GASKET SHELLAC COMPOUND OR AVIATION FORM-A-GASKET SEALANT ON THE GASKET & SCREWS.

COMPATIBLE WITH:

• CHEVROLET:
• 1982-1986 C10
• 1982-1988 C15
• 1982-1987 C20
• 1982-1986 C2500
• 1988-1991 C30
• 1983-1991 C35
• 1982-1986 K10
• 1982-1986 K20
• 1982-1986 K30
• 1988-1991 K1500
• 1988-1991 K2500
• 1988-1991 K3500
• 1987 R10
• 1989 R2500
• 1987-1988 R30
• 1987 V10
• 1987 V20
• 1987-1988 V30
• 1989-1991 V3500
• GMC:
• 1982-1986 C1500
• 1982-1991 C2500
• 1982-1991 K1500
• 1982-1991 K2500
• 1982-1991 K3500
• 1987 R1500
• 1987-1989 R2500
• 1987 V1500
• 1987 V2500
• 1987-1991 V3500

FEATURES

• TANKS ARE COATED GALVANIZED STEEL THEN POWDER COATED SILVER
• 400 LPH FUEL PUMP WITH HANGER ASSEMBLY GIVES YOU THE FUEL YOU NEED WITH IN-TANK QUIETNESS
• SENDER HAS 1/4" NPT SUPPLY & RETURN LINE PORTS FOR EASY FUEL LINE CONNECTION & BARBED VENT FITTING
• FUEL LEVEL SENDER INCLUDED WITH THE CORRECT OHM RANGE FOR FACTORY GAUGES
• FUEL PUMP & SENDER ARE RECESSED IN THE TANK TO PROVIDE EASY INSTALL
• EFI STYLE TANK BAFFLING INCLUDES A LARGE 4.3 LITER INTERNAL FUEL TRAY TO PREVENT FUEL PUMP STARVATION
• FITS & LOOKS LIKE AN OE TANK WHEN INSTALLED
• COMPLETE BOLT IN SOLUTION FOR YOUR EFI CONVERSION
• INCLUDES NEW TANK STRAPS

SPECS:

• APPLICATION: 1973-91 C10 LS SWAP
• DRAIN PLUG: NO
• FINISH: SILVER POWDERCOATED
• FREE FLOW LPH: 400
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• FUEL SYSTEM TYPE: GAS
• GALLON CAPACITY: 20
• MATERIAL: STEEL
• PRODUCT TYPE: FUEL TANK
• TRUCK BED LENGTH: LONG BED

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL TANK HERE.
