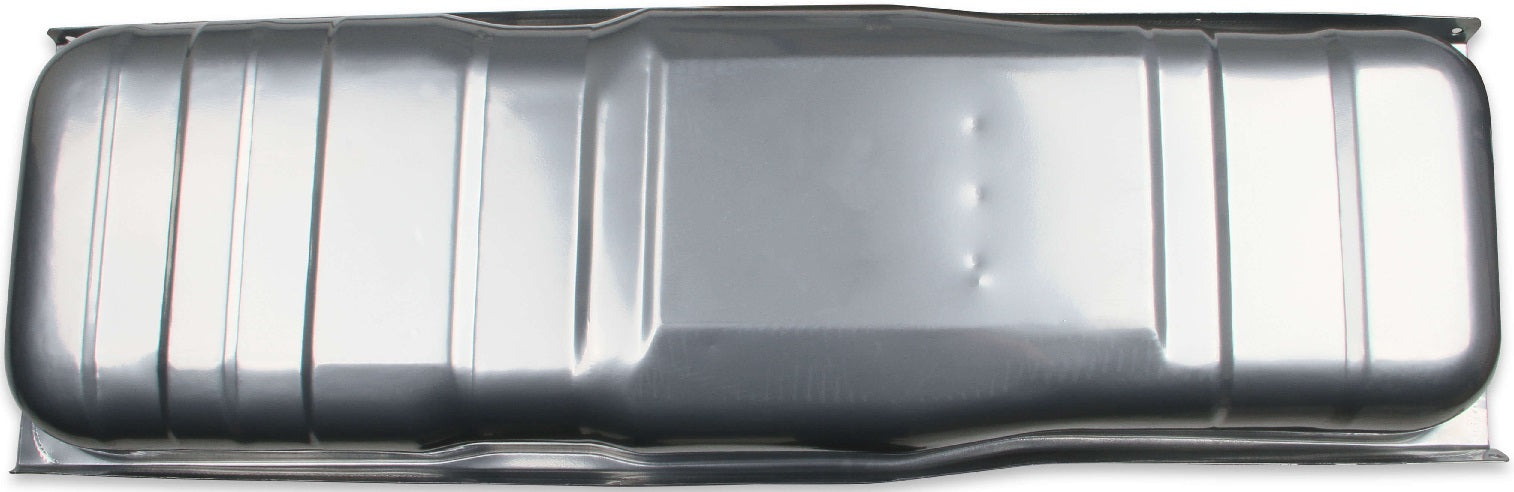

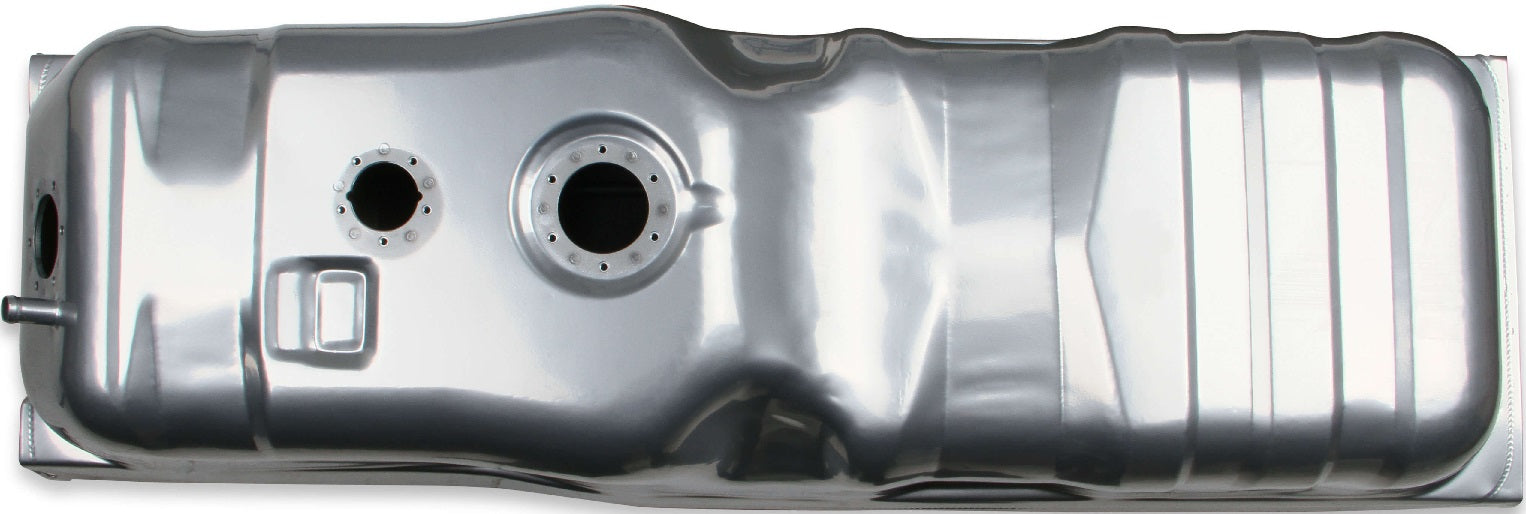

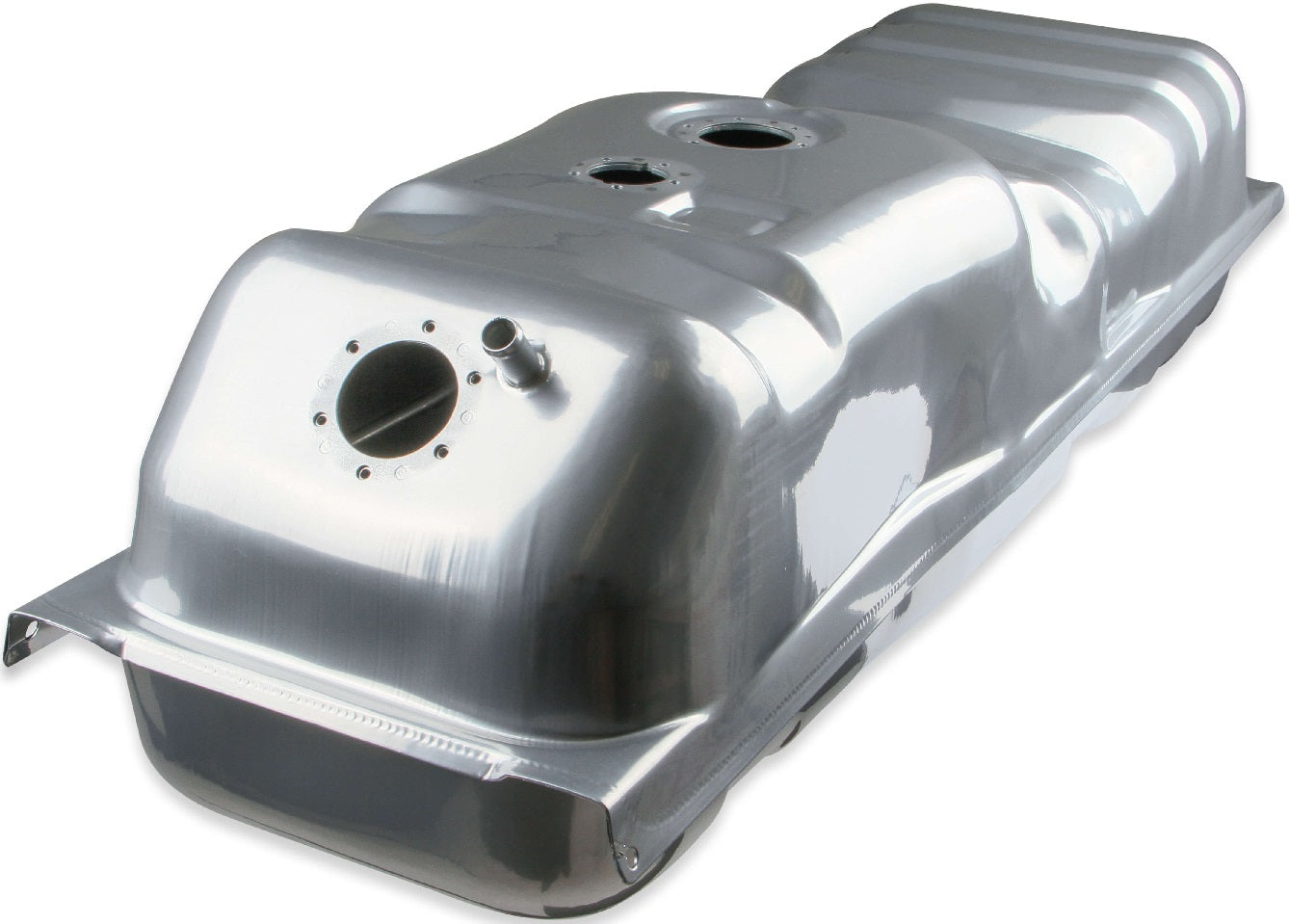

EFI TANK,400 LPH,73-81 GM TRK,6FT BED

BRAND NEW SNIPER EFI FUEL TANK SYSTEM, SILVER FINISH, 400 LPH, 16 GALLONS, COMPATIBLE WITH 1975-1981 CHEVROLET C10

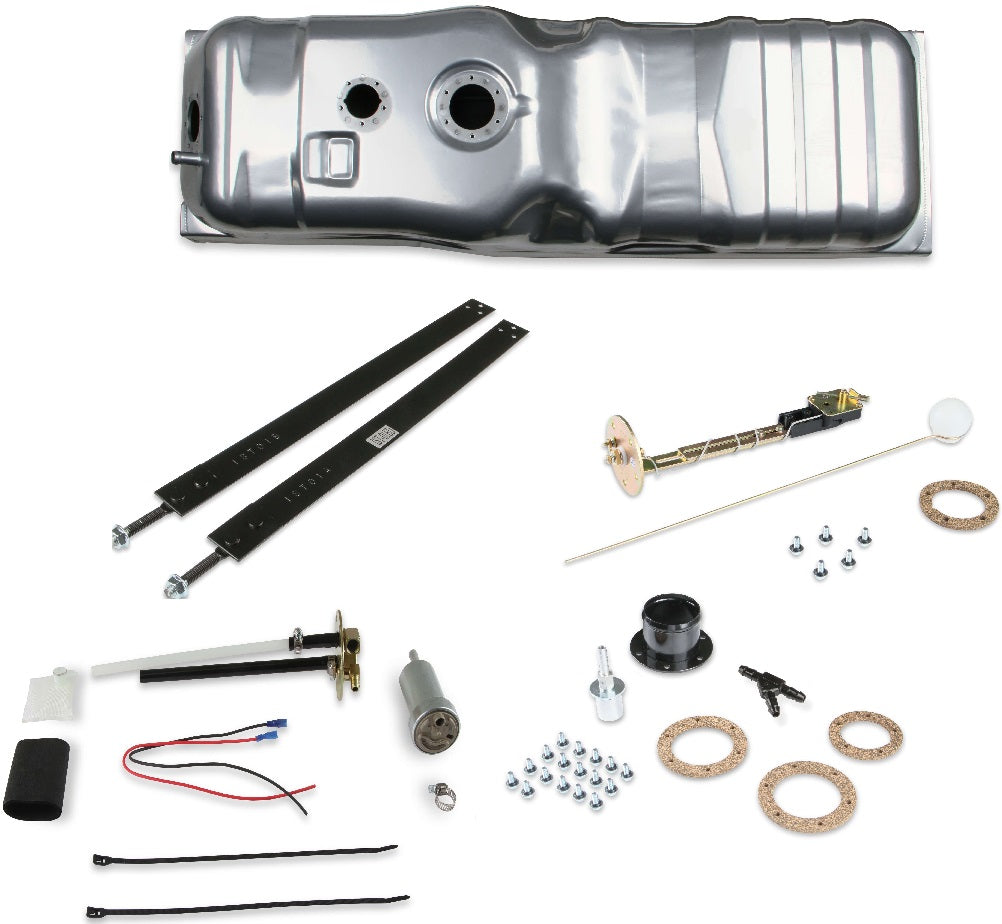

HOLLEY & SNIPER WILL HELP YOU TO COMPLETE YOUR EFI SWAP WITH OUR NEW EFI CONVERSION FUEL TANKS. EACH TANK IS A DIRECT FIT FOR YOUR APPLICATION-NO MODIFICATIONS NECESSARY. KIT INCLUDES THE TANK, A 400 LPH FUEL PUMP, INTERNAL BAFFLING, & FUEL LEVEL SENDER. THE TANK IS POWDER COATED FOR CORROSION RESISTANCE & GREAT LOOKS. SIZE IS: 42-7/8" X 14-1/8" X 11".

NOTE: USING THE GM DESIGN, THESE TANKS WILL FIT ON EITHER SIDE OF THE TRUCK.

NOTE: FOR A BETTER SEAL USE PERMATEX INDIAN HEAD GASKET SHELLAC COMPOUND OR AVIATION FORM-A-GASKET SEALANT ON THE GASKET & SCREWS.

COMPATIBLE WITH:

• CHEVROLET:
• 1975-1981 K10
• 1975-1981 K20
• 1975-1981 K30
• 1973-1974 K10 PICKUP
• 1973-1974 K20 PICKUP
• 1973-1974 K30 PICKUP
• 1975-1981 C10
• 1975-1981 C20
• 1975-1981 C30
• 1973-1974 C10 PICKUP
• 1973-1974 C20 PICKUP
• 1973-1974 C30 PICKUP

FEATURES

• TANKS ARE COATED GALVANIZED STEEL THEN POWDER COATED SILVER FOR TOTAL CORROSION PROTECTION
• 400 LPH FUEL PUMP WITH HANGER ASSEMBLY GIVES YOU THE FUEL YOU NEED WITH IN-TANK QUIETNESS
• SENDER HAS 1/4" NPT SUPPLY & RETURN LINE PORTS FOR EASY FUEL LINE CONNECTION & BARBED VENT FITTING
• FUEL LEVEL SENDER INCLUDED WITH THE CORRECT OHM RANGE FOR YOUR FACTORY GAUGES
• FUEL PUMP & SENDER ARE RECESSED IN THE TANK TO PROVIDE AN EASY INSTALLATION WITH NO MODIFICATION TO YOUR CAR
• EFI STYLE TANK BAFFLING INCLUDES A LARGE 4.3 LITER INTERNAL FUEL TRAY TO PREVENT FUEL PUMP STARVATION
• FITS & LOOKS LIKE AN OE TANK WHEN INSTALLED
• COMPLETE BOLT IN SOLUTION FOR YOUR EFI CONVERSION
• INCLUDES NEW TANK STRAPS

SPECS:

• APPLICATION: 1973-81 C10 LS SWAP
• DRAIN PLUG: NO
• FINISH: SILVER POWDERCOATED
• FREE FLOW LPH: 400
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• FUEL SYSTEM TYPE: GASOLINE
• GALLON CAPACITY: 16
• MATERIAL: STEEL
• PRODUCT TYPE: FUEL TANK
• TRUCK BED LENGTH: SHORT BED
