1970-72 CHEVELLE MALIBU EFI NOTCHED TANK

1970-72 CHEVELLE MALIBU EFI NOTCHED TANK

HOL 19-176

$1,024.95
$1,024.95

Yes, we have this item in stock and ready to ship immediately!
View full details

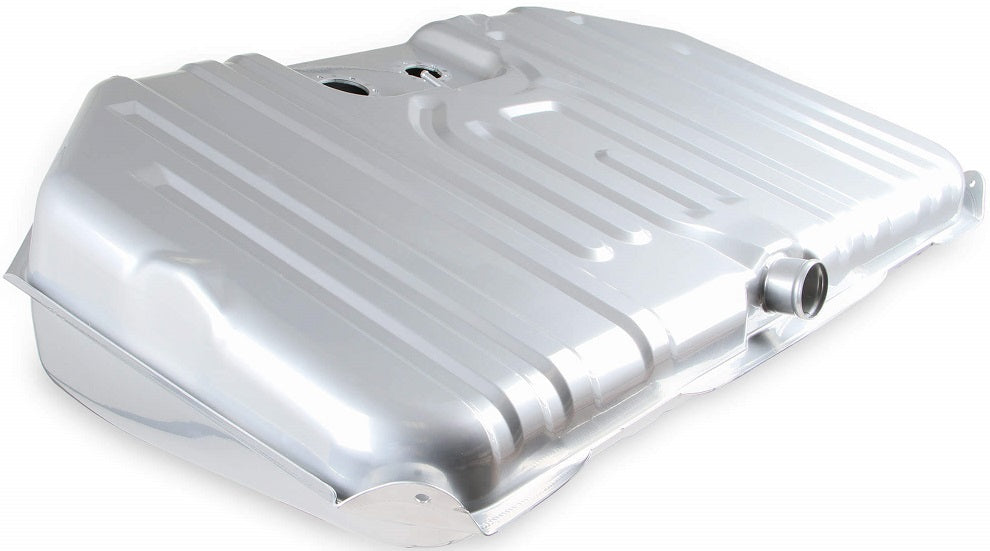

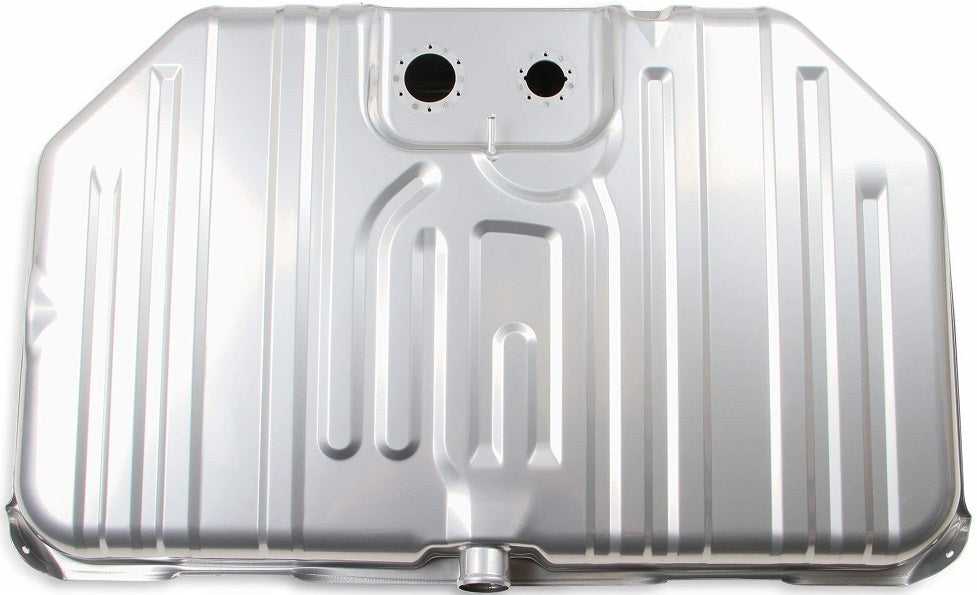

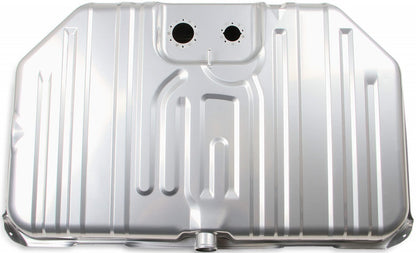

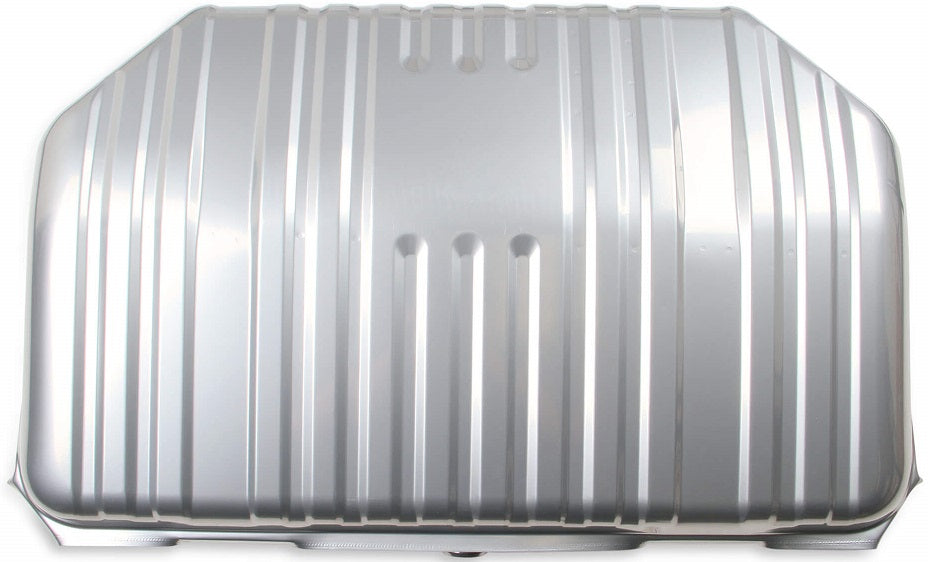

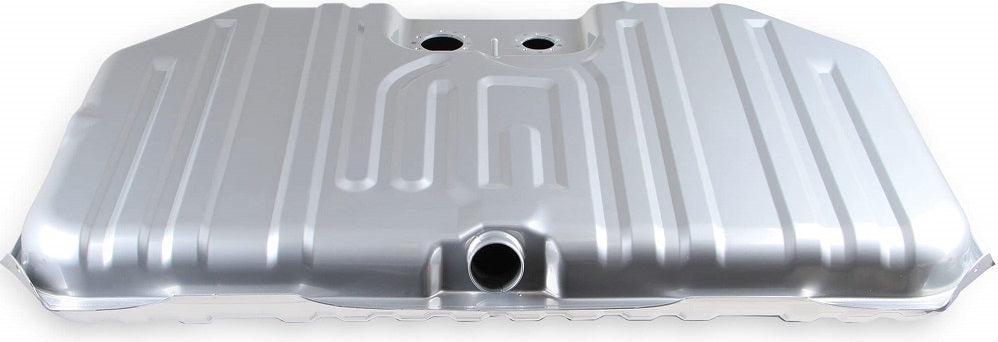

Brand New Fuel Tank System, Silver Finish, 255 LPH, 20 Gallons, Compatible with 1970-1972 Chevelle (Holley Part #19-176).

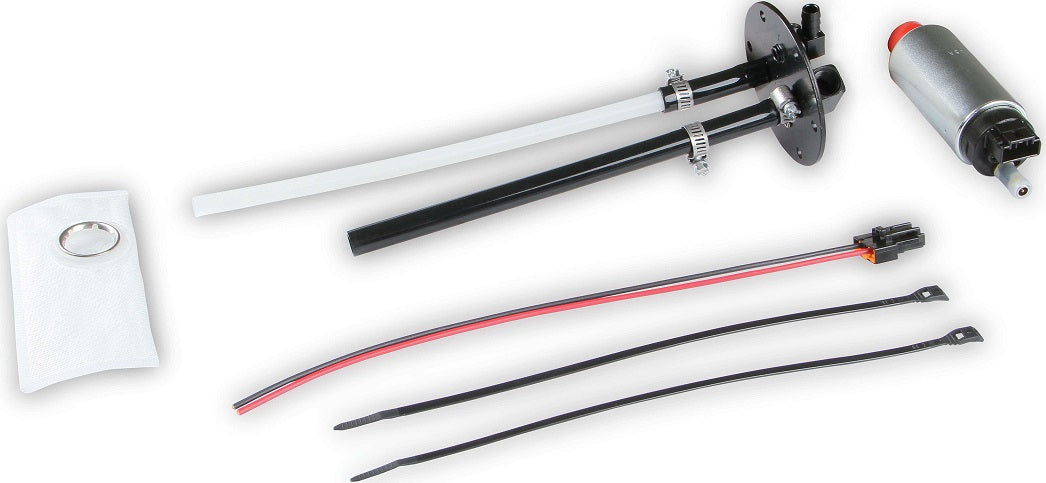

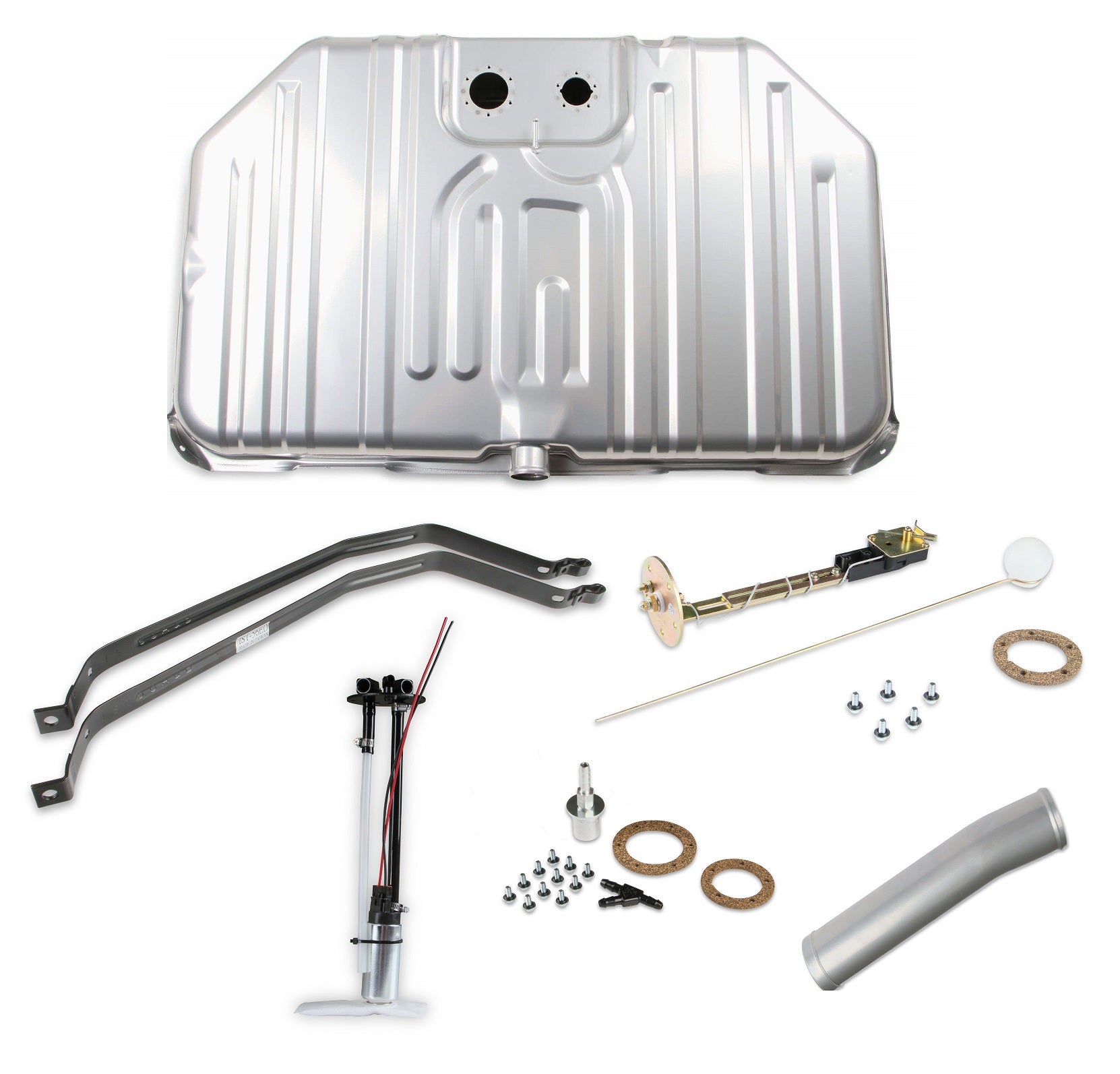

Fuel tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, fuel level sender, new tank straps, and the filler neck. The tank is powder coated for corrosion resistance and great looks. This notched corner tank is perfect for mini-tub applications. Both corners are notched 7" in and 7" back for better tire and exhaust clearance. The rear of the tank is the stock depth while the front of the tank is 1" deeper than stock.

NOTE:  When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.

Compatible with:

  • Chevrolet:
    • 1970-1972 Chevelle
    • 1970 Monte Carlo

Features:

  • Tanks are galvanized steel then powder coated silver for total corrosion protection

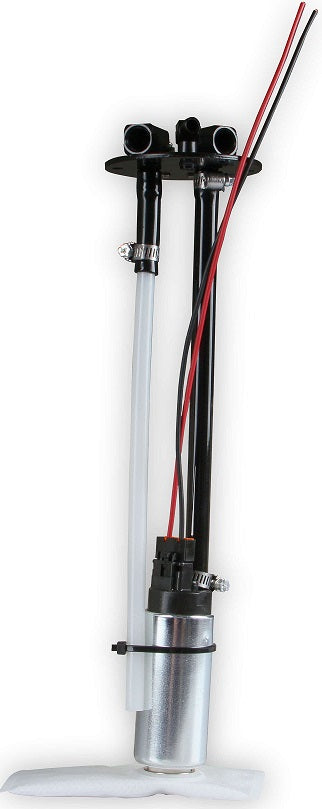

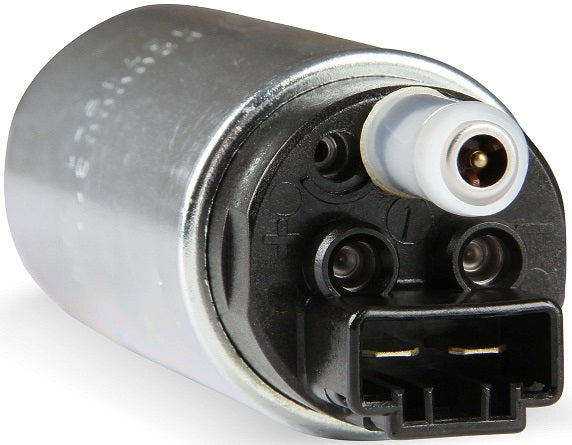

  • 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

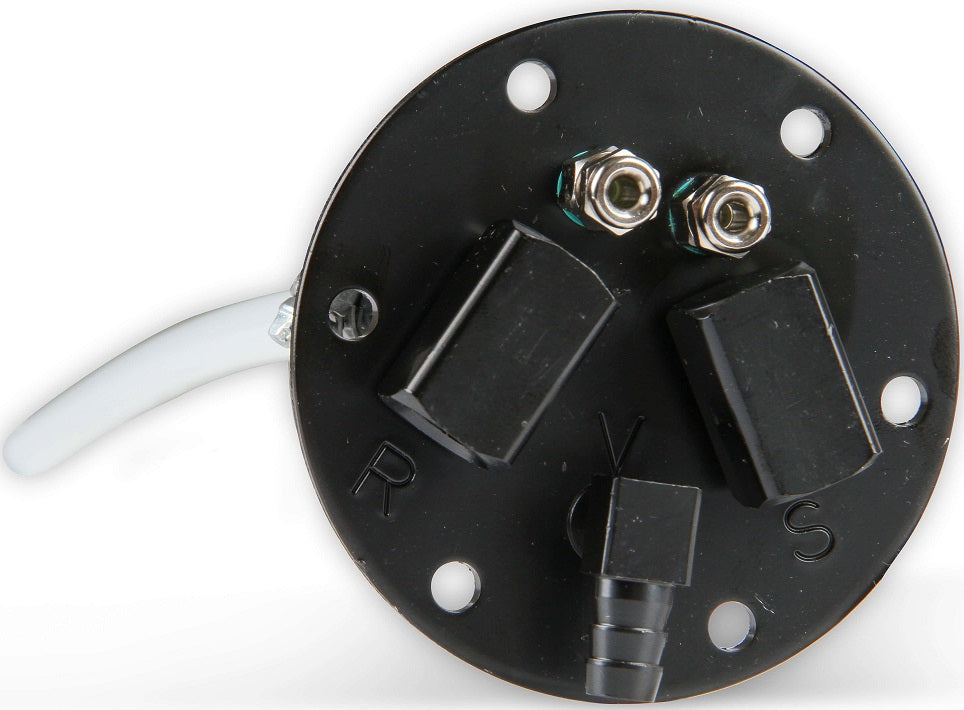

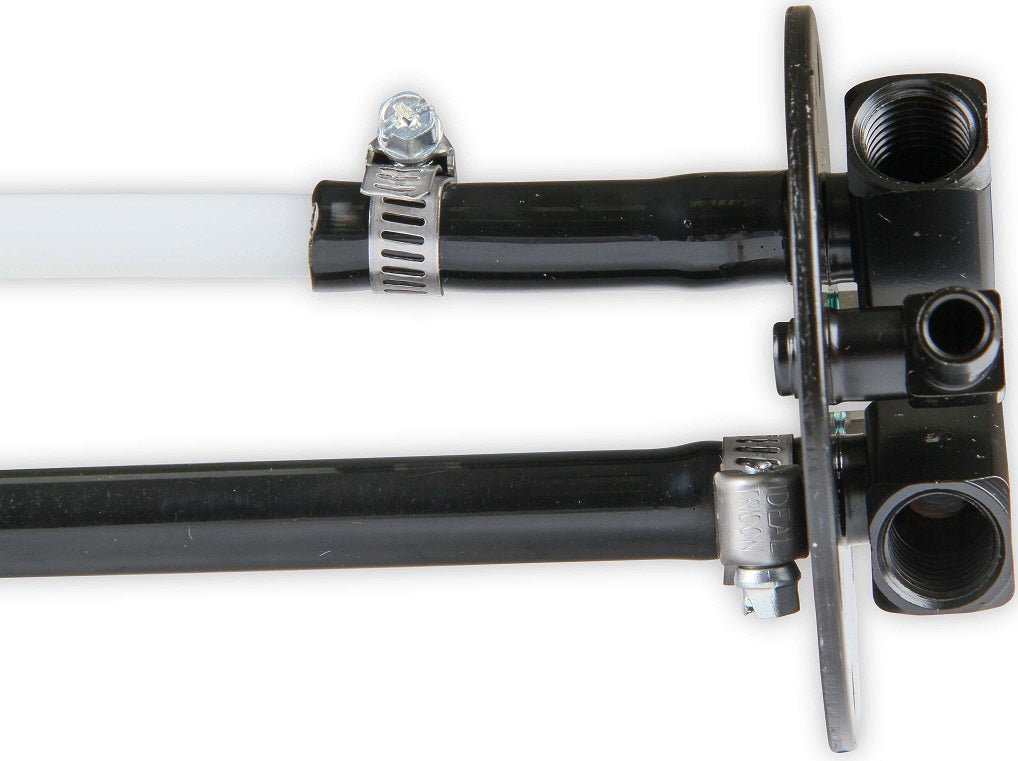

  • Sender has 1/4" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
  • Fuel level sender included with the correct Ohm range for your factory gauges
  • Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
  • Internal tank baffling includes a large 4.8 liter internal fuel tray to prevent fuel pump starvation
  • Fits and looks like an OE tank when installed. New tank straps included.
  • Notched front corners for additional tire and exhaust clearance.
  • Complete bolt in solution for your conversion

Specs:

  • Attached Sump: Yes
  • Baffled Sump: Yes
  • Brand: Holley
  • Color: Silver
  • Drain Plug: No
  • Finish: Powdercoated
  • Free Flow LPH: 255
  • Fuel Sending Unit Ohms: 0-90 Ohms
  • Fuel System Compatibility: Electronic Fuel Injection
  • Fuel System Type: Gasoline
  • Fuel Tank Coating: Powder Coated
  • Gallon Capacity: 20
  • Lock Ring Included: Yes
  • Material: Steel
  • Maximum Flow Rating: 255 LPH
  • Mounting Straps Included: Yes
  • New Straps Included: Yes
  • O-Ring Included: Yes
  • Resistance Ohms Empty: 0 82
  • Resistance Ohms Full: 90 82
  • Tank Color: Gray
  • Tank Material: Steel
You can view and download the complete assembly instruction booklet here.
