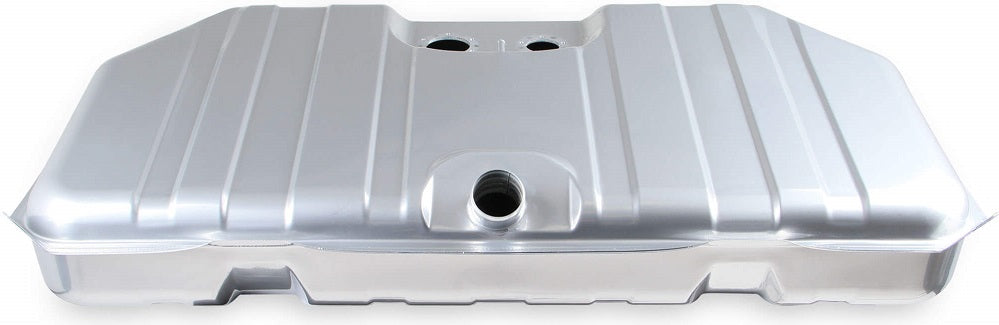

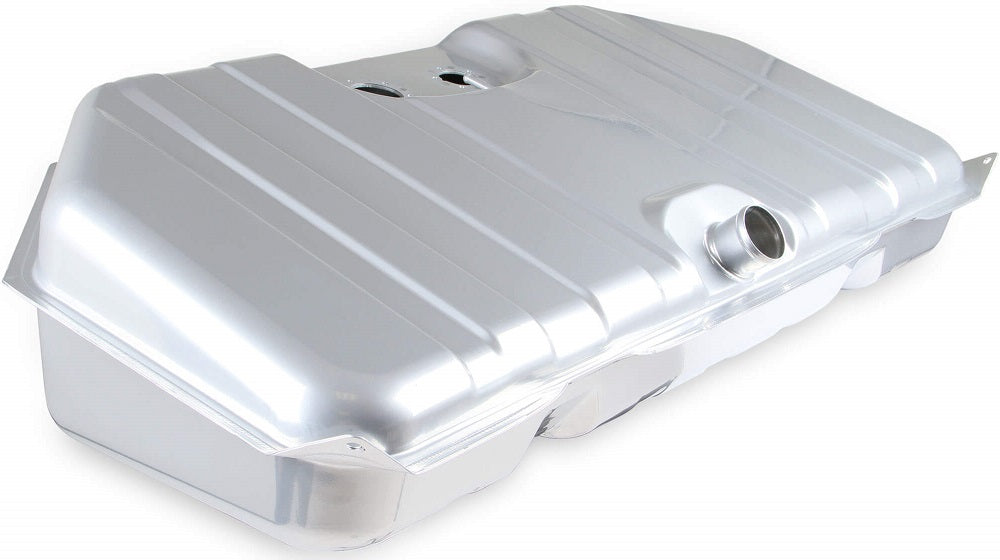

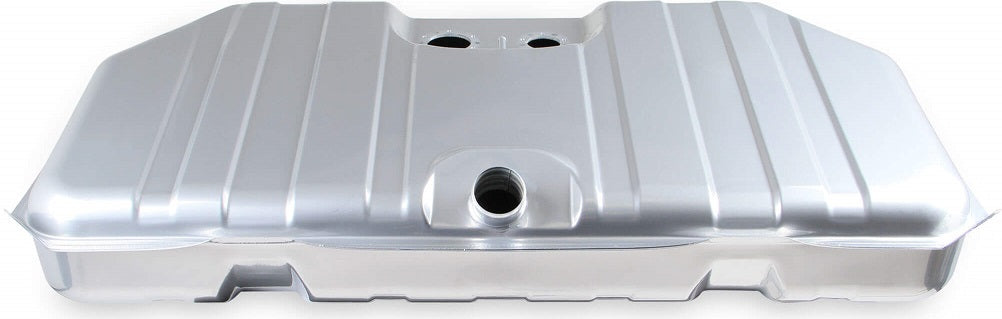

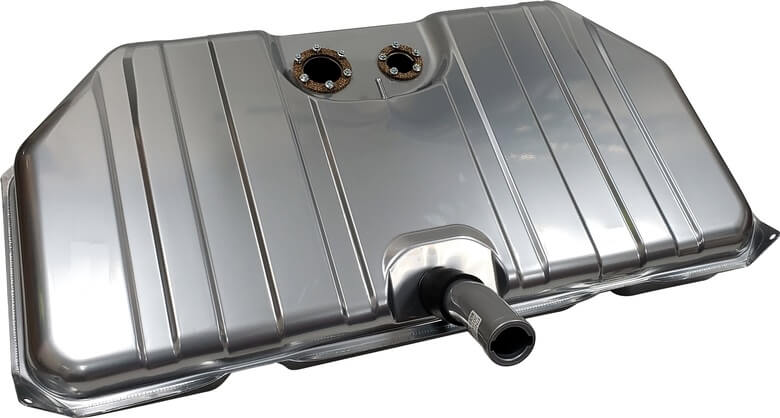

1970-73 CAMARO COATED STEEL EFI NOTCHED

BRAND NEW HOLLEY EFI FUEL TANK SYSTEM WITH NOTCHED FRONT CORNERS, 255 LPH FUEL PUMP MODULE, COMPATIBLE WITH 1970-1973 CHEVY CAMARO & PONTIAC FIREBIRD

EACH TANK IS A DIRECT FIT FOR YOUR APPLICATION WITH NO BODY MODIFICATIONS NECESSARY. INCLUDES THE TANK, A 255 LPH FUEL PUMP, A FUEL LEVEL SENDER, NEW TANK STRAPS & FILLER NECK. THE TANK IS POWDER COATED FOR CORROSION RESISTANCE. THIS MODEL HAS NOTCHED FRONT CORNERS FOR ADDITIONAL TIRE & EXHAUST CLEARANCE. THE 255 LPH FUEL PUMP SUPPORTS UP TO 550 HP (@ 60 PSI AT 13.5 VOLTS / 10.4 AMP DRAW)

NOTE: GM OFFERED TWO DEPTHS OF FUEL TANK CAPS. IF YOU HAVE THE DEEP REACH (1 3/8"), YOU MAY HAVE TO SWITCH TO THE SHALLOW REACH CAP (1 1/4") DEPENDING ON YOUR APPLICATION. STANT # 10646 - SHALLOW -STANT # 10806 - DEEP.

FEATURES:

• FUEL TANK IS COATED GALVANIZED STEEL & POWDER COATED SILVER FOR TOTAL CORROSION PROTECTION
• INCLUDES 2 PIECE FILLER NECK DESIGN THAT CONNECTS WITH SUPPLIED 2" ID (INSIDE DIAMETER) RUBBER HOSE
• 255 LPH FUEL PUMP WITH HANGER ASSEMBLY GIVES YOU THE FUEL YOU NEED WITH IN-TANK QUIETNESS
• SENDER FEATURES 1/4" NPT (NATIONAL PIPE TAPERED) THREADED SUPPLY & RETURN LINE PORTS FOR EASY FUEL LINE CONNECTION & BARBED VENT FITTING
• FUEL LEVEL SENDER INCLUDED WITH THE CORRECT OHM RANGE FOR YOUR FACTORY GAUGES
• FUEL PUMP AND SENDER ARE RECESSED IN THE TANK TO PROVIDE AN EASY INSTALLATION AND NO MODIFICATION TO VEHICLE
• INTERNAL TANK BAFFLING INCLUDES A 4.3 L INTERNAL FUEL TRAY TO PREVENT FUEL PUMP STARVATION
• FITS & LOOKS LIKE AN OE TANK WHEN INSTALLED
• NEW TANK STRAPS INCLUDED
• NOTCHED FRONT CORNERS FOR INSTALLING MINI-TUBS TO GAIN WIDER TIRE & EXHAUST CLEARANCE
• FUEL TANK DIMENSIONS: 39-3/8" X 20-7/8" X 8-3/4"

SPECS:

• APPLICATION: 1970-73 CAMARO & FIREBIRD
• BRAND: HOLLEY SNIPER EFI
• COLOR: SILVER
• DRAIN PLUG: NO
• FINISH: POWDERCOATED
• FREE FLOW LPH: 255
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• FUEL SYSTEM TYPE: GASOLINE
• GALLON CAPACITY: 18
• NEW STRAPS INCLUDED: YES
• PRODUCT TYPE: FUEL TANK

YOU CAN VIEW AND DOWNLOAD THE QUICKSTART INSTRUCTIONS FOR THIS FUEL TANK HERE.
