SNIPER EFI TANK,255 LPH,82-91 GM TRK,8' BED

BRAND NEW SNIPER EFI FUEL TANK SYSTEM, SILVER FINISH, 255 LPH, 20 GALLONS, COMPATIBLE WITH 1982-1986 CHEVROLET C10

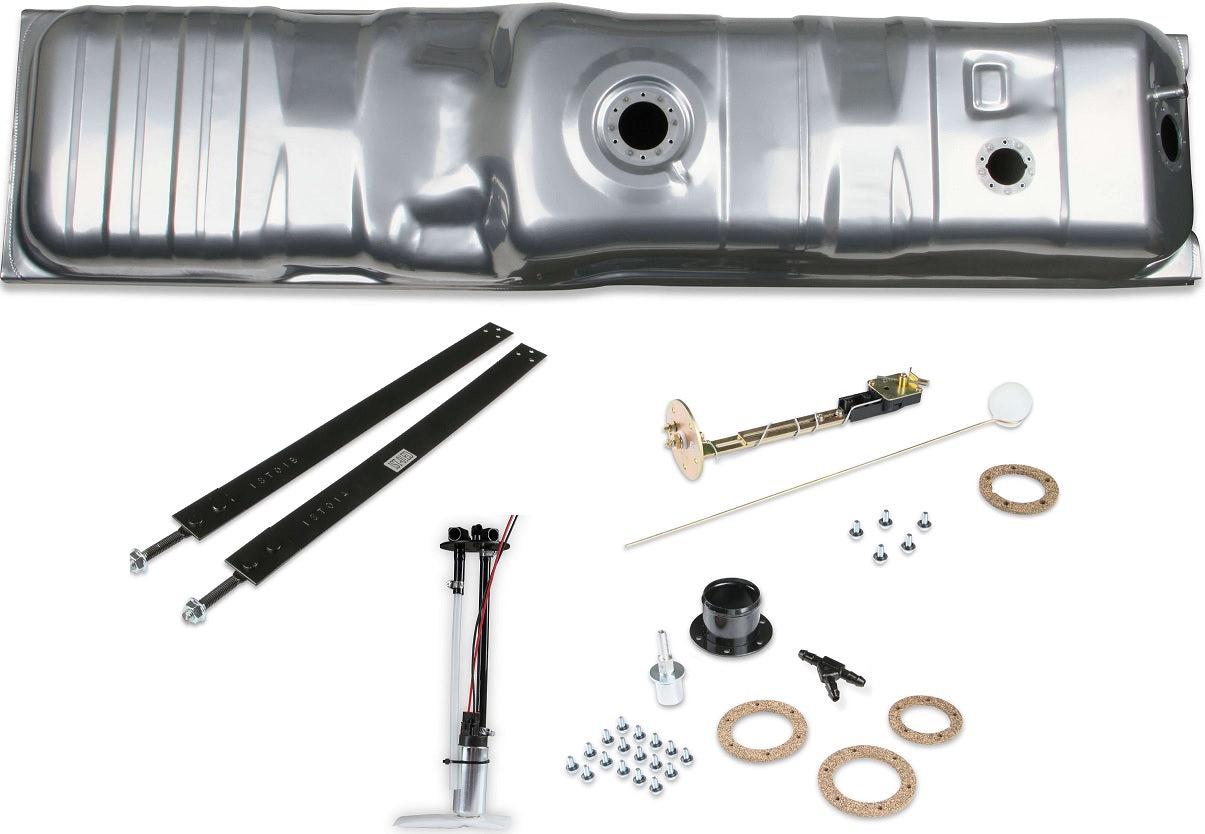

HOLLEY & SNIPER WILL HELP YOU TO COMPLETE YOUR EFI SWAP WITH OUR NEW EFI CONVERSION FUEL TANKS. EACH TANK IS A DIRECT FIT FOR YOUR APPLICATION-NO MODIFICATIONS NECESSARY. THE KIT INCLUDES THE TANK, A 255 LPH FUEL PUMP, INTERNAL BAFFLING & FUEL LEVEL SENDER. THE TANK IS POWDER COATED FOR CORROSION RESISTANCE.

SUPPORTS UP TO 550 EFI (@ 60 PSI AT 13.5 VOLTS / 10.4 AMP DRAW). SIZE IS: 56" X 14-1/8" X 11". USING THE GM DESIGN, THESE TANKS WILL FIT ON EITHER SIDE OF THE TRUCK. FOR A BETTER SEAL USE PERMATEX INDIAN HEAD GASKET SHELLAC COMPOUND OR AVIATION FORM-A-GASKET SEALANT ON THE GASKET & SCREWS.

NOTE: WHEN INSTALLING SENDING UNITS, PLEASE REMEMBER TO ROTATE THE UNIT UNTIL THE MOUNTING HOLES ALIGN WITH THE FLANGE HOLES IN THE TANK.

COMPATIBLE WITH:

• JEEP:
• 1982-1986 C10
• 1982-1987 C20
• 1982-1986 C30
• 1982-1988 C15
• 1983-1991 C35
• 1982-1986 K10
• 1982-1986 K20
• 1982-1986 K30
• 1988-1991 K1500
• 1988-1991 K2500
• 1988-1991 K3500
• 1987 R10
• 1987-1988 R30
• 1989 R2500
• 1987 V10
• 1987 V20
• 1987-1988 V30
• 1989-1981 V3500
• GMC:
• 1982-1986 C1500
• 1982-1991 C2500
• 1982-1991 K1500
• 1982-1991 K2500
• 1982-1991 K3500
• 1987 R1500
• 1987-1989 R2500
• 1987 V1500
• 1987 V2500
• 1987-1991 V3500

FEATURES:

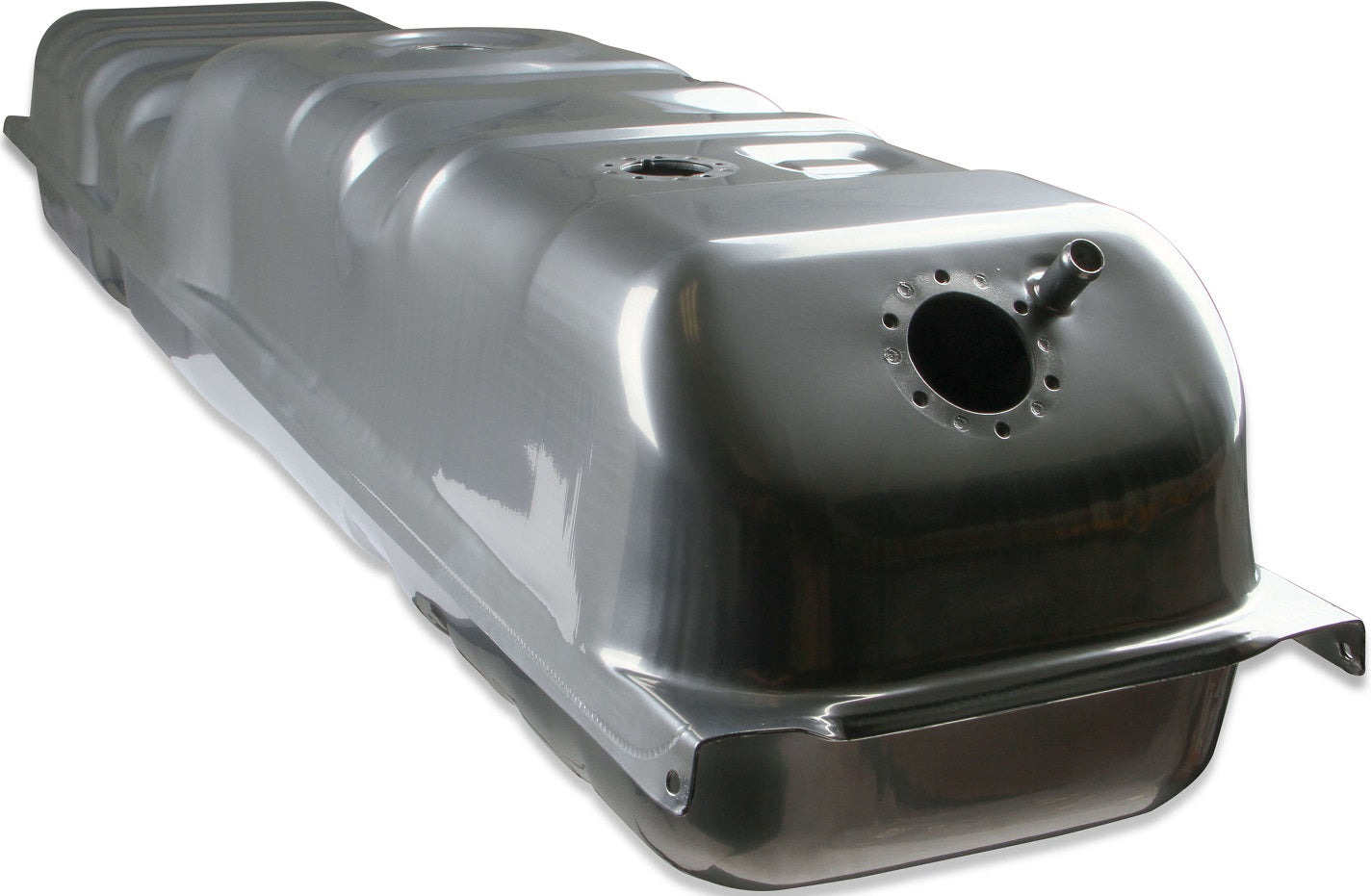

• TANKS ARE COATED GALVANIZED STEEL THEN POWDER COATED SILVER FOR TOTAL CORROSION PROTECTION
• 255 LPH FUEL PUMP WITH HANGER ASSEMBLY GIVES YOU THE FUEL YOU NEED WITH IN-TANK QUIETNESS
• SENDER HAS 1/4" NPT SUPPLY & RETURN LINE PORTS FOR EASY FUEL LINE CONNECTION & BARBED VENT FITTING
• FUEL LEVEL SENDER INCLUDED WITH THE CORRECT OHM RANGE FOR YOUR FACTORY GAUGES
• FUEL PUMP & SENDER ARE RECESSED IN THE TANK TO PROVIDE AN EASY INSTALL WITH NO MODIFICATION
• EFI STYLE TANK BAFFLING INCLUDES A LARGE 4.3 LITER INTERNAL FUEL TRAY TO PREVENT FUEL PUMP STARVATION
• FITS & LOOKS LIKE AN OE TANK WHEN INSTALLED
• COMPLETE BOLT IN SOLUTION FOR EFI CONVERSION
• INCLUDES NEW TANK STRAPS

SPECS:

• APPLICATION: 1973-91 C10 LS SWAP
• DRAIN PLUG: NO
• FREE FLOW LPH: 255
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• FUEL SYSTEM TYPE: GAS
• GALLON CAPACITY: 20
• TRUCK BED LENGTH: LONG BED

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL TANK SYSTEM HERE.
