SNIPER EFI TANK,255 LPH,82-87 GM TRK,6' BED

SNIPER EFI TANK,255 LPH,82-87 GM TRK,6' BED

HOL 19-156

$819.95
$819.95

Yes, we have this item in stock and ready to ship immediately!
View full details

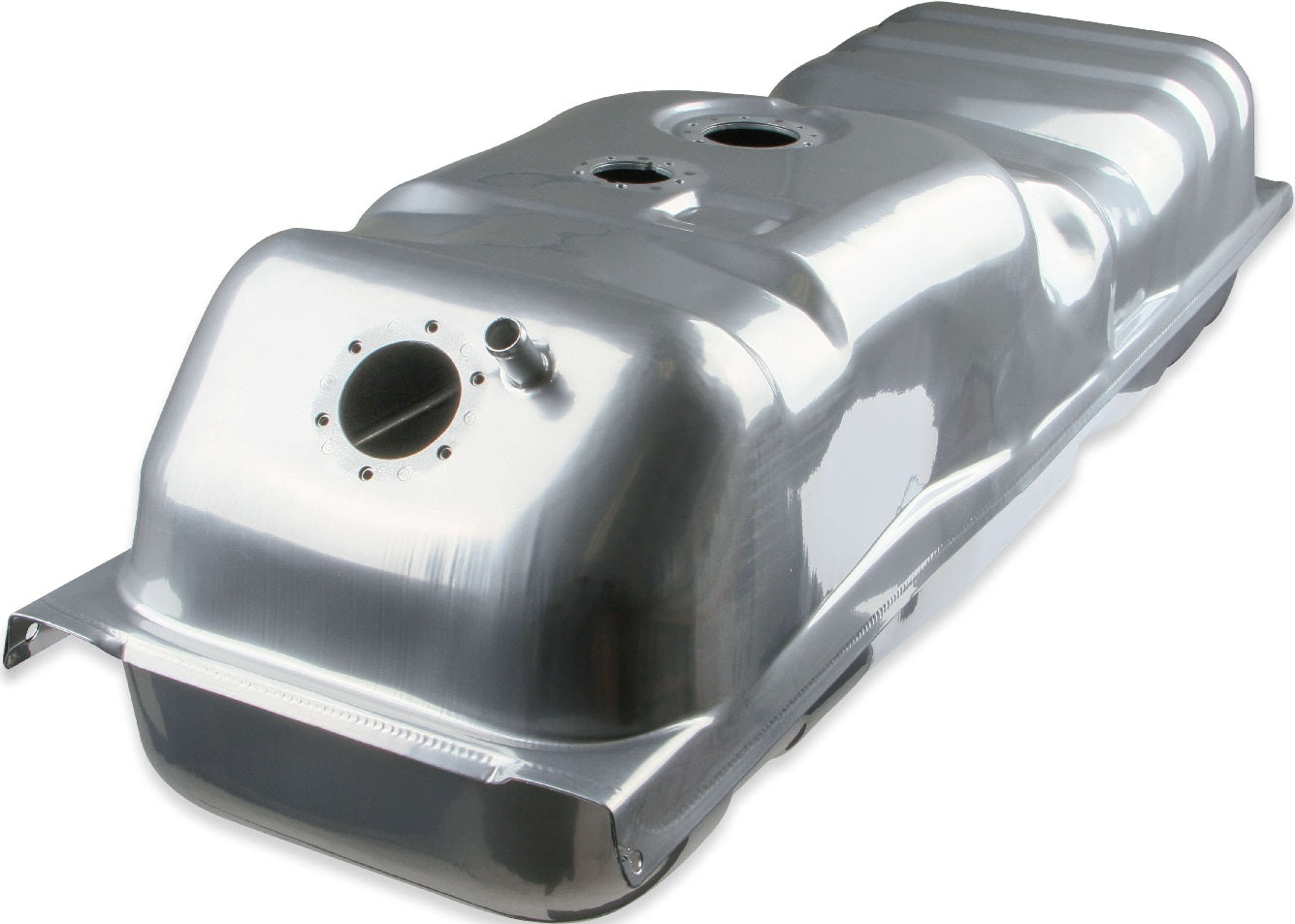

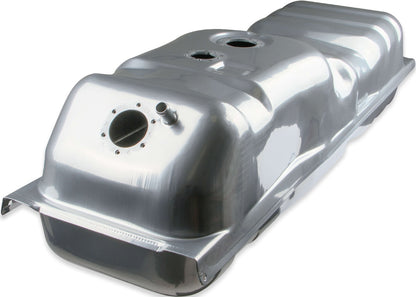

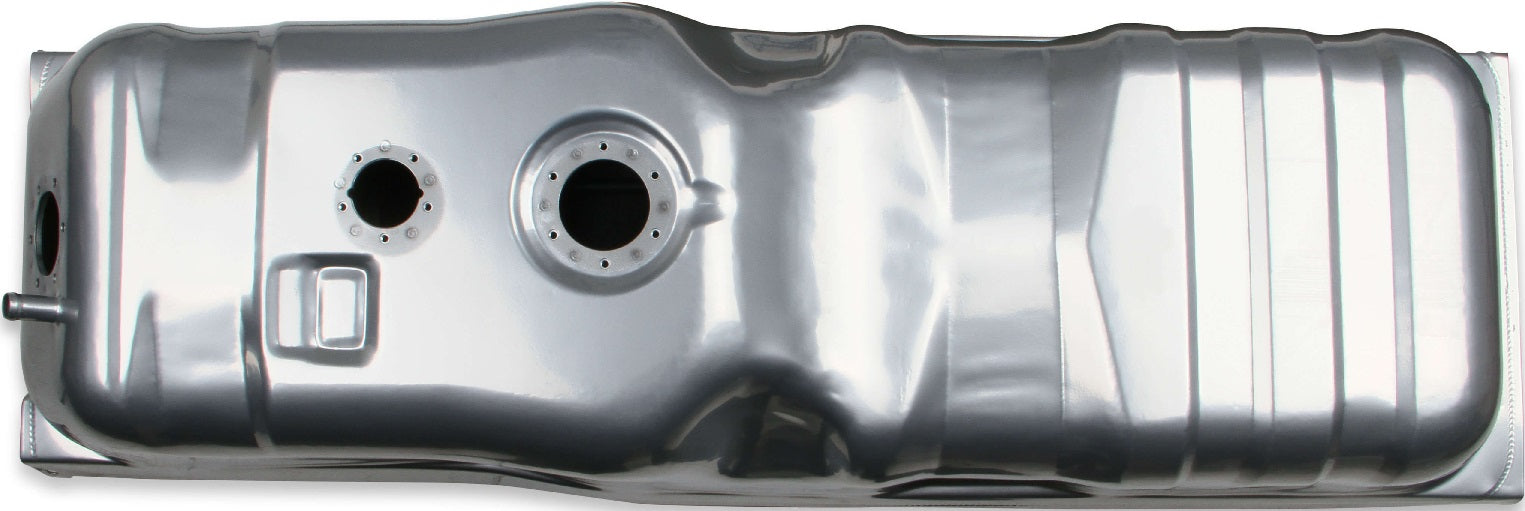

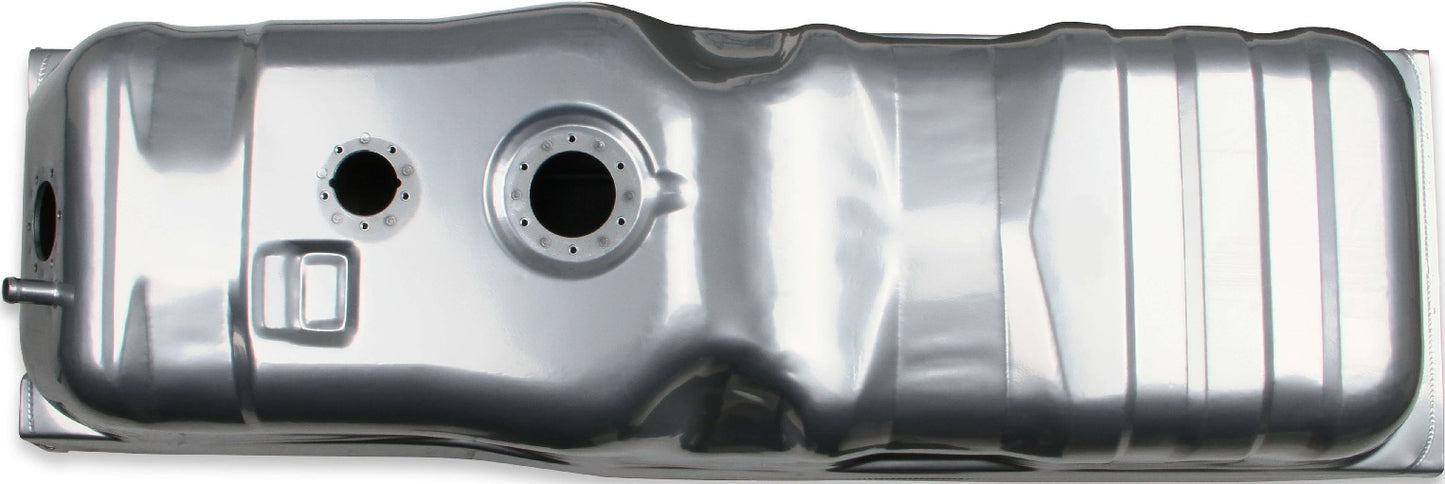

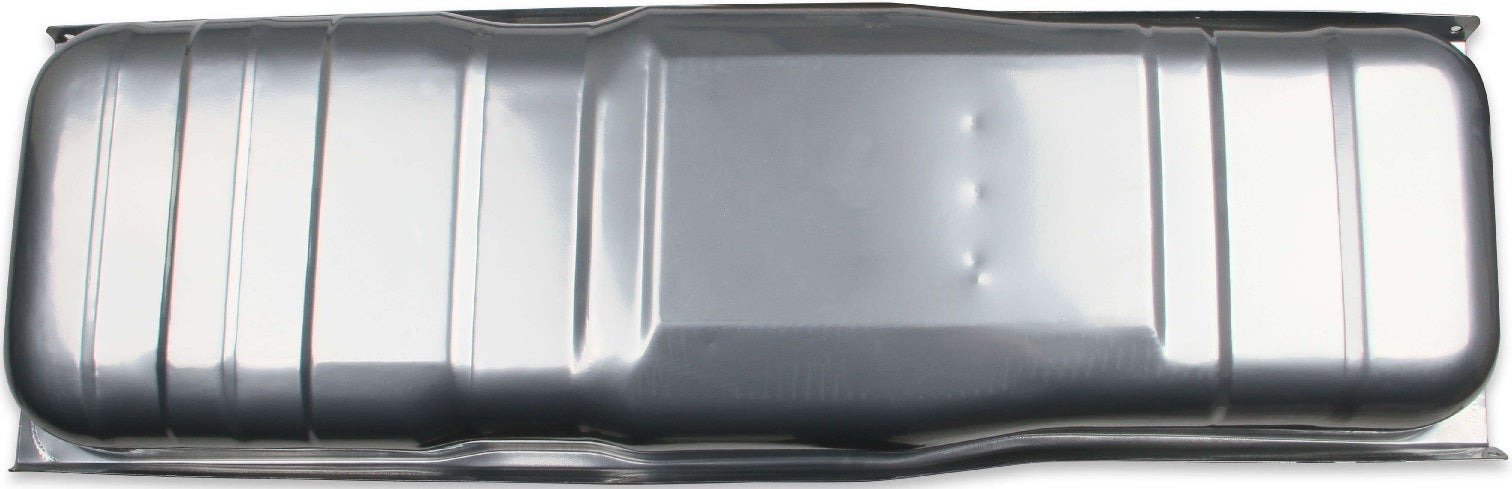

BRAND NEW SNIPER EFI FUEL TANK SYSTEM, SILVER FINISH, 255 LPH, 16 GALLONS, COMPATIBLE WITH 1982-1986 CHEVROLET C10

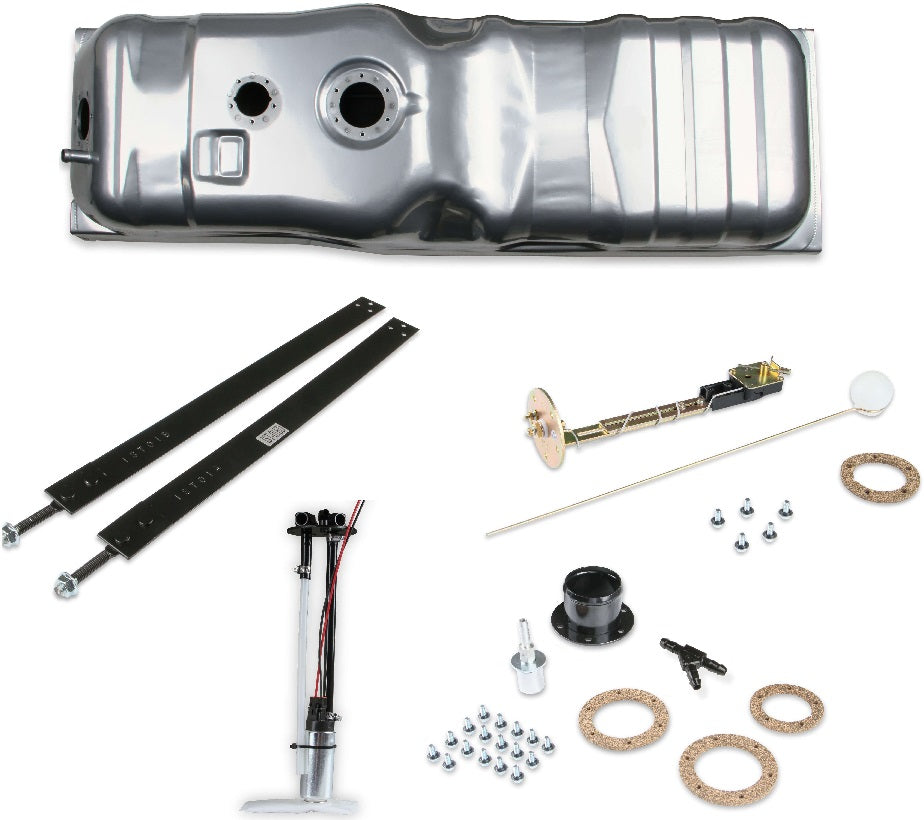

HOLLEY & SNIPER WILL HELP YOU TO COMPLETE YOUR EFI SWAP WITH OUR NEW EFI CONVERSION FUEL TANKS. EACH TANK IS A DIRECT FIT FOR YOUR APPLICATION-NO MODIFICATIONS NECESSARY. KIT INCLUDES THE TANK, A 255 LPH FUEL PUMP, INTERNAL BAFFLING & FUEL LEVEL SENDER.

SUPPORTS UP TO 550 EFI (AT 60 PSI AT 13.5 VOLTS / 10.4 AMP DRAW). SIZE IS: 42-7/8" X 14-1/8" X 11". USING THE GM DESIGN, THESE TANKS WILL FIT ON EITHER SIDE OF THE TRUCK. FOR A BETTER SEAL USE PERMATEX INDIAN HEAD GASKET SHELLAC COMPOUND OR AVIATION FORM-A-GASKET SEALANT ON THE GASKET & SCREWS.

NOTE: WHEN INSTALLING SENDING UNITS, PLEASE REMEMBER TO ROTATE THE UNIT UNTIL THE MOUNTING HOLES ALIGN WITH THE FLANGE HOLES IN THE TANK.

COMPATIBLE WITH:

  • CHEVROLET:
    • 1982-1986 C10
    • 1982-1987 C15
    • 1982-1986 K10
    • 1987 V10
    • 1987 R10
  • GMC:
    • 1982-1986 C1500
    • 1982-1986 K1500
    • 1987 R1500
    • 1987 V1500

FEATURES:

  • TANKS ARE COATED GALVANIZED STEEL THEN POWDER COATED SILVER FOR TOTAL CORROSION PROTECTION
  • 255 LPH FUEL PUMP WITH HANGER ASSEMBLY GIVES YOU THE FUEL YOU NEED WITH IN-TANK QUIETNESS
  • SENDER HAS 1/4" NPT SUPPLY & RETURN LINE PORTS FOR EASY FUEL LINE CONNECTION & BARBED VENT FITTING
  • FUEL LEVEL SENDER INCLUDED WITH THE CORRECT OHM RANGE FOR YOUR FACTORY GAUGES
  • FUEL PUMP & SENDER ARE RECESSED IN THE TANK TO PROVIDE AN EASY INSTALL WITH NO MODIFICATION
  • EFI STYLE TANK BAFFLING INCLUDES LARGE 4.3 LITER INTERNAL FUEL TRAY TO PREVENT FUEL PUMP STARVATION
  • FITS & LOOKS LIKE AN OE TANK WHEN INSTALLED
  • COMPLETE BOLT IN SOLUTION FOR YOUR EFI CONVERSION
  • INCLUDES NEW TANK STRAPS

SPECS:

  • APPLICATION: 1982-87 C10 LS SWAP
  • COLOR: SILVER
  • DRAIN PLUG: NO
  • FINISH: POWDERCOATED
  • FREE FLOW LPH: 255
  • FUEL SENDING UNIT OHMS: 0-90 OHMS
  • FUEL SYSTEM TYPE: GAS
  • GALLON CAPACITY: 16
  • MATERIAL: STEEL
  • PRODUCT TYPE: FUEL TANK
  • TRUCK BED LENGTH: SHORT BED

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL TANK SYSTEM HERE.
