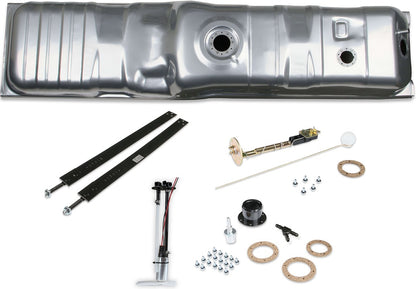

SNIPER EFI TANK,255 LPH,73-81 GM TRK,8' BED

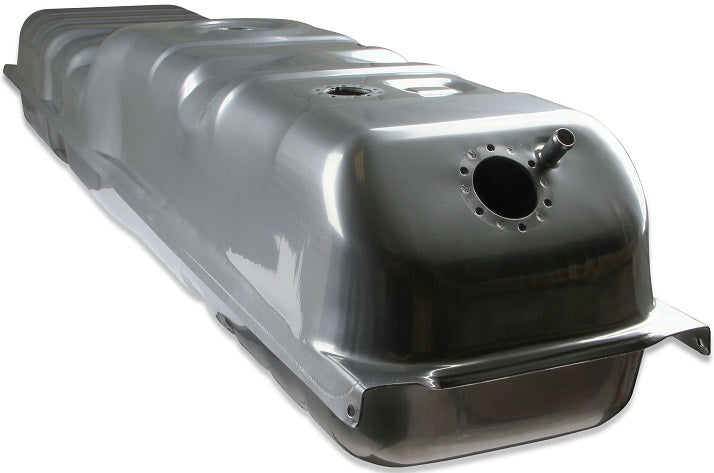

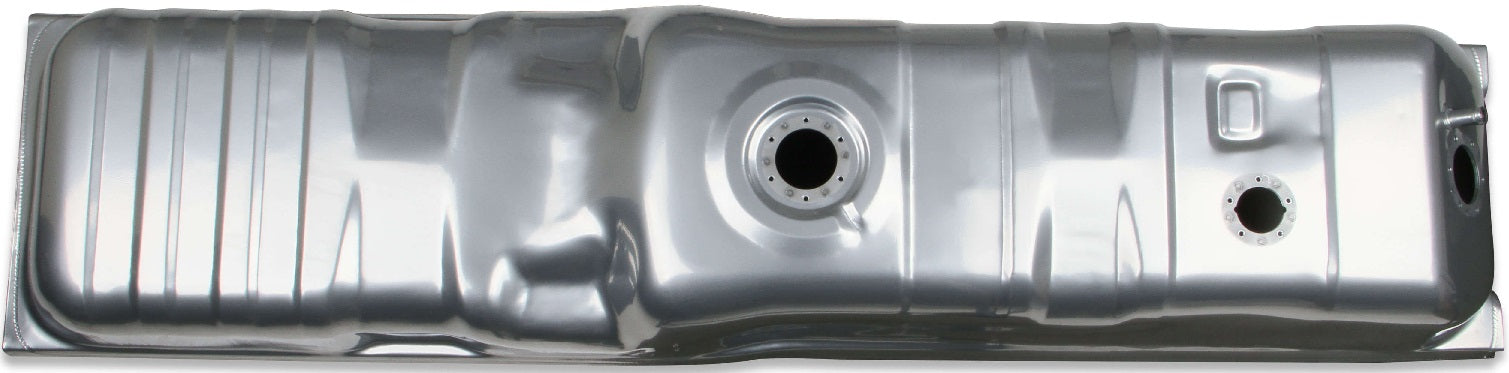

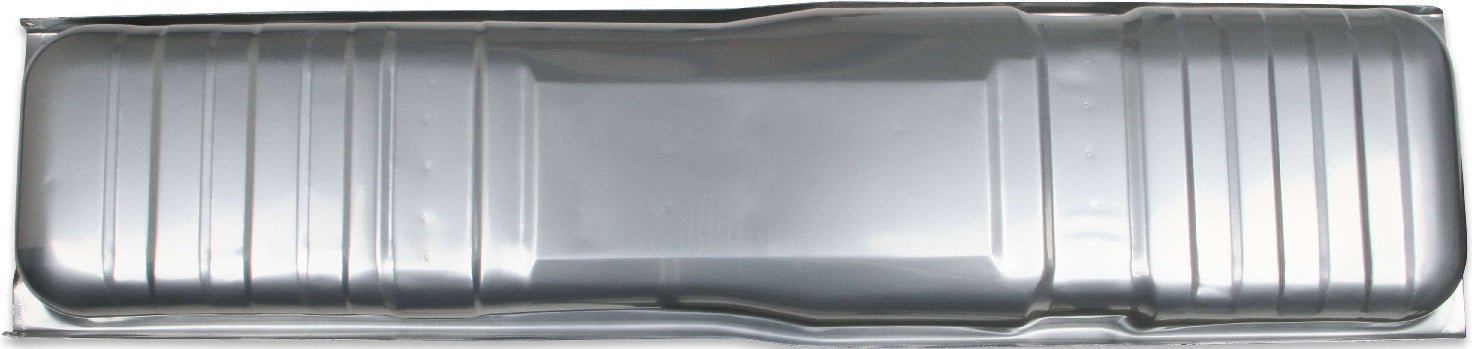

BRAND NEW SNIPER EFI FUEL TANK SYSTEM, SILVER FINISH, 255 LPH, 20 GALLONS, COMPATIBLE WITH 1975-1981 CHEVROLET C10

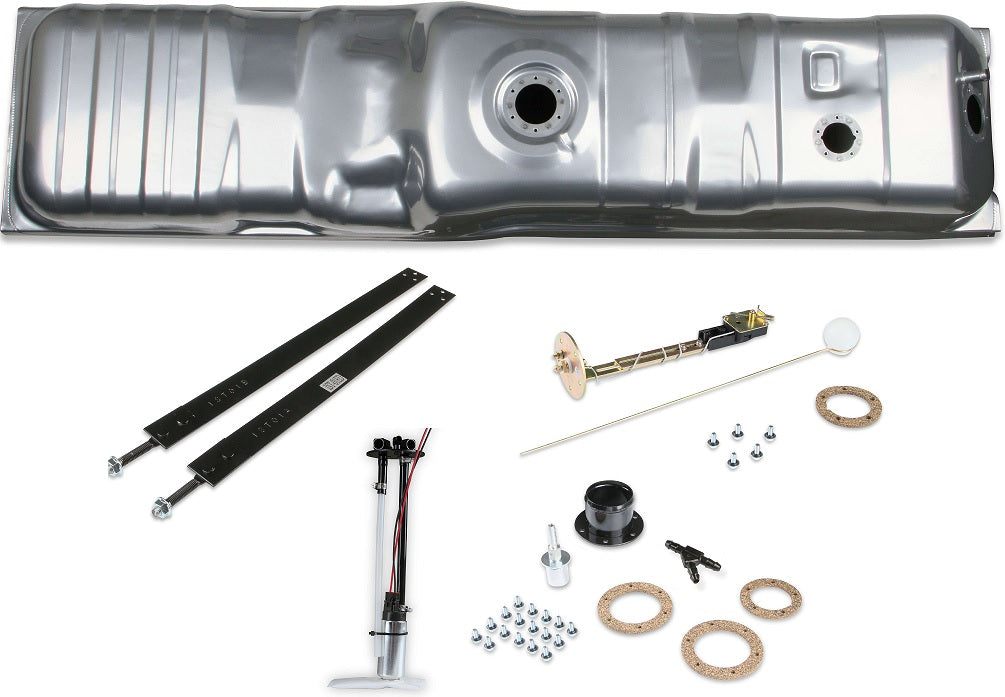

HOLLEY AND SNIPER WILL HELP YOU TO COMPLETE YOUR EFI SWAP WITH OUR NEW EFI CONVERSION FUEL TANKS. EACH TANK IS A DIRECT FIT FOR YOUR APPLICATION-NO MODIFICATIONS NECESSARY. KIT INCLUDES THE TANK, A 255 LPH FUEL PUMP, INTERNAL BAFFLING & FUEL LEVEL SENDER. TANK IS POWDER COATED FOR CORROSION RESISTANCE.

SUPPORTS UP TO 550 EFI (AT 60 PSI AT 13.5 VOLTS / 10.4 AMP DRAW). SIZE IS: 56" X 14-1/8" X 11" & NEW STRAPS ARE INCLUDED. USING THE GM DESIGN, THESE TANKS WILL FIT ON EITHER SIDE OF THE TRUCK. FOR A BETTER SEAL USE PERMATEX INDIAN HEAD GASKET SHELLAC COMPOUND OR AVIATION FORM-A-GASKET SEALANT ON THE GASKET & SCREWS.

NOTE: WHEN INSTALLING SENDING UNITS, PLEASE REMEMBER TO ROTATE THE UNIT UNTIL THE MOUNTING HOLES ALIGN WITH THE FLANGE HOLES IN THE TANK.

COMPATIBLE WITH:

• CHEVROLET:
• 1975-1981 C10
• 1975-1981 C20
• 1975-1981 C30
• 1973-1974 C10 PICKUP
• 1973-1974 C20 PICKUP
• 1973-1974 C30 PICKUP
• 1975-1981 K10
• 1975-1981 K20
• 1977-1981 K30
• 1973-1974 K10 PICKUP
• 1973-1974 K20 PICKUP
• 1973-1974 K30 PICKUP
• GMC:
• 1975-1978 C15
• 1975-1978 C25
• 1975-1978 C35
• 1979-1981 C1500
• 1979-1981 C2500
• 1979-1981 C3500
• 1973-1974 C15/C1500 PICKUP
• 1973-1974 C25/C2500 PICKUP
• 1973-1974 C35/C3500 PICKUP
• 1975-1978 K15
• 1975-1978 K25
• 1977-1978 K35
• 1979-1981 K1500
• 1979-1981 K2500
• 1979-1981 K3500
• 1973-1974 K15/K1500 PICKUP
• 1973-1974 K25/K2500 PICKUP
• 1973-1974 K35/K3500 PICKUP

FEATURES:

• TANKS ARE COATED GALVANIZED STEEL THEN POWDER COATED SILVER FOR TOTAL CORROSION PROTECTION
• 255 LPH FUEL PUMP WITH HANGER ASSEMBLY GIVES YOU THE FUEL YOU NEED WITH IN-TANK QUIETNESS
• SENDER HAS 1/4" NPT SUPPLY & RETURN LINE PORTS FOR EASY FUEL LINE CONNECTION & BARBED VENT FITTING
• FUEL LEVEL SENDER INCLUDED WITH THE CORRECT OHM RANGE FOR YOUR FACTORY GAUGES
• FUEL PUMP & SENDER ARE RECESSED IN THE TANK TO PROVIDE AN EASY INSTALL WITH NO MODIFICATION TO YOUR CAR
• EFI STYLE TANK BAFFLING INCLUDES A LARGE 4.3 LITER INTERNAL FUEL TRAY TO PREVENT FUEL PUMP STARVATION
• FITS & LOOKS LIKE AN OE TANK WHEN INSTALLED
• COMPLETE BOLT IN SOLUTION FOR YOUR EFI CONVERSION
• INCLUDES NEW TANK STRAPS

SPECS:

• APPLICATION: 1973-81 C10 LS SWAP
• BRAND: HOLLEY SNIPER EFI
• COLOR: SILVER
• DRAIN PLUG: NO
• FINISH: POWDER COATED
• FREE FLOW LPH: 255
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• FUEL SYSTEM TYPE: GASOLINE
• GALLON CAPACITY: 20
• MATERIAL: STEEL
• PRODUCT TYPE: FUEL TANK
• TRUCK BED LENGTH: LONG BED

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL TANK SYSTEM HERE.
