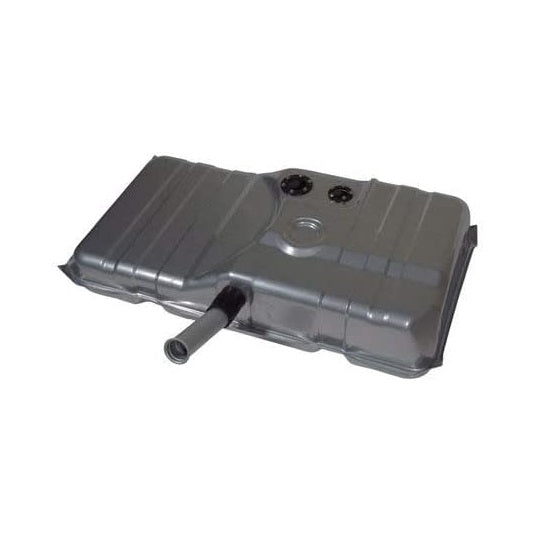

SNIPER EFI FUEL TANK SYSTEM,74-77 CAMARO

BRAND NEW HOLLEY SNIPER EFI FUEL TANK SYSTEM, COATED STEEL, 21 GALLON GASOLINE, FITS 1974-1977 CHEVROLET CAMARO & PONTIAC FIREBIRD/TRANS AM

HOLLEY AND SNIPER WILL HELP YOU TO COMPLETE YOUR EFI SWAP WITH OUR NEW EFI CONVERSION FUEL TANKS. EACH TANK IS A DIRECT FIT FOR YOUR APPLICATION-NO MODIFICATIONS NECESSARY. THE KIT INCLUDES THE TANK, A 255 LPH FUEL PUMP, INTERNAL BAFFLING, AND A FUEL LEVEL SENDER. THE TANK IS POWDER COATED FOR CORROSION RESISTANCE AND GREAT LOOKS. THESE TANK KITS ARE A COMPLETE SOLUTION FOR YOUR EFI PROJECT!

NOTE: GM OFFERED TWO DEPTHS OF FUEL TANK CAPS. IF YOU HAVE THE DEEP REACH (1 3/8"), YOU MAY HAVE TO SWITCH TO THE SHALLOW REACH CAP (1 1/4") DEPENDING ON YOUR APPLICATION. BOTH STYLES ARE READILY AVAILABLE AT YOUR LOCAL AUTO PARTS STORE.

SUPPORTS UP TO 550 EFI (@ 60 PSI AT 13.5 VOLTS / 10.4 AMP DRAW)

HOSE CLAMPS ARE NOT INCLUDED FOR TWO PIECE FILLER NECK.

FEATURES:

• SUPPORTS UP TO 550 EFI (@ 60 PSI AT 13.5 VOLTS / 10.4 AMP DRAW)
• SIZE: 39-5/8" X 21-1/4" X 10-1/4"
• HOSE CLAMPS ARE NOT INCLUDED FOR TWO PIECE FILLER NECK
• TANKS ARE COATED GALVANIZED STEEL THEN POWDER COATED SILVER FOR TOTAL CORROSION PROTECTION
• 255 LPH FUEL PUMP WITH HANGER ASSEMBLY GIVES YOU THE FUEL YOU NEED WITH IN-TANK QUIETNESS
• SENDER HAS 1/4" NPT SUPPLY AND RETURN LINE PORTS FOR EASY FUEL LINE CONNECTION AND A BARBED VENT FITTING
• FUEL LEVEL SENDER INCLUDED WITH THE CORRECT OHM RANGE FOR YOUR FACTORY GAUGES

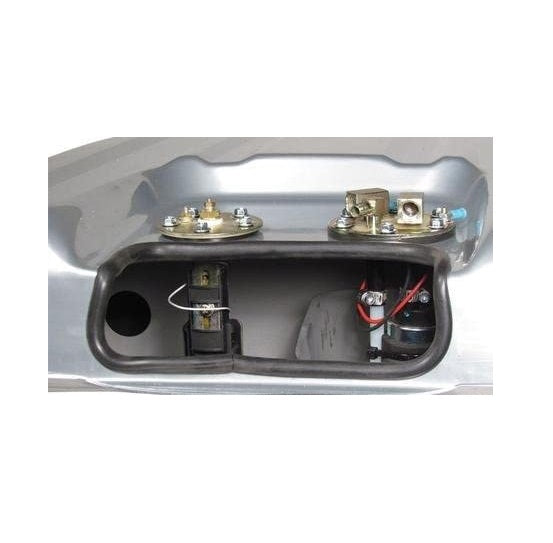

• FUEL PUMP & SENDER ARE RECESSED IN THE TANK TO PROVIDE AN EASY INSTALLATION WITH NO MODIFICATION TO YOUR CAR
• EFI STYLE TANK BAFFLING INCLUDES A LARGE 4.3 LITER INTERNAL FUEL TRAY TO PREVENT FUEL PUMP STARVATION
• FITS AND LOOKS LIKE AN OE TANK WHEN INSTALLED
• COMPLETE BOLT IN SOLUTION FOR YOUR EFI CONVERSION
• INCLUDES NEW TANK STRAPS

SPECS:

• APPLICATION: 1974-1977 CHEVROLET CAMARO & 1974-1978 PONTIAC FIREBIRD / TRANSAM
• BRAND: HOLLEY SNIPER EFI
• COLOR: SILVER
• EMISSION CODE: 3
• FINISH: POWDER COATED
• FUEL SYSTEM TYPE: GASOLINE
• FREE FLOW LPH: 255
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• GALLON CAPACITY: 21
• DRAIN PLUG: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL TANK SYSTEM HERE.
