FUEL PUMP,EFI,ELECTRIC,80GPH,INLINE 3/8 PUSH ON

BRAND NEW HOLLEY EFI IN-LINE UNIVERSAL ELECTRIC FUEL PUMP, BLACK BRACKET & SILVER PUMP BODY FINISH, 10MM X 1.0 INLET/OUTLET SIZE, COMPATIBLE WITH GASOLINE

THE 12-920 UNIVERSAL IN-LINE FUEL PUMP IS INTENDED FOR THROTTLE BODY EFI, MULTIPOINT EFI AND FORCED INDUCTION MULTIPOINT EFI SYSTEMS. IT IS DESIGNED TO WORK IN-LINE, NOT INSIDE THE TANK, SO INSTALLATION IS A SNAP. THE 12-920 IS RATED FOR CONTINUOUS DUTY SERVICE AND HAVE BEEN TESTED UP TO 2,500 HOURS.

NOTE: SHOULD BE MOUNTED BELOW THE FUEL LEVEL OF THE TANK FOR A GOOD GRAVITY FEED ON THE INLET SIDE.

NOTE: 10MM X 1.0 INLET AND OUTLETS. INCLUDES 10MM X 1.0 GASKET SEALED 3/8" OUTSIDE DIAMETER HOSE BARBS.

NOTE: A/N ADAPTERS ARE AVAILABLE: -6 AN, PART #26-160. -8 AN, PART #26-180

FEATURES:

• DRAWS 5 AMPS AT 15 PSI
• FEEDS UP TO 800 HP THROTTLE BODY EFI UNITS
• FEEDS UP TO 700 HP MULTIPOINT UNITS
• FEEDS UP TO 600 HP FORCED INDUCTION MULTIPOINT UNITS
• OE PROVEN DESIGN
• LIGHTWEIGHT AND COMPACT

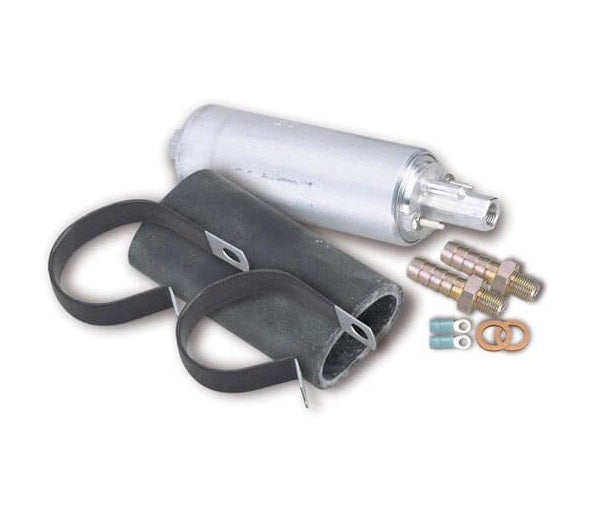

• RUBBER ISOLATOR, MOUNTING CLAMPS & ELECTRICAL HARDWARE INCLUDED
• 3/8" BARBED FITTINGS INCLUDED
• NOT COMPATIBLE WITH AIRCRAFT OF ANY TYPE

SPECS:

• APPLICATION: UNIVERSAL
• BRACKET COLOR: BLACK
• BRAND: HOLLEY
• FORCED INDUCTION HP@43PSI: 600
• FUEL SYSTEM: CARBURETED/EFI
• FUEL TYPE: GASOLINE
• GPH@15PSI: 80
• GPH@43PSI: 67
• GPH@60PSI: 62
• GPH@8PSI: 85
• INLET SIZE: 10MM X 1.0
• LPH@15PSI: 302
• LPH@43PSI: 254
• LPH@60PSI: 235
• LPH@8PSI: 322
• MATERIAL: STEEL
• NATURALLY ASPIRATED HP@15PSI: 800
• NATURALLY ASPIRATED HP@43PSI: 700
• NATURALLY ASPIRATED HP@8PSI: 850
• OUTLET SIZE: 10MM X 1.0
• PRODUCT TYPE: FUEL PUMP
• PUMP BODY COLOR: SILVER

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PUMP HERE.
