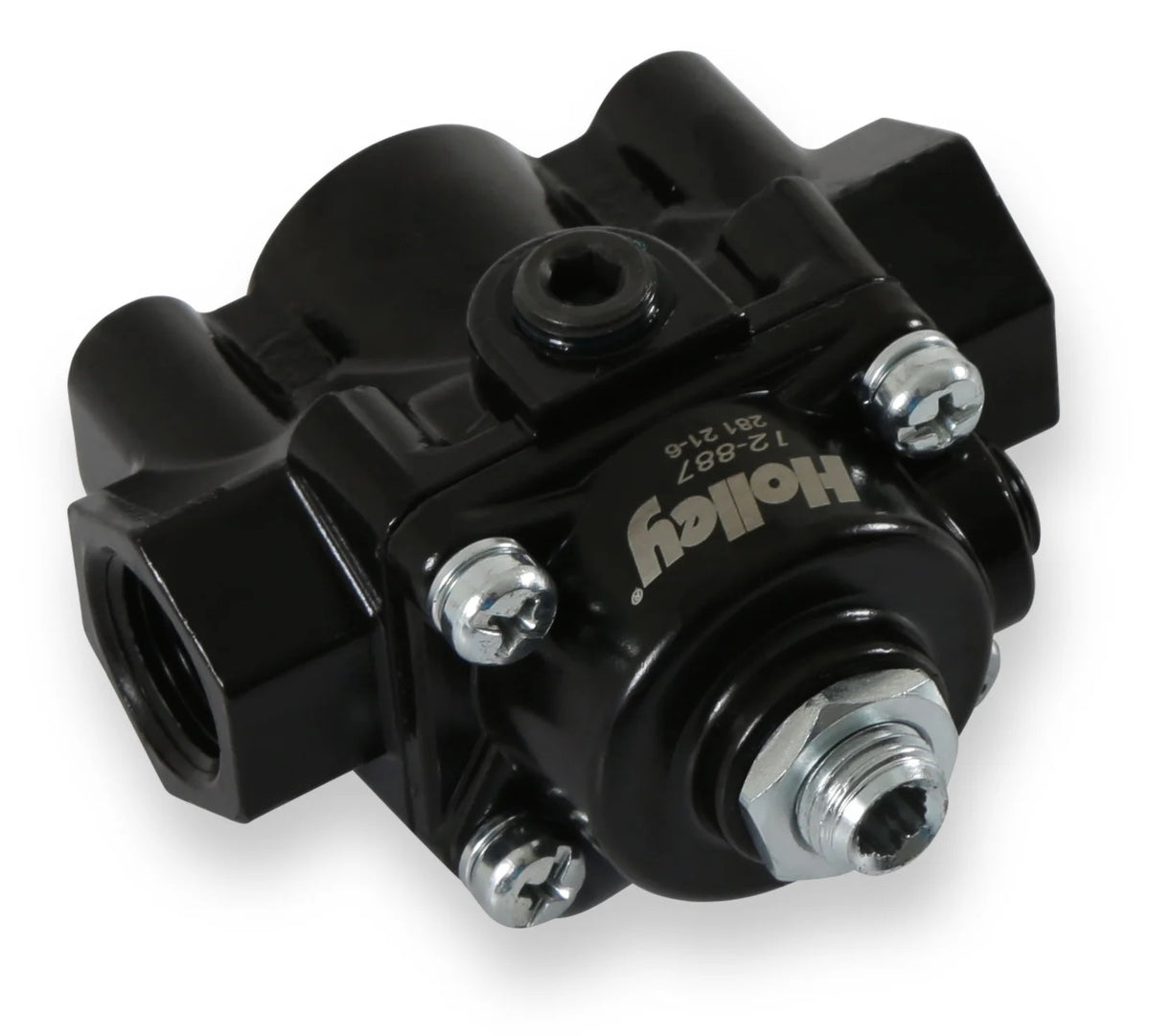

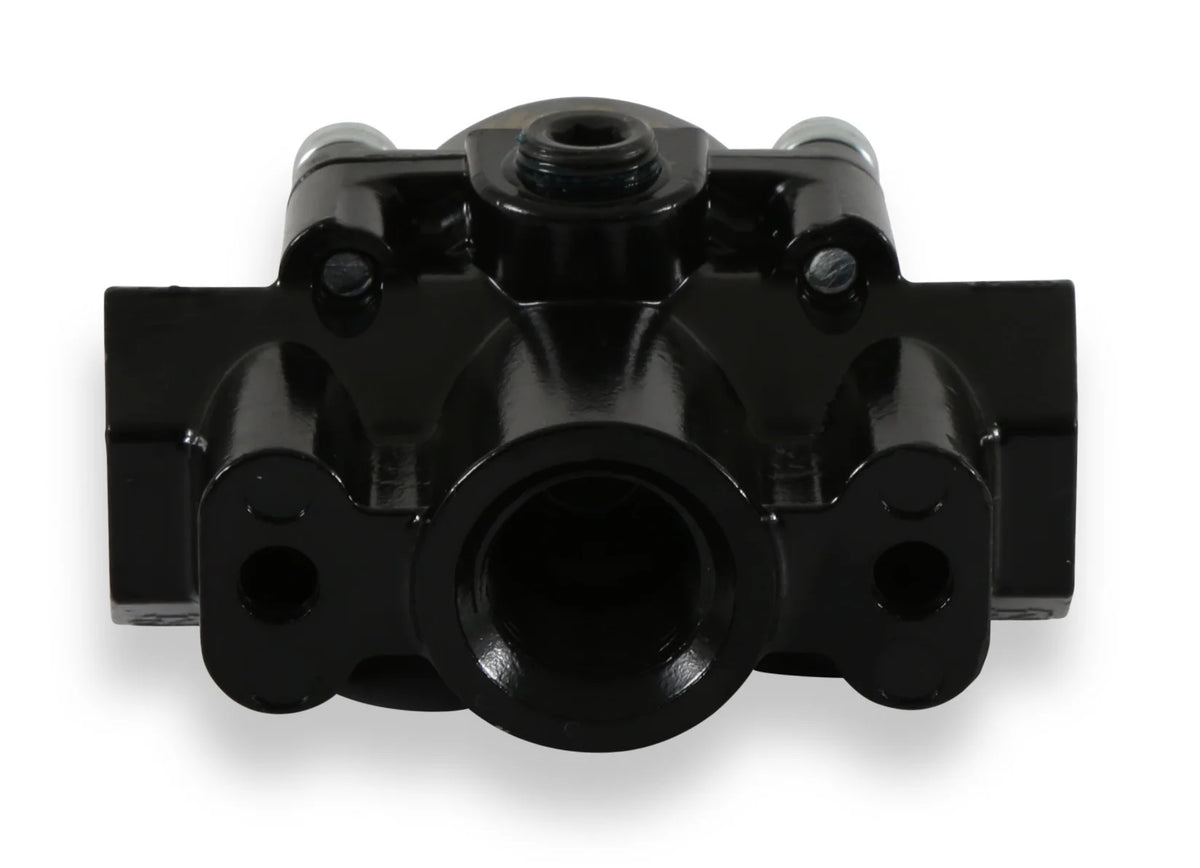

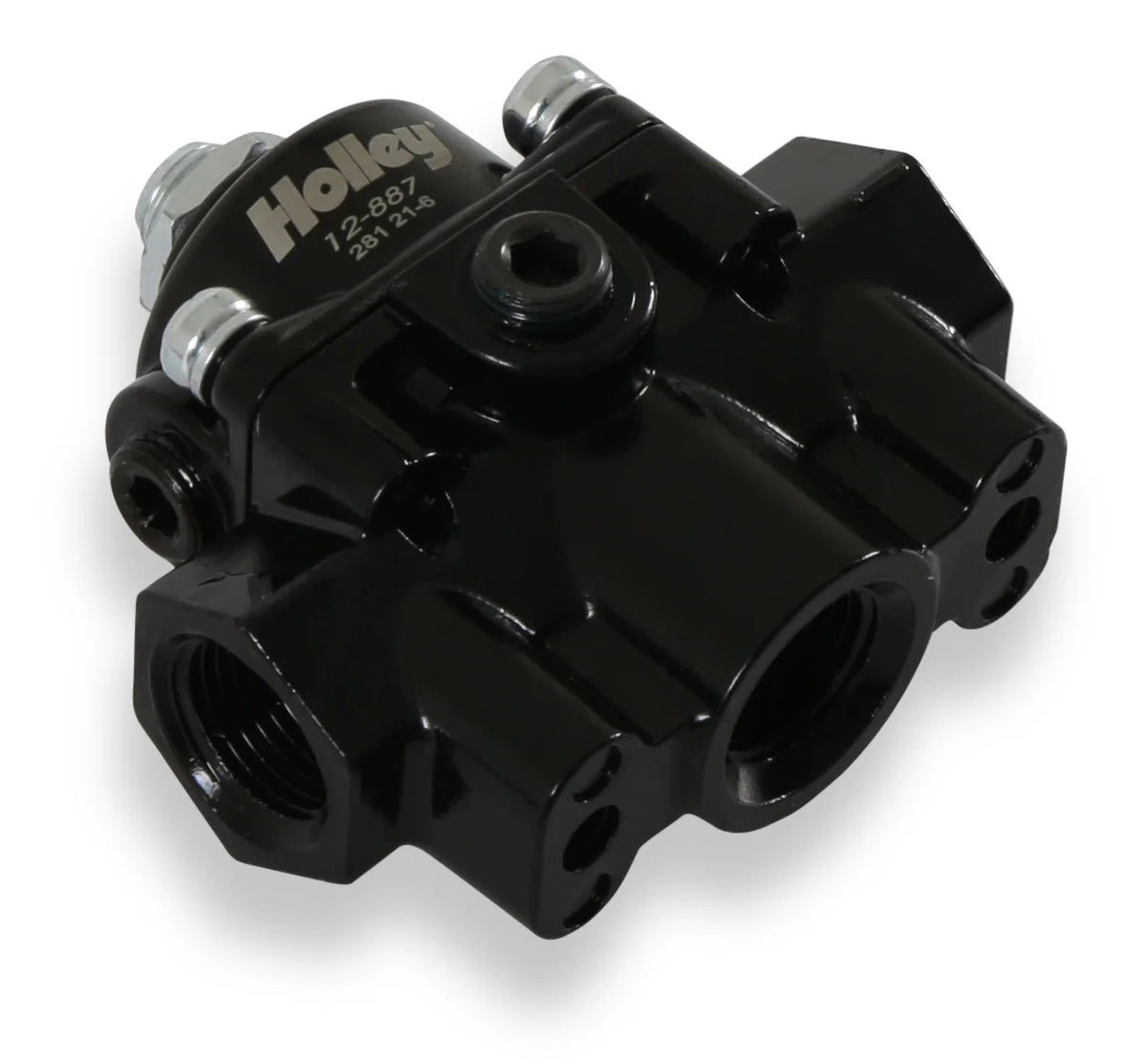

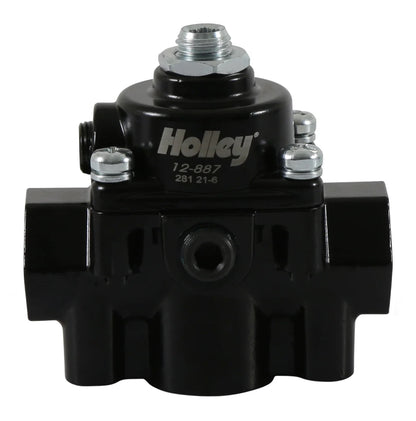

REGULATOR,BYPASS,6 PSI,BLACK

Brand New Holley Die Cast By Pass Style Carbureted Fuel Pressure Regulator (Part #12-887).

Holley does it again with their new die cast aluminum by pass style fuel pressure regulators. The same Holley quality that you expect at a price point that every budget can handle.

Notes:

• The mounting holes in the regulator are not threaded.
• The screws included are self-tapping for use in installation.
• Regulator is compatible with Diesel #1 and Diesel #2.

Features:

• Die Cast aluminum construction
• 3/8” NPT Inlet, Outlet, and Return ports
• 1/8” NPT Gauge Port
• 1/8" NPT Boost Reference – 1:1
• 1/8" NPT barb fitting for boost reference port included

Specs:

• Brand: Holley
• Finish: Black
• Adjustable: Yes
• Fuel Type: Diesel/Gasoline
• Gauge Port Included: Yes
• Inlet Gender: Female
• Inlet Port Quantity: 1
• Inlet Size: 3/8 inch NPT
• Material: Aluminum
• Mounting Bracket Included: Yes
• Mounting Type: Inline
• Outlet Gender: Female
• Outlet Port Quantity: 2
• Outlet Size: 3/8 inch NPT
• Pressure Range: 4.5-9 PSI
• Rebuildable: Yes
• Return Size: 3/8 inch NPT

You can view and download the instructions here.
