REGULATOR,BYPASS,4.5-9 PSI,CHROME,W/GAUGE & -6AN FITTINGS

Brand New Holley Die Cast Bypass Fuel Pressure Regulator Kit (Part #12-881KIT).

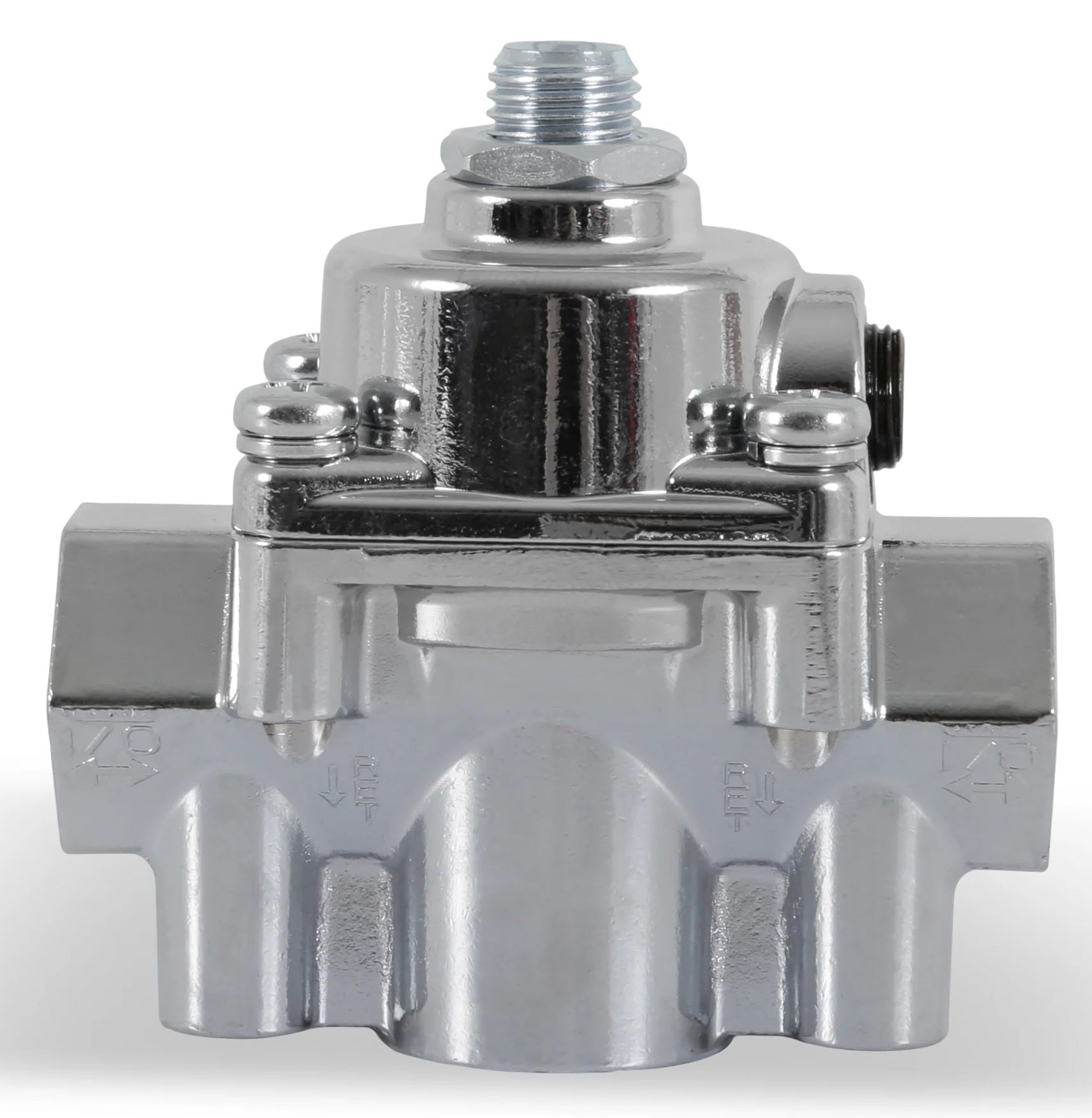

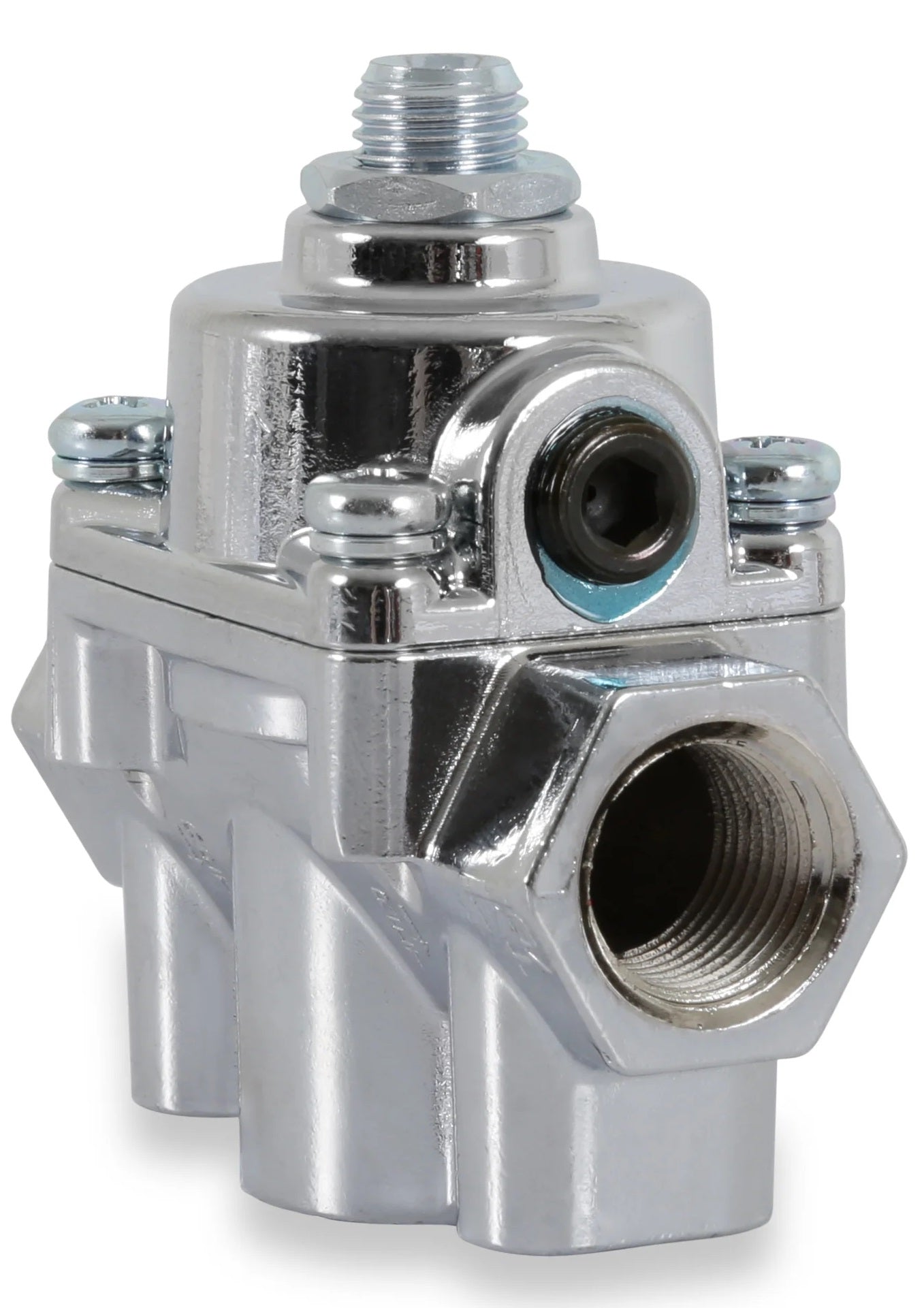

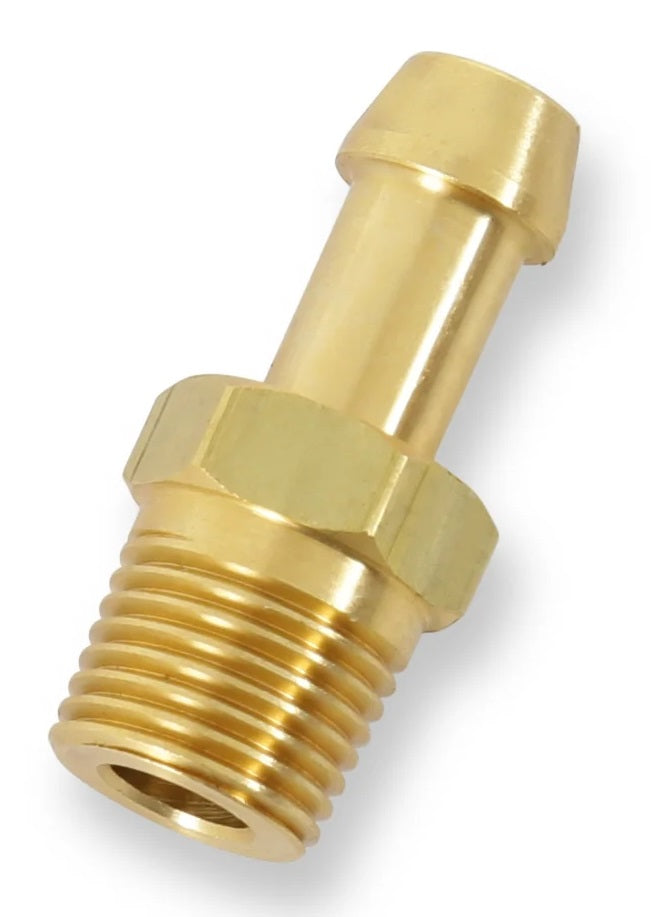

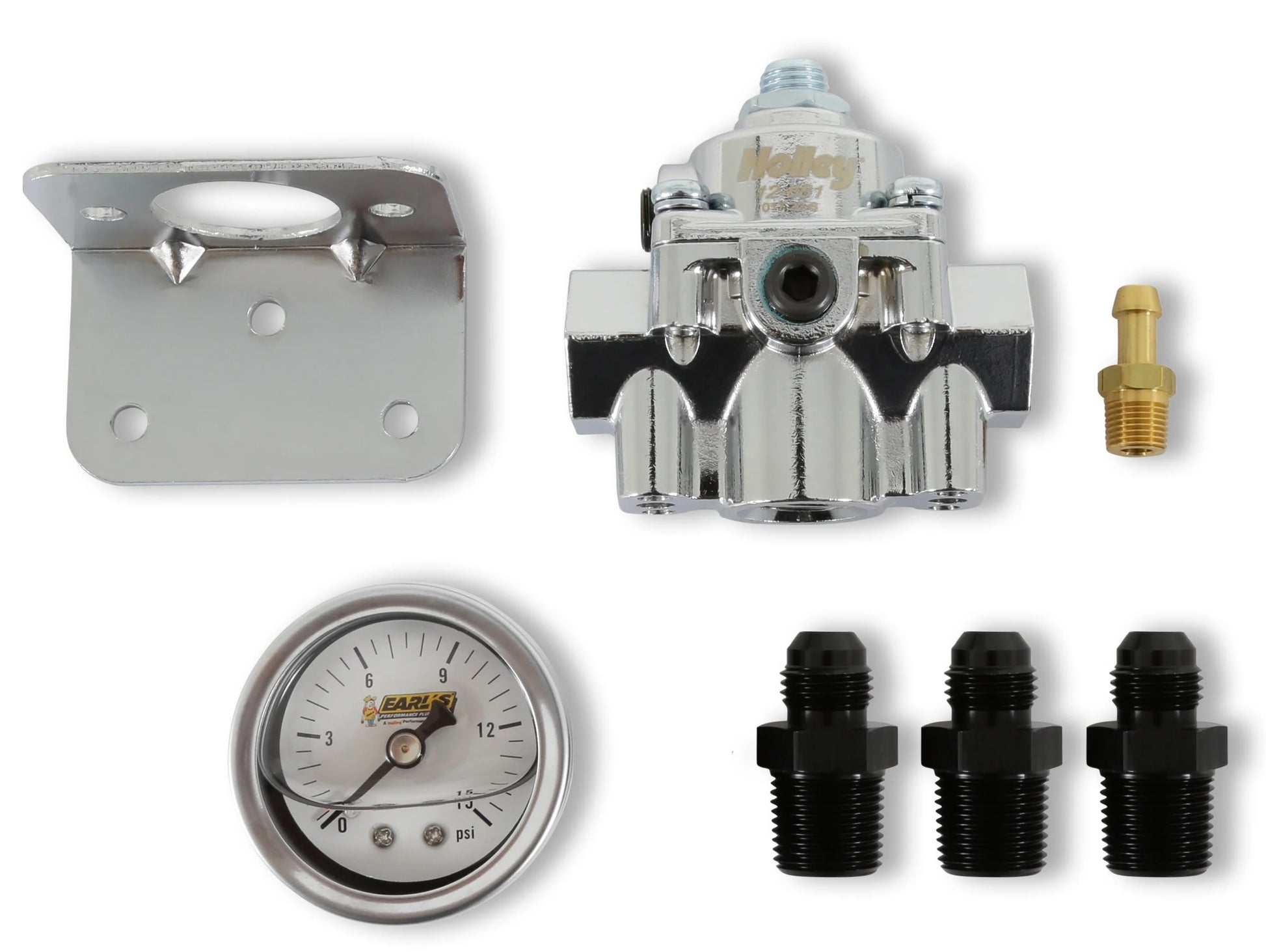

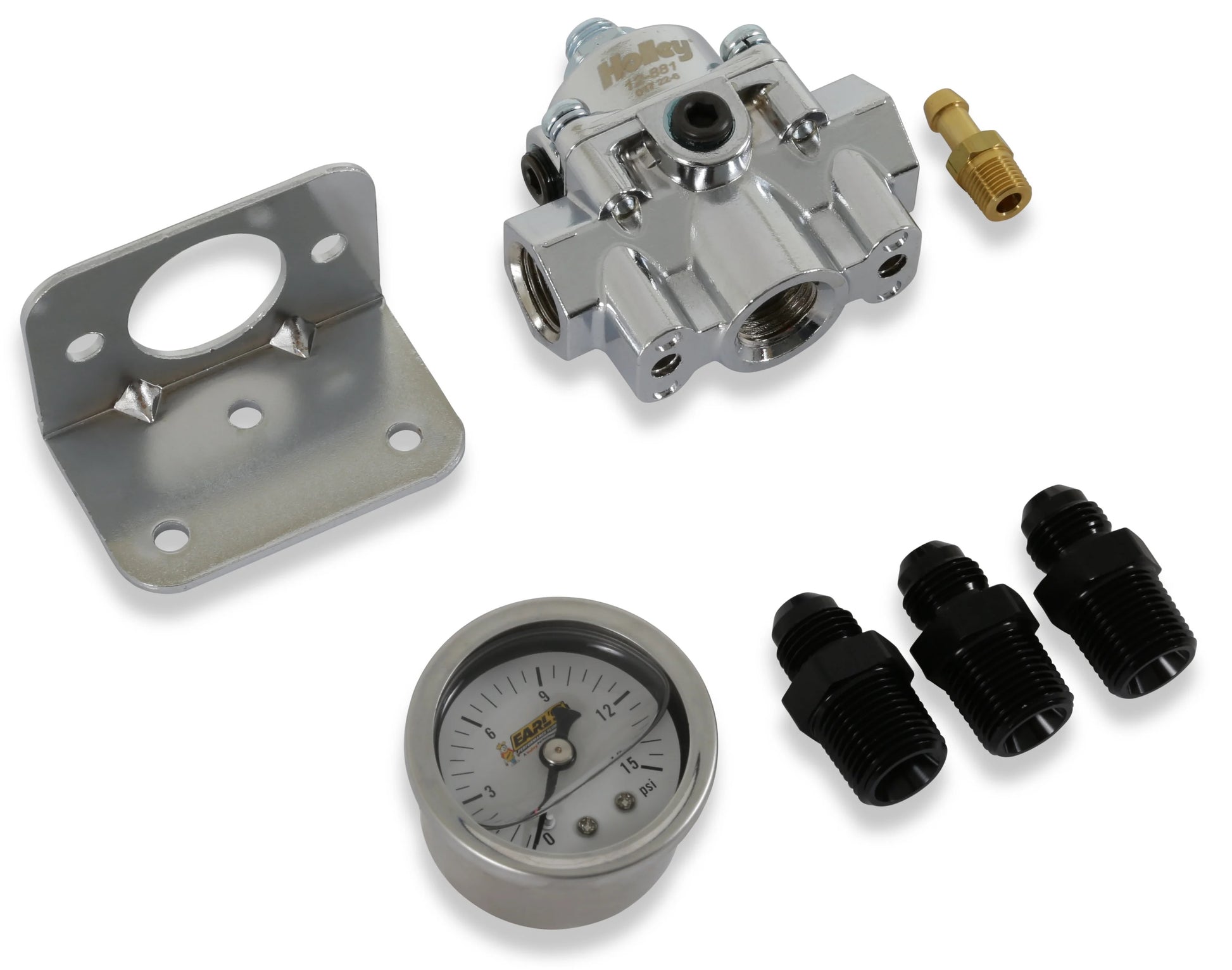

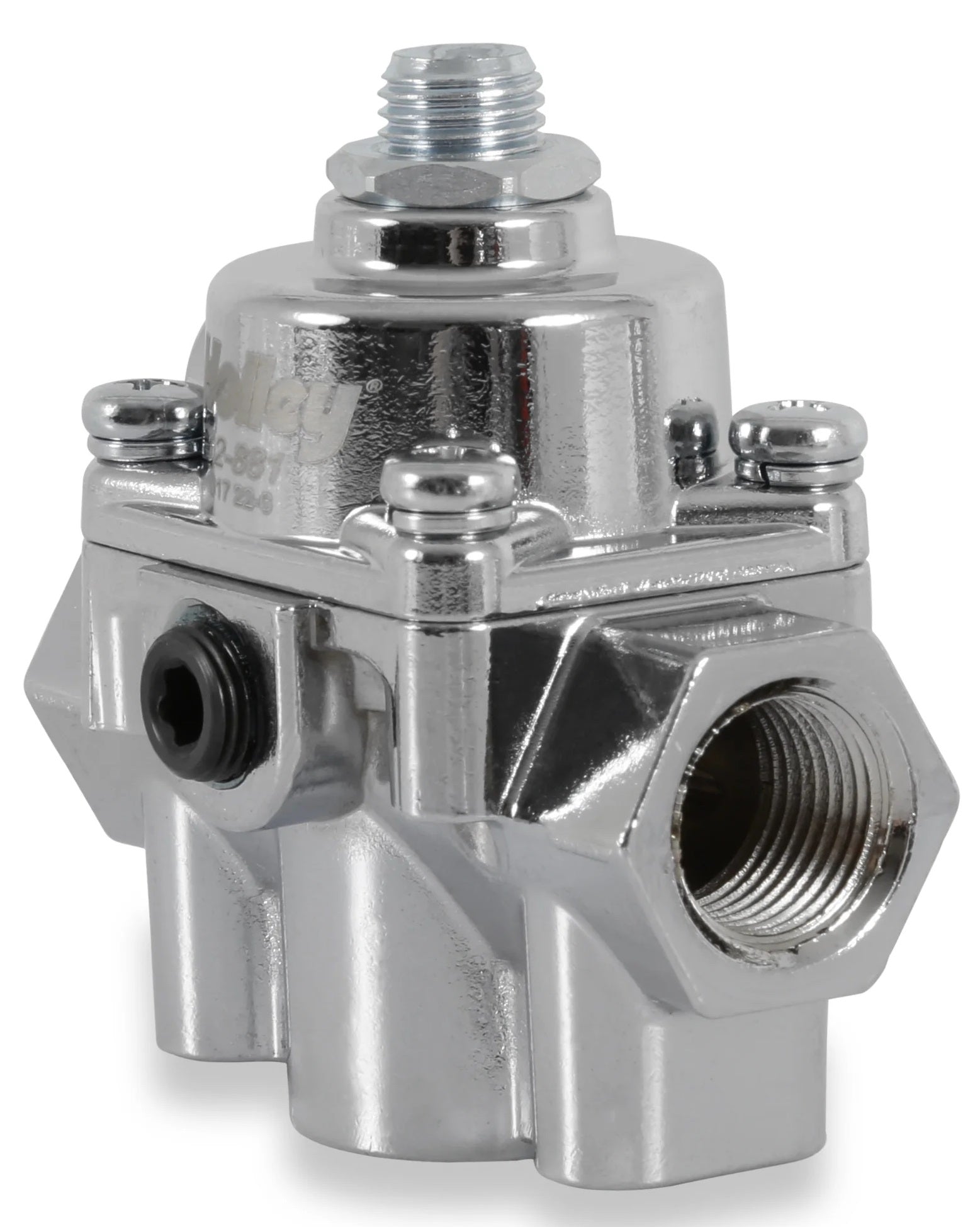

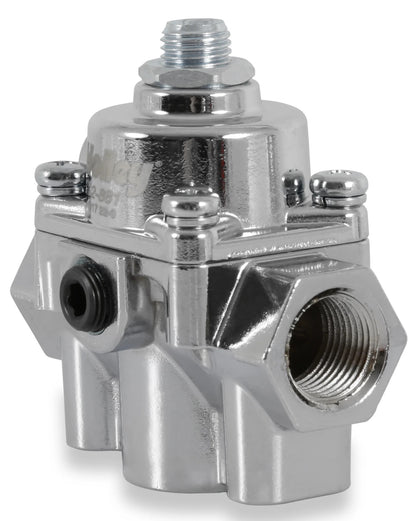

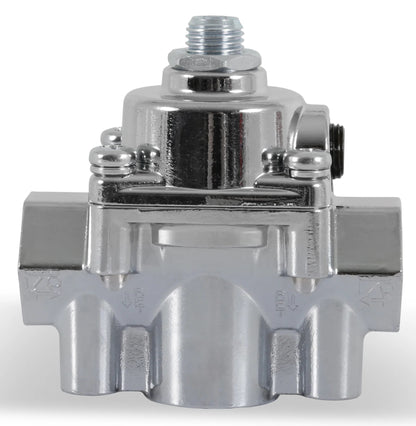

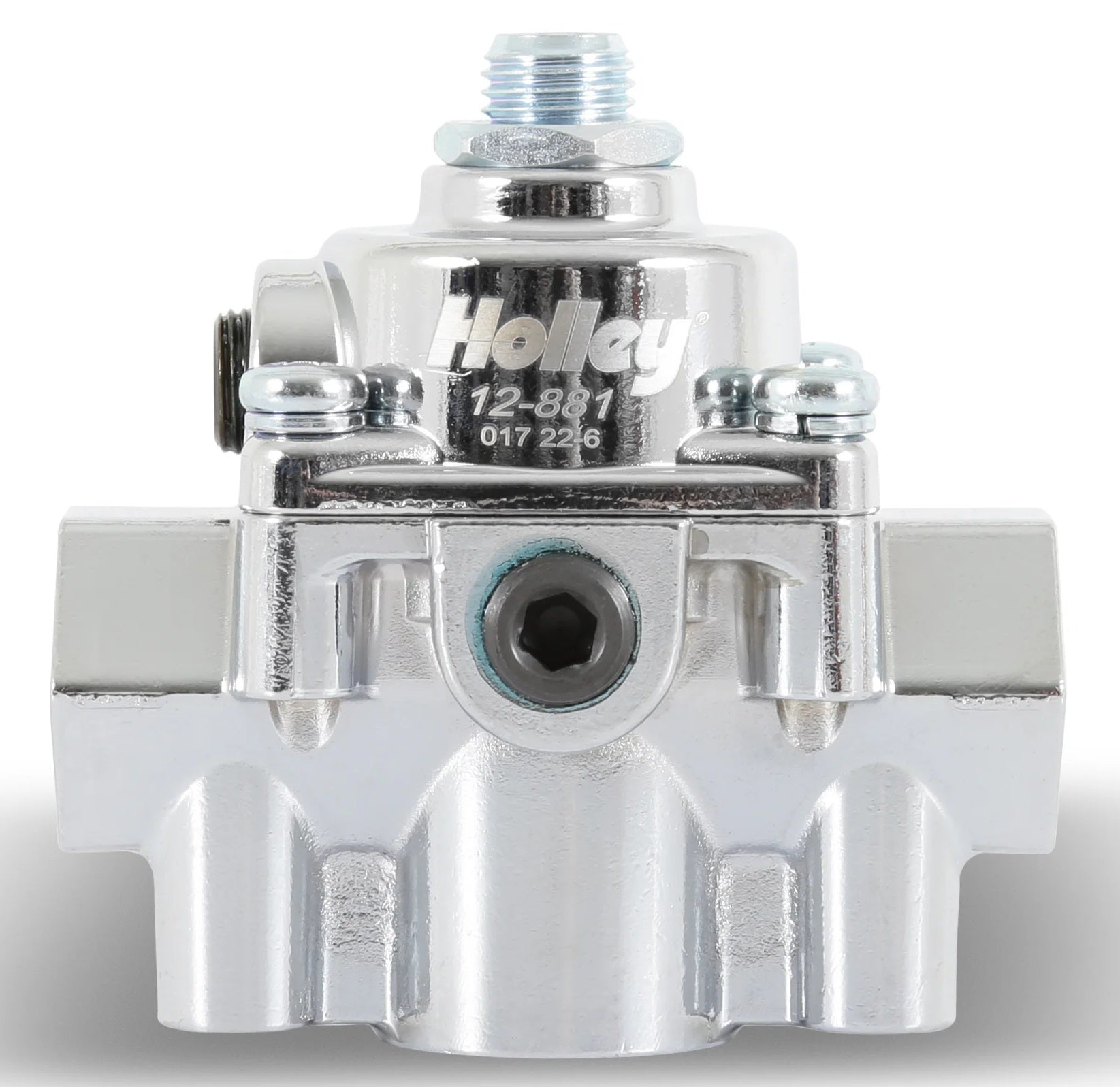

Holley Die Cast Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-881 regulator features a die cast aluminum body and a chrome top for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, and a 1/8" NPT gauge port. In addition, 3 Earl's 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

Note:

• The mounting holes in the regulator are not threaded. The screws included are self-tapping for use in installation.


Features:

• Die Cast Aluminum Construction

• Adjustable from 4.5-9 psi for precise fuel pressure adjustments

• Used in return style systems with a line back to the fuel tank

• 3/8” NPT Inlet/Outlet Ports

• 3/8" NPT return port

• 1/8” NPT Gauge Port

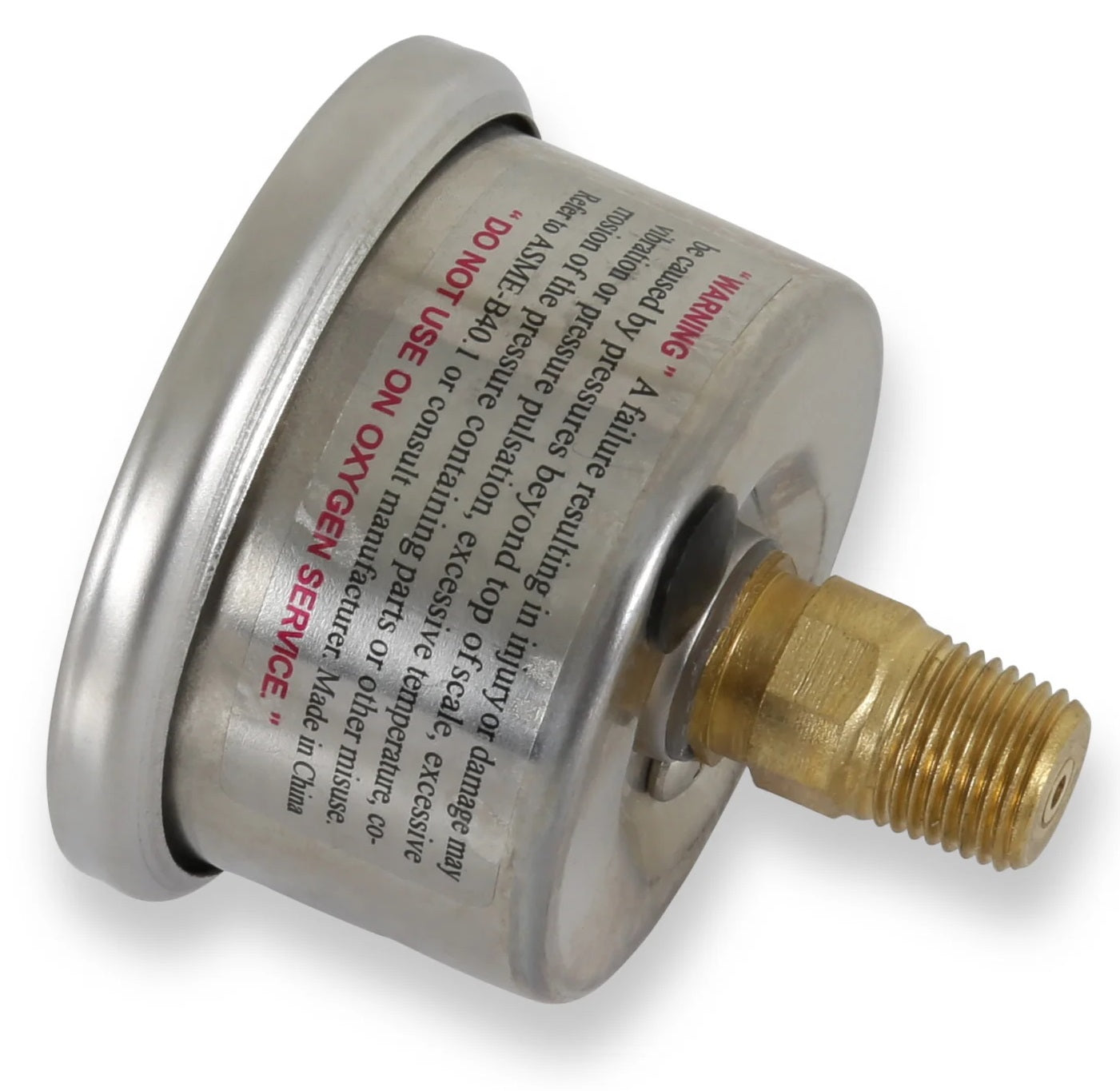

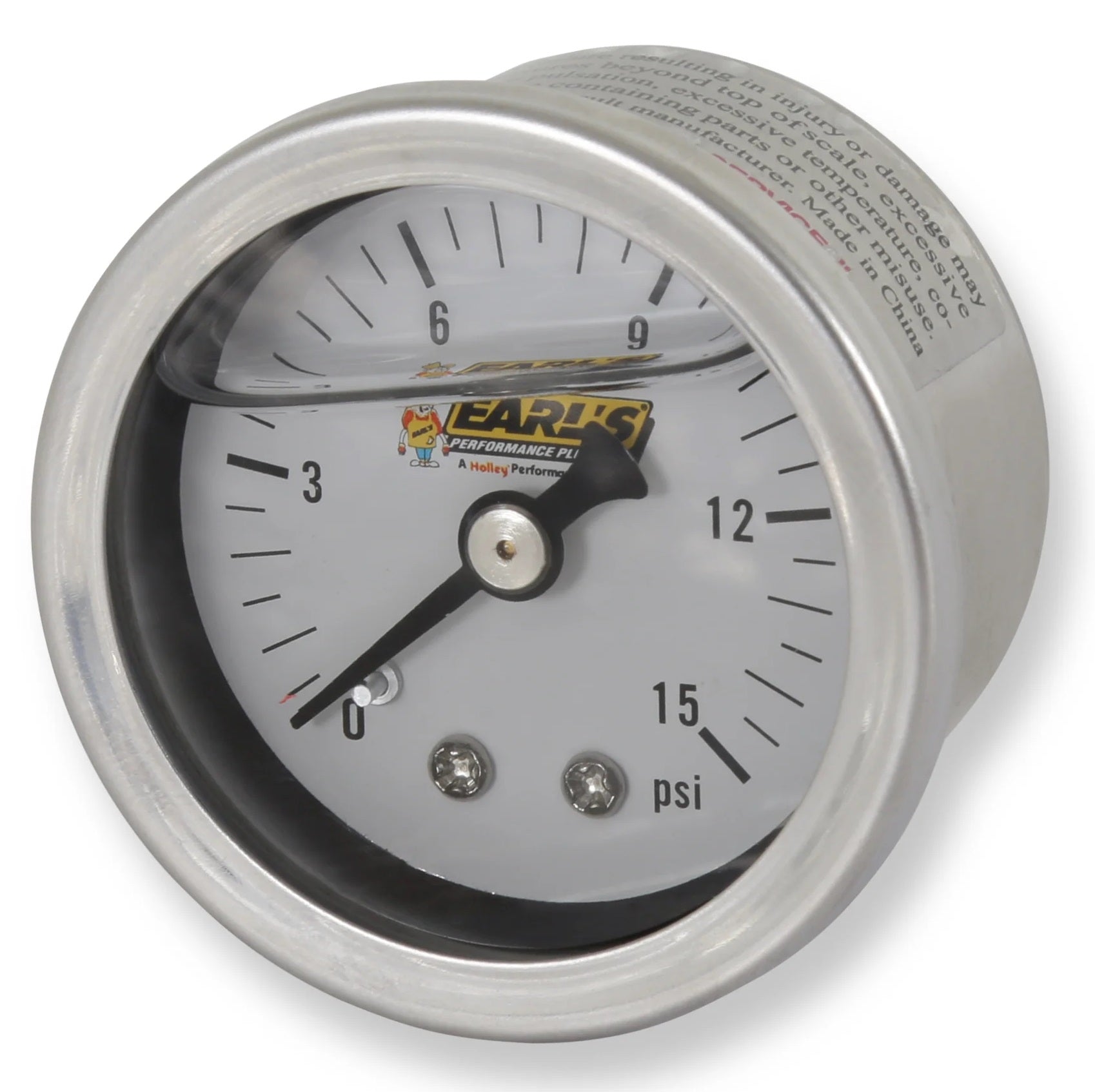

• Earl's Fuel Pressure Gauge (100187ERL)

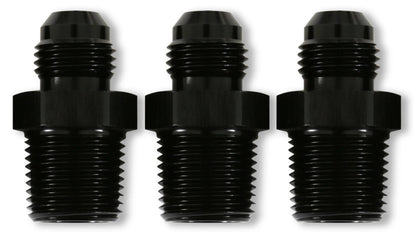

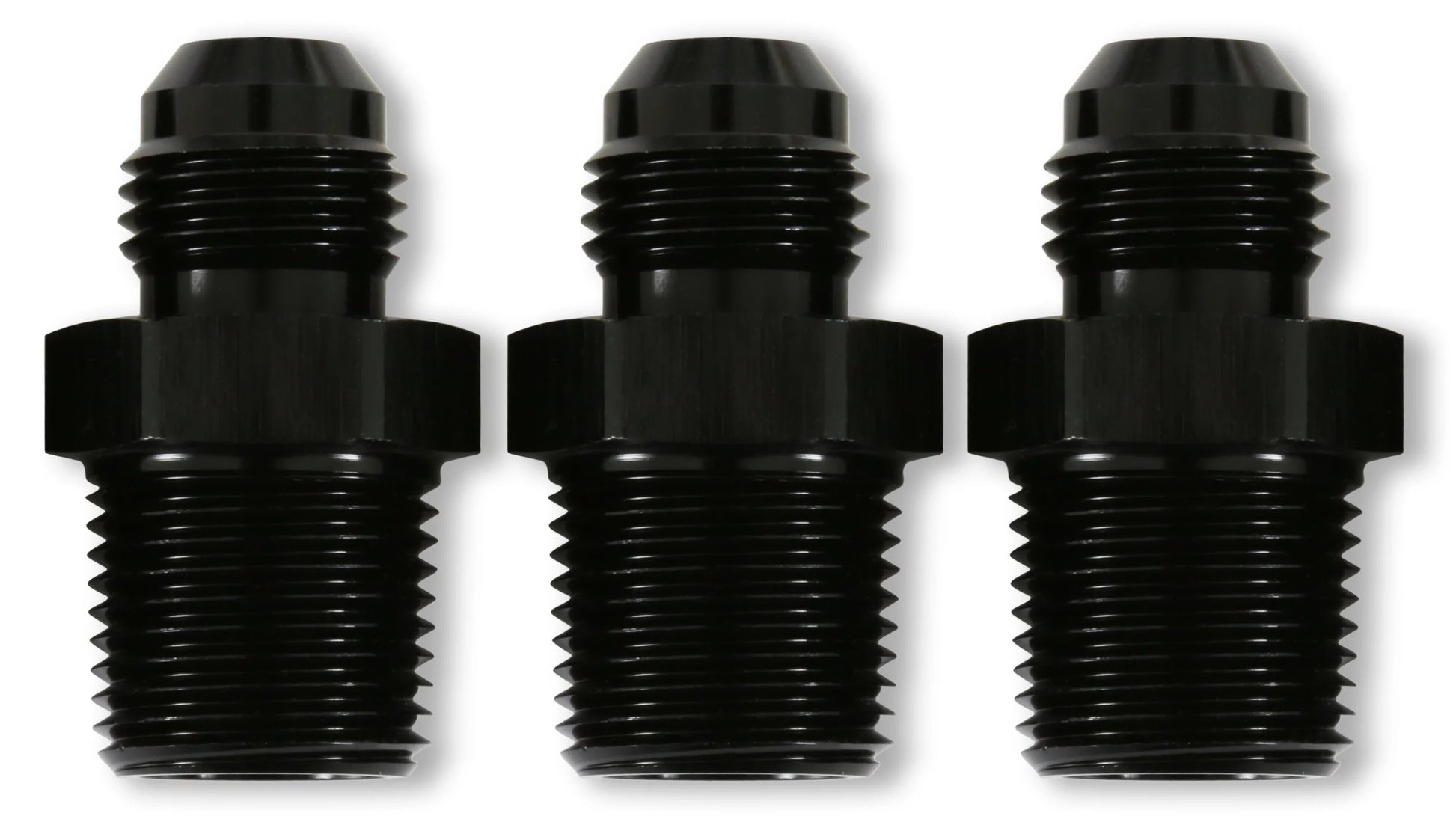

• Earl's 3/8” NPT to -6 AN fittings (AT981666ERL x3)

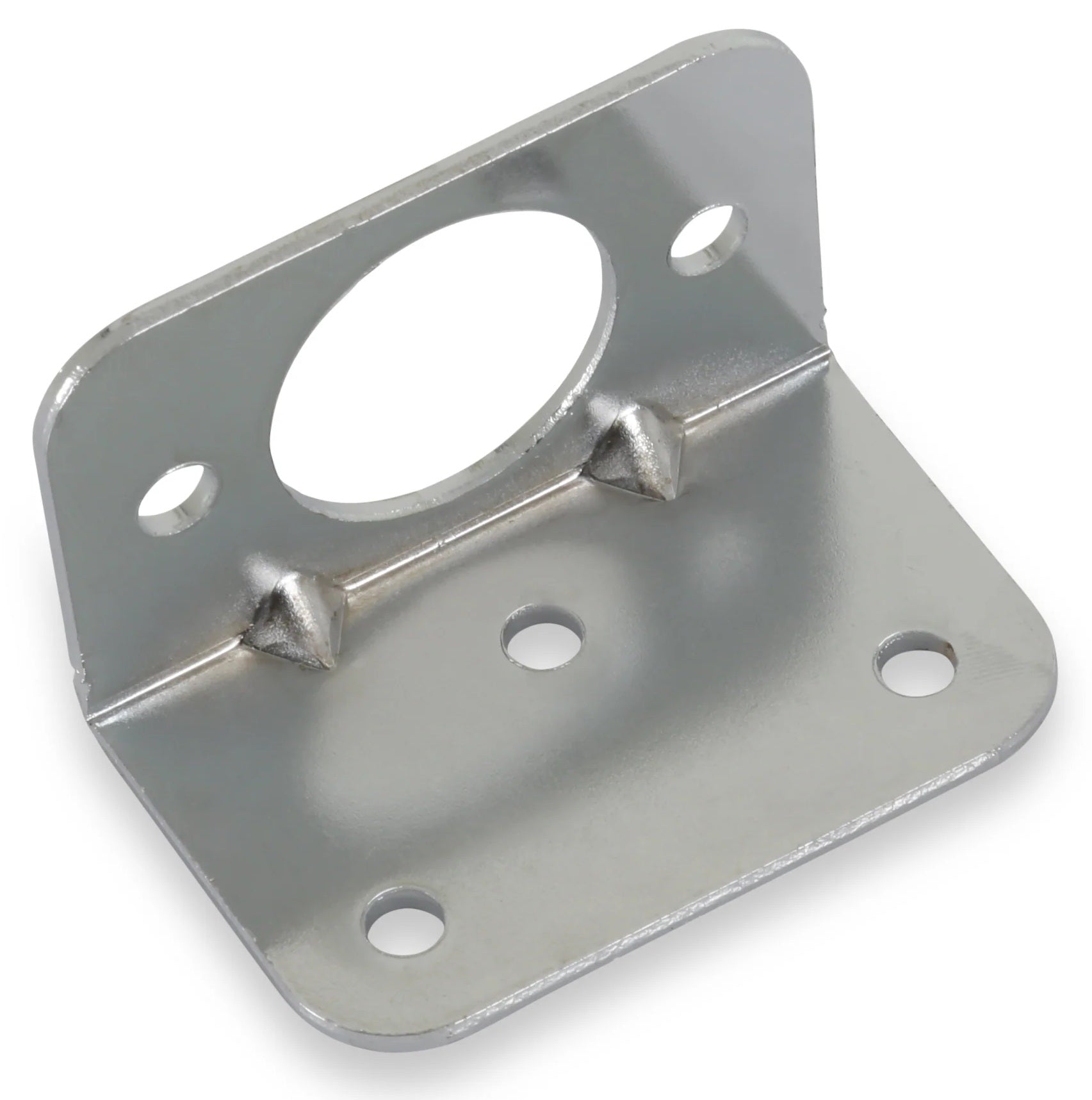

• Mounting Bracket Included

Specs:

• Adjustable: Yes

• Brand: Holley

• Color: Chrome

• Fuel System: Carbureted

• Fuel Type: Gasoline

• Gauge Port: Yes

• Grade Type: Performance

• Inlet Quantity: 1

• Inlet & Outlet Size: 3/8 inch NPT

• Inlet & Outlet Type: NPT

• Material: Aluminum

• Maximum Pressure Reading: 100 PS

• Mounting Hardware Included: Yes

• Mounting Type: Inline

• Outlet Quantity: 1
• Port Quantity: 3

• Pressure Range: 4.5-9 PSI

• Product Type: Fuel Pressure Regulator

• Return Size: 3/8 inch NPT

• Style: Bypass
