REGULATOR,EFI,40-100 PSI,2 PORT,-10AN

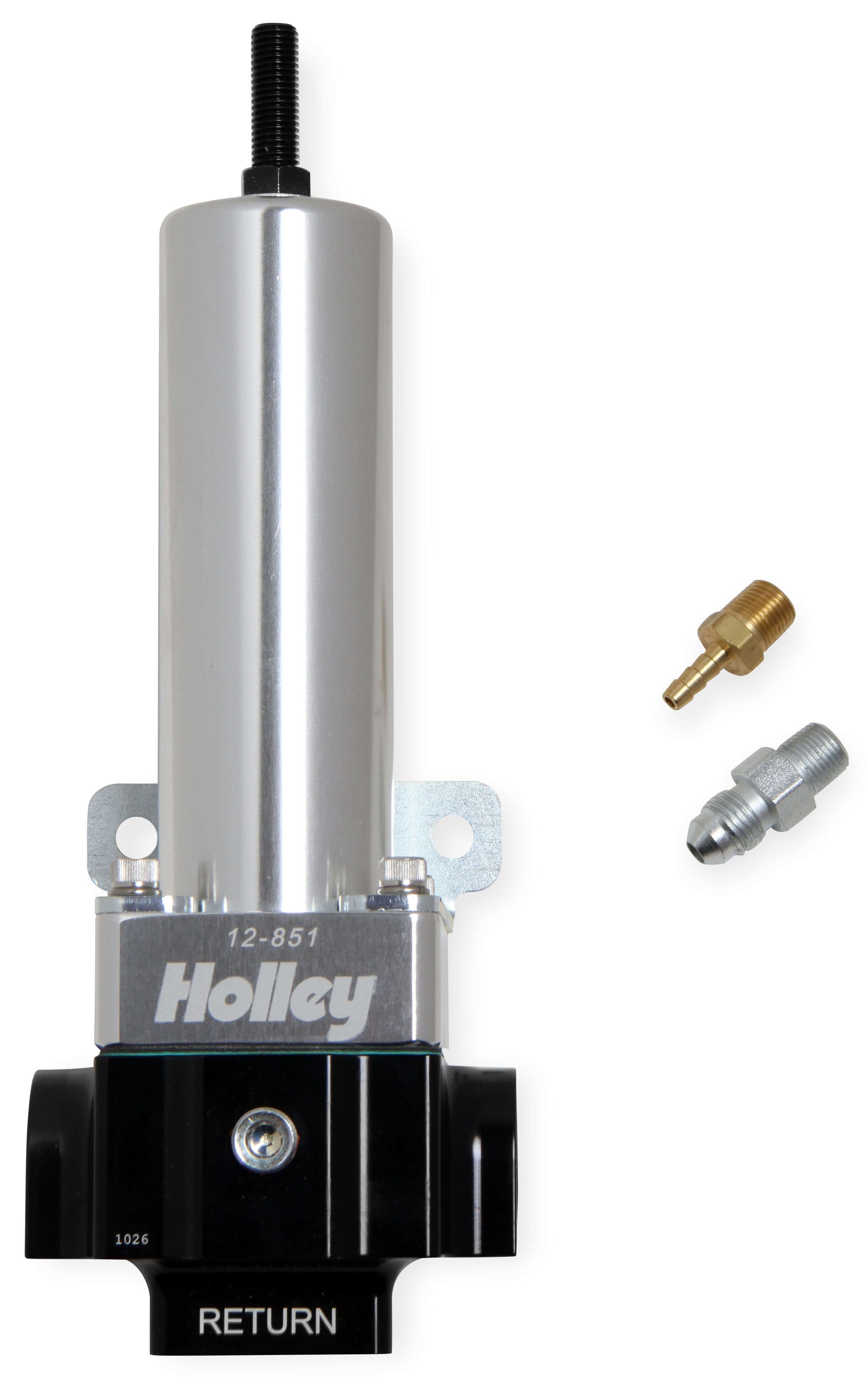

BRAND NEW HOLLEY 2 PORT VR SERIES FUEL PRESSURE REGULATOR, 40-100 PSI, 10 AN O-RING, COMPATIBLE WITH DIESEL & GASOLINE (PART #12-851).

THE HOLLEY VR SERIES BILLET FUEL PRESSURE REGULATORS ARE PART OF THE VR1 AND VR2 SERIES BRUSHLESS FUEL PUMP SYSTEMS PRODUCT LINE. THESE REGULATORS CAN SUPPORT 3000+ HORSEPOWER ENGINES THAT REQUIRE HIGH VOLUMES OF FUEL FLOW. BOTH EFI AND CARBURETED VERSIONS CAN BE REFERENCED ON A 1:1 RATIO. THEY ARE PRECISION MACHINED FROM 6061-T6 BILLET ALUMINUM FOR STRENGTH AND DURABILITY AND FEATURE A BLACK BRIGHT DIP ANODIZED BODY AND A CLEAR BRIGHT DIP ANODIZED TOP FOR CORROSION RESISTANCE AND GOOD LOOKS.

FEATURES:

• EFI REGULATORS ARE ADJUSTABLE FROM 40-100 PSI BASE PRESSURE
• CARBURETED REGULATORS ARE ADJUSTABLE FROM 4 TO 9 PSI BASE PRESSURE
• COMPATIBLE WITH GASOLINE, METHANOL, AND E85*
• 1/8" NPT GAUGE PORT
• DESIGNED FOR USE WITH THE HOLLEY VR1 AND VR2 BRUSHLESS IN-LINE FUEL PUMPS
• CAN BE REFERENCED ON A 1:1 RATIO - INCLUDES A BARB FITTING AND A -4 AN FITTING FOR REFERENCE CONNECTION
• 10 AN O-RING INLET/OUTLET AND RETURN

SPECS:

• BRAND: HOLLEY EFI
• COLOR: BLACK ANODIZED
• FUEL SYSTEM: EFI
• FUEL TYPE: GASOLINE
• MATERIAL: ALUMINUM
• PRESSURE RANGE: 40-100 PSI
• PRODUCT TYPE: FUEL PRESSURE REGULATOR
• RETURN SIZE: 10 AN O-RING

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
