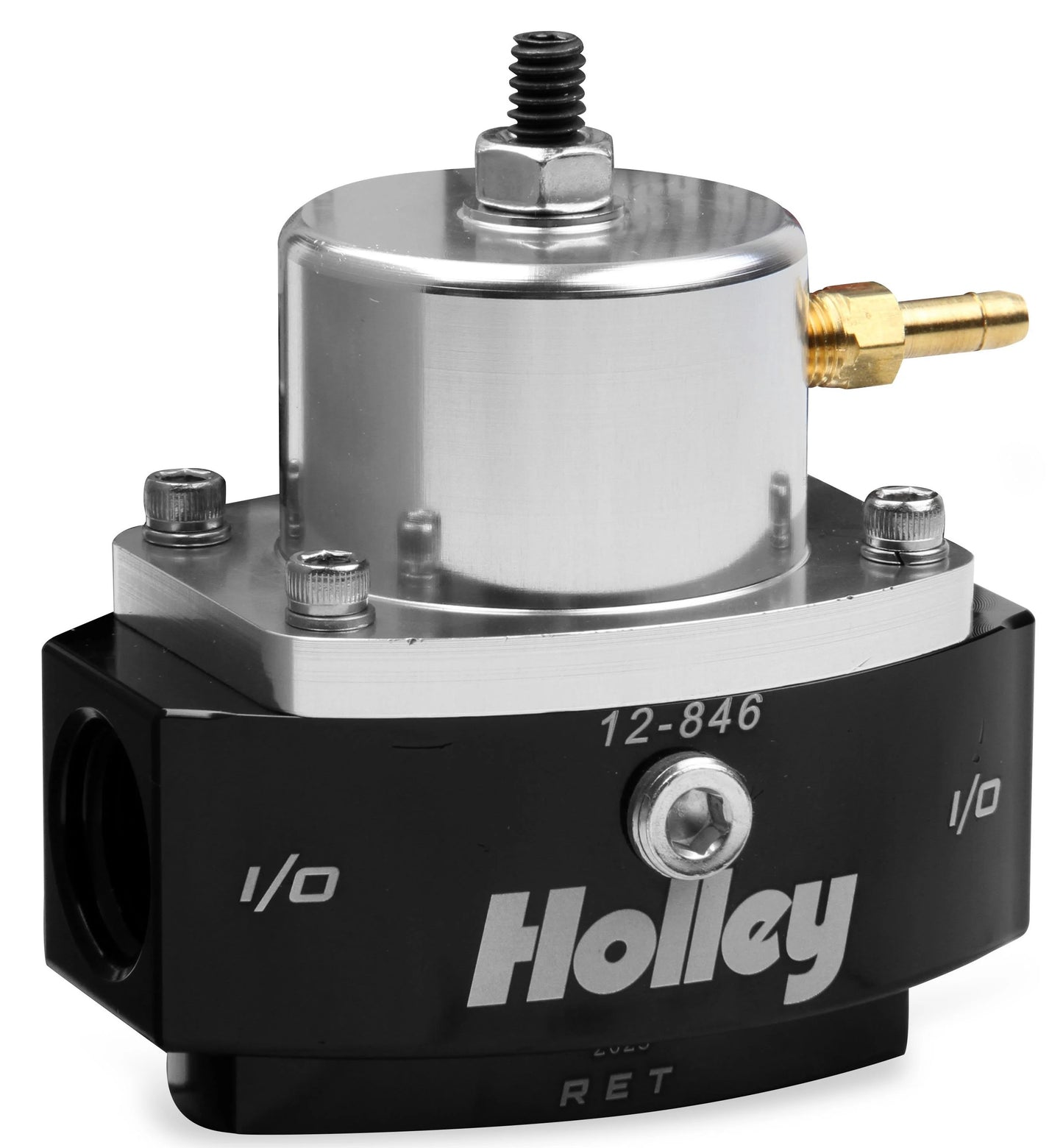

BILLET FP REG,ADJ 15-65 PSI 8AN IN/OUT

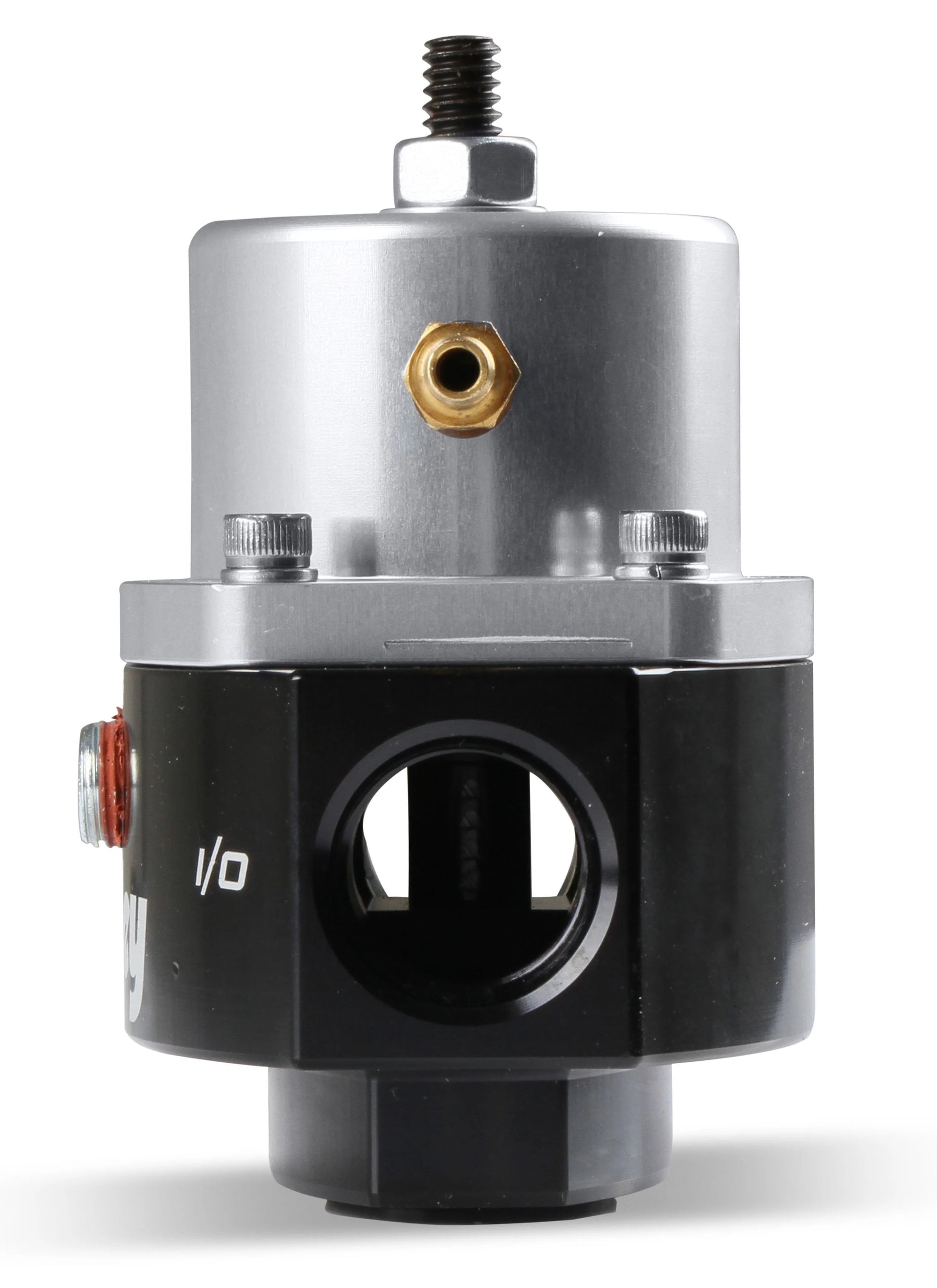

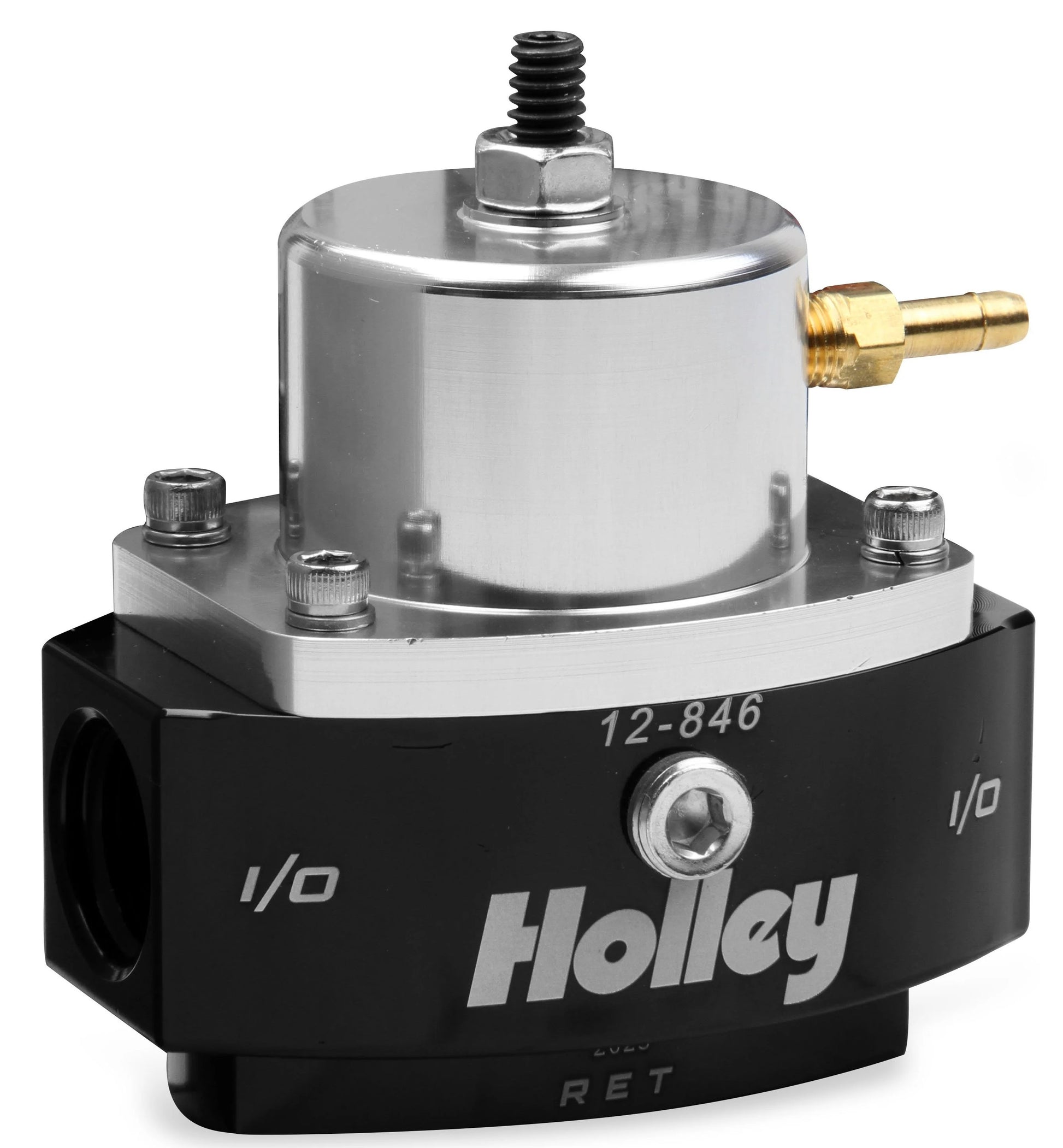

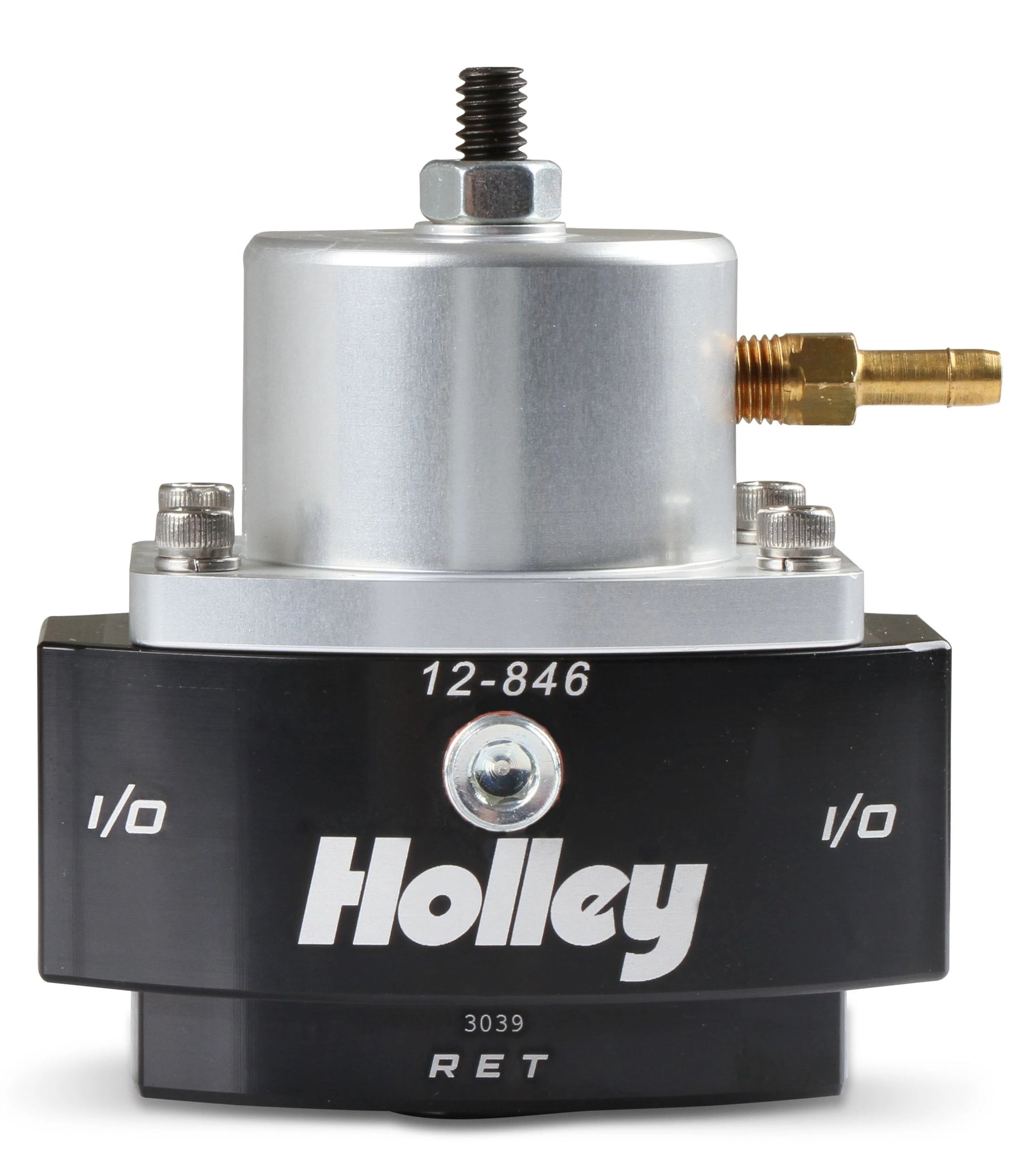

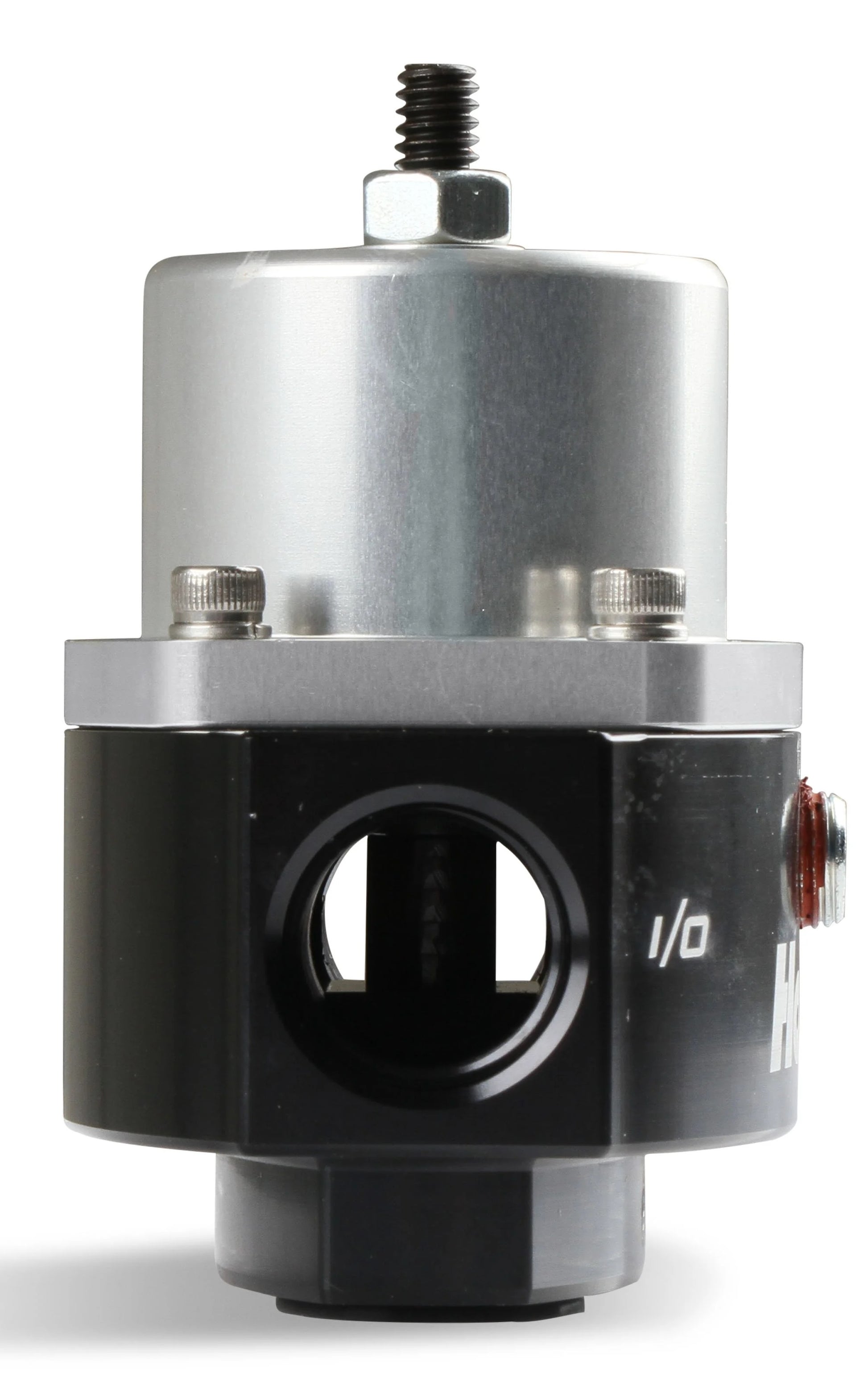

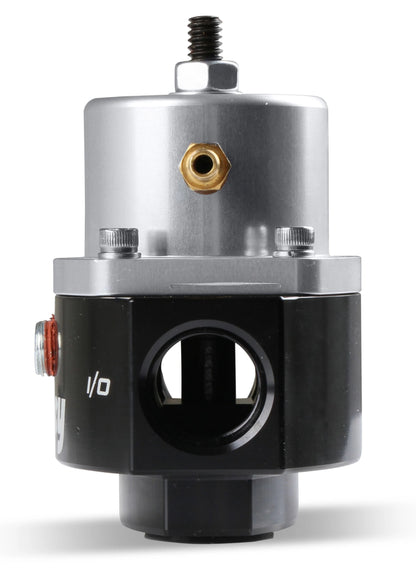

Brand New Holley Billet Carb & EFI Bypass Fuel Pressure Regulator, 1/8" NPT (Part #12-846).

Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-846 fuel pressure regulator features(1) -8 AN O-ring inlet, (1) -8 AN O-ring outlet, (1) -6 AN O-ring return.

Notes:

• Regulator is compatible with Diesel #1 and Diesel #2.

Features:

• Adjustable from 15-65 psi for precise fuel pressure adjustments

• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks

• Used in systems with a return line back to tank

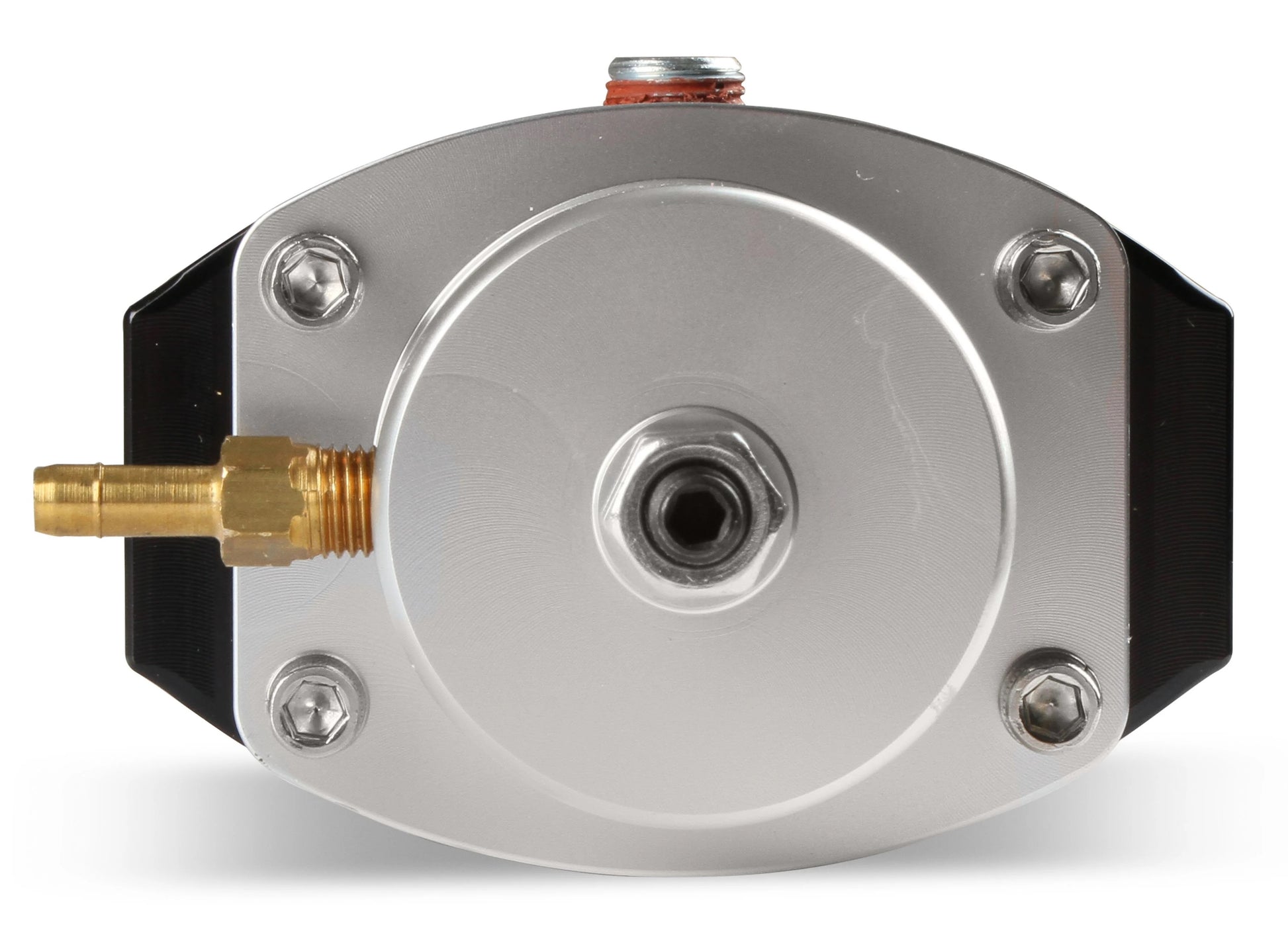

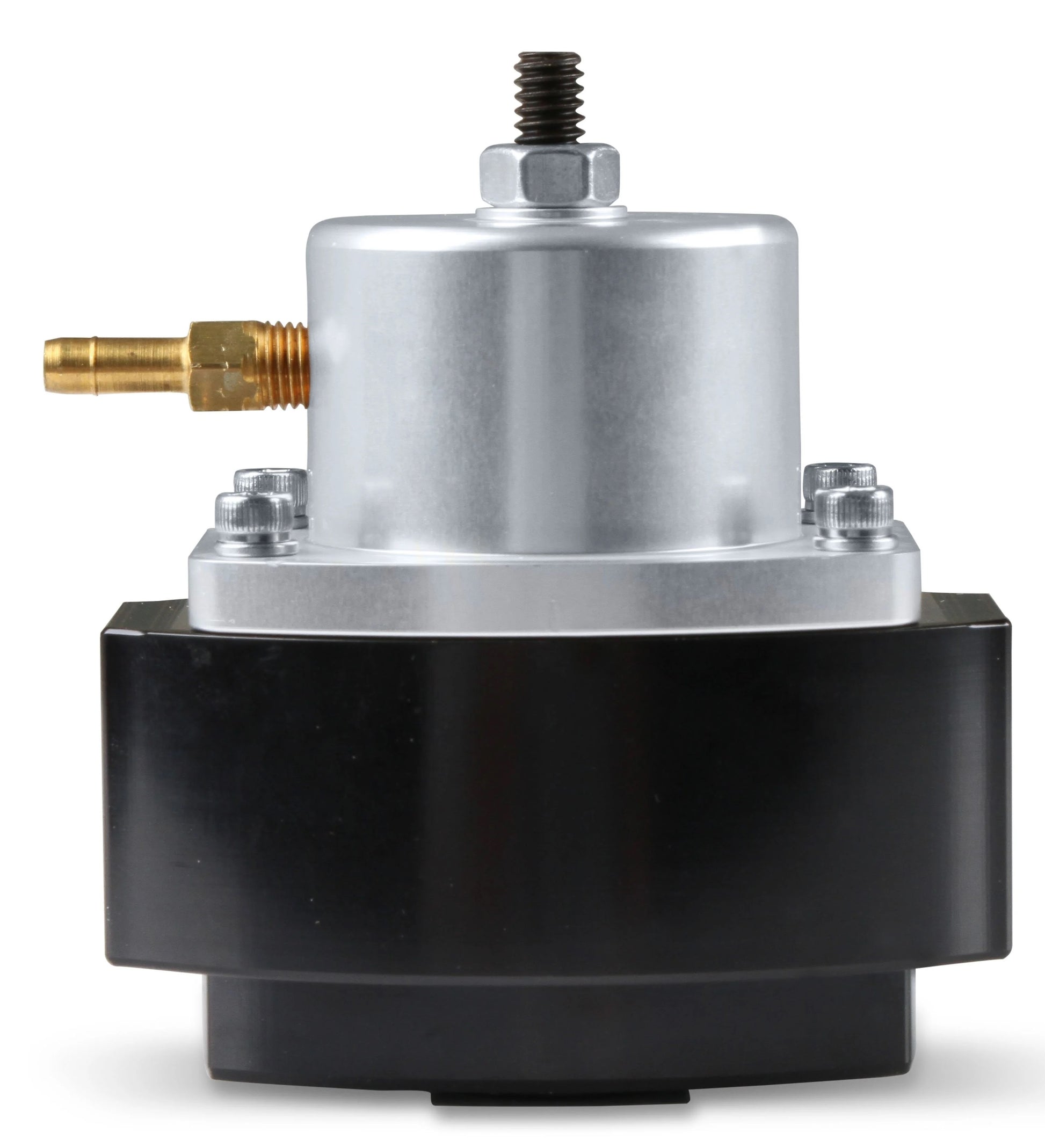

• Includes fitting for manifold reference

• Use with electric pumps only

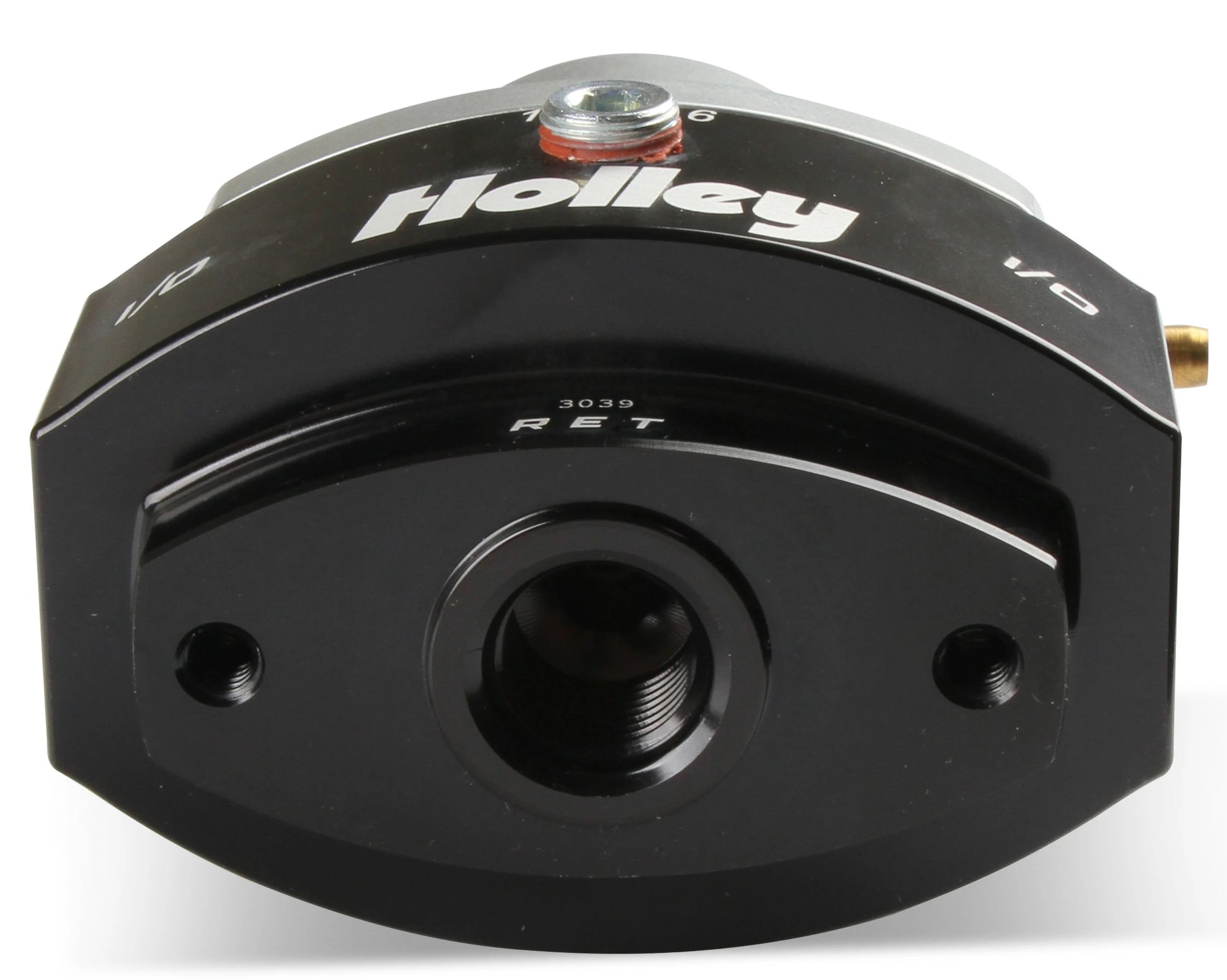

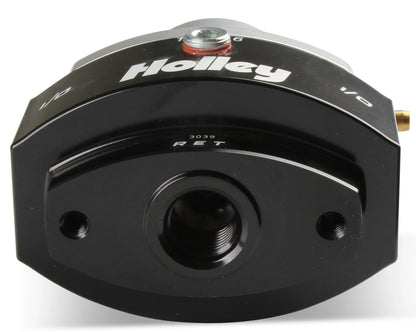

• (1) -8 an O-ring inlet, (1) -8 an O-ring outlet, (1) -6 an O-ring return

• 1/8" NPT gauge port

• Designed for use with the Holley HP in-line fuel pumps or other high pressure electric pumps where return line is needed

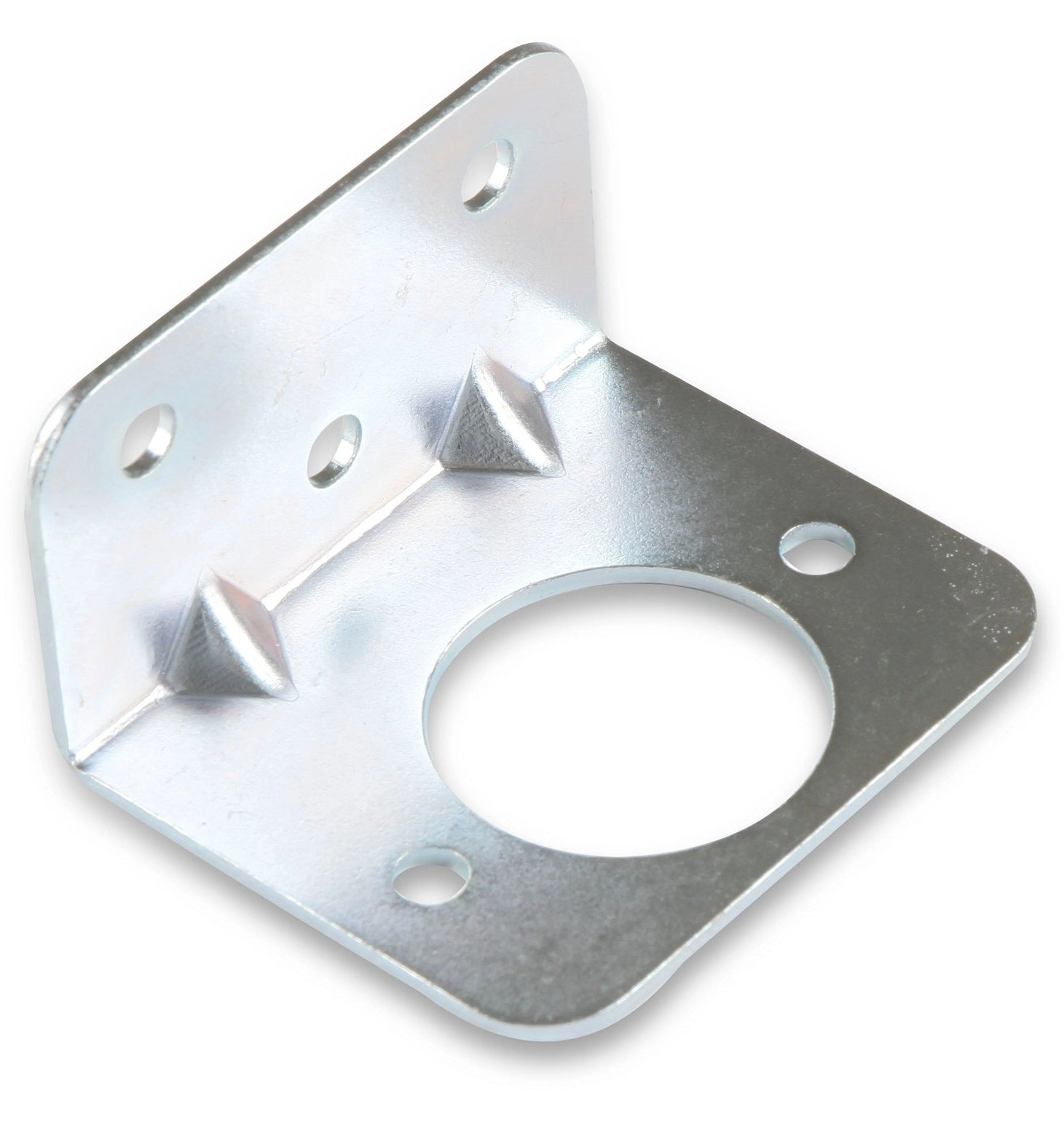

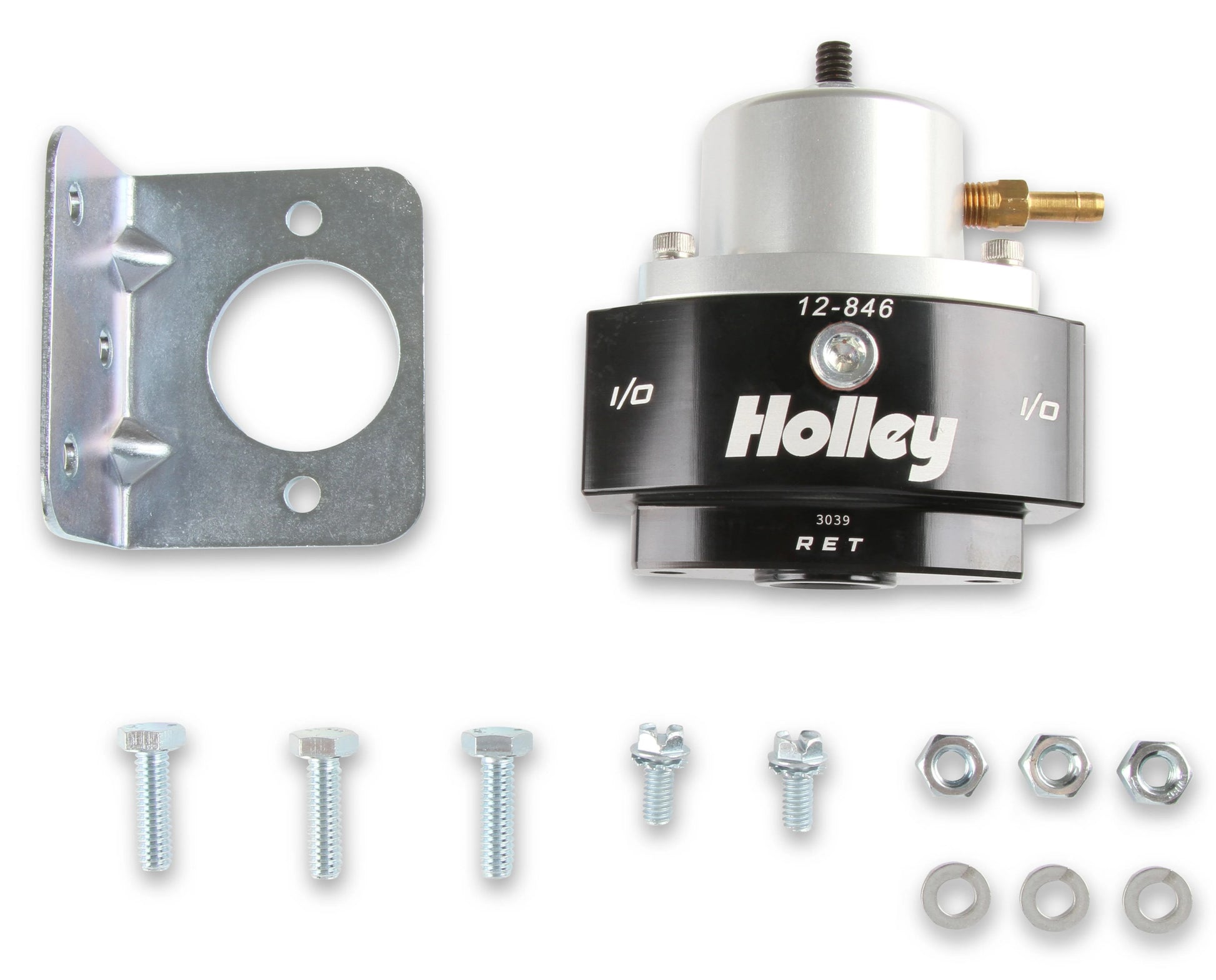

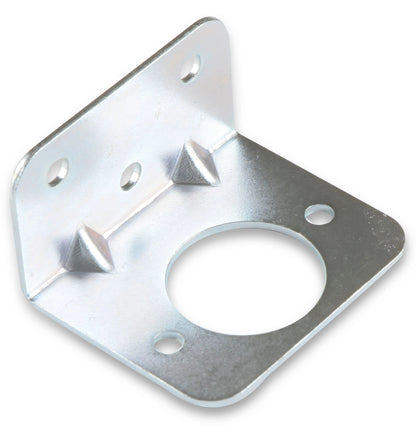

• Mounting bracket included
