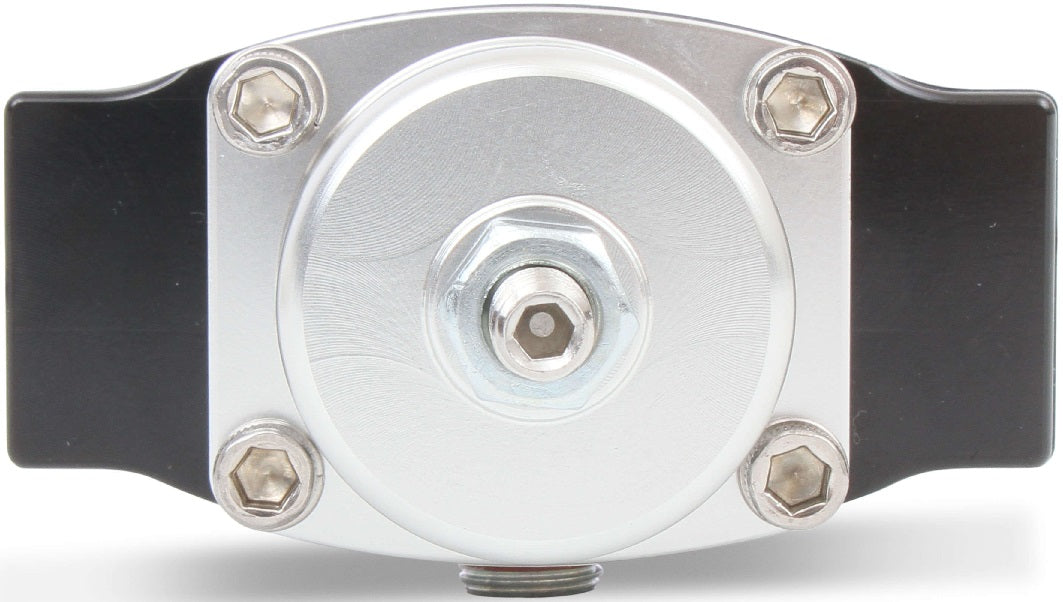

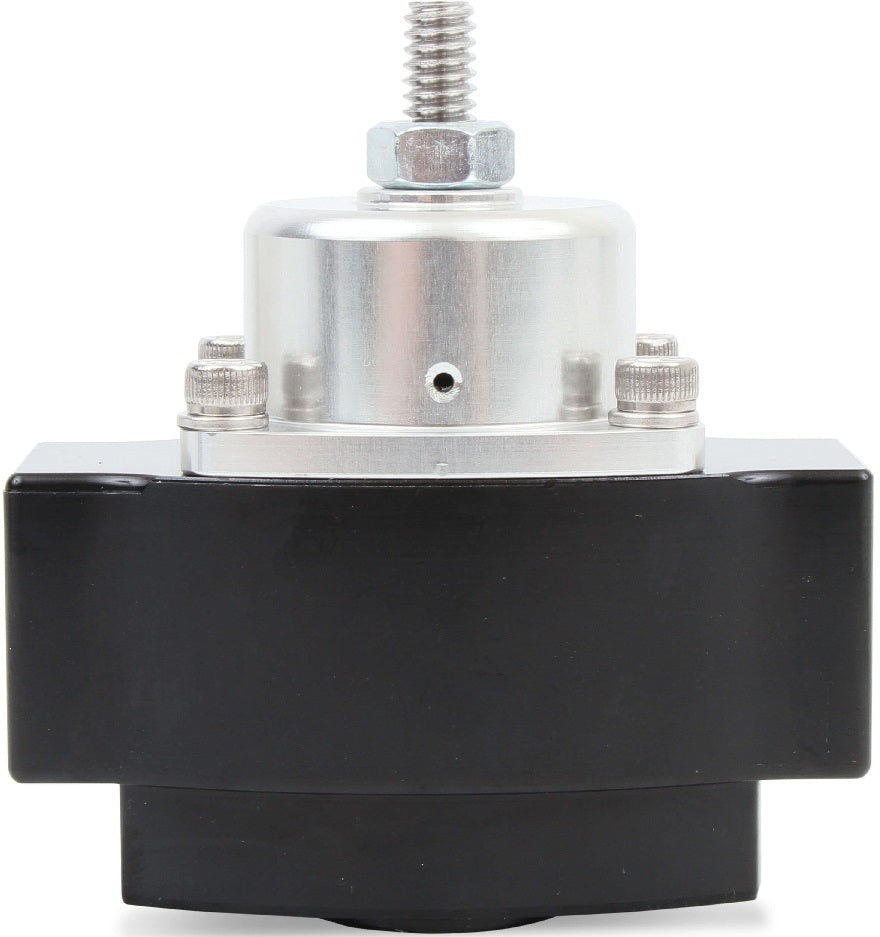

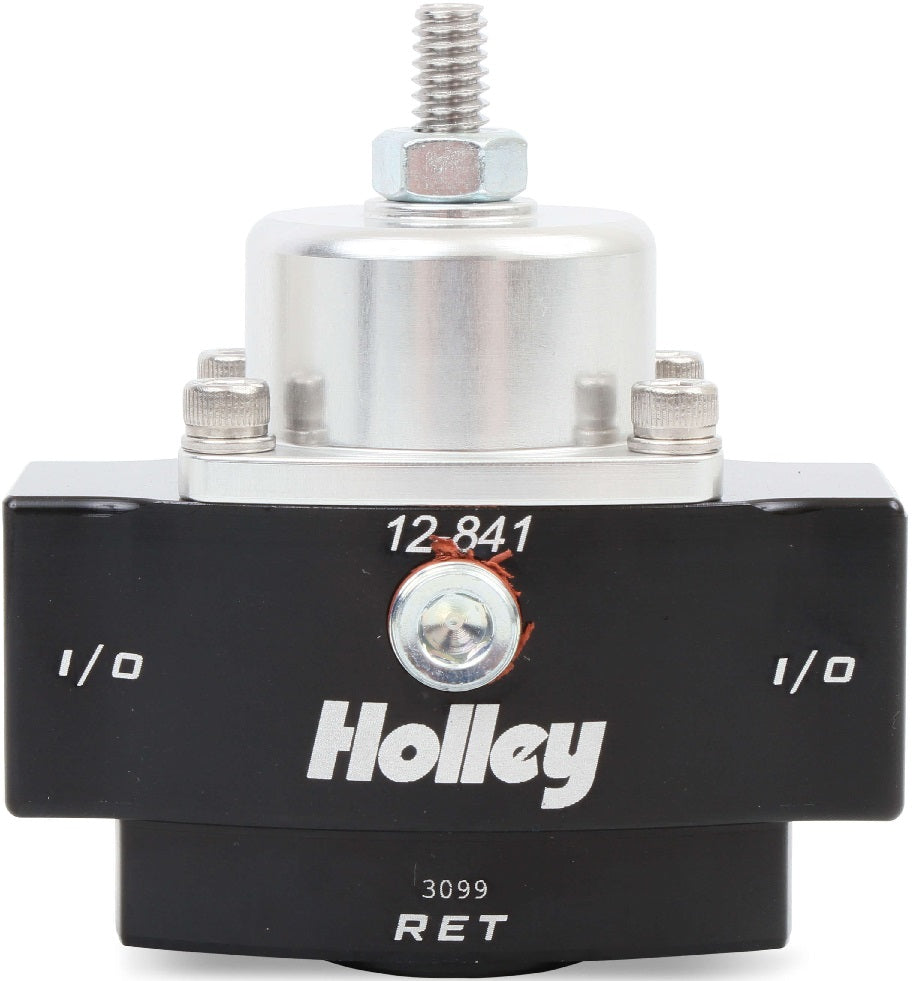

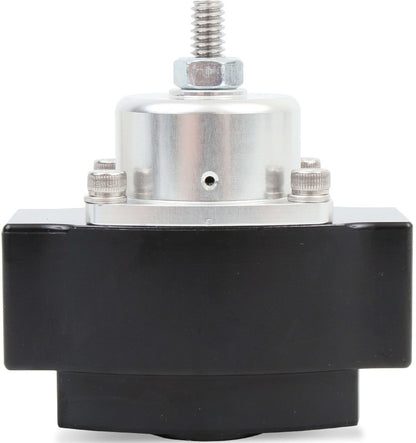

REGULATOR,BYPASS,4.5>9PSI,ADJ,BILLET,BLACK

BRAND NEW HOLLEY HP BILLET CARBURETED BY PASS FUEL PRESSURE REGULATOR, BLACK, .375" INLET & OUTLET, 4.5-9 PSI, 2 PORT ADJUSTABLE, COMPATIBLE WITH DIESEL & GASOLINE

HOLLEY BILLET FUEL PRESSURE REGULATORS ARE PART OF A COMPLETE LINE OF FUEL SYSTEM PRODUCTS FROM HOLLEY. THEY ARE PRECISION MACHINED FROM 6061-T6 BILLET ALUMINUM FOR STRENGTH AND DURABILITY. THEY FEATURE A BLACK BRIGHT DIP ANODIZED BODY AND A CLEAR BRIGHT DIP ANODIZED TOP FOR CORROSION RESISTANCE AND GOOD LOOKS. FEATURES 3/8" NPT IN/OUT PORTS AND A 3/8 NPT RETURN PORT.

NOTE: REGULATOR IS COMPATIBLE WITH DIESEL #1 AND DIESEL #2.

FEATURES:

• ADJUSTABLE FROM 4.5-9 PSI FOR PRECISE FUEL PRESSURE ADJUSTMENTS
• CONSTRUCTED OF BILLET ALUMINUM WITH A BLACK ANODIZED BASE & CLEAR ANODIZE TOP
• USED IN SYSTEMS WITH A RETURN LINE BACK TO TANK
• USE WITH ELECTRIC PUMPS ONLY
• ONE 3/8" NPT INLET, ONE 3/8" NPT OUTLET AND ONE 3/8" NPT RETURN (OR BYPASS) 1/8" NPT GAUGE PORT
• COMPARABLE AND INTERCHANGEABLE WITH POPULAR HOLLEY PART #12-803BP REGULATOR

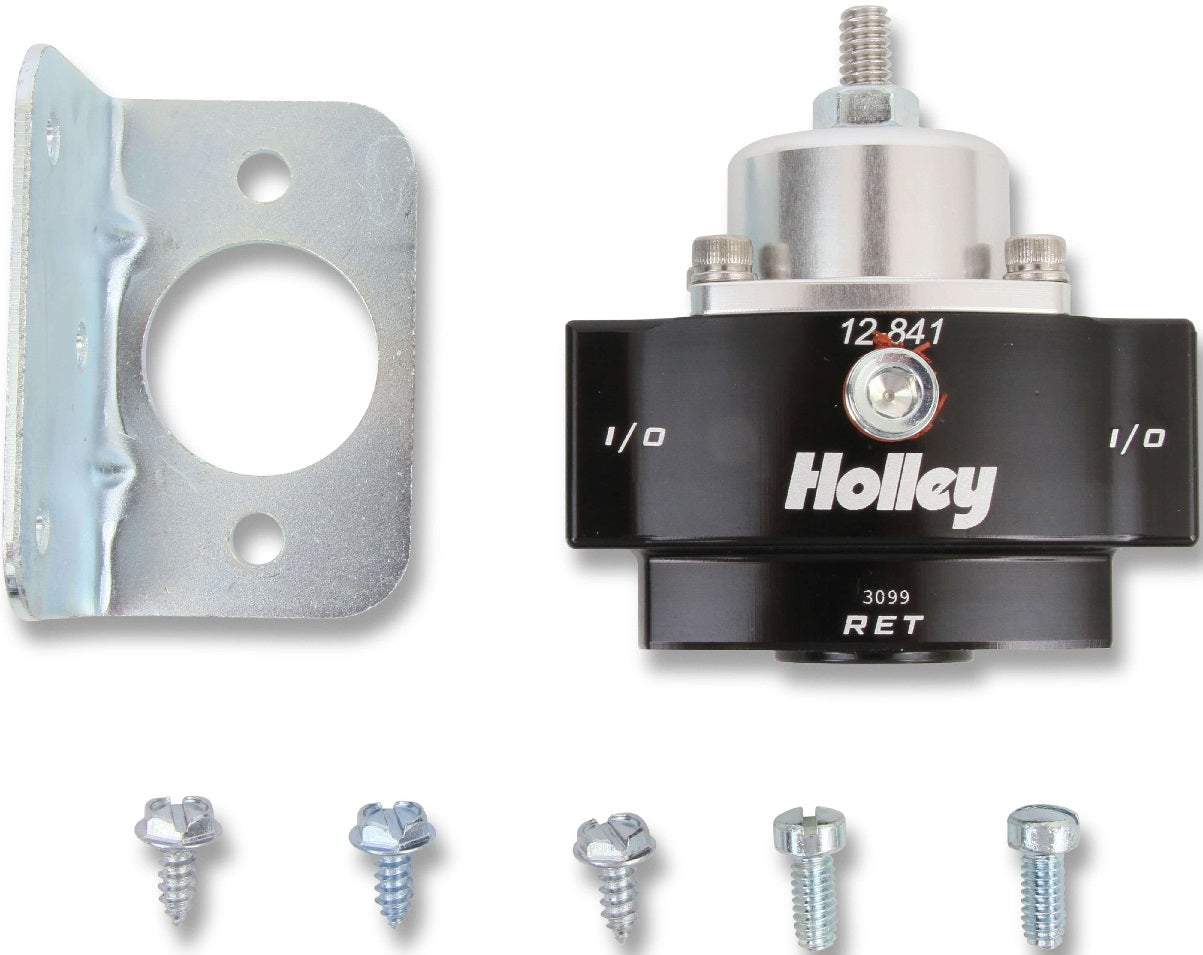

• MOUNTING BRACKET INCLUDED

SPECS:

• BRAND: HOLLEY
• COLOR: BLACK ANODIZED
• FUEL SYSTEM: CARBURETED
• FUEL TYPE: DIESEL | GASOLINE
• INLET SIZE: 3/8 INCH NPT
• MATERIAL: ALUMINUM
• OUTLET SIZE: 3/8 INCH NPT
• PRESSURE RANGE: 4.5-9 PSI
• PRODUCT TYPE: FUEL PRESSURE REGULATOR
• RETURN SIZE: 3/8 INCH NPT
• STYLE: BYPASS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PRESSURE REGULATOR HERE.
