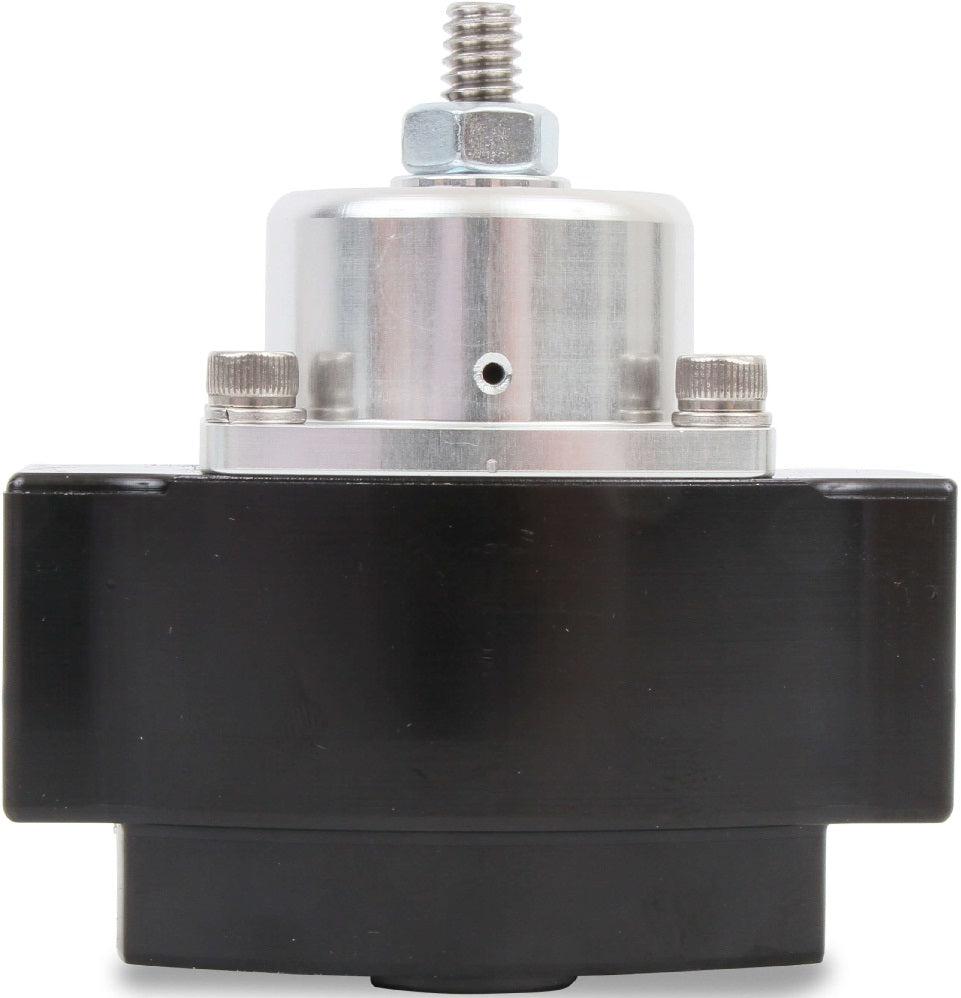

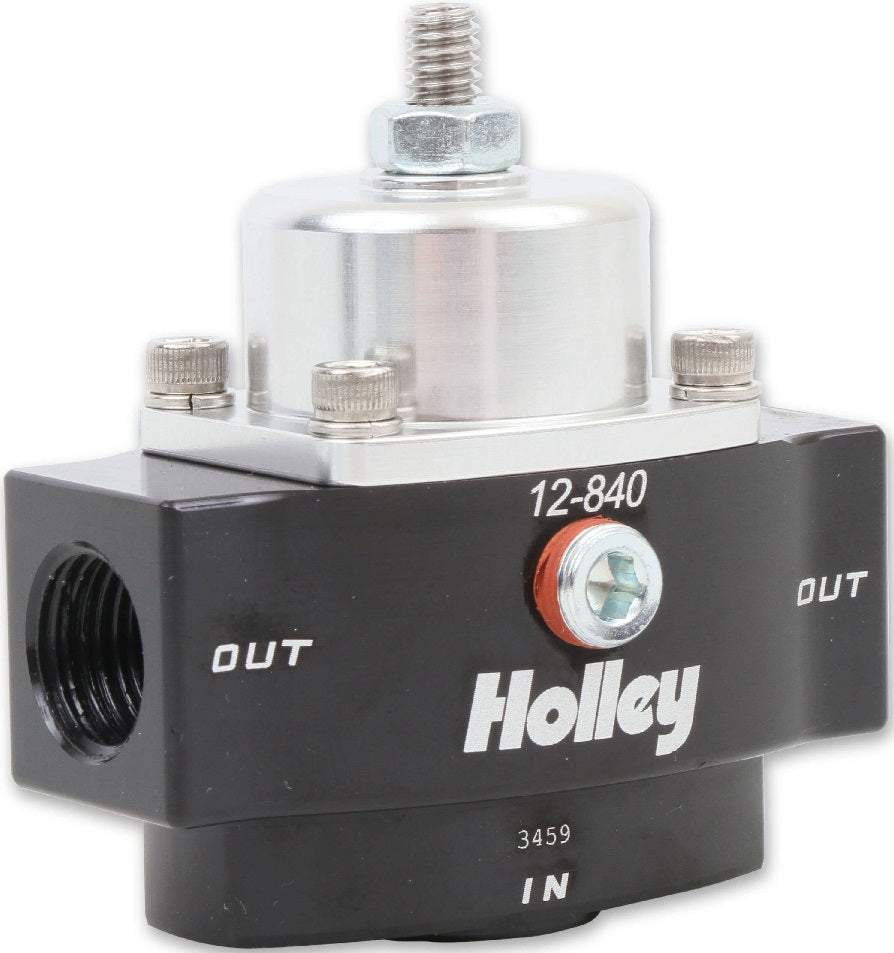

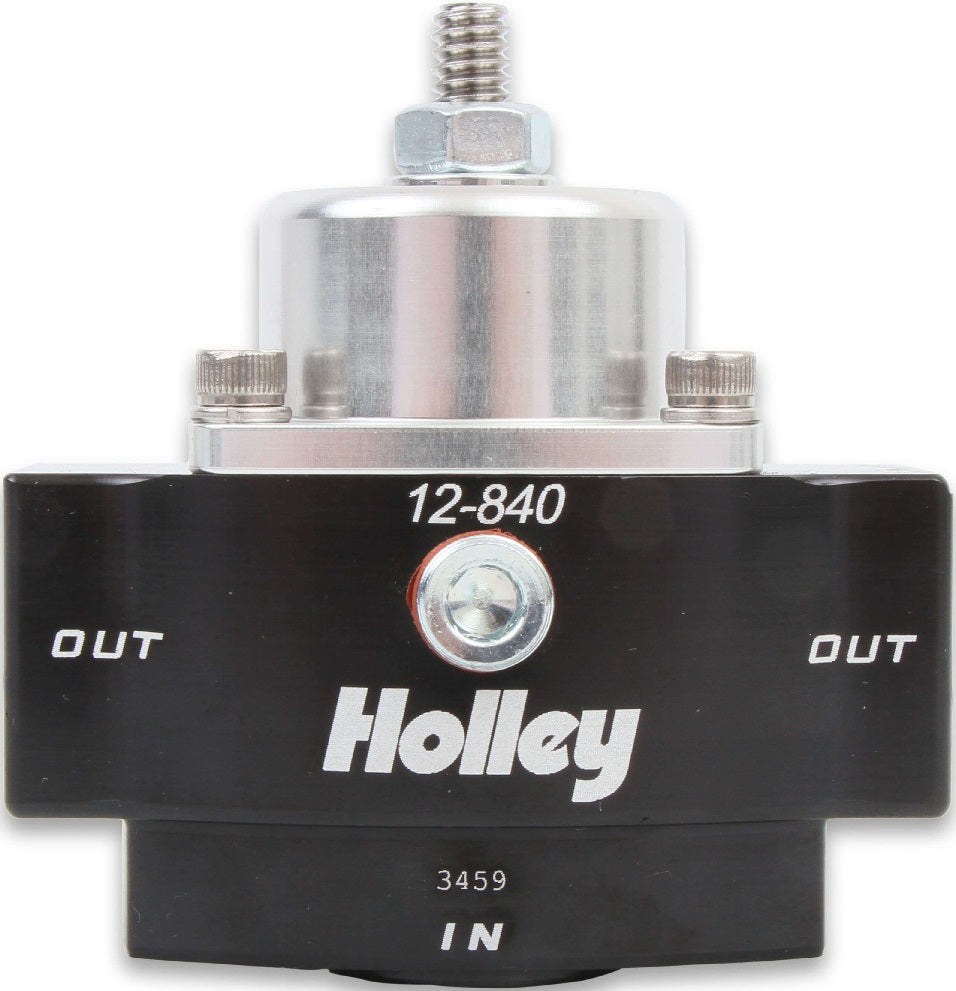

REGULATOR,BYPASS,4.5>9PSI,BILLET

BRAND NEW HOLLEY HP BILLET CARBURETED FUEL PRESSURE REGULATOR, NON-RETURN, BLACK, 2 PORT ADJUSTABLE, 4.5-9 PSI, COMPATIBLE WITH DIESEL & GASOLINE

HOLLEY BILLET FUEL PRESSURE REGULATORS ARE PRECISION MACHINED FROM 6061-T6 BILLET ALUMINUM FOR STRENGTH AND DURABILITY. THEY FEATURE A BLACK BRIGHT DIP ANODIZED BODY AND A CLEAR BRIGHT DIP ANODIZED TOP FOR CORROSION RESISTANCE AND GOOD LOOKS. IT ALSO FEATURES 3/8" NPT IN/OUT PORTS.

NOTE: REGULATOR IS COMPATIBLE WITH DIESEL #1 AND DIESEL #2.

FEATURES:

• ADJUSTABLE FROM 4.5-9 PSI FOR PRECISE FUEL PRESSURE ADJUSTMENTS
• CONSTRUCTED OF BILLET ALUMINUM WITH A BLACK ANODIZED BASE AND CLEAR ANODIZE TOP FOR GOOD LOOKS
• USED IN SYSTEMS WHERE A RETURN LINE IS NOT NEEDED
• USE WITH ELECTRIC OR MECHANICAL PUMPS
• ONE 3/8" NPT INLET AND TWO 3/8" NPT OUTLETS
• 1/8" NPT GAUGE PORT
• COMPARABLE AND INTERCHANGEABLE WITH POPULAR HOLLEY PART #12-803 REGULATOR

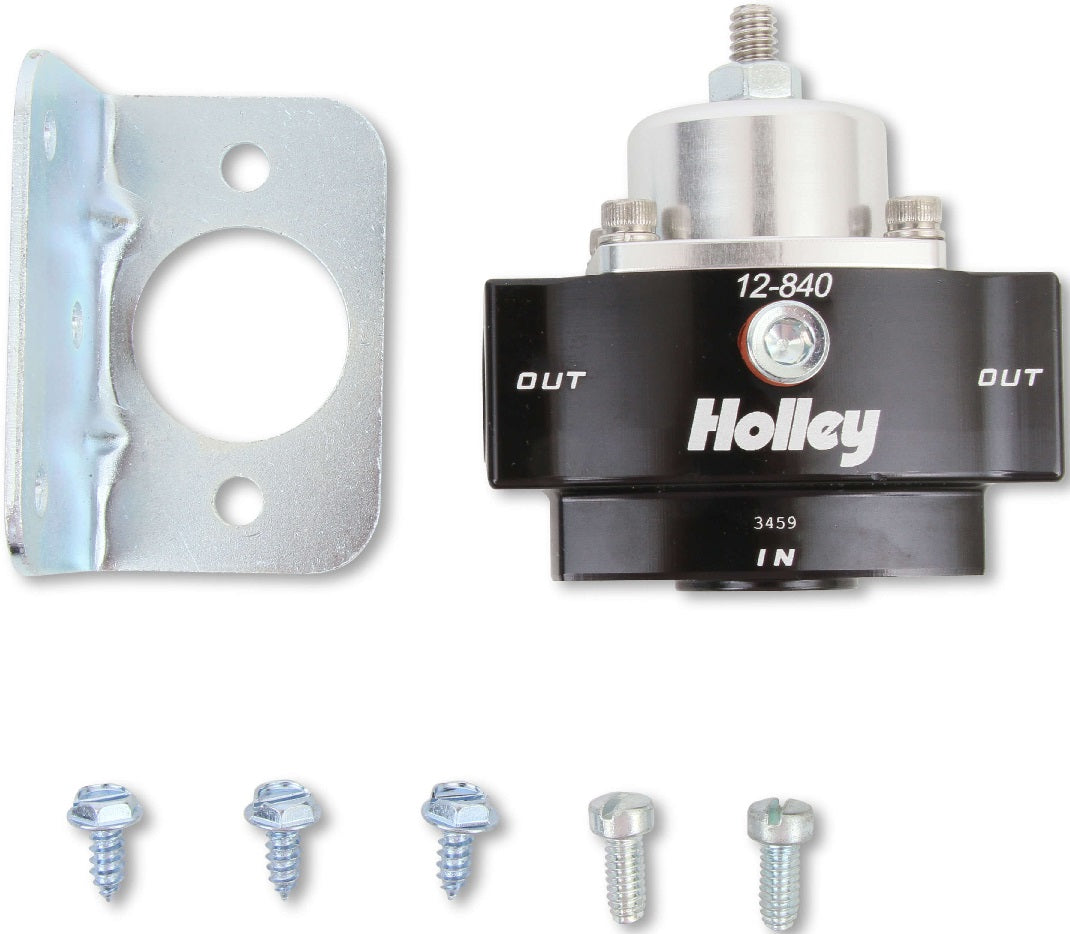

• MOUNTING BRACKET INCLUDED

SPECS:

• BRAND: HOLLEY
• COLOR: BLACK ANODIZED
• FUEL SYSTEM: CARBURETED, DIESEL & GASOLINE
• INLET & OUTLET SIZE: 3/8 INCH NPT
• MATERIAL: ALUMINUM
• PRESSURE RANGE: 4.5-9 PSI
• PRODUCT TYPE: FUEL PRESSURE REGULATOR
• STYLE: NON-RETURN

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PRESSURE REGULATOR HERE.
