REGULATOR,FUEL PRESSURE,4.5>9 PSI

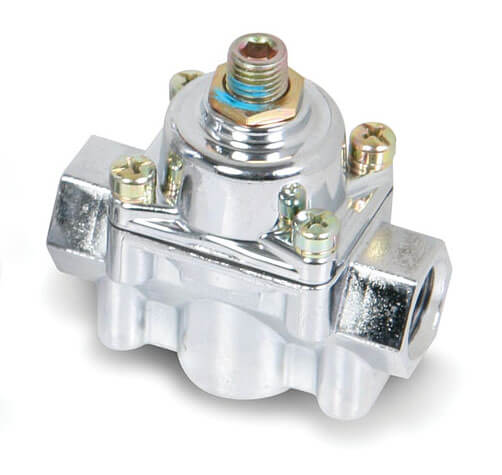

BRAND NEW HOLLEY CHROME CARBURETED FUEL PRESSURE REGULATOR

HOLLEY FUEL PRESSURE REGULATORS ARE DESIGNED TO PRECISELY CONTROL THE FUEL PRESSURE FROM THE FUEL PUMP TO THE CARBURETOR. TOO MUCH FUEL PRESSURE FOR A GIVEN NEEDLE AND SEAT ASSEMBLY CAN OVERLOAD THE NEEDLE AND SEAT AND MAY CAUSE FLOODING OR DRIVABILITY PROBLEMS. EACH HOLLEY FUEL PRESSURE REGULATOR IS FULLY ADJUSTABLE SO REGULATING THE FUEL PRESSURE TO YOUR ENGINES NEEDS IS A SIMPLE TASK. ALL HOLLEY REGULATORS ARE PRE-SET AT THE FACTORY SO THERE IS NO GUESSWORK WHEN FIRST INSTALLING THE REGULATOR. THE HOLLEY 12-803 FUEL PRESSURE REGULATOR FEATURES 3/8" NPT IN/OUT PORTS.

NOTE: IF YOU ARE USING A MECHANICAL FUEL PUMP, USE THE 12-803 REGULATOR. IF YOU ARE USING AN ELECTRIC PUMP WITH A RETURN LINE IN THE SYSTEM, USE THE 12-803BP.

FEATURES:

• ADJUSTABLE FUEL REGULATION FROM 4-1/2 TO 9 PSI
• .220" (7/32") RESTRICTION
• 3/8" NPT PORTS (1 IN, 2 OUT)
• CHROME FINISH
• MOUNTING BRACKET INCLUDED

SPECS:

• COLOR: SHINY
• EMISSION CODE: 5
• FUEL SYSTEM: GASOLINE
• INLET SIZE: 3/8" NPT
• MATERIAL: ALUMINUM
• OUTLET SIZE: 3/8" NPT
• PRESSURE RANGE: 4.5-9 PSI
• PRODUCT TYPE: FUEL PUMP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE FOR THIS FUEL PRESSURE REGULATOR HERE
