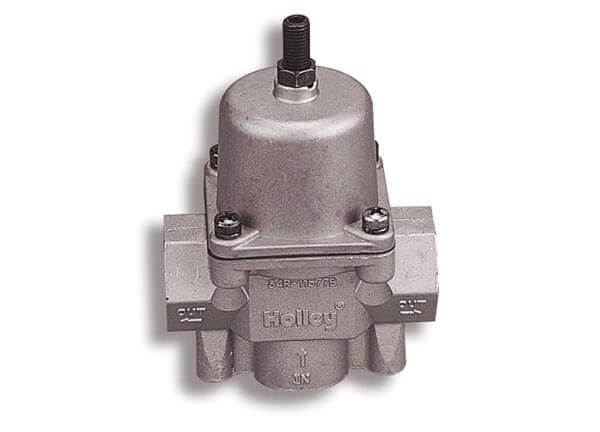

REGULATOR,CARBURETED,1/2" NPT INLET, OUTLET, BYPASS,4.5>9 PSI

BRAND NEW HOLLEY CARBURETED FUEL PRESSURE REGULATOR, STREET/STRIP CARBURETED APPLICATIONS, TWO PORT, ADJUSTABLE FROM 4.5 TO 9 PSI

HOLLEY FUEL PRESSURE REGULATORS ARE DESIGNED TO PRECISELY CONTROL THE FUEL PRESSURE FROM THE FUEL PUMP TO THE CARBURETOR. TOO MUCH FUEL PRESSURE FOR A GIVEN NEEDLE AND SEAT ASSEMBLY CAN OVERLOAD THE NEEDLE AND SEAT AND MAY CAUSE FLOODING OR DRIVABILITY PROBLEMS. EACH HOLLEY FUEL PRESSURE REGULATOR IS FULLY ADJUSTABLE SO REGULATING THE FUEL PRESSURE TO YOUR ENGINES NEEDS IS A SIMPLE TASK. ALL HOLLEY REGULATORS ARE PRE-SET AT THE FACTORY SO THERE IS NO GUESSWORK WHEN FIRST INSTALLING THE REGULATOR. THE HOLLEY 12-704 FUEL PRESSURE REGULATOR FEATURES 1/2" NPT IN/OUT PORTS.

NOTES: 1 1/2 NPT TO AN -8 AND 2 1/2 NPT TO AN -6 FOR AN STYLE FITTINGS INCLUDED

FEATURES:

• ADJUSTABLE FUEL REGULATION FROM 4-1/2 TO 9 PSI
• ONE 1/2" NPT INLET AND TWO 1/2" NPT OUTLET PORTS
• .437" (7/16") RESTRICTION
• INCLUDES MOUNTING HARDWARE AND AN STYLE FITTINGS
• ALCOHOL COMPATIBLE

SPECS:

• COLOR:
SHINY
• EMISSION CODE:
5
• PRESSURE RANGE: 4.5-9 PSI
• FUEL SYSTEM:
GASOLINE
• INLET SIZE:
1/2 INCH NPT
• OUTLET SIZE:
1/2 INCH NPT
• MATERIAL:
ALUMINUM
• PRODUCT TYPE:
FUEL PUMP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE INSTRUCTION BOOKLET FOR THIS FUEL PUMP HERE, AND THE HOLLEY FUEL SYTSTEMS CHART HERE.
