FUEL PUMP,ELECTRIC,34GPH,7-10PSI,5/16" PO

BRAND NEW HOLLEY MIGHTY MITE ELECTRIC FUEL PUMP, BLACK, 34 GPH, 7-10 PSI, 12V, .125" NPT INLET & OUTLET, COMPATIBLE WITH DIESEL, E85 & GASOLINE

HOLLEY IS PROUD TO INTRODUCE THE ALL NEW HOLLEY MIGHTY MITE ELECTRIC FUEL PUMPS! THEY ARE BIG ON PERFORMANCE, BUT SMALL IN SIZE! THEY ARE QUIET, EASY TO INSTALL & WORK WITH GAS, DIESEL, BLENDED ALCOHOL & E85!

NOTE: SHOULD BE MOUNTED WITH IN 50" OF THE FUEL TANK. IDEAL FOR USE WITH EARLS VAPOR GUARD CARBURETOR HOSE! MOUNTING HOLES ARE 2 3/8" APART

NOTE: THIS MODEL DOES NOT HAVE A ONE-WAY CHECK VALVE OR AN ANTI-SIPHON VALVE, SO FUEL CAN BE PULLED IN EITHER DIRECTION WHEN THE PUMP IS TURNED OFF.

FEATURES:

• 12 VOLT OPERATION
• 7-10 PSI OPERATING PRESSURE
• 34 GAL/HR FLOW
• GOOD FOR UP TO 400HP NATURALLY ASPIRATED
• RELIABLE SOLID STATE DESIGN PROVIDES LONGER LIFE
• NOT DESIGNED FOR USE ON AIRCRAFT OF ANY TYPE
• COMPATIBLE WITH ALL FUELS & FUEL ADDITIVES (GAS, DIESEL, BLENDED ALCOHOL, ETHANOL, E-85)
• SIMPLE 2 WIRE HOOKUP
• SELF-PRIMING & REGULATING
• 50" DRY LIFT CAPABLE
• QUIET OPERATION - 65DB
• GREAT FOR CARBURETED TRUCKS, CARS, GENERATORS & AGRICULTURAL EQUIPMENT - ALSO MAKES A GREAT TRANSFER PUMP
• ENGINEERED & MATCHED PERFORMANCE WITH HOLLEY, DEMON, QUICK FUEL & EDELBROCK CARBURETORS

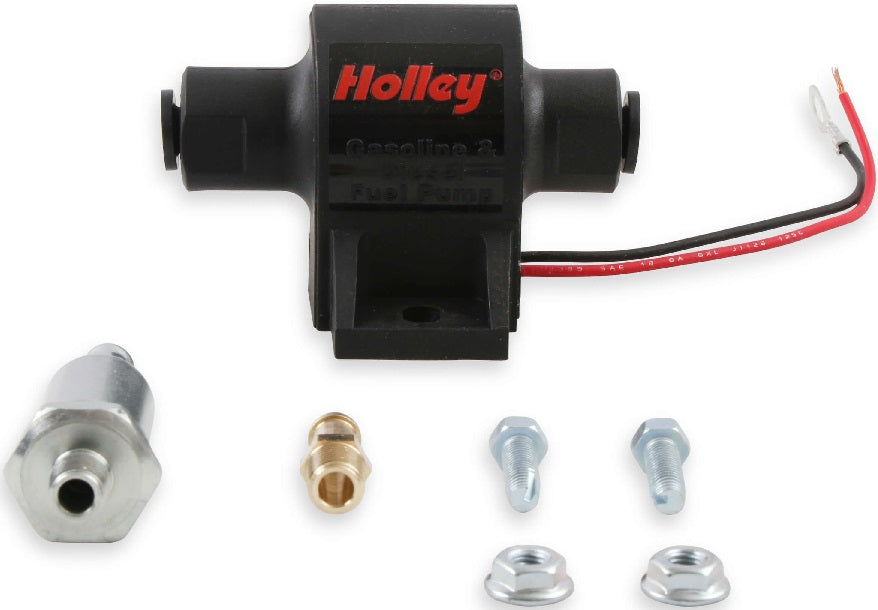

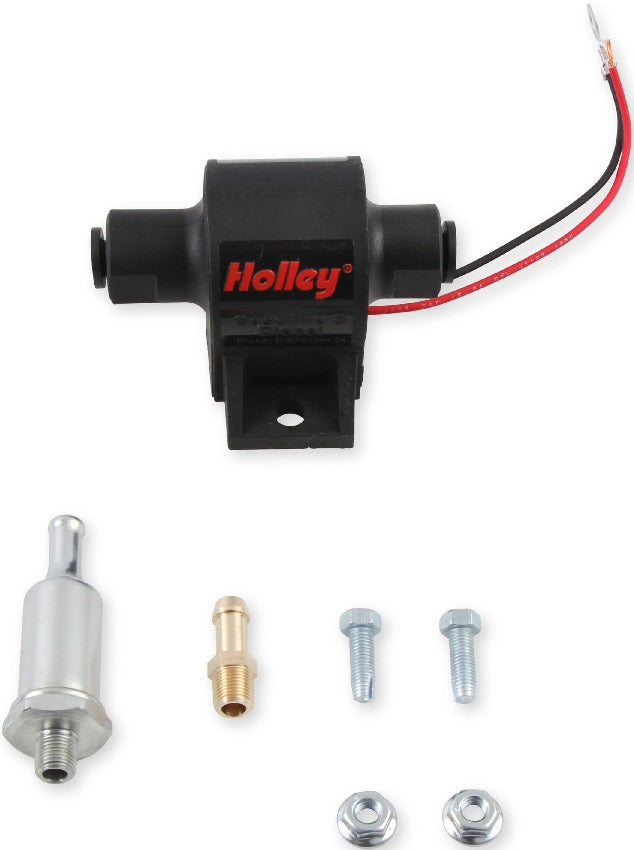

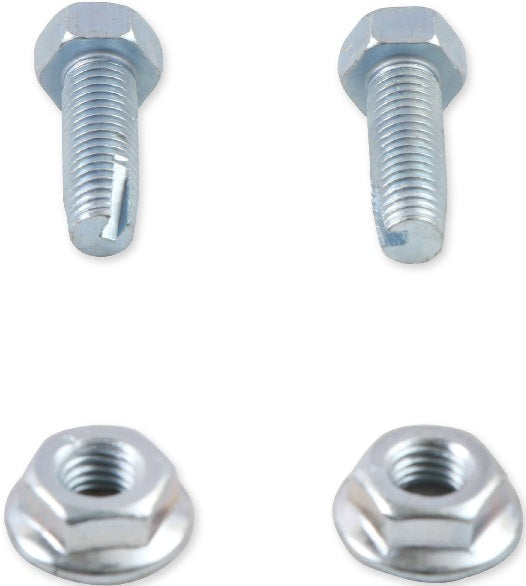

• COMES WITH FUEL FILTER, FITTINGS & MOUNTING HARDWARE

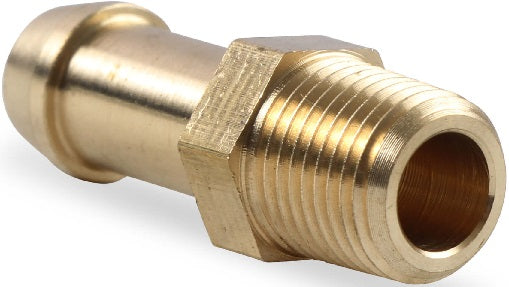

• HOSE BARBS FIT 5/16" FUEL HOSE

SPECS:

• APPLICATION: UNIVERSAL
• BRAND: MIGHTY MITE
• FREE FLOW GPH: 34
• FREE FLOW LPH: 129
• FUEL SYSTEM: CARBURETED
• FUEL TYPE: DIESEL | GASOLINE
• HOSE SIZE: 5/16
• INLET SIZE: 1/8 INCH NPT
• MATERIAL: STEEL
• MAX PRESSURE: 10 PSI
• MOTOR FINISH: BLACK
• OUTLET SIZE: 1/8 INCH NPT
• PRODUCT TYPE: FUEL PUMP
• PUMP BODY COLOR: BLACK

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PUMP HERE.
