FUEL PUMP,ELECTRIC,25GPH,1.5-4PSI,5/16" PO

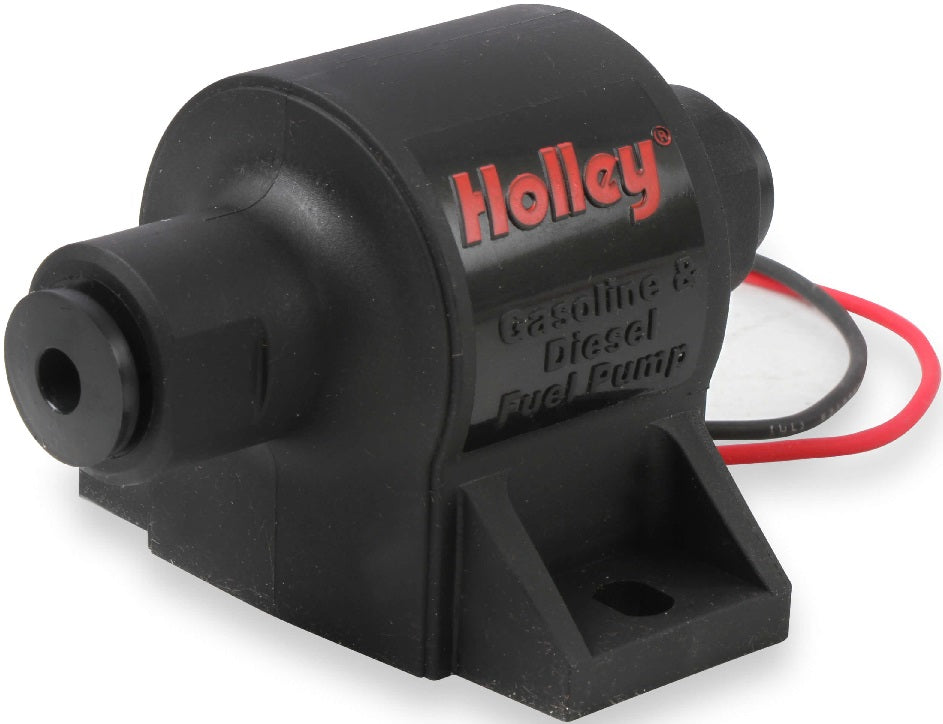

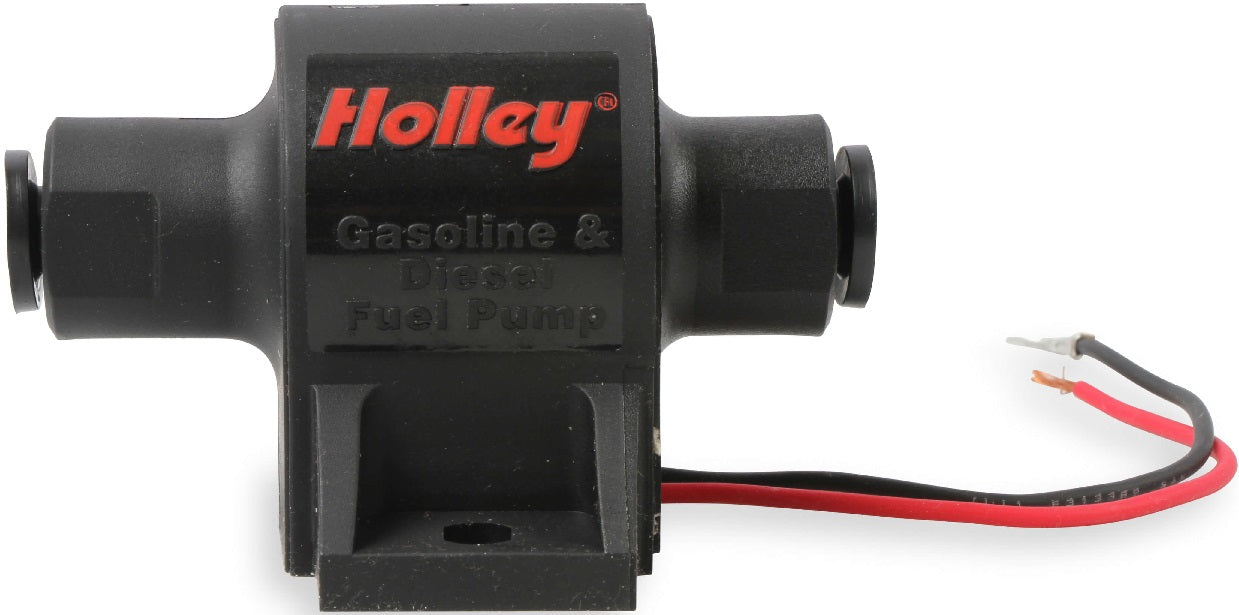

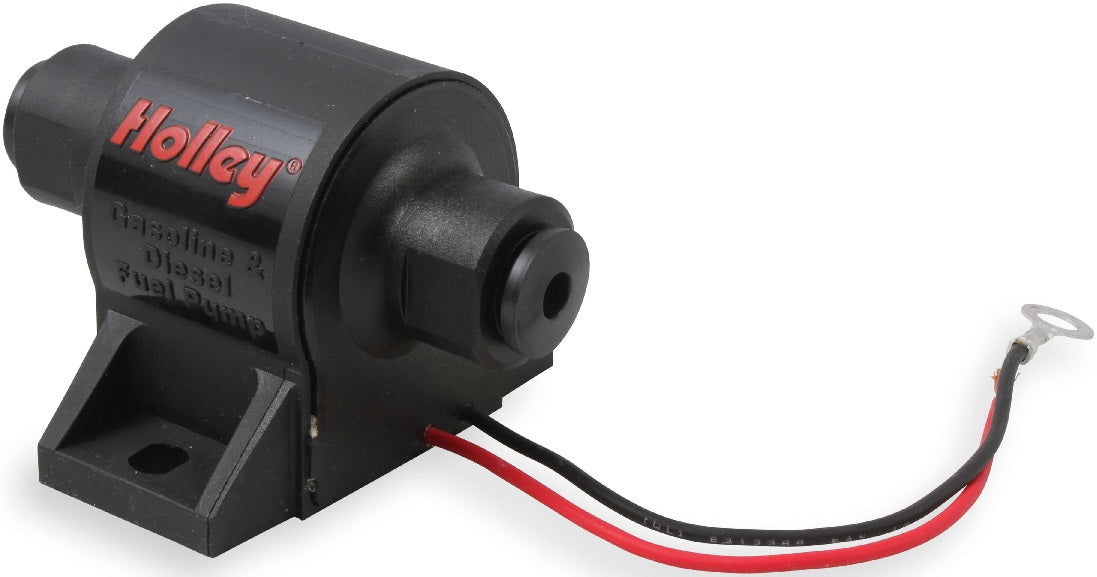

BRAND NEW HOLLEY MIGHTY MITE ELECTRIC FUEL PUMP, BLACK, 25 GPH, 1.5-4 PSI, 12V, .125" NPT INLET & OUTLET, COMPATIBLE WITH DIESEL, E85 & GASOLINE

HOLLEY IS PROUD TO INTRODUCE THE ALL NEW HOLLEY MIGHTY MITE ELECTRIC FUEL PUMPS! THEY ARE BIG ON PERFORMANCE, BUT SMALL IN SIZE! THEY ARE QUIET, EASY TO INSTALL AND WORK WITH GAS, DIESEL, BLENDED ALCOHOL & E85!

NOTE: SHOULD BE MOUNTED WITH IN 12" OF THE FUEL TANK. IDEAL FOR USE WITH EARLS VAPOR GUARD CARBURETOR HOSE! MOUNTING HOLES ARE 2 3/8" APART

NOTE: THIS MODEL DOES NOT HAVE A ONE-WAY CHECK VALVE OR AN ANTI-SIPHON VALVE, SO FUEL CAN BE PULLED IN EITHER DIRECTION WHEN THE PUMP IS TURNED OFF.

FEATURES:

• 12 VOLT OPERATION
• 1.5-4 PSI OPERATING PRESSURE
• 25 GAL/HR FLOW
• GOOD FOR UP TO 300HP NATURALLY ASPIRATED
• RELIABLE SOLID STATE DESIGN PROVIDES LONGER LIFE
• NOT DESIGNED FOR USE ON AIRCRAFT OF ANY TYPE
• COMPATIBLE WITH ALL FUELS AND FUEL ADDITIVES (GAS, DIESEL, BLENDED ALCOHOL, E-85)
• SIMPLE 2 WIRE HOOKUP
• SELF-PRIMING AND REGULATING
• 12" DRY LIFT CAPABLE
• QUIET OPERATION - 65DB
• GREAT FOR CARBURETED TRUCKS, CARS, GENERATORS AND AGRICULTURAL EQUIPMENT - ALSO MAKES A GREAT TRANSFER PUMP
• ENGINEERED AND MATCHED PERFORMANCE WITH HOLLEY, DEMON, QUICK FUEL & EDELBROCK CARBURETORS

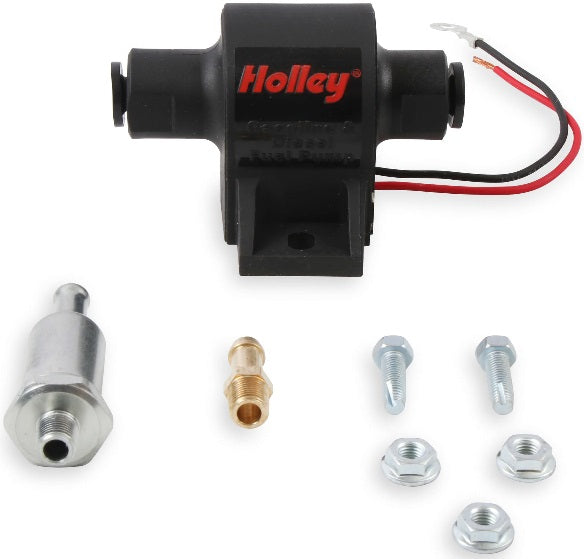

• COMES WITH FUEL FILTER, FITTINGS & MOUNTING HARDWARE
• HOSE BARBS FIT 5/16" FUEL HOSE

SPECS:

• APPLICATION: UNIVERSAL
• BRAND: MIGHTY MITE
• FREE FLOW GPH: 25
• FREE FLOW LPH: 95
• FUEL SYSTEM: CARBURETED
• FUEL TYPE: DIESEL | E85 | GASOLINE
• HOSE SIZE: 5/16
• INLET SIZE: 1/8 INCH NPT
• MATERIAL: STEEL
• MAX PRESSURE: 4 PSI
• MOTOR FINISH: BLACK
• OUTLET SIZE: 1/8 INCH NPT
• PRODUCT TYPE: FUEL PUMP
• PUMP BODY COLOR: BLACK

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PUMP HERE, AND THE FUEL SYSTEMS SELECTIONS CHART HERE.
