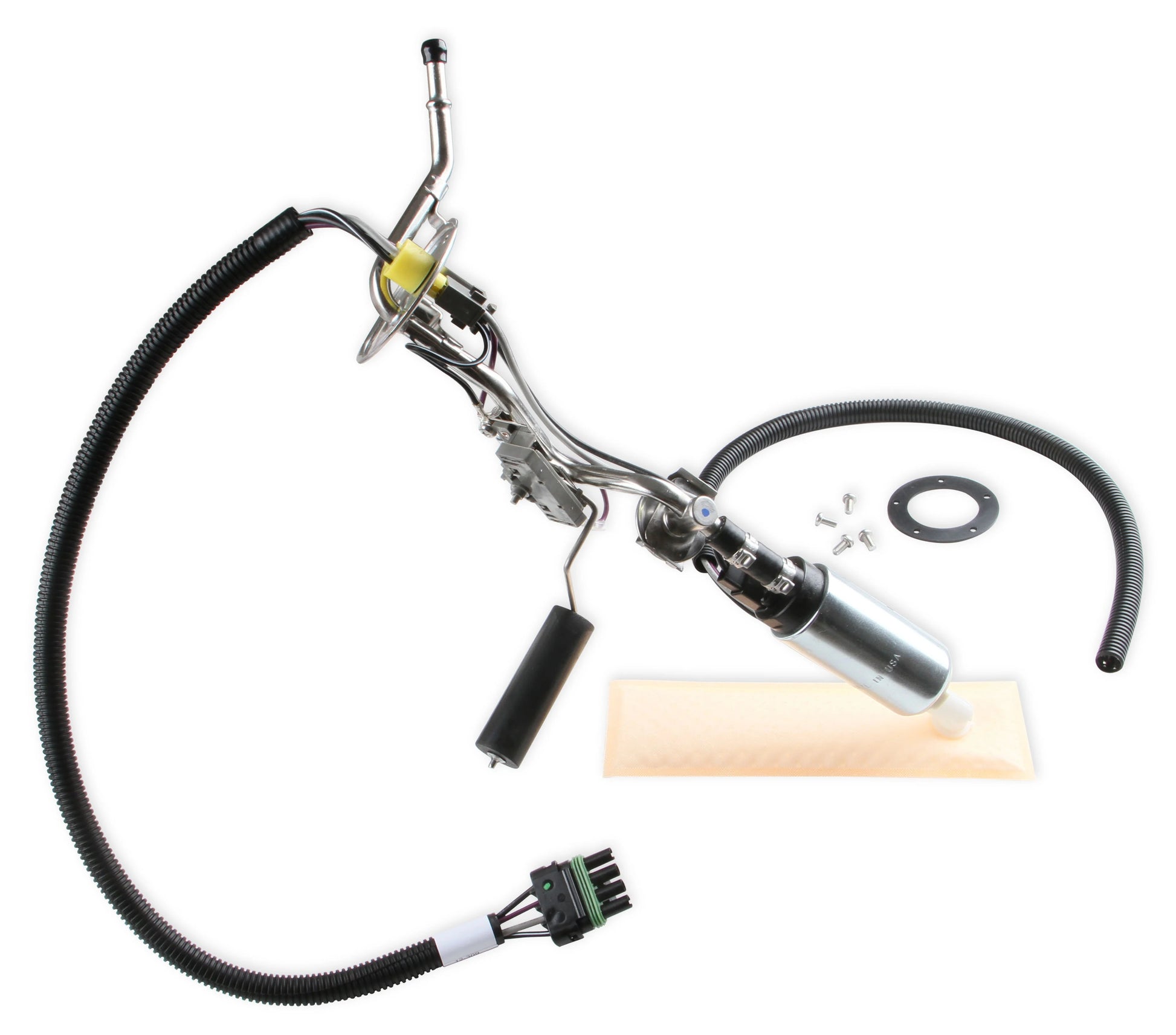

FUEL TANK MODULE KIT,OE STYLE,350LPH,55-57 CHEVY

Brand New Holley EFI Fuel Tank Module, 350 LPH, Compatible with 1955-1957 Chevrolet Cars (Holley Part #12-379).

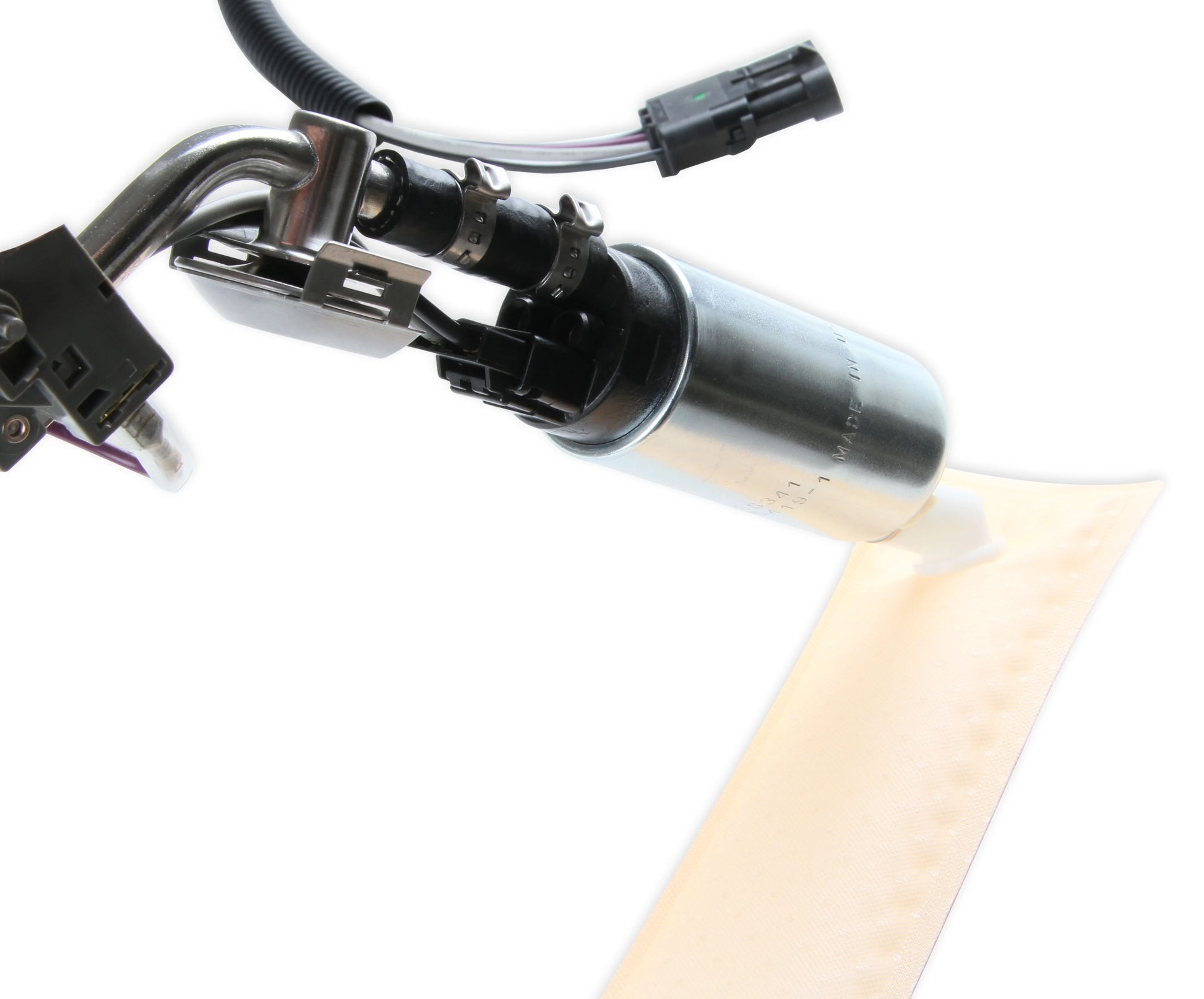

This in-tank fuel pump module is a high-pressure unit that flows 350 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 750 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates. Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1955-1957 Chevrolet Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 350 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

NOTE: The pump is not compatible for use with PWM (Pulse-width Modulation). Not compatible with wagon or delivery models.

Compatible with:

• Chevrolet:
  • 1955-1957 One-Fifty Series
  • 1955-1957 Two-Ten Series
  • 1955-1957 Bel Air

Features:

• Supports up to 750 horsepower

• Flows 350 liters per hour

• Internally regulated to 58 PSI

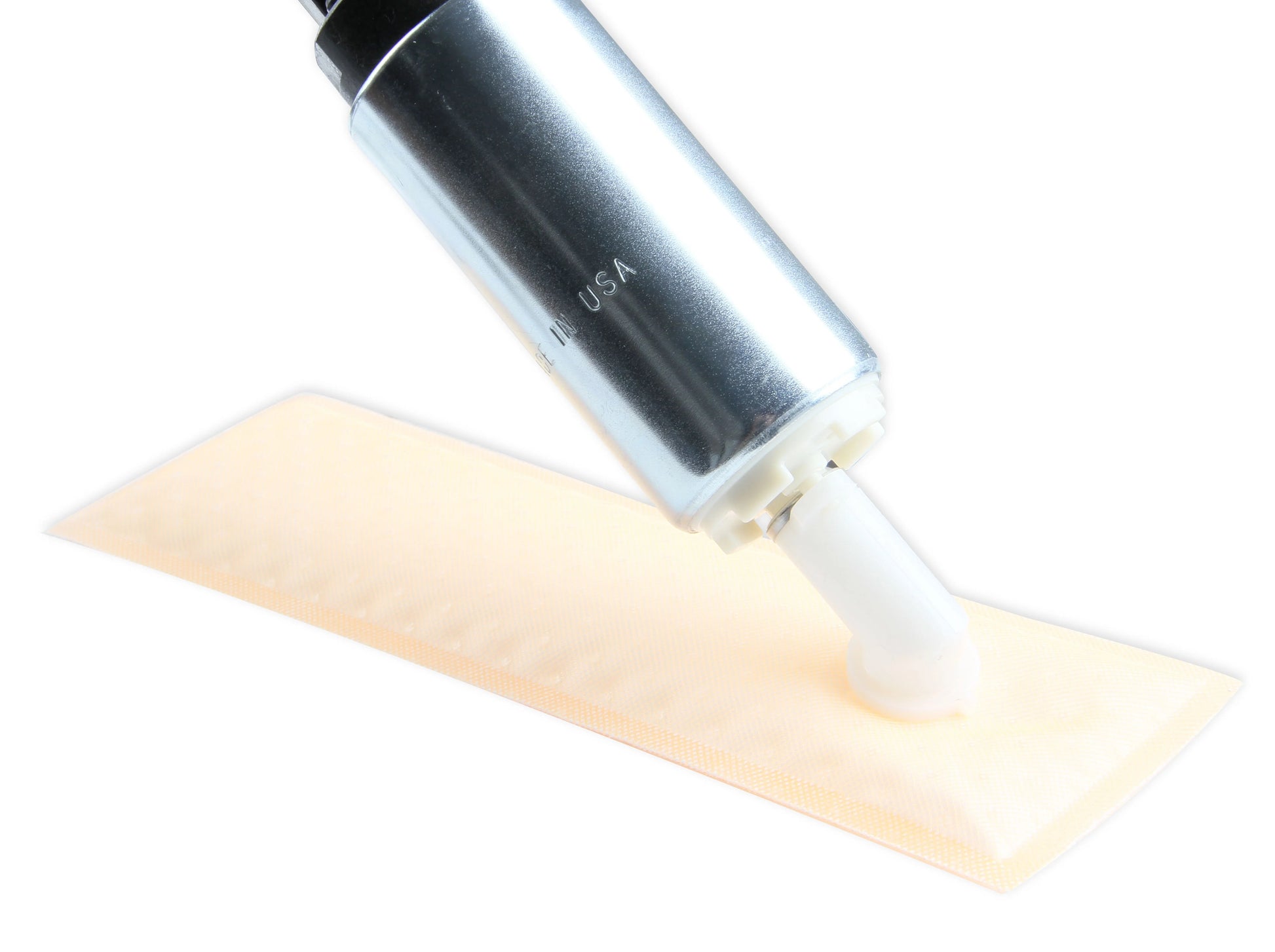

• Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues

Specs:

• Average Flow Rating: 350 LPH
• Fuel Sending Unit Ohms: 0-30 Ohms
• Fuel Type: Gasoline
• Inlet Diameter: 5/16"
• Pump Type: Electric

You can view and download the complete assembly instruction booklet here.
