FUEL TANK MODULE KIT,OE STYLE,350LPH,74-81 CAMARO

Brand New Holley EFI Fuel Tank Module, 350 LPH, Compatible with 1974-1981 Camaro & Firebird (Part #12-374).

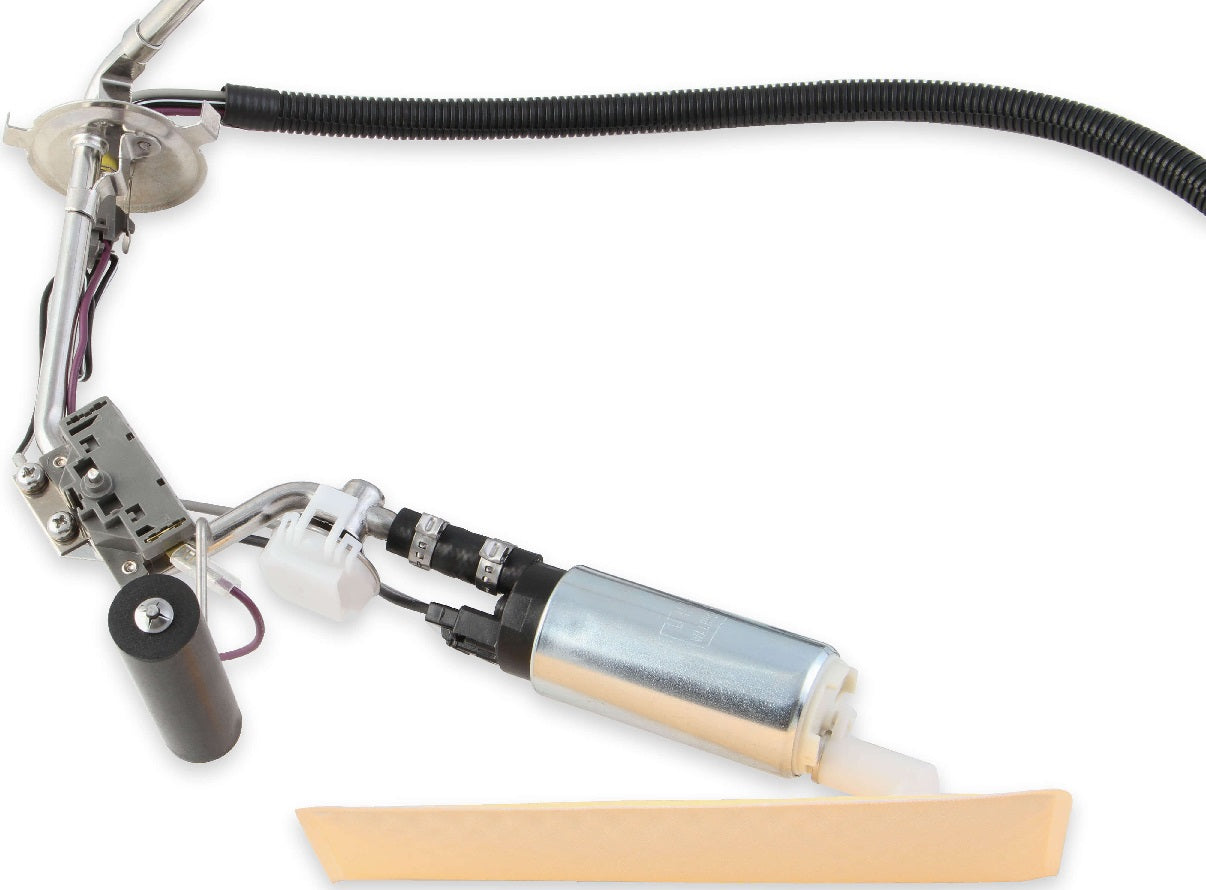

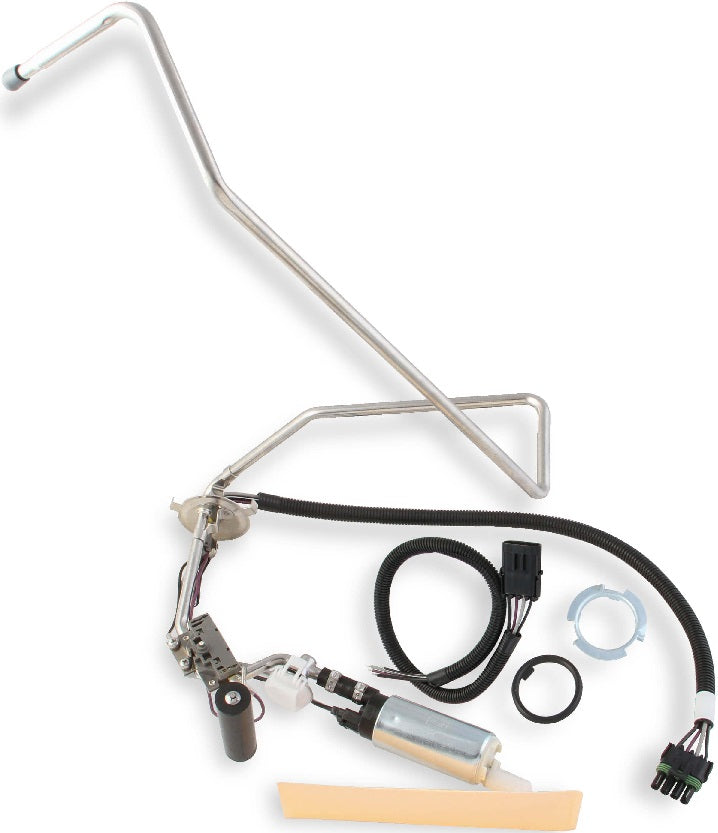

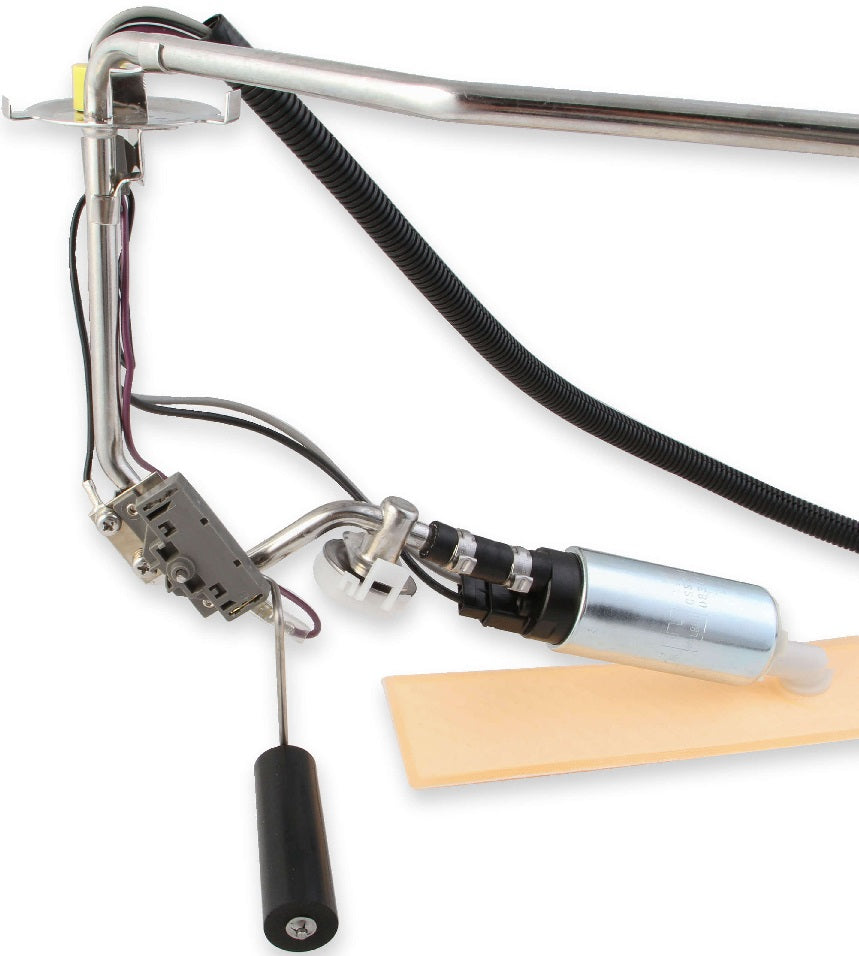

This in-tank fuel pump module is a high-pressure unit that flows 350 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 750 horsepower. A pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates. Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1977-1981 F-body Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 350 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

Compatible with:

• Buick:
  • 1975-1977 Skylark
• Chevrolet:
  • 1974-1981 Camaro
  • 1975-1979 Nova
• Pontiac:
  • 1974-1981 Firebird

Notes:

• For 1980-81 Firebird/Trans-am applications and any older model Firebirds that have swapped in a Chevrolet small Block engine - If the your car was equipped with the SBC (305 and 350) engine, the fuel line was routed up the passenger side of the chassis like our 12-374 is designed. (SBC fuel pump on passenger side of the engine. Just like Camaro with SBC)
• If your car was built from the factory with the Pontiac or Oldsmobile engine (mechanical fuel pump is on the drivers side of engine), they ran the factory fuel line up the drivers side of the chassis. Thus, using a different fuel sending unit from the factory. Modification of the fuel lines will be necessary when connecting the 12-374 to the Pontiac/Oldsmobile engine chassis plumbing.

Features:

• Supports up to 750 horsepower

• Flows 350 liters per hour

• Internally regulated to 58 PSI

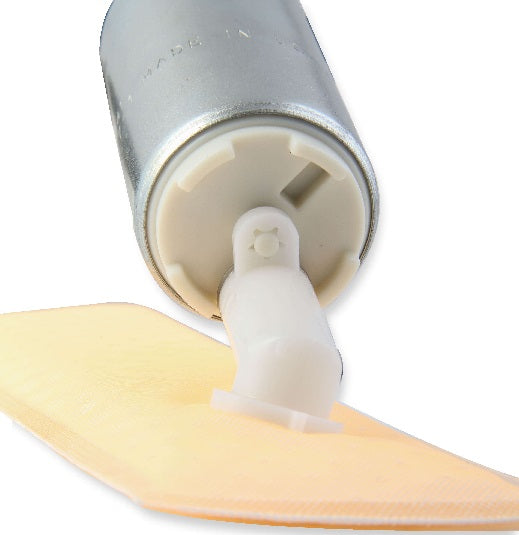

• Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues

Specs:

• Average Flow Rating: 350 LPH
• Fuel Sending Unit Ohms: 0-90 Ohms
• Fuel Type: Gasoline
• Inlet Diameter: 5/16"
• Outlet Outside Diameter: 3/8"
• Pump Type: Electric
• In Tank or External: In Tank
• Maximum Pressure: 58 PSI

You can view and download the complete assembly instruction booklet here.
