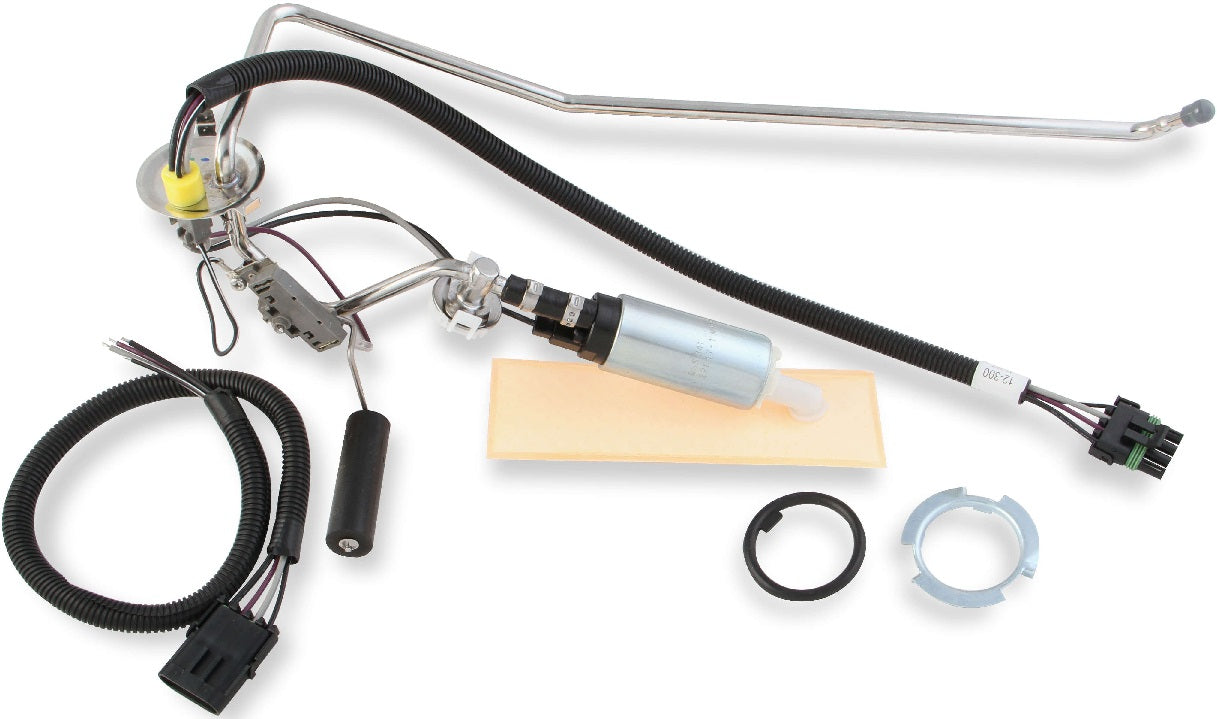

FUEL TANK MODULE KIT,OE STYLE,350LPH,67-69 CAMARO

BRAND NEW HOLLEY EFI FUEL TANK MODULE, 350 LPH, 5/16" INLET DIAMETER, COMPATIBLE WITH 1967-1969 CAMARO

FUEL PRESSURE IS INTERNALLY REGULATED TO 58 PSI ELIMINATING THE ADDED EXPENSE AND EFFORT OF PURCHASING AND INSTALLING AN EXTERNAL FUEL PRESSURE REGULATOR - NO SEPARATE RETURN LINE IS REQUIRED BECAUSE THIS MODULE RETURNS EXCESS FUEL RIGHT INSIDE THE TANK! THIS 1967-69 GM F-BODY MUSCLE CAR EFI FUEL PUMP MODULE WAS DESIGNED AS A DIRECT REPLACEMENT FOR YOUR FACTORY PICK-UP AND SENDING UNIT. NO NEED TO PURCHASE A CUSTOM EFI FUEL TANK.

YOU CAN RETAIN THE FACTORY FUEL HARD LINE, JUST CONNECT THE OUTLET OF THE PUMP MODULE TO THE HARD LINE ON YOUR VEHICLE WITH EFI-RATED FUEL HOSE & HOSE CLAMPS AVAILABLE IN THE EARLS VAPOR GUARD LINE. INCLUDES A 350 LPH FUEL PUMP AND A HOLLEY HYDRAMAT. HYDRAMAT IS A FUEL RESERVOIR SYSTEM THAT REDUCES FUEL STARVATION ISSUES THAT MIGHT OTHERWISE OCCUR WHILE CORNERING, ACCELERATING, STOPPING, TRAVERSING INCLINES & DURING LOW FUEL CONDITIONS.

NOTE: NOT COMPATIBLE FOR USE WITH PWM (PULSE-WIDTH MODULATION).

COMPATIBLE WITH:

• CHEVROLET:
• 1967-1969 CAMARO
• 1969-1972 NOVA
• GMC:
• 1967-1969 FIREBIRD
• 1971-1972 VENTURA

FEATURES:

• THIS IN-TANK FUEL PUMP MODULE IS A HIGH-PRESSURE UNIT THAT FLOWS 350 LITERS PER HOUR (LPH) AND IS CAPABLE OF SUPPORTING ELECTRONIC FUEL INJECTION (EFI) ENGINES PRODUCING UP TO 750 HORSEPOWER
• A PRE-CALIBRATED FUEL-LEVEL SENDING UNIT DESIGNED TO WORK WITH THE FACTORY FUEL GAUGE FOR THIS APPLICATION IS INCLUDED

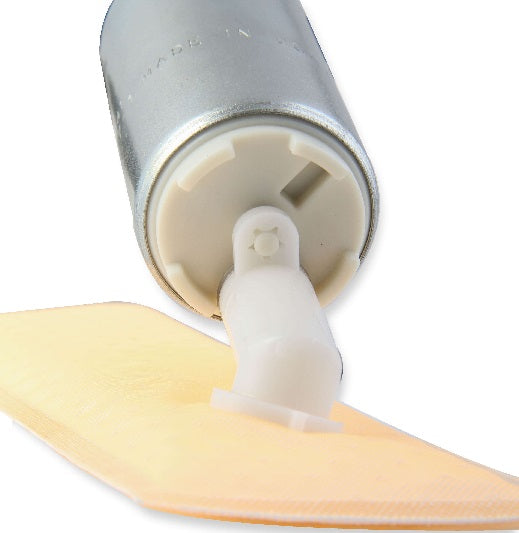

• THIS MODULE ALSO FEATURES A HYDRAMAT FILTER WHICH HAS A UNIQUE INTERNAL RESERVOIR THAT KEEPS FUEL AVAILABLE AT THE PICK-UP AND ALSO PROVIDES PROTECTION FROM CONTAMINATES

SPECS:

• BRAND: HOLLEY SNIPER EFI
• FREE FLOW LPH: 350
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• FUEL TYPE: GASOLINE
• INLET DIAMETER (IN): 5/16"
• MATERIAL: STEEL & PLASTIC
• PRODUCT TYPE: FUEL PUMP MODULE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PUMP MODULE HERE.
